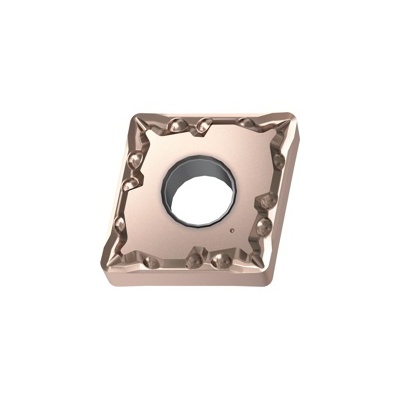

YG1-22002097 – Cngg120402-Sf Yg401

Original price was: $23.86.Current price is: $16.35.

Indexable Insert

Sold in boxes of 10 only — price shown is per insert. Quantity 10 = one box of 10 inserts.

UPC: N/A SKU: YG1-22002097 Categories: Indexable, Indexable, Indexable Insert, YG-1

EDP No.	22002097
Description	CNGG120402-SF YG401
Size
Available Qty.	Call for availability

Specifications

Series	CNGG
ANSI Code	CNGG430.5-SF
ISO Code	CNGG120402-SF
ANSI	ANSI
Shape	Rhombic 80°
# of Cutting Edges	4
Clearance Angle	0°
IC Tolerance (± inch)	0.001
IC Tolerance (± mm)	0.025
Height Tolerance (± inch)	0.005
Height Tolerance (± mm)	0.127
Thickness Tolerance (± inch)	0.005
Thickness Tolerance (± mm)	0.127
Insert Type	With clamping hole, chipbreaker on both sides
Insert IC (inch)	0.5
Insert IC (mm)	12.7
Thickness (in)	0.1875
Thickness (mm)	4.762
Corner Radius (in)	0.0078
Corner Radius (mm)	0.198
Edge Length (in)	0.362
Edge Length (mm)	9.195
Chipbreaker Geometry	SF
Chipbreaker Application	Heat Resistant Super Alloy Finishing
Wiper Edge Clearance	0°
Feed rate	.004-.010
Grade	YG401
Material	Carbide
Coating Process	PVD
Coating	TiAlSiN
Type	TURNING NEGATIVE INSERT
Application	Super Alloys
System of Measurement	Inch
Application code	S

PVD Turning Grade for HRSA. Highly heat-resistant TiAlSiN structure for excellent wear resistance. Greatly improved film coating realizes excellent boundary defect resistance. Top coating layer provides a smooth surface and lubricant effect.
