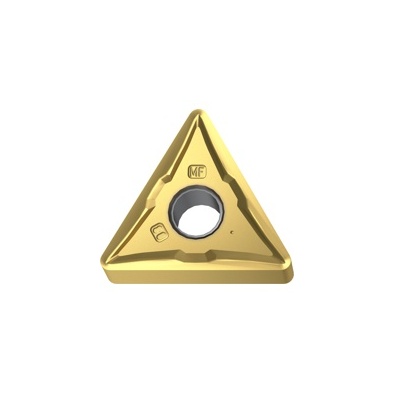

YG1-22002297 – TNMG160404-MM-YG401/TNMG331-MM – Indexable Turning Insert

Original price was: $17.76.Current price is: $12.20.

TNMG160404-MM-YG401/TNMG331-MM — YG-1 Indexable Turning Insert.

Sold in boxes of 10 only — price shown is per insert. Quantity 10 = one box of 10 inserts.

UPC: N/A SKU: YG1-22002297 Categories: Indexable, Indexable, Indexable Insert, YG-1

EDP No.	22002297
Description	TNMG160404-MM-YG401/TNMG331-MM
Size/Dimension	TNMG160404-MM-YG401/TNMG331-MM
Material	Carbide
Series	TNMG, TNMG33
Package	Box of 10 pieces (price shown per piece)
Available Qty.	Call for availability

Specifications

Series	TNMG
ANSI Code	TNMG331-MM
ISO Code	TNMG160404-MM
ANSI	ANSI
Shape	Triangular
# of Cutting Edges	6
Depth of Cut	3
Clearance Angle	0°
IC Tolerance (± inch)	0.002
IC Tolerance (± mm)	0.051
Height Tolerance (± inch)	0.005
Height Tolerance (± mm)	0.127
Thickness Tolerance (± inch)	0.005
Thickness Tolerance (± mm)	0.127
Insert Type	With clamping hole, chipbreaker on both sides
Insert IC (inch)	0.375
Insert IC (mm)	9.525
Thickness (in)	0.1875
Thickness (mm)	4.762
Corner Radius (in)	0.0156
Corner Radius (mm)	0.397
Edge Length (in)	0.618
Edge Length (mm)	15.697
Chipbreaker Geometry	MM
Chipbreaker Application	Stainless Steel Medium
Wiper Edge Clearance	0°
Grade	YG401
Material	Carbide
Coating Process	PVD
Coating	TiAlSiN
Type	TURNING NEGATIVE INSERT
Application	Super Alloys
System of Measurement	Inch
Application code	S

PVD Turning Grade for HRSA. Highly heat-resistant TiAlSiN structure for excellent wear resistance. Greatly improved film coating realizes excellent boundary defect resistance. Top coating layer provides a smooth surface and lubricant effect.
