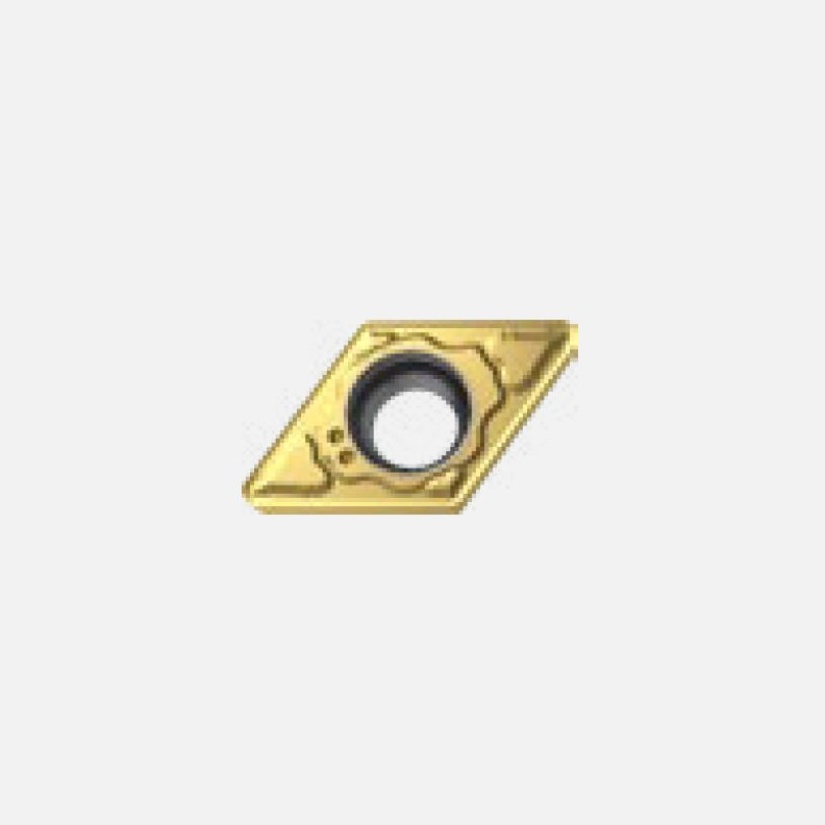

YG1-22002975 – DCMT11T308-PM-YG3030/DCMT32.52-PM – Indexable Turning Insert

Original price was: $23.65.Current price is: $16.20.

DCMT11T308-PM-YG3030/DCMT32.52-PM — YG-1 Indexable Turning Insert.

Sold in boxes of 10 only — price shown is per insert. Quantity 10 = one box of 10 inserts.

UPC: N/A SKU: YG1-22002975 Categories: Indexable, Indexable, Indexable Insert, YG-1

EDP No.	22002975
Description	DCMT11T308-PM-YG3030/DCMT32.52-PM
Size/Dimension	DCMT11T308-PM-YG3030/DCMT32.52-PM
Material	Carbide
Series	DCMT, DCMT32.5
Package	Box of 10 pieces (price shown per piece)
Available Qty.	Call for availability

Specifications

Series	DCMT
ANSI Code	DCMT32.52-PM
ISO Code	DCMT11T308-PM
ANSI	ANSI
Shape	Rhombic 55°
# of Cutting Edges	2
Clearance Angle	7°
IC Tolerance (± inch)	0.002
IC Tolerance (± mm)	0.051
Height Tolerance (± inch)	0.005
Height Tolerance (± mm)	0.127
Thickness Tolerance (± inch)	0.005
Thickness Tolerance (± mm)	0.127
Insert Type	With Screw hole, chipbreaker on one side only
Insert IC (inch)	0.375
Insert IC (mm)	9.525
Thickness (in)	0.125
Thickness (mm)	3.175
Corner Radius (in)	0.0312
Corner Radius (mm)	0.794
Edge Length (in)	0.441
Edge Length (mm)	11.2014
Chipbreaker Geometry	PM
Chipbreaker Application	Steel Medium (First Choice)
Wiper Edge Clearance	7°
Grade	YG3030
Material	Carbide
Coating Process	CVD
Coating	TiCN-Al2O3
Type	TURNING POSITIVE INSERT
Application	Steel
System of Measurement	Inch
Application code	P

Interrupted Cutting of Steel and Stainless steel. Substrate for heavy roughing in mild steel and low carbon alloy steel. New Al2O3 technology and optimized surface treatment achieves a good balance between wear resistance and chipping resistance.
