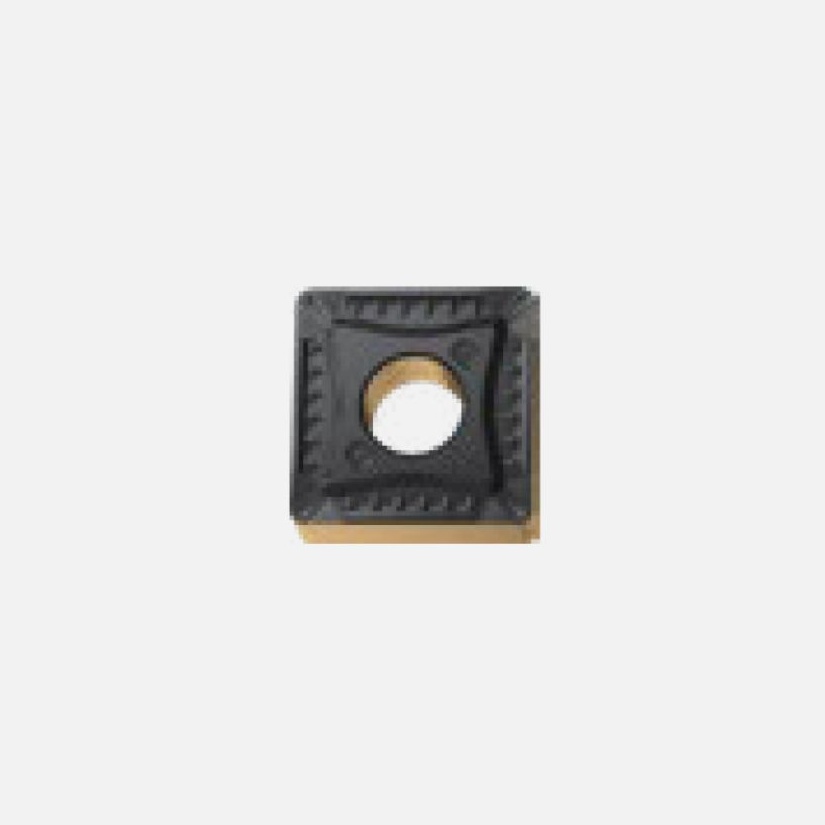

YG1-22003227 – SNMG120412-UR-YG3125/SNMG433-UR – Indexable Turning Insert

Original price was: $24.02.Current price is: $16.45.

SNMG120412-UR-YG3125/SNMG433-UR — YG-1 Indexable Turning Insert.

Sold in boxes of 10 only — price shown is per insert. Quantity 10 = one box of 10 inserts.

UPC: N/A SKU: YG1-22003227 Categories: Indexable, Indexable, Indexable Insert, YG-1

EDP No.	22003227
Description	SNMG120412-UR-YG3125/SNMG433-UR
Size/Dimension	SNMG120412-UR-YG3125/SNMG433-UR
Material	Carbide
Series	SNMG, SNMG43
Package	Box of 10 pieces (price shown per piece)
Available Qty.	Call for availability

Specifications

Series	SNMG
ANSI Code	SNMG433-UR
ISO Code	SNMG120412-UR
ANSI	ANSI
Shape	Square
# of Cutting Edges	8
Depth of Cut	1.5
Clearance Angle	0°
IC Tolerance (± inch)	0.003
IC Tolerance (± mm)	0.076
Height Tolerance (± inch)	0.005
Height Tolerance (± mm)	0.127
Thickness Tolerance (± inch)	0.005
Thickness Tolerance (± mm)	0.127
Insert Type	With clamping hole, chipbreaker on both sides
Insert IC (inch)	0.5
Insert IC (mm)	12.7
Thickness (in)	0.1874
Thickness (mm)	4.76
Corner Radius (in)	0.0472
Corner Radius (mm)	1.2
Chipbreaker Geometry	UR
Chipbreaker Application	Roughing and Heavy interrupted cut
Wiper Edge Clearance	0°
Grade	YG3125
Material	Carbide
Coating Process	CVD
Coating	TiCN-Al2O3
Type	TURNING NEGATIVE INSERT
Application	Steel
System of Measurement	Inch
Application code	P

Recommended first grade for steel. New substrates with a unique combination of good toughness and plastic deformation resistance. General Machining on steel.
