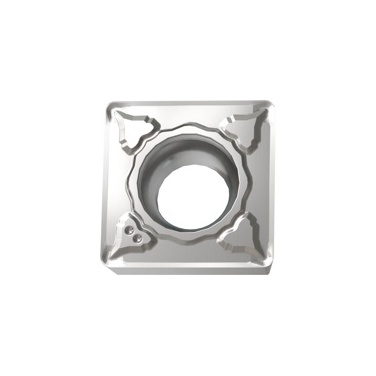

YG1-22003617 – SCMT09T308-PM-YT100G/SCMT32.52-PM – Indexable Turning Insert

Original price was: $21.93.Current price is: $15.00.

SCMT09T308-PM-YT100G/SCMT32.52-PM — YG-1 Indexable Turning Insert.

Sold in boxes of 10 only — price shown is per insert. Quantity 10 = one box of 10 inserts.

UPC: N/A SKU: YG1-22003617 Categories: Indexable, Indexable, Indexable Insert, YG-1

EDP No.	22003617
Description	SCMT09T308-PM-YT100G/SCMT32.52-PM
Size/Dimension	SCMT09T308-PM-YT100G/SCMT32.52-PM
Series	SCMT32.5
Package	Box of 10 pieces (price shown per piece)
Available Qty.	Call for availability

Specifications

Series	SCMT
ANSI Code	SCMT32.52-PM
ISO Code	SCMT09T308-PM
ANSI	ANSI
Shape	Square
# of Cutting Edges	4
Clearance Angle	7°
IC Tolerance (± inch)	0.002
IC Tolerance (± mm)	0.051
Height Tolerance (± inch)	0.005
Height Tolerance (± mm)	0.127
Thickness Tolerance (± inch)	0.005
Thickness Tolerance (± mm)	0.127
Insert Type	With Screw hole, chipbreaker on one side only
Insert IC (inch)	0.375
Insert IC (mm)	9.525
Thickness (in)	0.1563
Thickness (mm)	3.97
Corner Radius (in)	0.0315
Corner Radius (mm)	0.8
Chipbreaker Geometry	PM
Chipbreaker Application	Cermet Medium
Wiper Edge Clearance	7°
Grade	YT100G
Material	Cermet
Coating Process	PVD
Coating	TiAlN
Type	TURNING POSITIVE INSERT
Application	Steel, Stainless Steel, Cast Iron
System of Measurement	Inch
Application code	P,M,K

PVD-coated Cermet grade for turning. Outstanding wear resistance and a low coefficient of friction enable high-speed turning of steels, stainless steels, and cast irons with extended tool life.
