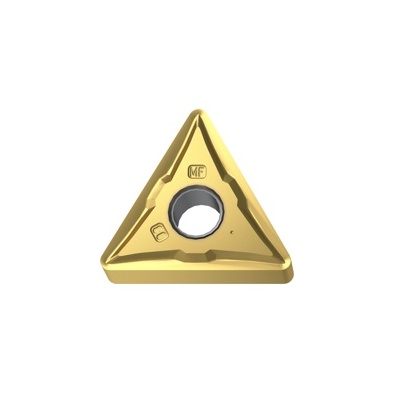

YG1-22003865 – TNMG160404-PWF-YG3125/TNMG331-PWF – Indexable Turning Insert

Original price was: $16.91.Current price is: $11.60.

TNMG160404-PWF-YG3125/TNMG331-PWF — YG-1 Indexable Turning Insert.

Sold in boxes of 10 only — price shown is per insert. Quantity 10 = one box of 10 inserts.

UPC: N/A SKU: YG1-22003865 Categories: Indexable, Indexable, Indexable Insert, YG-1

EDP No.	22003865
Description	TNMG160404-PWF-YG3125/TNMG331-PWF
Size/Dimension	TNMG160404-PWF-YG3125/TNMG331-PWF
Series	TNMG33
Package	Box of 10 pieces (price shown per piece)
Available Qty.	Call for availability

Specifications

Series	TNMG
ANSI Code	TNMG331-PWF
ISO Code	TNMG160404-PWF
ANSI	ANSI
Shape	Triangular
# of Cutting Edges	6
Depth of Cut	1.5
Clearance Angle	0°
IC Tolerance (± inch)	0.002
IC Tolerance (± mm)	0.051
Height Tolerance (± inch)	0.005
Height Tolerance (± mm)	0.127
Thickness Tolerance (± inch)	0.005
Thickness Tolerance (± mm)	0.127
Insert Type	With clamping hole, chipbreaker on both sides
Insert IC (inch)	0.375
Insert IC (mm)	9.525
Thickness (in)	0.1874
Thickness (mm)	4.76
Corner Radius (in)	0.0157
Corner Radius (mm)	0.4
Edge Length (in)	0.6181
Edge Length (mm)	15.7
Chipbreaker Geometry	PWF
Chipbreaker Application	Finish Wiper
Wiper Edge Clearance	0°
Grade	YG3125
Material	Carbide
Coating Process	CVD
Coating	TiCN-Al2O3
Type	TURNING NEGATIVE INSERT
Application	Steel
System of Measurement	Inch
Application code	P

Recommended first grade for steel. New substrates with a unique combination of good toughness and plastic deformation resistance. General Machining on steel.
