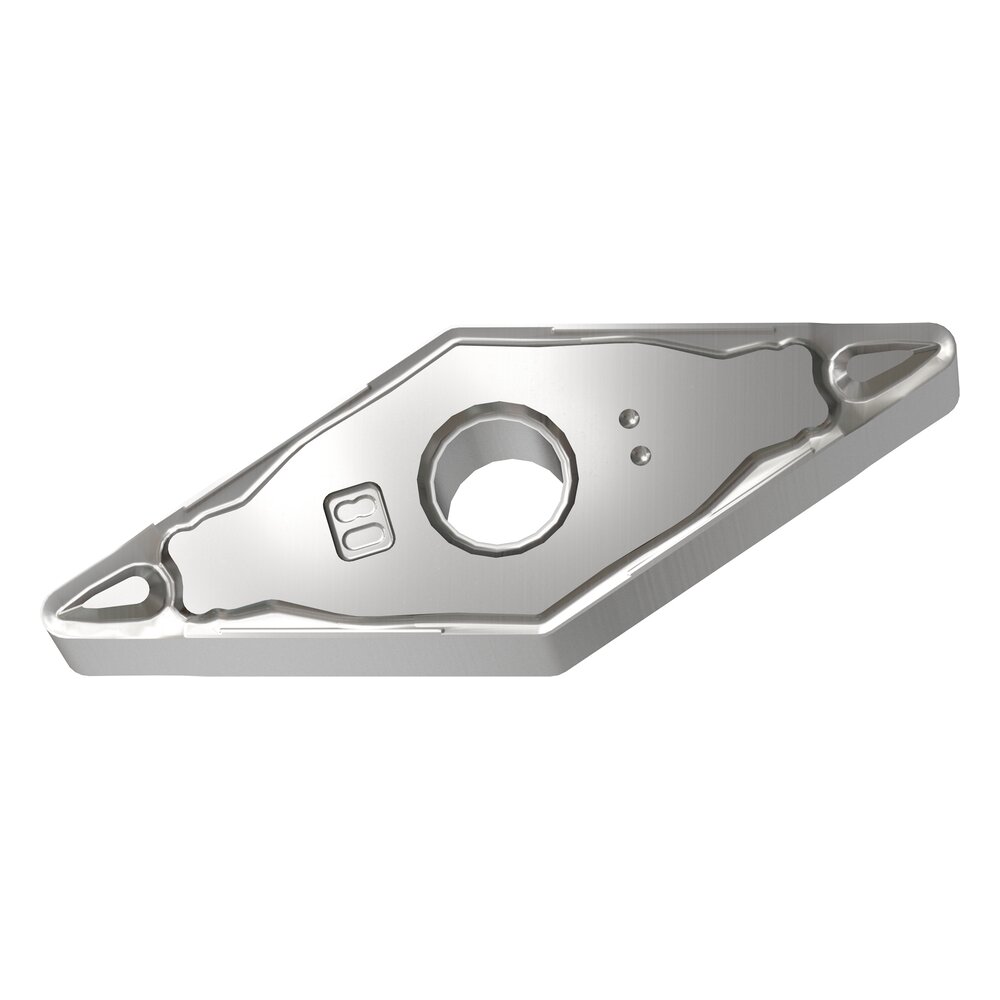

YG-1 YG Indexable — VNMG160408-PSF YT100

YG1-22004027 – Vngg160412-Sf Yg411/Vngg333-Sf

Original price was: $38.74.Current price is: $26.50.

Indexable Insert

Sold in boxes of 10 only — price shown is per insert. Quantity 10 = one box of 10 inserts.

UPC: N/A SKU: YG1-22004027 Categories: Indexable, Indexable, Indexable Insert, YG-1

EDP No.	22004027
Description	VNGG160412-SF YG411/VNGG333-SF
Size
Available Qty.	Call for availability

Specifications

Series	VNGG
ANSI Code	VNGG333-SF
ISO Code	VNGG160412-SF
ANSI	ANSI
Shape	Rhombic 35°
# of Cutting Edges	4
Depth of Cut	4
Clearance Angle	0°
IC Tolerance (± inch)	0.001
IC Tolerance (± mm)	0.025
Height Tolerance (± inch)	0.005
Height Tolerance (± mm)	0.127
Thickness Tolerance (± inch)	0.005
Thickness Tolerance (± mm)	0.127
Insert Type	With clamping hole, chipbreaker on both sides
Insert IC (inch)	0.375
Insert IC (mm)	9.525
Thickness (in)	0.187
Thickness (mm)	4.75
Corner Radius (in)	0.047
Corner Radius (mm)	1.19
Edge Length (in)	0.622
Edge Length (mm)	15.8
Chipbreaker Geometry	SF
Chipbreaker Application	Heat Resistant Super Alloy Finishing
Wiper Edge Clearance	0°
Feed rate	.004-.010
Grade	YG411
Material	Carbide
Coating Process	PVD
Coating	TiAlSiN
Type	TURNING NEGATIVE INSERT
Application	Super Alloys
System of Measurement	Inch
Application code	S

PVD Turning Grade on High Cutting Speed for HRSA. Specialized cemented carbide substrate with excellent resistance to plastic deformation. Strong edge stability provides reliable tool life when machining heat-resistant alloys at high speeds. High-Al content coating provides superior oxidation resistance when machining heat-resistant alloys.
