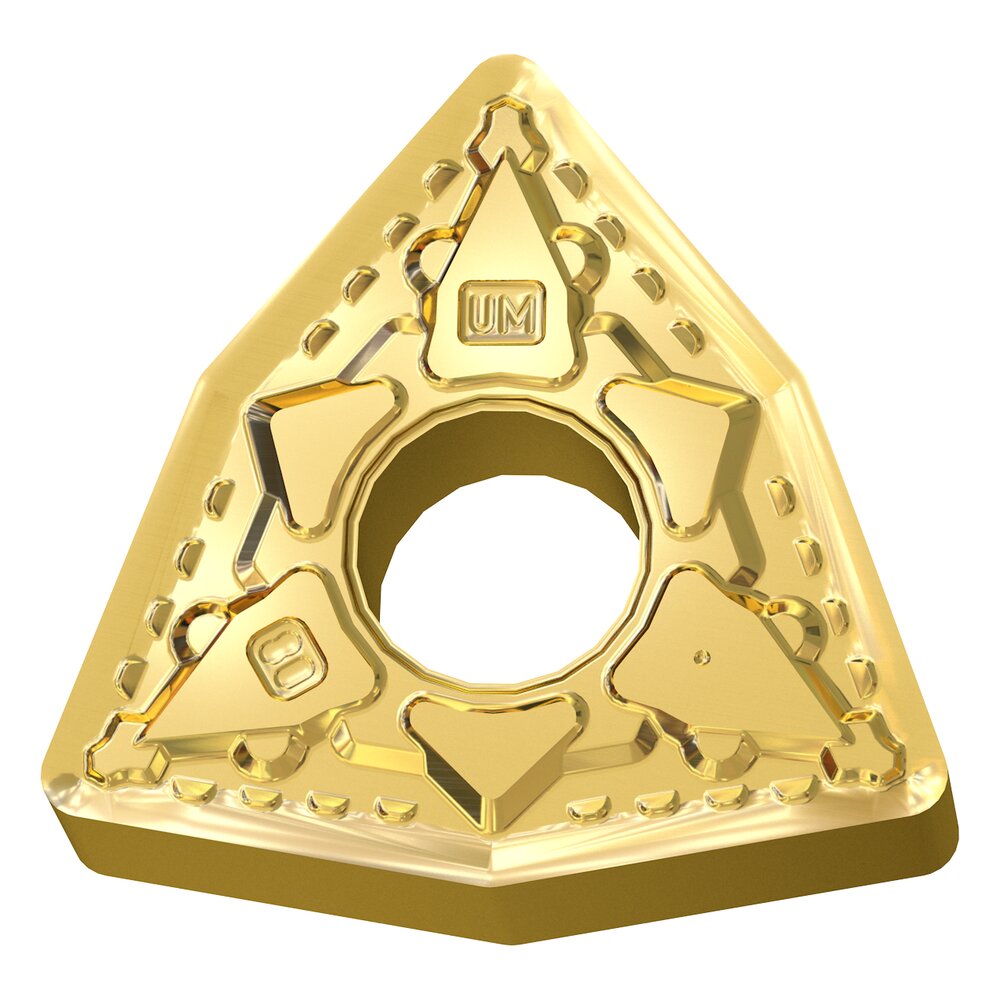

YG-1 YG Indexable — WNMG080408-UM YG3115

YG1-22200788 – Wnmg080404-Um-Yg3030/Wnmg431-Um

Original price was: $22.98.Current price is: $15.75.

Indexable Insert

Sold in boxes of 10 only — price shown is per insert. Quantity 10 = one box of 10 inserts.

UPC: N/A SKU: YG1-22200788 Categories: Indexable, Indexable, Indexable Insert, YG-1

EDP No.	22200788
Description	WNMG080404-UM-YG3030/WNMG431-UM
Size
Available Qty.	Call for availability

Specifications

Series	WNMG
ANSI Code	WNMG431-UM
ISO Code	WNMG080404-UM
ANSI	ANSI
Shape	Trigon
# of Cutting Edges	6
Depth of Cut	3
Clearance Angle	0°
IC Tolerance (± inch)	0.003
IC Tolerance (± mm)	0.076
Height Tolerance (± inch)	0.005
Height Tolerance (± mm)	0.127
Thickness Tolerance (± inch)	0.005
Thickness Tolerance (± mm)	0.127
Insert Type	With clamping hole, chipbreaker on both sides
Insert IC (inch)	0.5
Insert IC (mm)	12.7
Thickness (in)	0.1875
Thickness (mm)	4.762
Corner Radius (in)	0.0156
Corner Radius (mm)	0.397
Edge Length (in)	0.307
Edge Length (mm)	7.798
Chipbreaker Geometry	UM
Chipbreaker Application	Medium and Unstable conditions
Wiper Edge Clearance	0°
Grade	YG3030
Material	Carbide
Coating Process	CVD
Coating	TiCN-Al2O3
Type	TURNING NEGATIVE INSERT
Application	Steel
System of Measurement	Inch
Application code	P

Interrupted Cutting of Steel and Stainless steel. Substrate for heavy roughing in mild steel and low carbon alloy steel. New Al2O3 technology and optimized surface treatment achieves a good balance between wear resistance and chipping resistance.
