Sale!

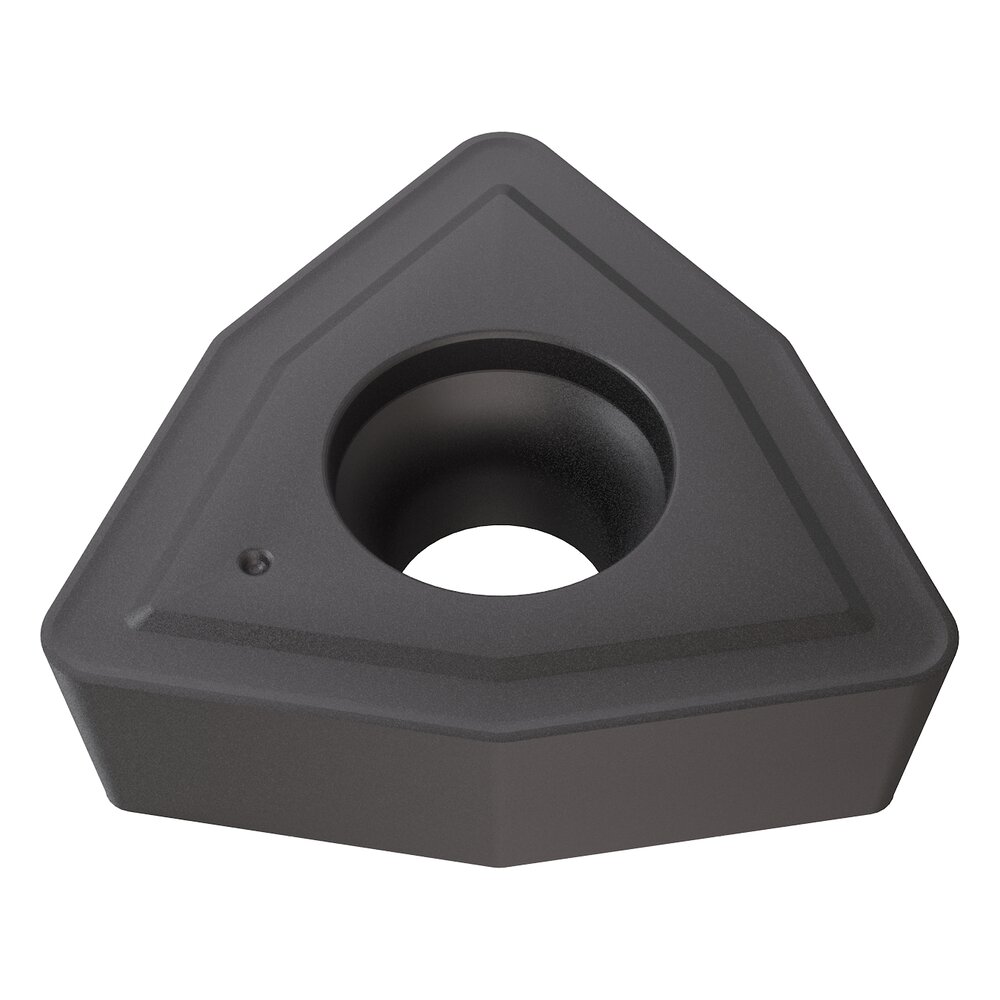

YG1-32000091 – Wcmx080412-Yg613/Wcmx080412

Original price was: $22.65.Current price is: $15.50.

Indexable Insert

Sold in boxes of 10 only — price shown is per insert. Quantity 10 = one box of 10 inserts.

UPC: N/A SKU: YG1-32000091 Categories: Indexable, Indexable, Indexable Insert, YG-1

EDP No.	32000091
Description	WCMX080412-YG613/WCMX080412
Size
Available Qty.	Call for availability

Specifications

Series	WCMX
ANSI Code	WCMX080412
ISO Code	WCMX080412
ANSI	ISO
Shape	Trigon
# of Cutting Edges	3
Clearance Angle	7°
IC Tolerance (± inch)	0.003
IC Tolerance (± mm)	0.076
Height Tolerance (± inch)	0.0051
Height Tolerance (± mm)	0.13
Thickness Tolerance (± inch)	0.005
Thickness Tolerance (± mm)	0.127
Insert Type	Drilling insert
Insert IC (inch)	0.5
Insert IC (mm)	12.7
Thickness (in)	0.187
Thickness (mm)	4.75
Corner Radius (in)	0.0469
Corner Radius (mm)	1.191
Chipbreaker Application	General Application
Wiper Edge Clearance	7°
Grade	YG613
Material	Carbide
Coating Process	PVD
Coating	TiAlN
Type	MILLING INSERT
Application	Steel, Stainless Steel
System of Measurement	Inch
Application code	P,M

Milling Grade for Stainless Steel Application. New coating layer with lubrication preventing built-up edge on ultra fine grain substrate with high toughness. The toughest substrate provides excellent cutting performance in stainless steel.

⚠ WARNING: This product can expose you to chemicals including cobalt, which is known to the State of California to cause cancer. Click here for more information.

Brand

YG1
