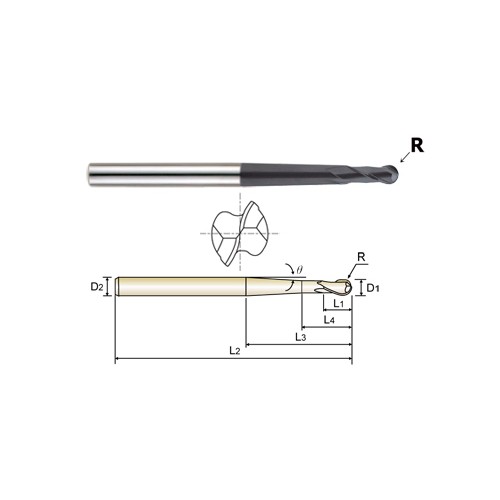

YG1-93541 – 3/8 x 5/8 x 1-3/16 x 6 – 2 Flute Pencil Neck Ball Nose 30 Deg Helix X-Power Carbide

Original price was: $459.40.Current price is: $344.60.

X-Power

UPC: N/A SKU: YG1-93541 Categories: General Purpose Carbide End Mill, Milling, X-Power, YG-1

EDP No.	93541
Description	2 FLUTE PENCIL NECK BALL NOSE 30 DEG HELIX X-POWER CARBIDE
Size	3/8 x 5/8 x 1-3/16 x 6
Available Qty.	Call for availability

Specifications

Series	EM979
Number of Flutes	2
Diameter inch	0.375
Diameter metric	9.525
Shank Dia. Inch	0.625
Shank Dia. Metric	15.875
LOC inch	1.1875
LOC metric	30.162
LBS inch	4.1875
LBS metric	106.3625
OAL inch	6
OAL metric	152.4
Ball Nose Radius inch	0.1875
Ball Nose Radius metric	4.762
Under Neck Parallel inch	1.325
Under Neck Parallel metric	33.655
Neck Taper Angle	2° 30'
Shank Style	Plain
Helix Angle	30°
Coating	ALTiN
Material	Carbide
Cut Type	Center Cut
Type	Carbide, 2 Flute Ball Nose with Pencil Neck
Application	P
Cutting Direction	Right
System of Measurement	Inch
