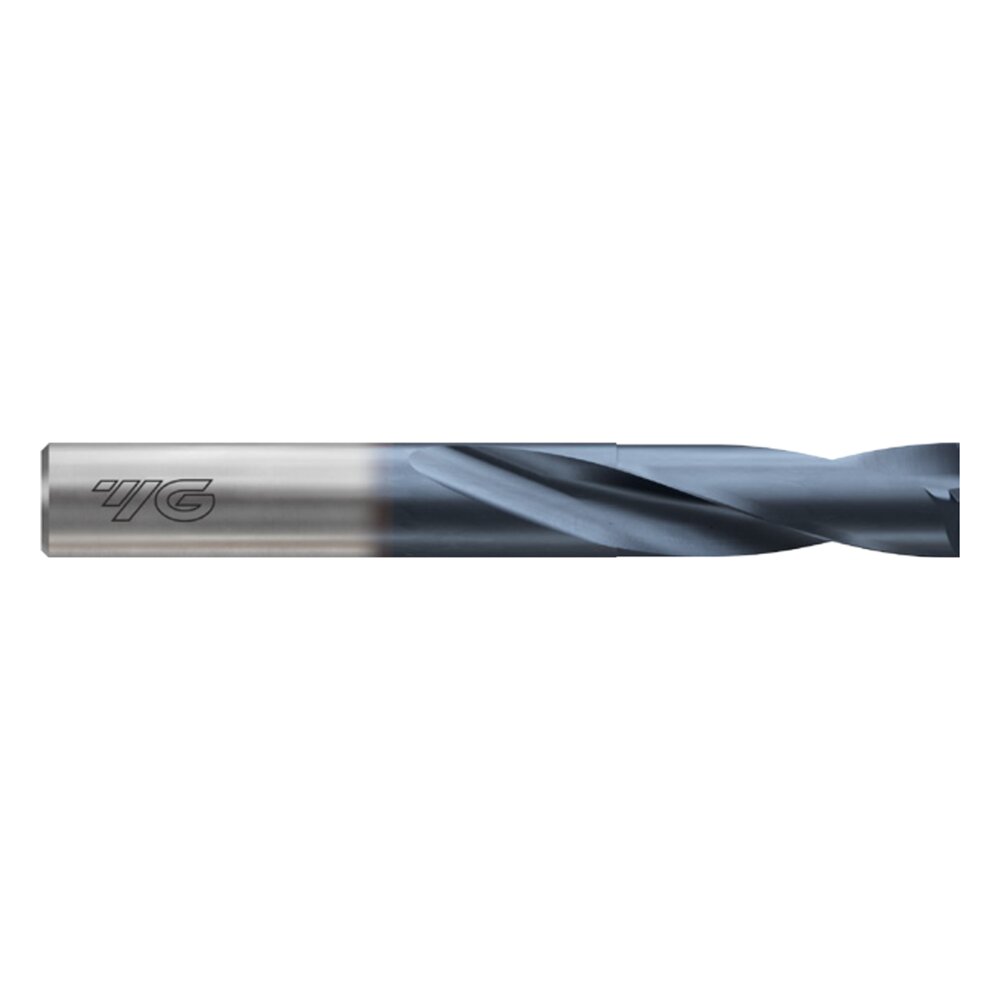

YG-1 Dream Drill Flat Bottom — 2XD Flat Bottom

YG1-DPP447066 – 6.6 x 8 x 30 x 70 – Dream Drill Flat Bottom Drill W/O Coolant Hole (2Xd)

Original price was: $134.36.Current price is: $91.95.

Carbide Drill

UPC: N/A SKU: YG1-DPP447066 Categories: Carbide Drill, Drilling, General Purpose Carbide Drill, YG-1

EDP No.	DPP447066
Description	DREAM DRILL FLAT BOTTOM DRILL W/O COOLANT HOLE (2XD)
Size	6.6 x 8 x 30 x 70
Available Qty.	Call for availability

Specifications

Series	DPP447
Long description	6.60 x 70.00 OAL 180̊ Point 2 X D X-Coating Non Coolant General Purpose Carbide Dream Drill Flat Bottom
Number of Flutes	2
Diameter (inch)	0.2598
Diameter (mm)	6.6
Shank Dia. (inch)	0.315
Shank Dia. (mm)	8
Flute Length (inch)	1.1811
Flute Length (mm)	30
Overall Length (inch)	2.7559
Overall Length (mm)	70
Point Angle	180̊
Helix Angle	20°
Length/ Diameter	2 X D
Shank Tolerance	h6
Coolant Through	Non Coolant
Coating	X-Coating
Material	Carbide
Hole Tolerance	h7
Type	Flat Bottom Without Coolant Holes (2XD)
Application	Non alloy Steels, Low Alloy Steels, Grey Cast iron
Cutting Direction	Right
System of Measurement	MM
End Style	Flat
Application Code	P,K

Just ONE drill 180 degrees point angle enables drilling of horizontal surfaces and sloped surfaces. Excellent chip evacuationby optimized flute shape. High strength cutting edge to improve tool life and versatility drilling. Variety of drilling can be used in a variety of drilling applications.
