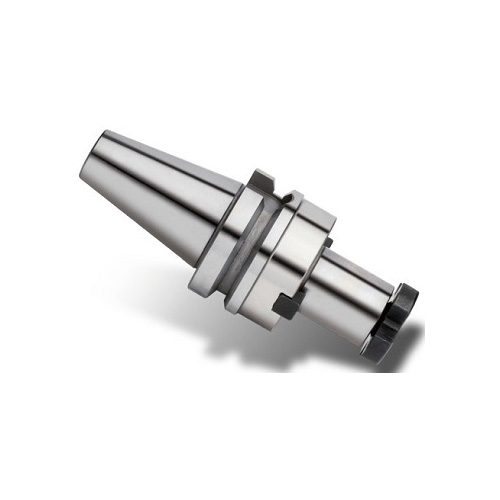

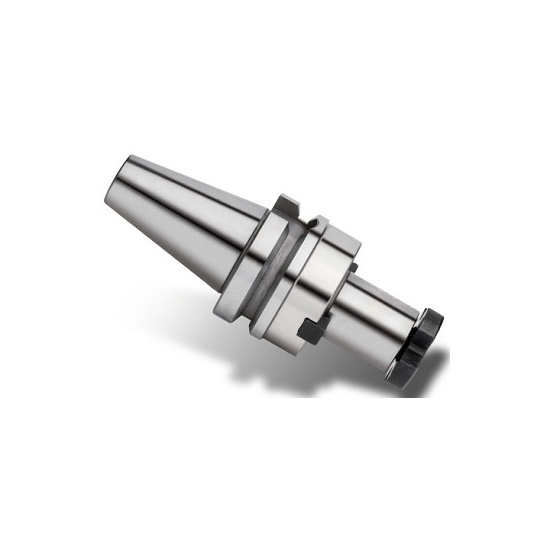

YG1-EI029X – BT50-SMA2″-3.00 – Ygbasix Shell Mill Arbor

Original price was: $205.54.Current price is: $162.30.

YGBasiX Holder

UPC: N/A SKU: YG1-EI029X Categories: Holders, Rotary Tool Holder & Accessories, Rotary YGBasiX Tool Holders, YG-1

EDP No.	EI029X
Description	YGBasiX SHELL MILL ARBOR
Size	BT50-SMA2"-3.00
Available Qty.	Call for availability

Specifications

Taper No.	BT50
Model No.	BT50-SMA 2.0-3.00
D=OD (Inch)	2
D=OD (Metric)	50.8
L=Gage Length (Inch)	3
L= Gage Length (Metric)	76.2
H=Max Tool depth (Inch)	4.88
H= Max Tool Depth (Metric)	123.952
G=Stop Screw	UN1-14x48L
Style	Standard
CAT,BT,HSK,NC	JIS B6339/MAS 403-BT
Taper Accuracy	AT3
G Value	6.3
RPM	15000
Coolant System	AD/B

Alternate EDP’s or Related Accessories

EDP No.	Description	Size	Remark
EH006B	SHELL MILL ARBOR	BT40 AD/B-SMA1/2-1.75

⚠ WARNING: This product can expose you to chemicals including cobalt, which is known to the State of California to cause cancer. Click here for more information.

Brand

YG1
