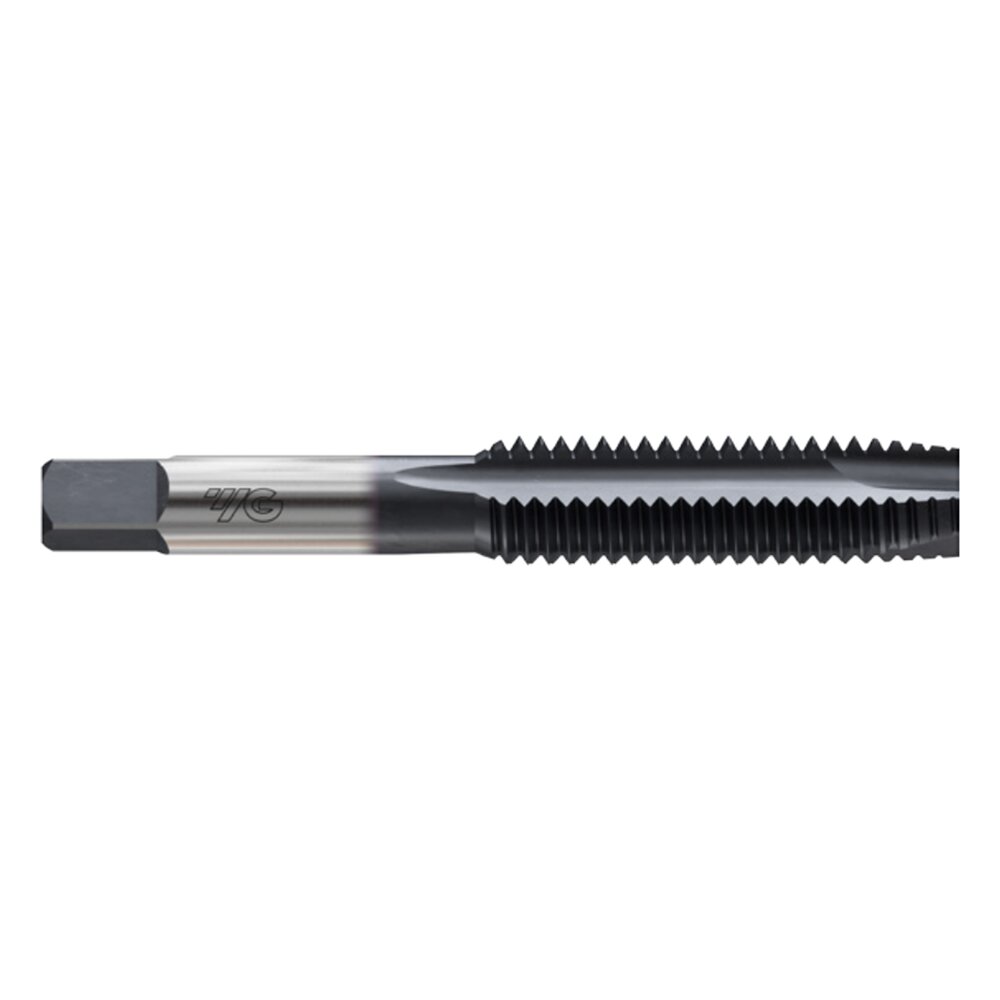

YG-1 YG Tap GP Dimension Attributres External R17 — I9-Steam Oxide

YG1-I9002 – 0 – 80, H2 – 2 Fluted Spiral Pointed Plug Steam Oxide Standard Tap

Original price was: $23.46.Current price is: $16.10.

Blue Ring Tap

UPC: N/A SKU: YG1-I9002 Categories: General Purpose Tap, Tapping, YG Tap General, YG-1

EDP No.	I9002
Description	2 FLUTED SPIRAL POINTED PLUG STEAM OXIDE STANDARD TAP
Size	0 – 80, H2
Available Qty.	Call for availability

Specifications

Serial #	468
Series	I9
Long Description	#0-80 1.630 OAL HSS 2 Flute Steam Oxide H2 Bottoming SPPT GP taps Tap
Tap Type	SPPT
Size & Pitch	#0-80
# of Flutes	2
Diameter inch	0.06
Diameter metric	1.524
Pitch	80
Thread Series	UNC
Pitch Limit	H2
Chamfer Type	Bottoming
Chamfer Length	1.5P-2P
Finish	Bright
Material	HSS
Blank Standard	302
OAL inch	1.63
OAL metric	41.4
Thd. Lgth. Inch	0.31
Thd. Lgth. Metric	7.87
Sqr. Lgth. Inch	0.19
Sqr. Lgth. Metric	4.83
Shk. Dia. Inch	0.141
Shk. Dia. Metric	3.58
Sqr. Size inch	0.11
Sqr. Size metric	2.79
System of Measurement	Inch
Shank Type	Square
Drill Size inch	0.0486
Drill Size metric	1.235
Connection inch	0.141 x 0.11
Connection metric	3.58 x 2.79
Length/ Diameter	3.0 x D
Useable Length inch	0.31
Useable Length metric	7.87
Coolant Thru 0 With and X without	Non Coolant
Trade Name	YG Tap GP
Application	P,M,K,N

Spiral Point for through holes to push the chip through. Offered in Bright Finish, Steam Oxide, TiN, and TiCN coatings. Use Hardslick on gummy materials.
