YG-1 YG Tap Steel Dimension Attributres External R5 — J3-Steam Oxide

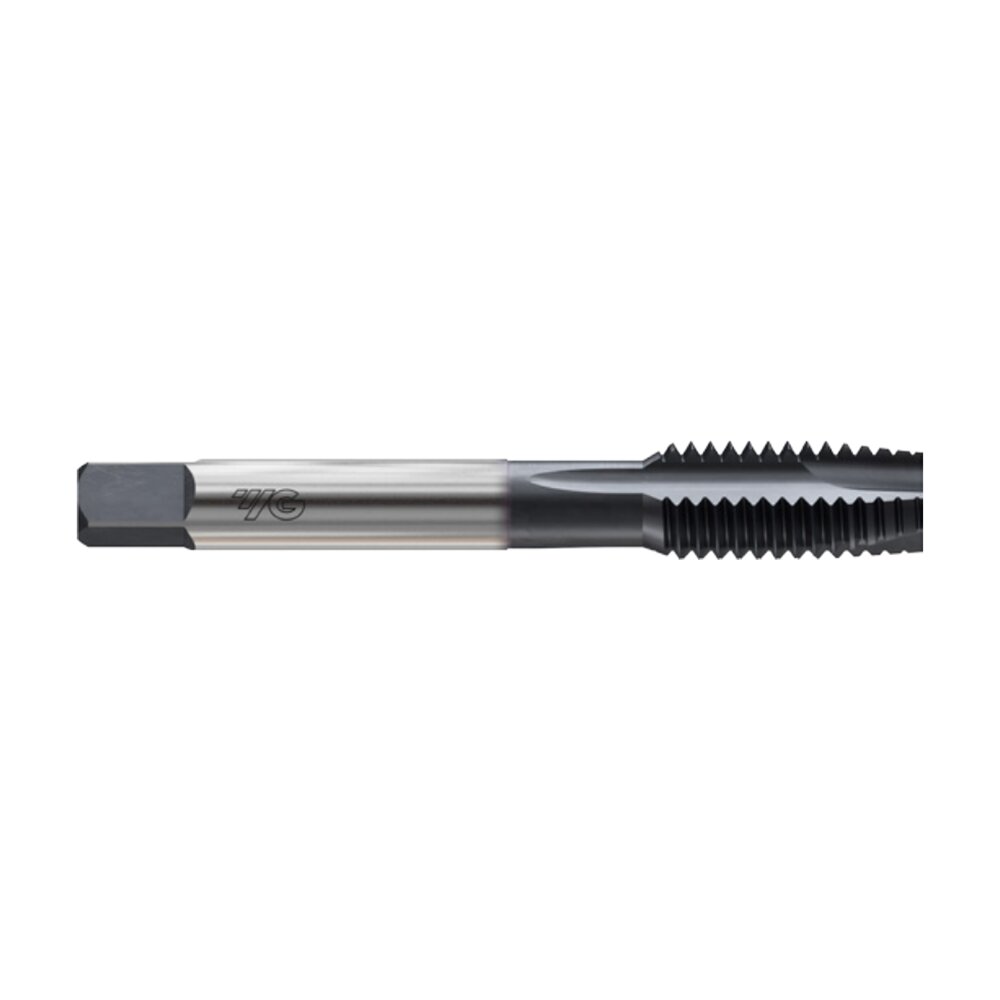

YG1-J3864 – 1*1/4 – 7, H4 – 4 Flute Spiral Pointed Plug Steme Oxide Tap For Steels Upto 38Hrc

Original price was: $324.40.Current price is: $213.45.

YG Tap INOX

UPC: N/A SKU: YG1-J3864 Categories: Multipurpose & HSS-E Tap, Tapping, YG Tap Steel, YG-1

EDP No.	J3864
Description	4 FLUTE SPIRAL POINTED PLUG STEME OXIDE TAP FOR STEELS UPTO 38HRc
Size	1*1/4 – 7, H4
Available Qty.	Call for availability

Specifications

Serial #	603
Series	J3
Long Description	1 1/4-7 5.4400 OAL HSS-E 4 Flute Oxide H4 Plug Spiral Point YG Tap Steel
Tap Type	Spiral Point
Size & Pitch	1 1/4-7
# of Flutes	4
Diameter inch	1.25
Diameter metric	31.75
Pitch	7
Thread Series	UNC
Pitch Limit	H4
Application	Steels
Chamfer Type	Plug
Chamfer Length	4P-5P
Finish	Oxide
Material	HSS-E
Blank Standard	302A
ANSI-/DIN/ANSI	ANSI
OAL inch	5.44
OAL metric	138.18
Thd. Lgth. Inch	1.535
Thd. Lgth. Metric	38.99
Sqr. Lgth. Inch	0.88
Sqr. Lgth. Metric	22.35
Shk. Dia. Inch	0.896
Shk. Dia. Metric	22.76
Sqr. Size inch	0.672
Sqr. Size metric	22.76
Neck Dia inch	0.878
Neck Dia metric	22.3
System of Measurement	Inch
Shank Type	Square
Drill Size inch	1.1201
Drill Size metric	28.451
Connection inch	0.896 x 0.672
Connection metric	22.76 x 17.07
Length/ Diameter	3.0xD
Useable Length inch	2.563
Useable Length metric	65.1
Trade Name	YG Tap Steel
Snap Pack Count	1
