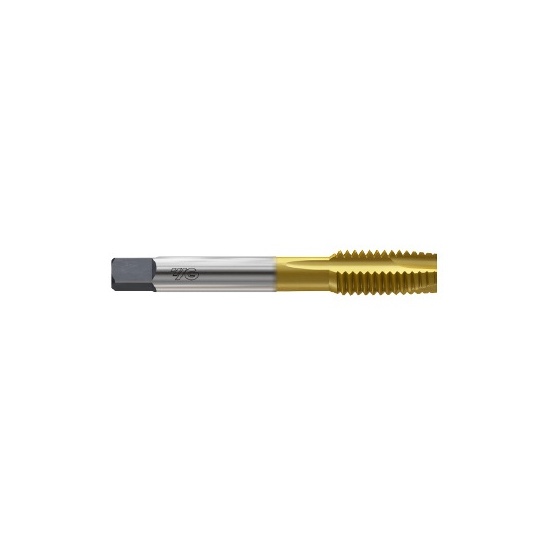

YG1-L0343 – 10 – 32, H3 – 2 Flute Spiral Pointed Plug Tin Coated Tap For Multi Purpose

Original price was: $15.32.Current price is: $10.50.

Blue Ring Tap

UPC: N/A SKU: YG1-L0343 Categories: General Purpose Tap, Tapping, YG Tap General, YG-1

EDP No.	L0343
Description	2 FLUTE SPIRAL POINTED PLUG TIN COATED TAP FOR MULTI PURPOSE
Size	10 – 32, H3
Available Qty.	Call for availability

Specifications

Serial #	659
Series	L0
Long Description	#10-32 2.380 OAL HSSE 2 Flute TiN H3 Plug SPPT GP taps Tap
Tap Type	SPPT
Size & Pitch	#10-32
# of Flutes	2
Diameter inch	0.19
Diameter metric	4.826
Pitch	32
Thread Series	UNF
Pitch Limit	H3
Chamfer Type	Plug
Chamfer Length	4P-5P
Finish	TiN
Material	HSSE
Blank Standard	302A
OAL inch	2.38
OAL metric	60.45
Thd. Lgth. Inch	0.531
Thd. Lgth. Metric	13.49
Sqr. Lgth. Inch	0.25
Sqr. Lgth. Metric	6.35
Shk. Dia. Inch	0.194
Shk. Dia. Metric	4.93
Sqr. Size inch	0.152
Sqr. Size metric	3.86
Neck Dia inch	0.146
Neck Dia metric	3.71
System of Measurement	Inch
Shank Type	Square
Drill Size inch	0.1616
Drill Size metric	4.104
Connection inch	0.194 x 0.152
Connection metric	4.93 x 3.86
Length/ Diameter	3.0 x D
Useable Length inch	0.906
Useable Length metric	23.01
Coolant Thru 0 With and X without	Non Coolant
Trade Name	YG Tap GP
Application	P,M,K,N

Spiral Point for through holes to push the chip through. Offered in Bright Finish, Steam Oxide, TiN, and TiCN coatings. Use Hardslick on gummy materials.
