Sale!

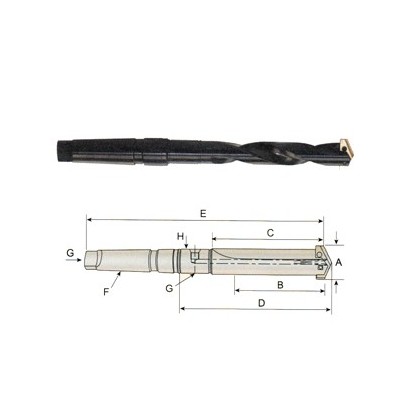

YG1-P08153 – 55/64 – 15/16 #3, Series #1.5 – Taper Shank & Helical Flute Medium Length Spade Drill Holder

Original price was: $449.45.Current price is: $295.70.

Spade Drill

UPC: N/A SKU: YG1-P08153 Categories: Drilling, Spade Drill, Spade Drill, YG-1

EDP No.	P08153
Description	TAPER SHANK & HELICAL FLUTE MEDIUM LENGTH SPADE DRILL HOLDER
Size	55/64 – 15/16 #3, Series #1.5
Available Qty.	Call for availability

Specifications

Series	P08
Shank Type	Morse Taper
Spade Drill Series	1.5
Number of Flutes	2
Flute Type	Sprial
Min. Insert Diameter (inch)	0.8594
Min Insert Diameter (mm)	21.828
Max. Insert Diameter (inch)	0.9375
Max Insert Diameter (mm)	23.8125
Max Drill Depth (inch)	4.75
Max Drill Depth (mm)	120.65
Flute Length (inch)	5.875
Flute Length (mm)	149.225
Reference Length (inch)	7.6094
Reference Length (mm)	193.278
Overall Length (inch)	11.1562
Overall Length (mm)	283.369
Morse Taper	#3
Pipe Tap	0.125
Coolant Through	Yes
Coating	Oxide
Material	Steel
Type	Morse Taper Shank Spade Drill Holder
Cutting Direction	Right
System of Measurement	Inch

⚠ WARNING: This product can expose you to chemicals including cobalt, which is known to the State of California to cause cancer. Click here for more information.
