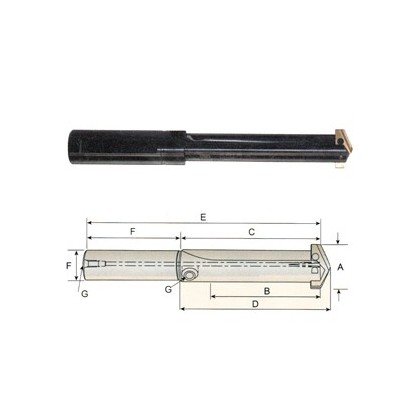

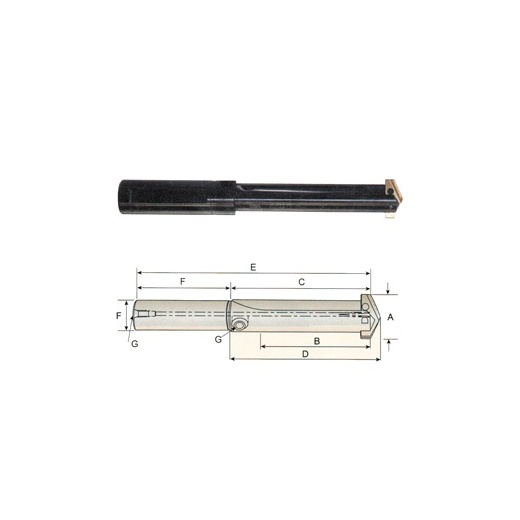

YG1-P14152 – 55/64 – 15/16, Series #1.5 – Straight Shank & Straight Flute Medium Length Spade Drill Holder

Original price was: $404.52.Current price is: $266.15.

Spade Drill

UPC: N/A SKU: YG1-P14152 Categories: Drilling, Spade Drill, Spade Drill, YG-1

EDP No.	P14152
Description	STRAIGHT SHANK & STRAIGHT FLUTE MEDIUM LENGTH SPADE DRILL HOLDER
Size	55/64 – 15/16, Series #1.5
Available Qty.	Call for availability

Specifications

Series	P14
Shank Type	Straight
Spade Drill Series	1.5
Number of Flutes	2
Flute Type	Straight
Min. Insert Diameter (inch)	0.8594
Min Insert Diameter (mm)	21.828
Max. Insert Diameter (inch)	0.9375
Max Insert Diameter (mm)	23.8125
Max Drill Depth (inch)	4.625
Max Drill Depth (mm)	117.475
Flute Length (inch)	5.875
Flute Length (mm)	149.225
Reference Length (inch)	6.0156
Reference Length (mm)	152.797
Overall Length (inch)	8.875
Overall Length (mm)	225.425
Shank Dia. (inch)	1
Shank Dia. (mm)	25.4
Shank Length (inch)	3
Shank Length (mm)	76.2
Pipe Tap	0.125
Coolant Through	Yes
Coating	Oxide
Material	Steel
Type	Straight Shank Spade Drill Holder
Cutting Direction	Right
System of Measurement	Inch
