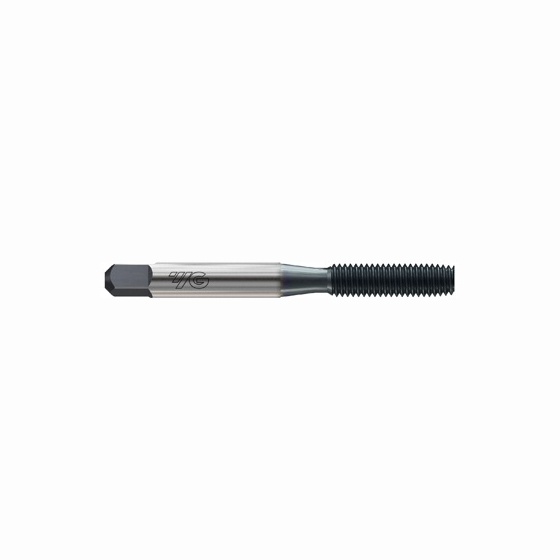

YG1-THR02344 – #10-32UNF GH4 60.3L – Hss Bottoming Style Ticn Coated Forming Tap

Original price was: $20.43.Current price is: $13.45.

YG Tap INOX

UPC: N/A SKU: YG1-THR02344 Categories: Multipurpose & HSS-E Tap, Tapping, YG Tap Forming, YG-1

EDP No.	THR02344
Description	HSS BOTTOMING STYLE TICN COATED FORMING TAP
Size	#10-32UNF GH4 60.3L
Available Qty.	Call for availability

Specifications

Serial #	562
Series	THR02
Long Description	#10-32," 2.380" OAL HSS 4 Flute TICN H4 Bottoming Form Tap Form Tap
Tap Type	Form Tap
Size & Pitch	#10-32
# of Lobes	4
# of Grooves	1
Diameter inch	0.19
Diameter metric	4.826
Pitch	32
Thread Series	UNF
Pitch Limit	H4
Entry Taper Type	Bottoming
Entry Taper Length	1.5-2P
Finish	TICN
Material	HSS
Blank Standard	302A
OAL inch	2.38
OAL metric	60.45
Thd. Lgth. Inch	0.63
Thd. Lgth. Metric	16
Sqr. Lgth. Inch	0.25
Sqr. Lgth. Metric	6.35
Shk. Dia. Inch	0.194
Shk. Dia. Metric	4.93
Sqr. Size inch	0.152
Sqr. Size metric	3.86
Neck Dia inch	0.146
Neck Dia metric	3.708
System of Measurement	Inch
Shank Type	Square
Drill Size inch	0.1762
Drill Size metric	4.475
Connection inch	0.194 x 0.152
Connection metric	4.93 x 3.86
Length/ Diameter	3.0 x D
Useable Length inch	1.51
Useable Length metric	38.354
Trade Name	YG Form Tap
NEW Image file 2024	Yg Forming Tap General Purpose_ANSI_TiCN.jpg
Application	P,M,N
Application Long Description	Alloy Steels, Stainless Steel, Aluminum, Copper
Thread Direction	Right
Performance	General Purpose
