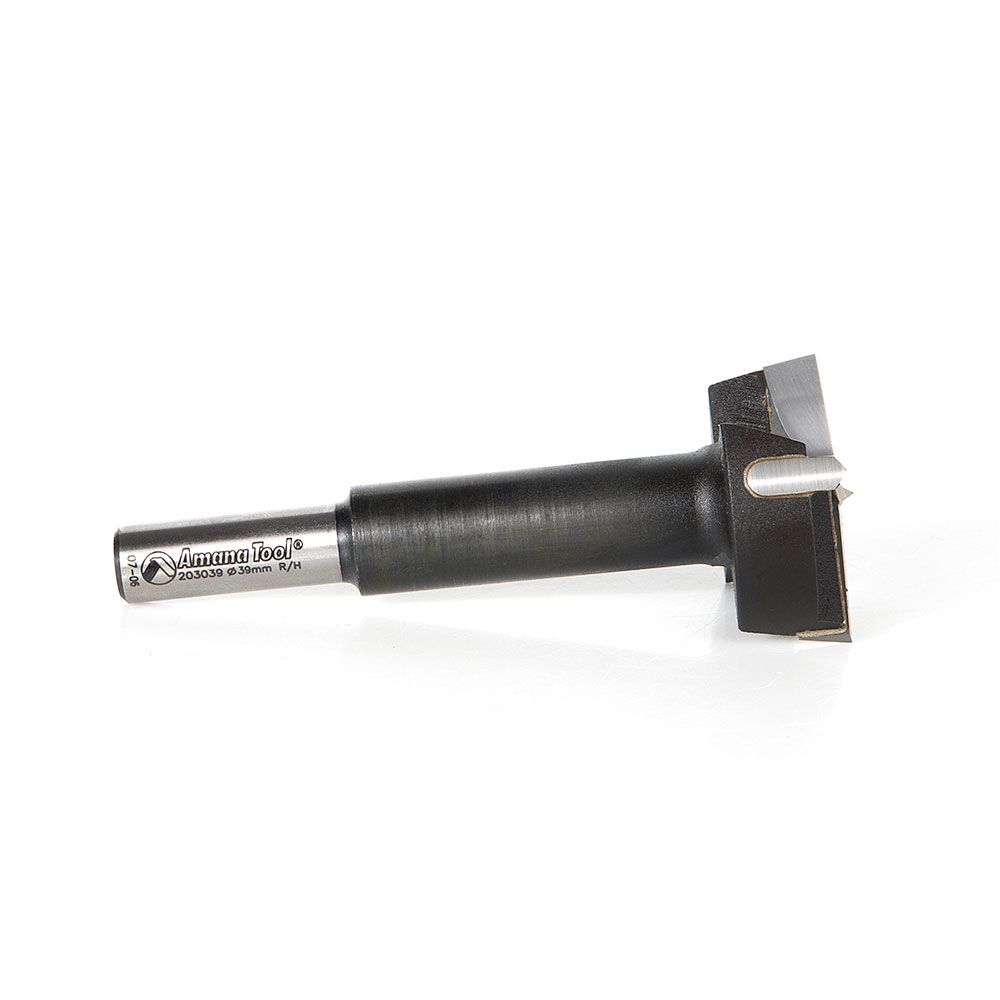

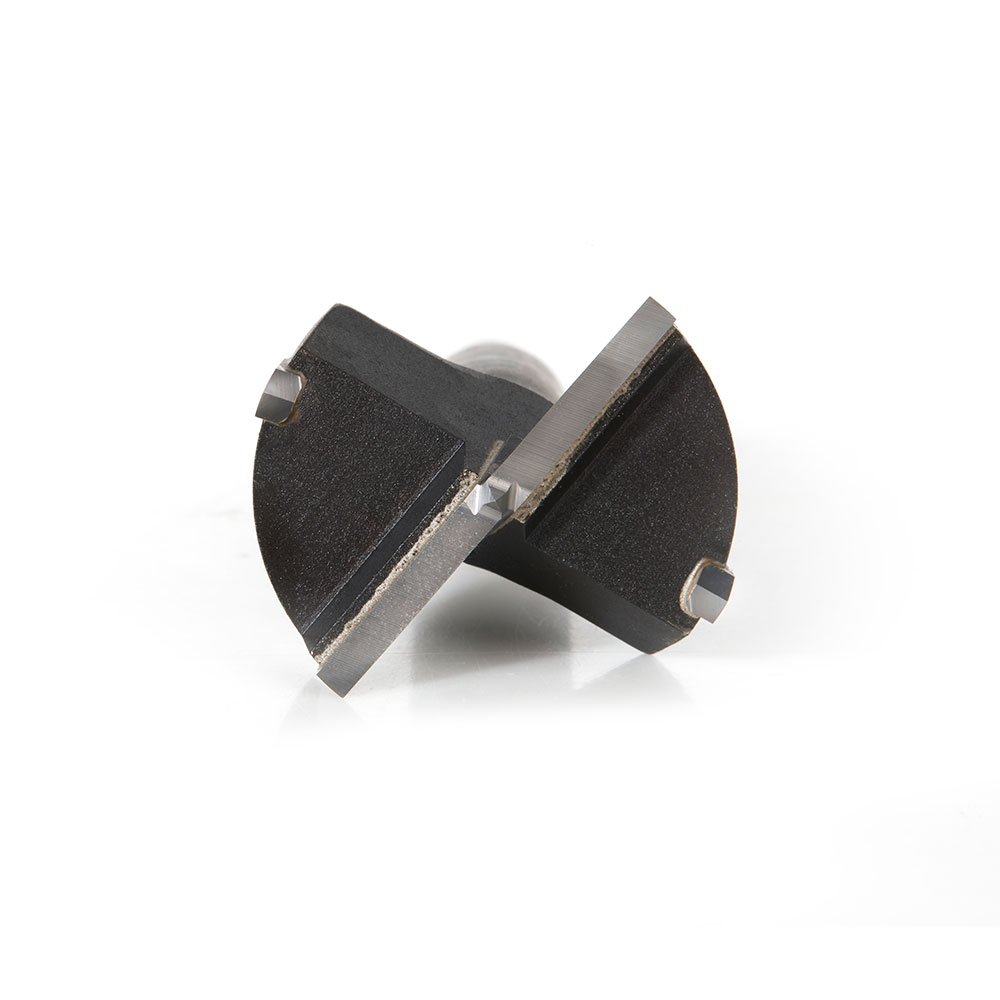

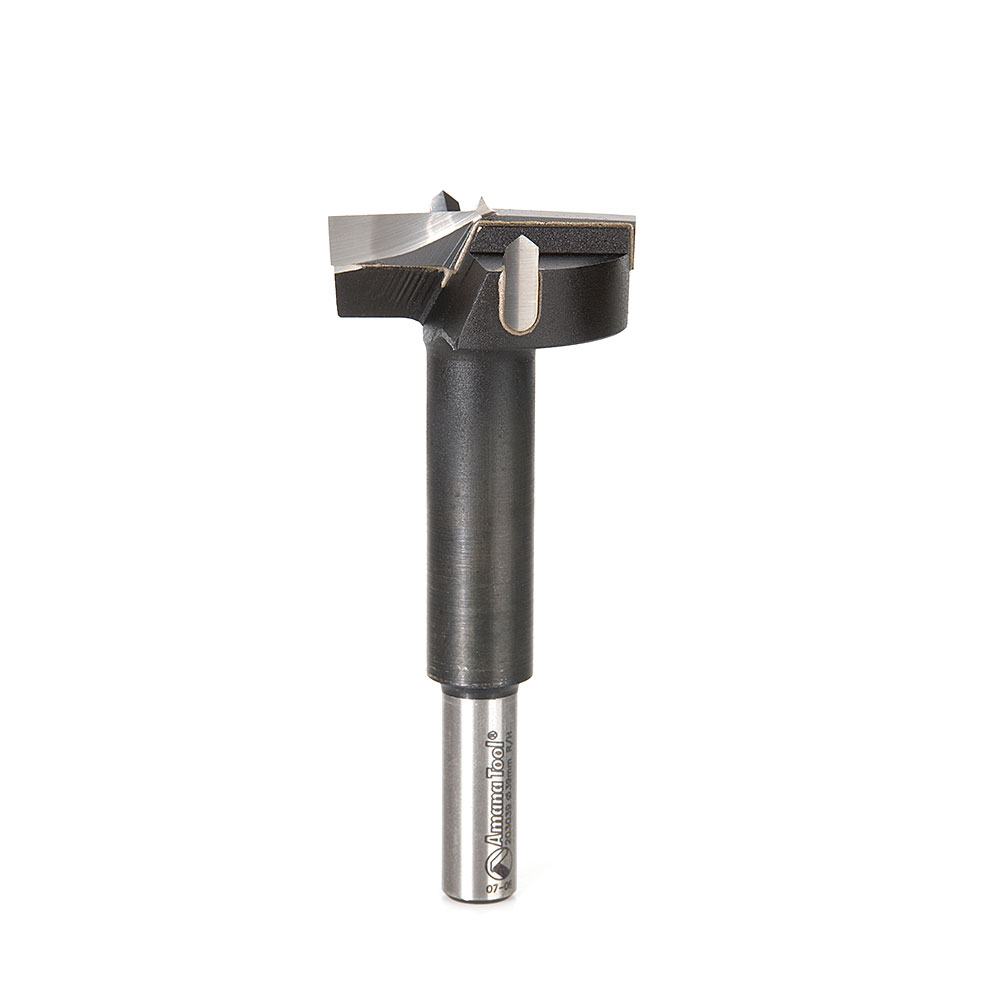

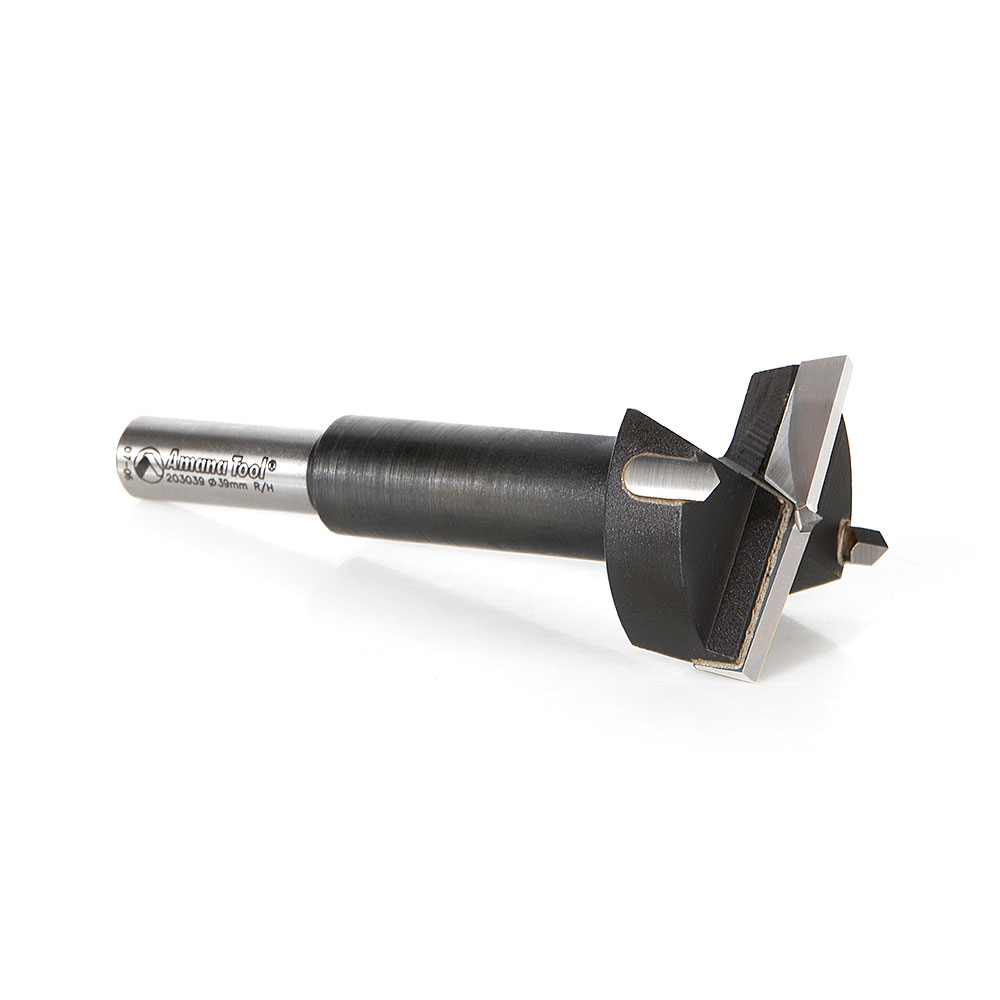

Amana 203039 Carbide Tipped Hinge Boring Bit R/H 39mm Dia x 90mm Long x 10mm Shank

Item Description

Application: Drill Presses Only / Metric European hinges.

Specifications

(D) Diameter	39mm
(d) Shank	10mm
Overall Length (L)	90mm
L1	(30mm)

Other Sizes Available

(D) Diameter	(d) Shank	L1	Overall Length (L)	Tool No.
20mm	10mm	(30mm)1.18	90mm	203020
23mm	10mm	(30mm)1.18	90mm	203023
35mm	10mm	(30mm)1.18	90mm	203350
40mm	10mm	(30mm)1.18	90mm	203040

Weight	0.34 lbs
