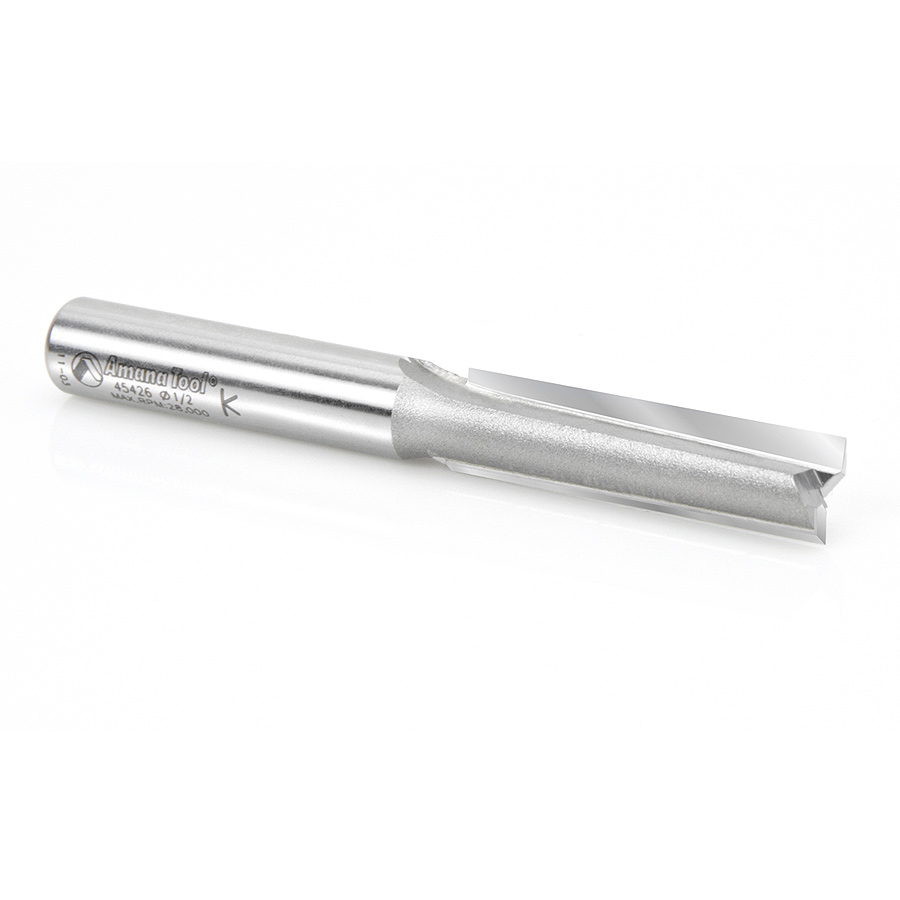

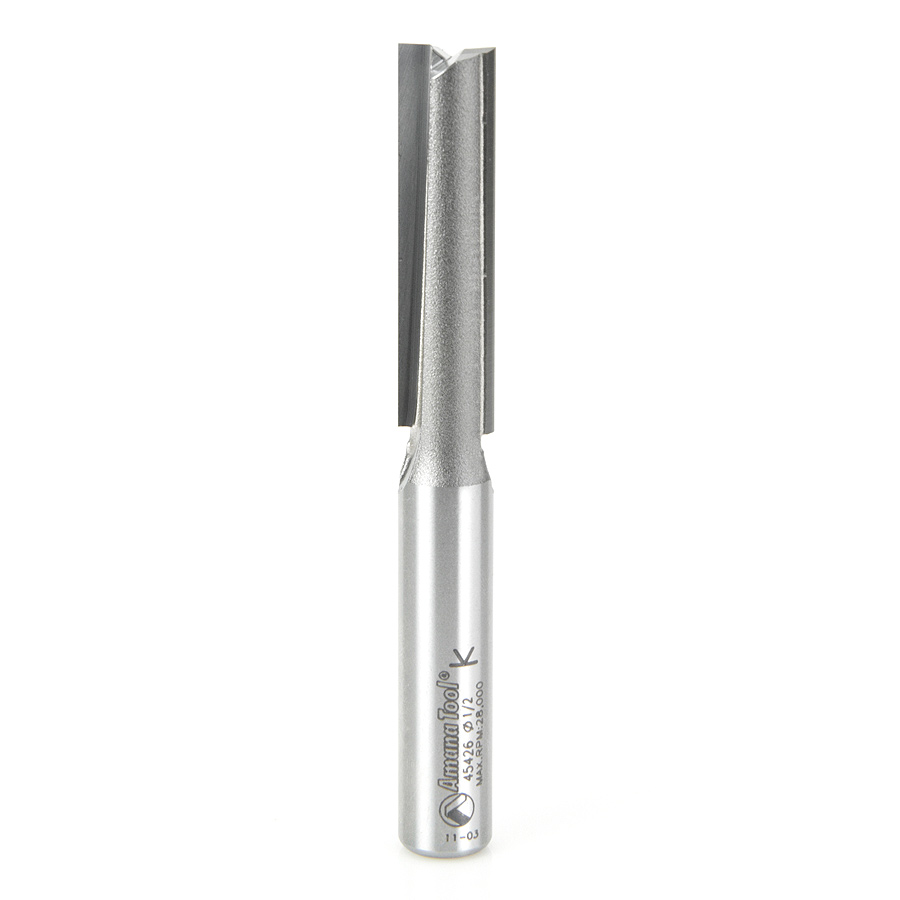

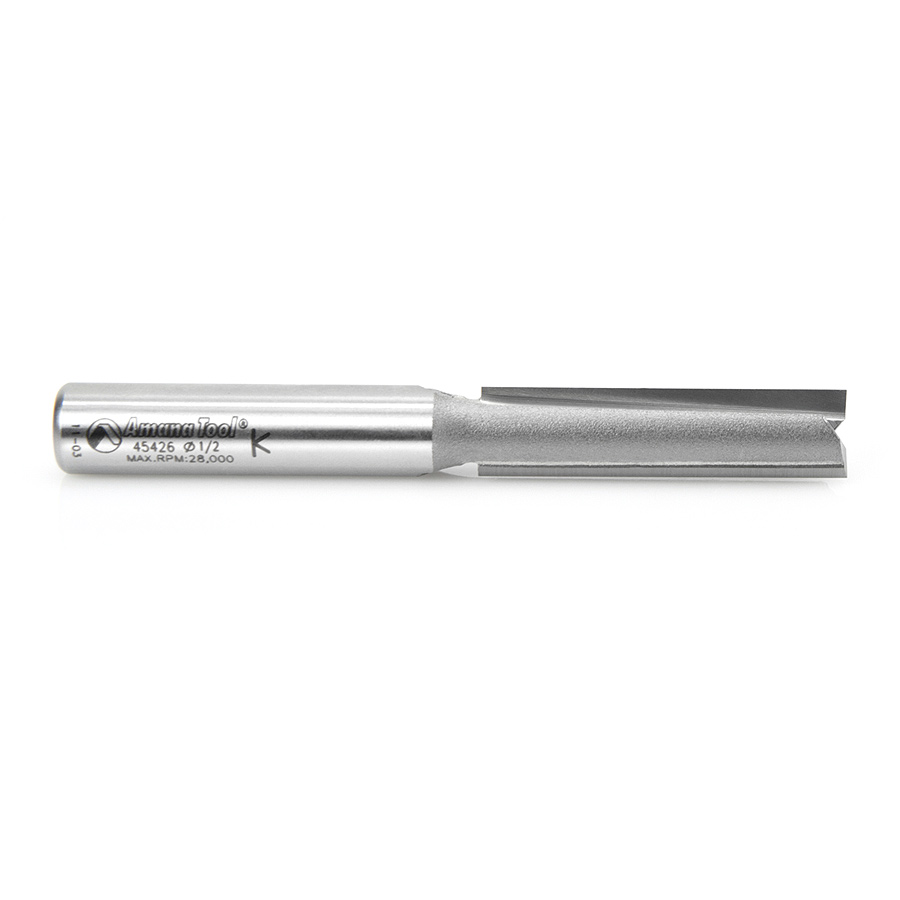

45426 Carbide Tipped Straight Plunge 1/2 Dia x 2 Inch x 1/2 Shank

Amana 45426 Carbide Tipped Straight Plunge 1/2 Dia x 2 Inch x 1/2 Shank

Name: Amana 45426 Carbide Tipped Straight Plunge 1/2 Dia x 2 Inch x 1/2 Shank
SKU: Amana 45426
Price: 32.96 USD
Availability: InStock

Original price was: $43.95.Current price is: $32.96.

2 FLUTE 1/2 DIA 1/2 SHANK

UPC: 738685854266 SKU: Amana 45426 Categories: Amana Tool, High Production Straight Plunge Router Bits, Router Bits, Straight Plunge Router Bits Tags: 1/2" Shank, amana tool, carbide tipped, router bit, Straight Flute, straight plunge

Item Description

Use a two-flute bit where fine finish is paramount. Two flutes balance the bit, eliminating vibration that degrades the cut finish. Two cuts per revolution yield a smooth surface, but feed rate is slightly reduced.

Excellent for Cutting:

Wood
MDF
Plywood

AMAX Extended Life Features:

200% longer life time even when working with abrasive materials
Superior geometric design
Advanced grinding technology that improves the carbides’ resistance to wear
Super clean cuts

Fusion 360 compatible tool file for 45426 available for download, click here.

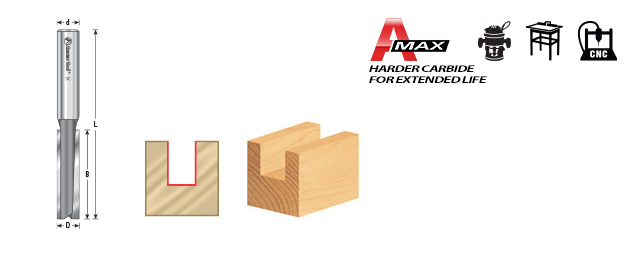

Specifications

Diameter (D)	1/2
Cutting Height (B)	2
Shank (d)	1/2
Overall Length (L)	4-1/4

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Flutes	Tool No.
3/32 (2.38mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-3/4	2	45192
3/32 (2.38mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-3/4	2	45192-5
3/16 (4.76mm)	7/16 (11.11mm)	1/4 (6.35mm)	2 (50.80mm)	2	45202
3/16 (4.76mm)	7/16 (11.11mm)	1/4 (6.35mm)	2 (50.80mm)	2	45202-5
5/16 (7.94mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	2	45412
5/16 (7.94mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	2	45412-5
3/8 (9.53mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/4	2	45218
3/8 (9.53mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/4	2	45218-5
3/8 (9.53mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	2	45415
3/8 (9.53mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	2	45415-5
5/8 (15.88mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	45432
5/8 (15.88mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	45432-5
25/32 (19.84mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	45443
25/32 (19.84mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	45443-5
7/8 (22.23mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	45446
7/8 (22.23mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	45446-5

Weight	0.22 lbs
brands	Amana Tools
