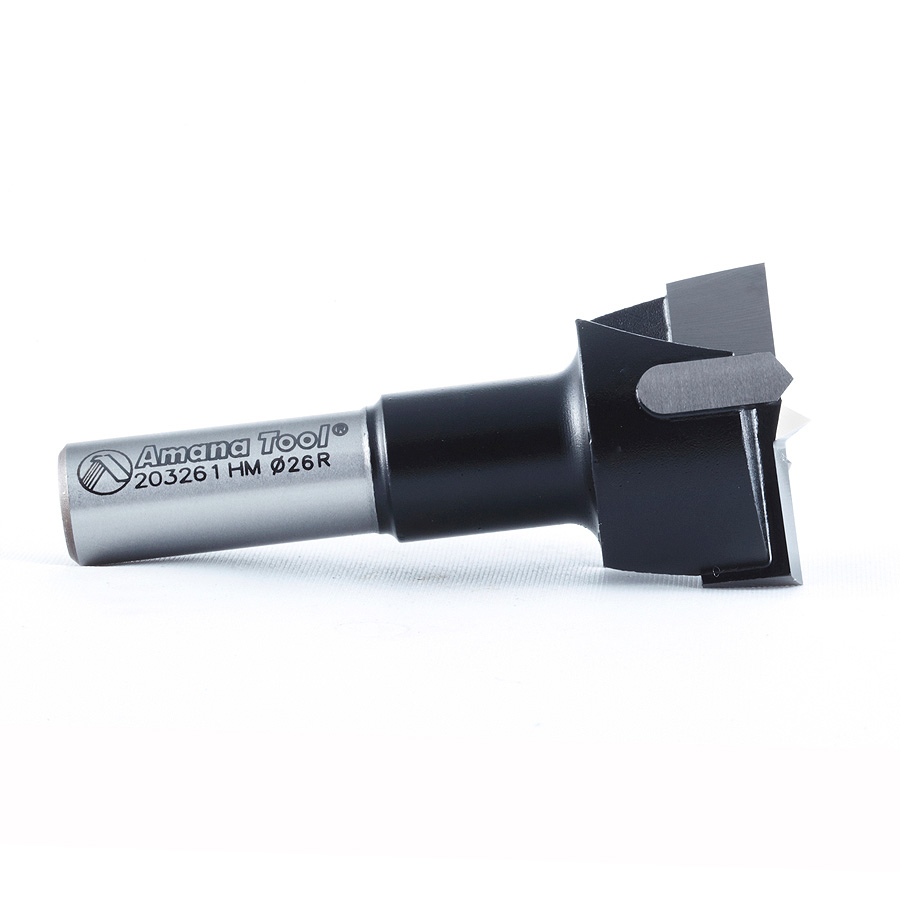

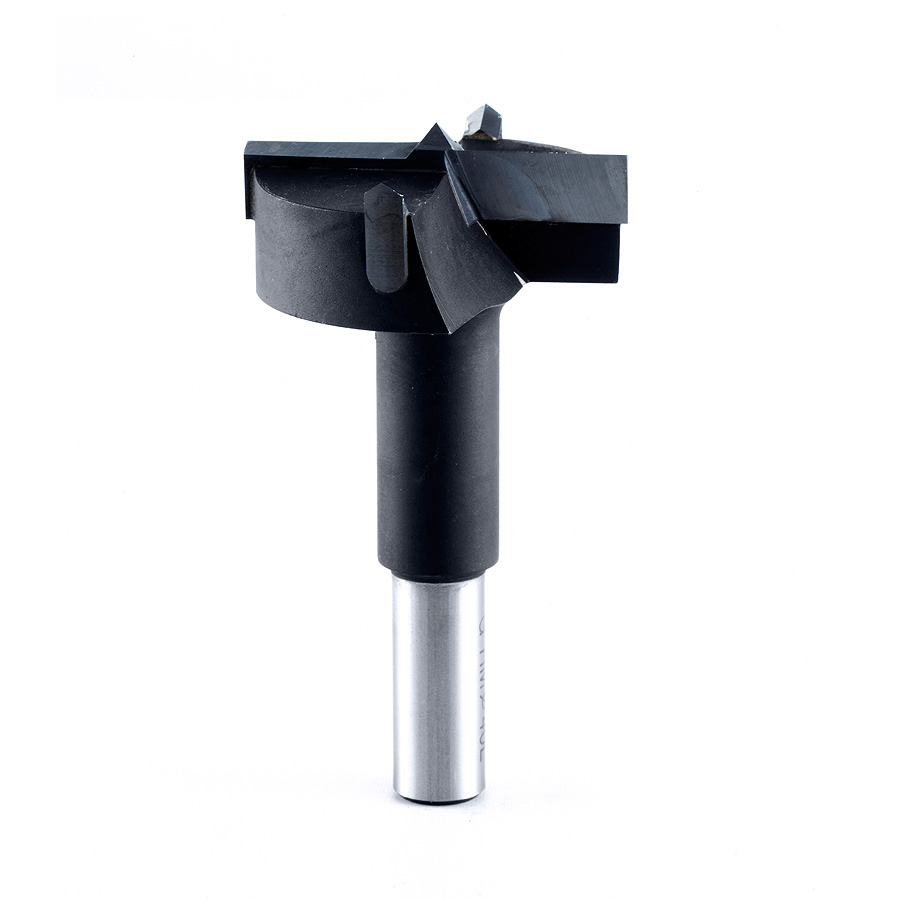

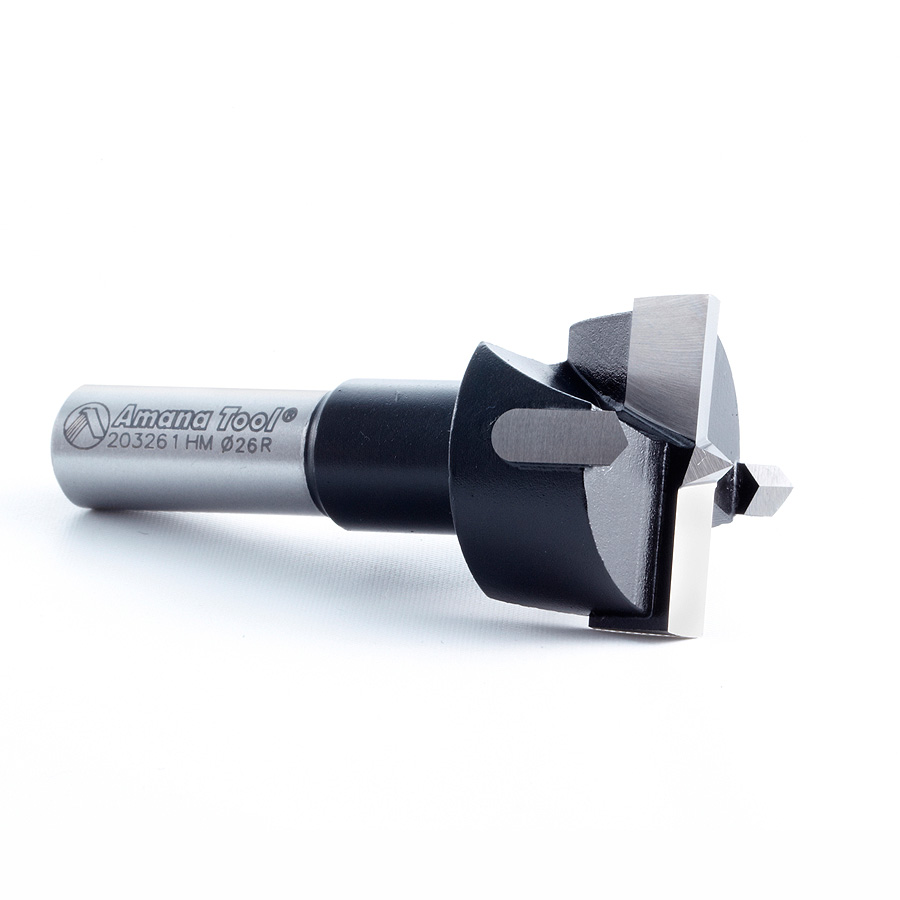

203261 Carbide Tipped Hinge Boring Bit R/H 26mm Dia x 57mm Long x 10mm Shank

Amana 203261 Carbide Tipped Hinge Boring Bit R/H 26mm Dia x 57mm Long x 10mm Shank

Name: Amana 203261 Carbide Tipped Hinge Boring Bit R/H 26mm Dia x 57mm Long x 10mm Shank
SKU: Amana 203261
Availability: InStock

Original price was: $85.10.Current price is: $59.57.

26MM HINGE BORING R/H 57MM LNG

UPC: 738685132616 SKU: Amana 203261 Categories: Amana Tool, Boring & Drilling Bits, Hinge Boring Bits, Hinge Boring Bits with Spurs 57mm Long

Item Description

Application: Boring machines (10mm shank) and drill presses (3/8″ shank).

Specifications

(D) Diameter	26mm
(d) Shank	10mm
Overall Length (L)	57mm
Rotation	Right Hand

Other Sizes Available

(D) Diameter	(d) Shank	Overall Length (L)	Rotation	Tool No.
15mm	10mm	57mm	Right	203151
15mm	10mm	57mm	Left	203155
3/4 (19.05mm)	10mm	57mm	Right	203751
20mm	10mm	57mm	Right	203201
20mm	10mm	57mm	Left	203205
25mm	10mm	57mm	Right	203251
28mm	10mm	57mm	Left	203285
30mm	10mm	57mm	Left	203305
35mm	10mm	57mm	Right	203351
35mm	10mm	57mm	Left	203355
40mm	10mm	57mm	Right	203401

Weight	0.15 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
