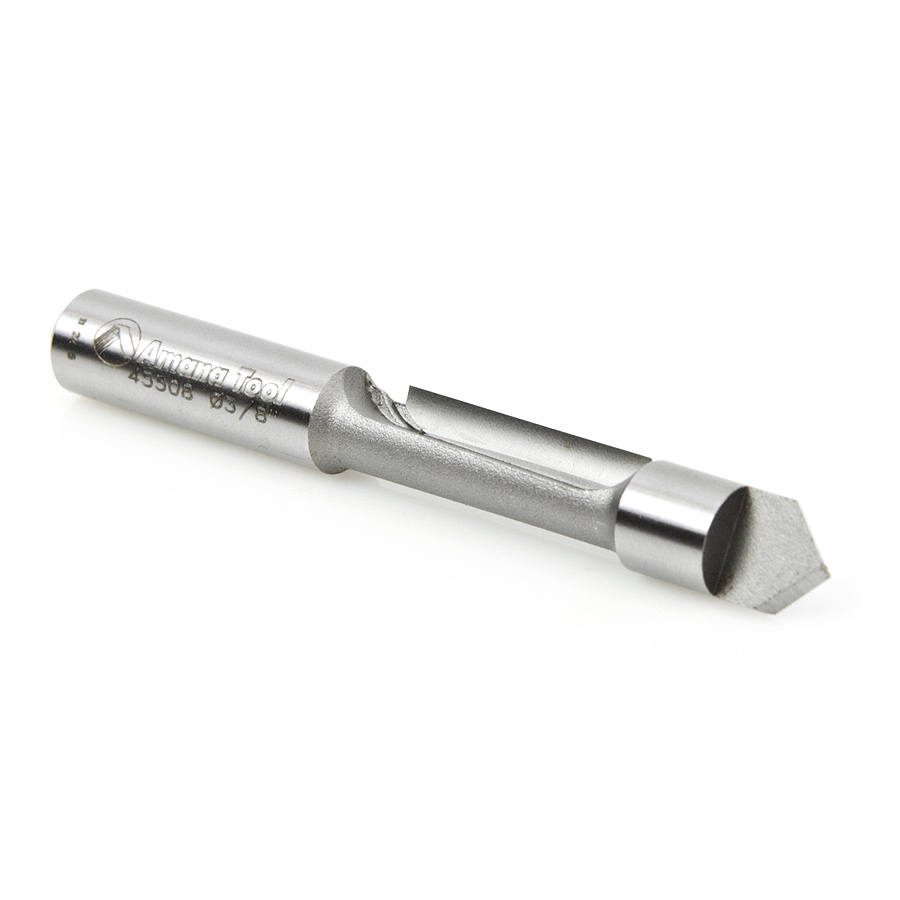

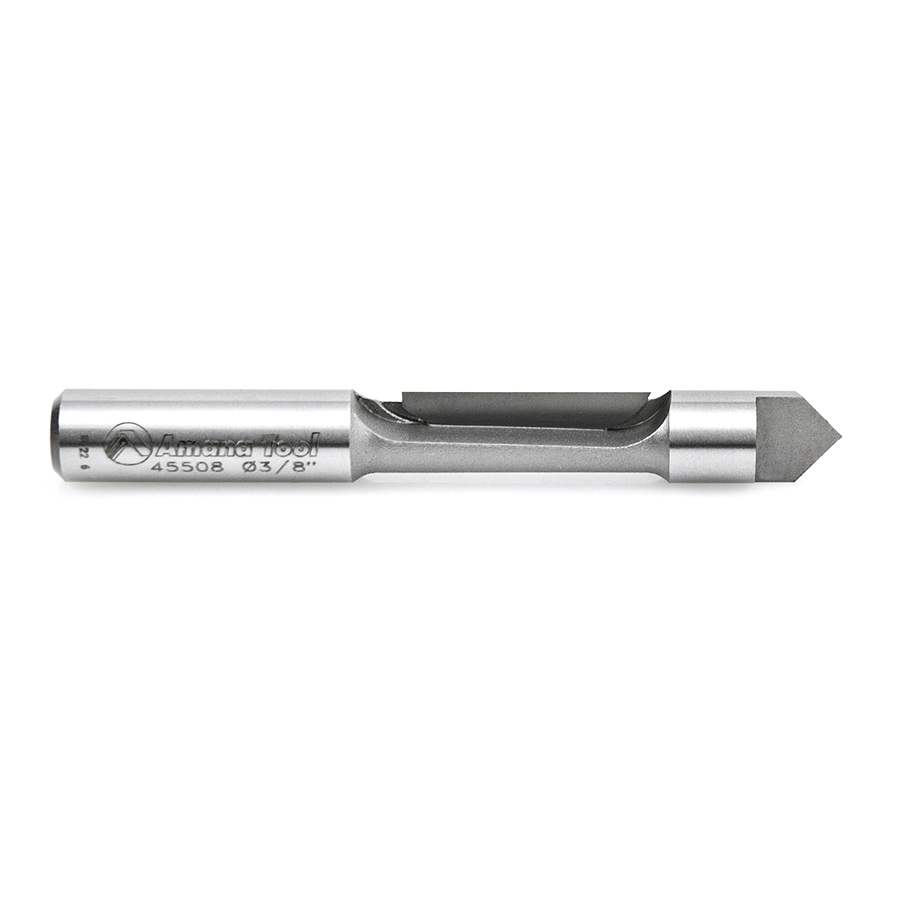

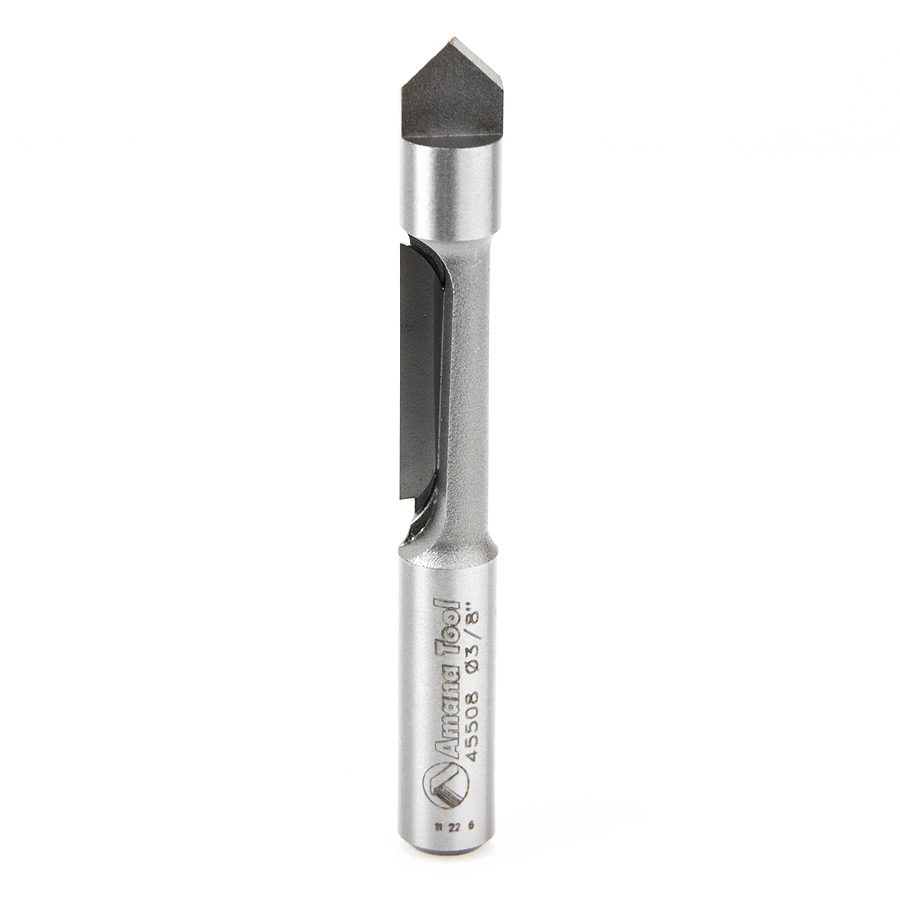

45508 Carbide Tipped Panel Pilot Concave Grind 3/8 Dia x 1 Inch x 3/8 Shank Single Flute

Amana 45508 Carbide Tipped Panel Pilot Concave Grind 3/8 Dia x 1 Inch x 3/8 Shank Single Flute

Name: Amana 45508 Carbide Tipped Panel Pilot Concave Grind 3/8 Dia x 1 Inch x 3/8 Shank Single Flute
SKU: Amana 45508
Availability: InStock

Original price was: $29.75.Current price is: $22.32.

PANEL PILOT 3/8 DIA. 3/8 SHANK

UPC: 738685855089 SKU: Amana 45508 Categories: Amana Tool, High Precision Panel Pilot Router Bits, Router Bits, Trimming Router Bits Tags: 3/8" Shank, 45508, amana, amana tool, carbide tipped, Panel Pilot Bit, router bit

Item Description

These panel pilot bits have a pointed tip for plunge cuts and a special grind for speed and an integral solid pilot. It is designed for fast cut-out work and is used extensively in the movile/motor homes, caravans, star wagons, trailers, coaches, RV industries and shed manufacturers.

The single-flute version cuts fast and produces an excellent finish.

Specifications

Diameter (D)	3/8
Cutting Height (B)	1
Shank (d)	3/8
Overall Length (L)	3
Flutes	1

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Tool No.
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/2	45506
3/8 (9.53mm)	1 (25.40mm)	1/4 (6.35mm)	2-7/8	45507
1/2 (12.70mm)	1-3/16	1/2 (12.70mm)	3-1/2	45510
1/2 (12.70mm)	2 (50.80mm)	1/2 (12.70mm)	4-3/4	45511

Weight	0.08 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
