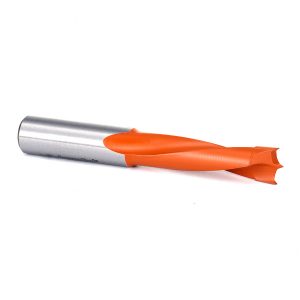

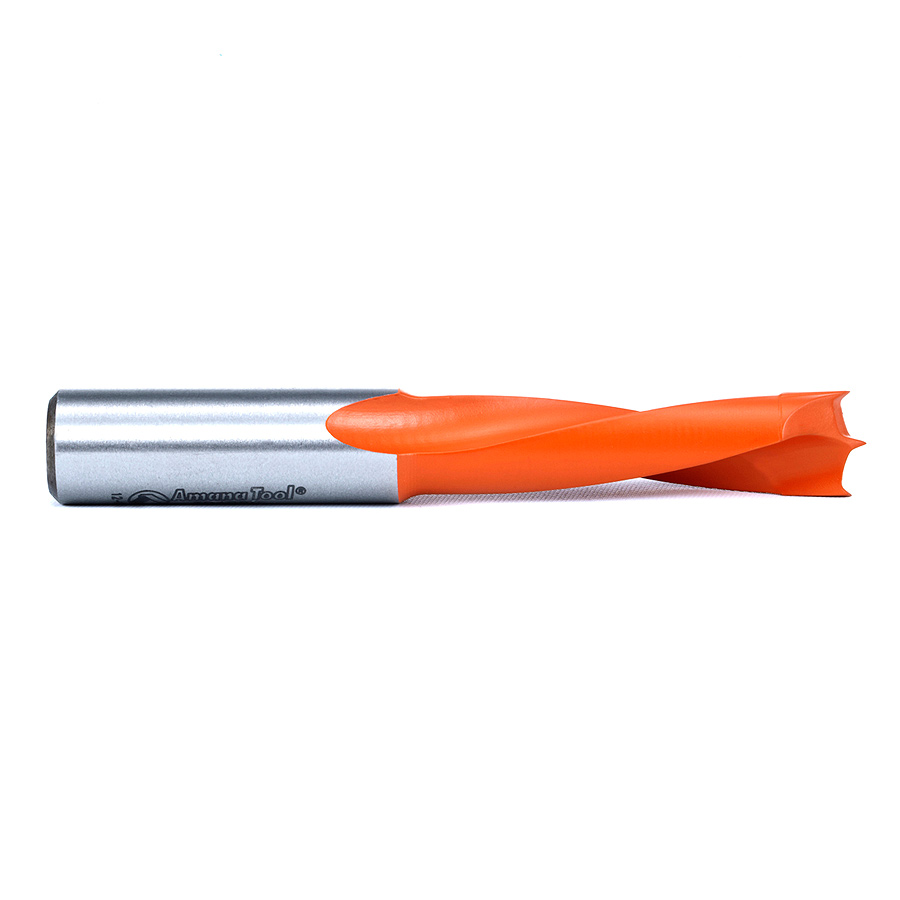

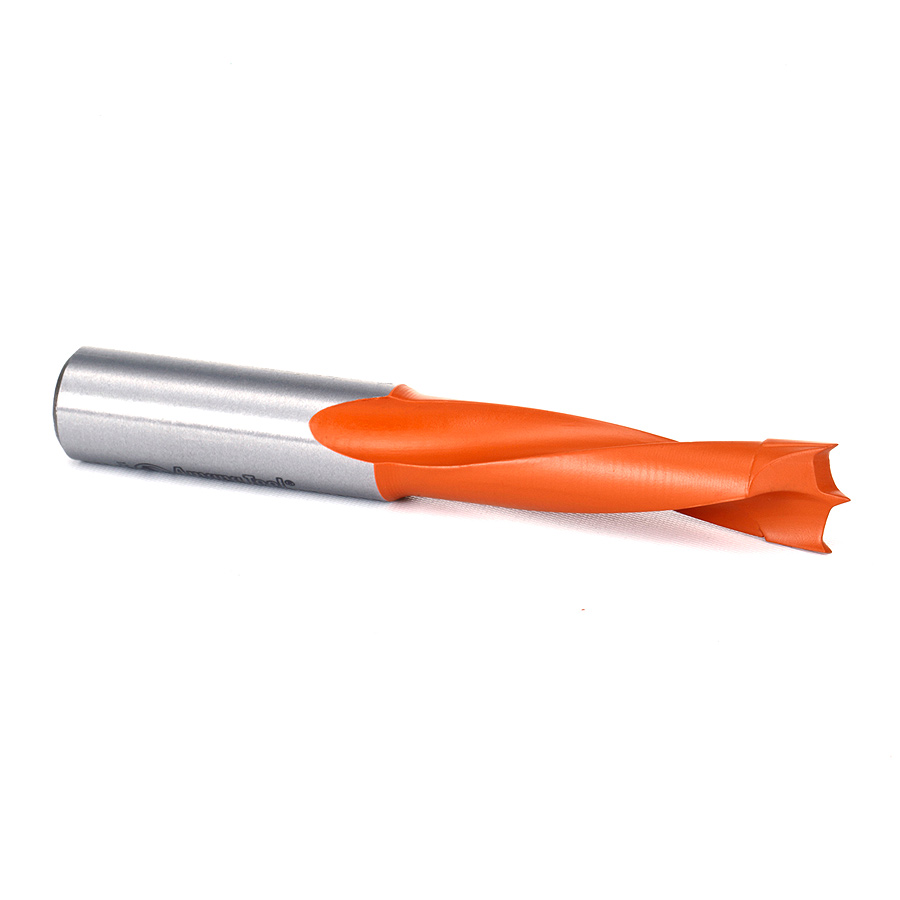

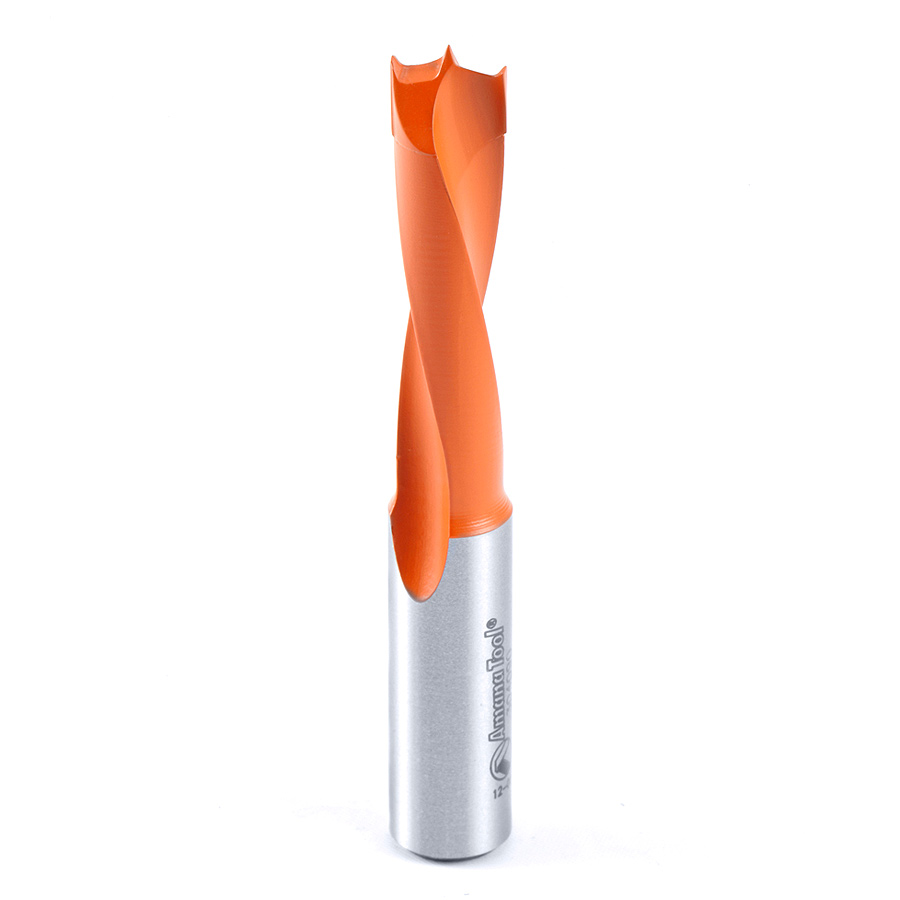

304090 Carbide Tipped Brad Point Boring Bit L/H 9mm Dia x 70mm Long x 10mm Shank

Amana 304090 Carbide Tipped Brad Point Boring Bit L/H 9mm Dia x 70mm Long x 10mm Shank

Name: Amana 304090 Carbide Tipped Brad Point Boring Bit L/H 9mm Dia x 70mm Long x 10mm Shank
SKU: Amana 304090
Availability: InStock

Original price was: $43.30.Current price is: $30.31.

9MM BRAD POINT L/H 70MM LONG.

UPC: 738685340905 SKU: Amana 304090 Categories: 70mm Long Brad Point Boring Bits, Amana Tool, Boring & Drilling Bits, Brad Point Boring Bits

Item Description

Industrial Brad Point Boring Bits are coated with a non-stick coating for longer lasting cutting edge and tool life.

Amana Tool® dowel drills are coated with a special Polytetrafluoroethylene (PTFE), a non-stick color coating. In cases where the carbide tip cutting edges are coated, there is no need to sand the coating off before use. Once the tool starts drilling, the coating is cleared off the needed cutting edge right away.

Amana’s coating is applied onto the bit at a temperature of 570° F. The coating reduces the friction between the chip and the body inside the flute and it helps to clear the chips out of the hole during the drilling creating a cooler drilling area, no burning and longer lasting cutting edge.

Specifications

(D) Diameter	9mm
(B) Cutting Height	35mm
(d) Shank	10mm
Overall Length (L)	70mm
Rotation	Left Hand

Other Sizes Available

(B) Cutting Height	(D) Diameter	(d) Shank	Overall Length (L)	Rotation	Tool No.
40mm	3mm	10mm	70mm	Right	204003
40mm	3mm	10mm	70mm	Left	304003
35mm	3.2mm	10mm	70mm	Right	204032
35mm	3.2mm	10mm	70mm	Left	304032
35mm	4mm	10mm	70mm	Right	204004
35mm	4mm	10mm	70mm	Left	304004
35mm	4.5mm	10mm	70mm	Right	204045
35mm	4.5mm	10mm	70mm	Left	304045
35mm	3/16 (4.76mm)	10mm	70mm	Right	204047
35mm	3/16 (4.76mm)	10mm	70mm	Left	304047
35mm	5mm	10mm	70mm	Right	204005
35mm	5.1mm	10mm	70mm	Right	204051
35mm	5.2mm	10mm	70mm	Right	204052
35mm	5mm	10mm	70mm	Left	304005
35mm	5.1mm	10mm	70mm	Left	304051
35mm	5.2mm	10mm	70mm	Left	304052
35mm	5.5mm	10mm	70mm	Right	204055
35mm	5.5mm	10mm	70mm	Left	304055
35mm	6mm	10mm	70mm	Right	204006
35mm	6mm	10mm	70mm	Left	304006
35mm	1/4 (6.35mm)	10mm	70mm	Right	204007
35mm	1/4 (6.35mm)	10mm	70mm	Left	304007
35mm	6.5mm	10mm	70mm	Right	204065
35mm	6.7mm	10mm	70mm	Right	204067
35mm	6.5mm	10mm	70mm	Left	304065
35mm	7mm	10mm	70mm	Right	204070
35mm	7mm	10mm	70mm	Left	304070
35mm	7.5mm	10mm	70mm	Right	204075
35mm	7.5mm	10mm	70mm	Left	304075
35mm	8mm	10mm	70mm	Right	204008
35mm	8mm	10mm	70mm	Left	304008
35mm	8.2mm	10mm	70mm	Right	204082
35mm	8.2mm	10mm	70mm	Left	304082
35mm	9mm	10mm	70mm	Right	204090
35mm	3/8 (9.53mm)	10mm	70mm	Right	204009
35mm	3/8 (9.53mm)	10mm	70mm	Left	304009
35mm	10mm	10mm	70mm	Right	204010
35mm	10mm	10mm	70mm	Left	304100
35mm	11mm	10mm	70mm	Right	204011
35mm	11mm	10mm	70mm	Left	304011
35mm	7/16 (11.11mm)	10mm	70mm	Right	204111
35mm	7/16 (11.11mm)	10mm	70mm	Left	304111
35mm	12mm	10mm	70mm	Right	204012
35mm	12mm	10mm	70mm	Left	304012
35mm	1/2 (12.70mm)	10mm	70mm	Right	204013
35mm	1/2 (12.70mm)	10mm	70mm	Left	304013
35mm	13mm	10mm	70mm	Right	204130
35mm	13mm	10mm	70mm	Left	304130
35mm	14mm	10mm	70mm	Right	204014
35mm	15mm	10mm	70mm	Right	204015
35mm	15mm	10mm	70mm	Left	304015
35mm	16mm	10mm	70mm	Right	204016
35mm	5/8 (15.88mm)	10mm	70mm	Right	204113
35mm	17mm	10mm	70mm	Left	304017

Weight	0.05 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
