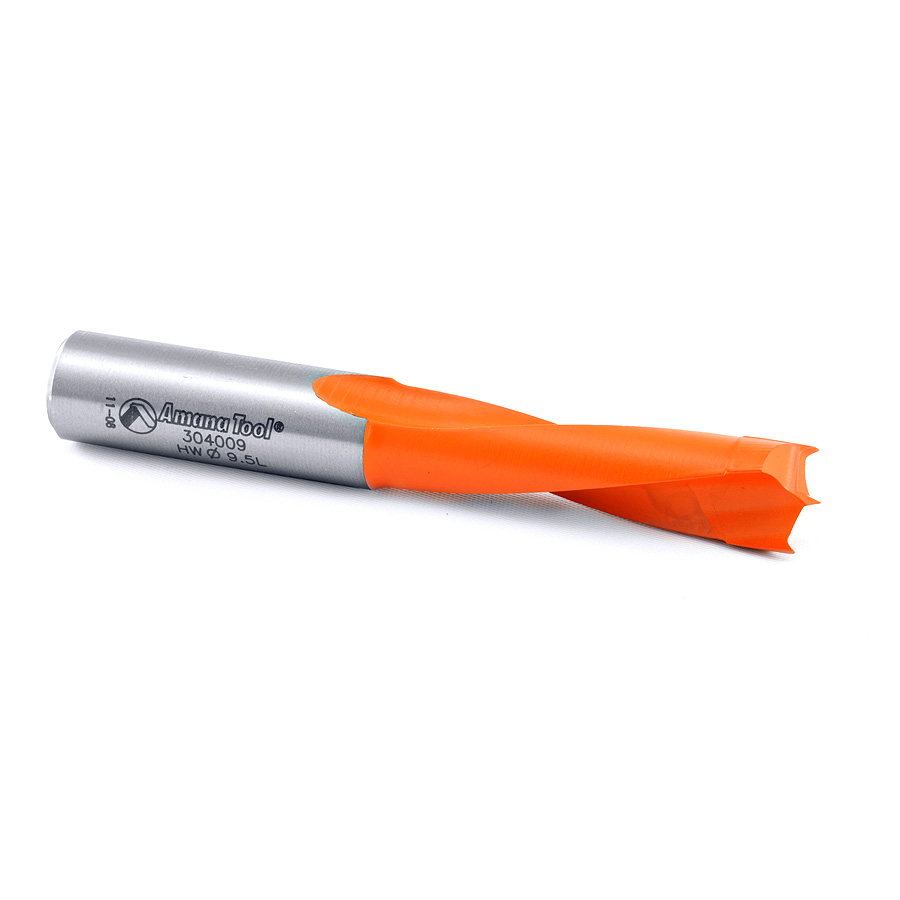

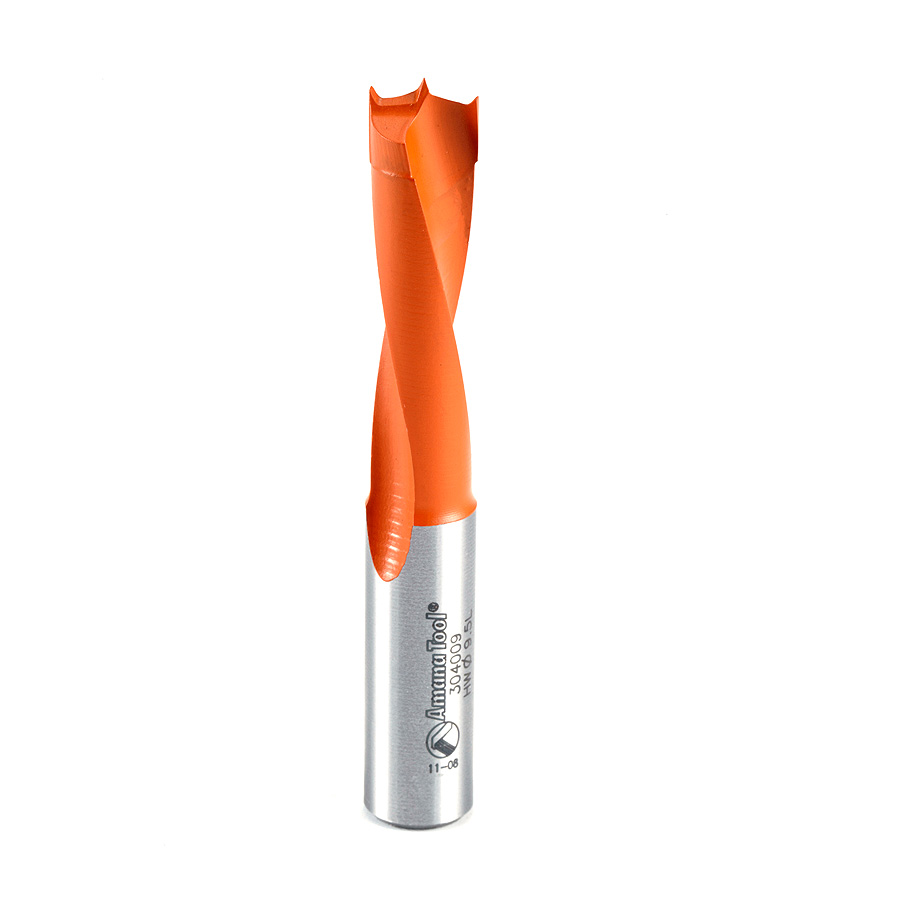

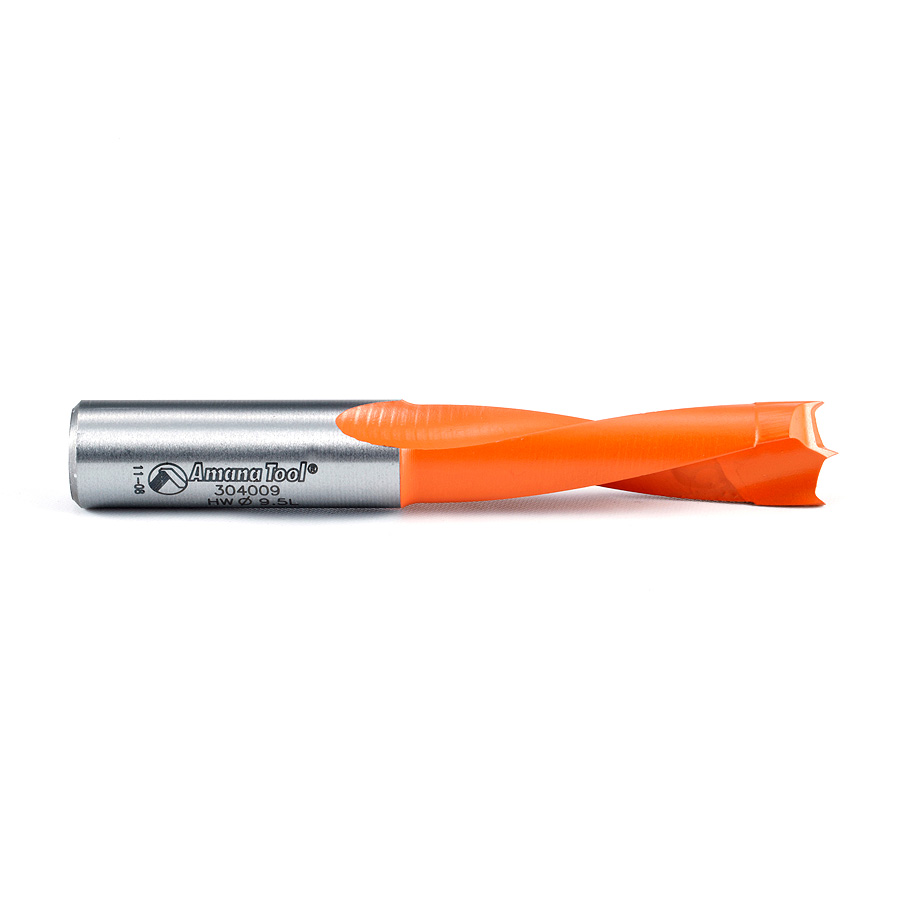

304009 Carbide Tipped Brad Point Boring Bit L/H 3/8 Dia x 70mm Long x 10mm Shank

Amana 304009 Carbide Tipped Brad Point Boring Bit L/H 3/8 Dia x 70mm Long x 10mm Shank

Name: Amana 304009 Carbide Tipped Brad Point Boring Bit L/H 3/8 Dia x 70mm Long x 10mm Shank
SKU: Amana 304009
Availability: InStock

Original price was: $47.30.Current price is: $33.11.

3/8″ BRAD POINT L/H 70MM LONG

UPC: 738685340097 SKU: Amana 304009 Categories: 70mm Long Brad Point Boring Bits, Amana Tool, Boring & Drilling Bits, Brad Point Boring Bits

Item Description

Industrial Brad Point Boring Bits are coated with a non-stick coating for longer lasting cutting edge and tool life.

Amana Tool® dowel drills are coated with a special Polytetrafluoroethylene (PTFE), a non-stick color coating. In cases where the carbide tip cutting edges are coated, there is no need to sand the coating off before use. Once the tool starts drilling, the coating is cleared off the needed cutting edge right away.

Amana’s coating is applied onto the bit at a temperature of 570° F. The coating reduces the friction between the chip and the body inside the flute and it helps to clear the chips out of the hole during the drilling creating a cooler drilling area, no burning and longer lasting cutting edge.

Specifications

(D) Diameter	3/8
(B) Cutting Height	35mm
(d) Shank	10mm
Overall Length (L)	70mm
Rotation	Left Hand

Other Sizes Available

(D) Diameter	(B) Cutting Height	(d) Shank	Overall Length (L)	Rotation	Tool No.
3mm	40mm	10mm	70mm	Right	204003
3mm	40mm	10mm	70mm	Left	304003
3.2mm	35mm	10mm	70mm	Right	204032
3.2mm	35mm	10mm	70mm	Left	304032
4mm	35mm	10mm	70mm	Right	204004
4mm	35mm	10mm	70mm	Left	304004
4.5mm	35mm	10mm	70mm	Right	204045
4.5mm	35mm	10mm	70mm	Left	304045
3/16 (4.76mm)	35mm	10mm	70mm	Right	204047
3/16 (4.76mm)	35mm	10mm	70mm	Left	304047
5mm	35mm	10mm	70mm	Right	204005
5.1mm	35mm	10mm	70mm	Right	204051
5.2mm	35mm	10mm	70mm	Right	204052
5mm	35mm	10mm	70mm	Left	304005
5.1mm	35mm	10mm	70mm	Left	304051
5.2mm	35mm	10mm	70mm	Left	304052
5.5mm	35mm	10mm	70mm	Right	204055
5.5mm	35mm	10mm	70mm	Left	304055
6mm	35mm	10mm	70mm	Right	204006
6mm	35mm	10mm	70mm	Left	304006
1/4 (6.35mm)	35mm	10mm	70mm	Right	204007
1/4 (6.35mm)	35mm	10mm	70mm	Left	304007
6.5mm	35mm	10mm	70mm	Right	204065
6.7mm	35mm	10mm	70mm	Right	204067
6.5mm	35mm	10mm	70mm	Left	304065
7mm	35mm	10mm	70mm	Right	204070
7mm	35mm	10mm	70mm	Left	304070
7.5mm	35mm	10mm	70mm	Right	204075
7.5mm	35mm	10mm	70mm	Left	304075
8mm	35mm	10mm	70mm	Right	204008
8mm	35mm	10mm	70mm	Left	304008
8.2mm	35mm	10mm	70mm	Right	204082
8.2mm	35mm	10mm	70mm	Left	304082
9mm	35mm	10mm	70mm	Right	204090
9mm	35mm	10mm	70mm	Left	304090
3/8 (9.53mm)	35mm	10mm	70mm	Right	204009
10mm	35mm	10mm	70mm	Right	204010
10mm	35mm	10mm	70mm	Left	304100
11mm	35mm	10mm	70mm	Right	204011
11mm	35mm	10mm	70mm	Left	304011
7/16 (11.11mm)	35mm	10mm	70mm	Right	204111
7/16 (11.11mm)	35mm	10mm	70mm	Left	304111
12mm	35mm	10mm	70mm	Right	204012
12mm	35mm	10mm	70mm	Left	304012
1/2 (12.70mm)	35mm	10mm	70mm	Right	204013
1/2 (12.70mm)	35mm	10mm	70mm	Left	304013
13mm	35mm	10mm	70mm	Right	204130
13mm	35mm	10mm	70mm	Left	304130
14mm	35mm	10mm	70mm	Right	204014
15mm	35mm	10mm	70mm	Right	204015
15mm	35mm	10mm	70mm	Left	304015
16mm	35mm	10mm	70mm	Right	204016
5/8 (15.88mm)	35mm	10mm	70mm	Right	204113
17mm	35mm	10mm	70mm	Left	304017

Weight	0.1 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
