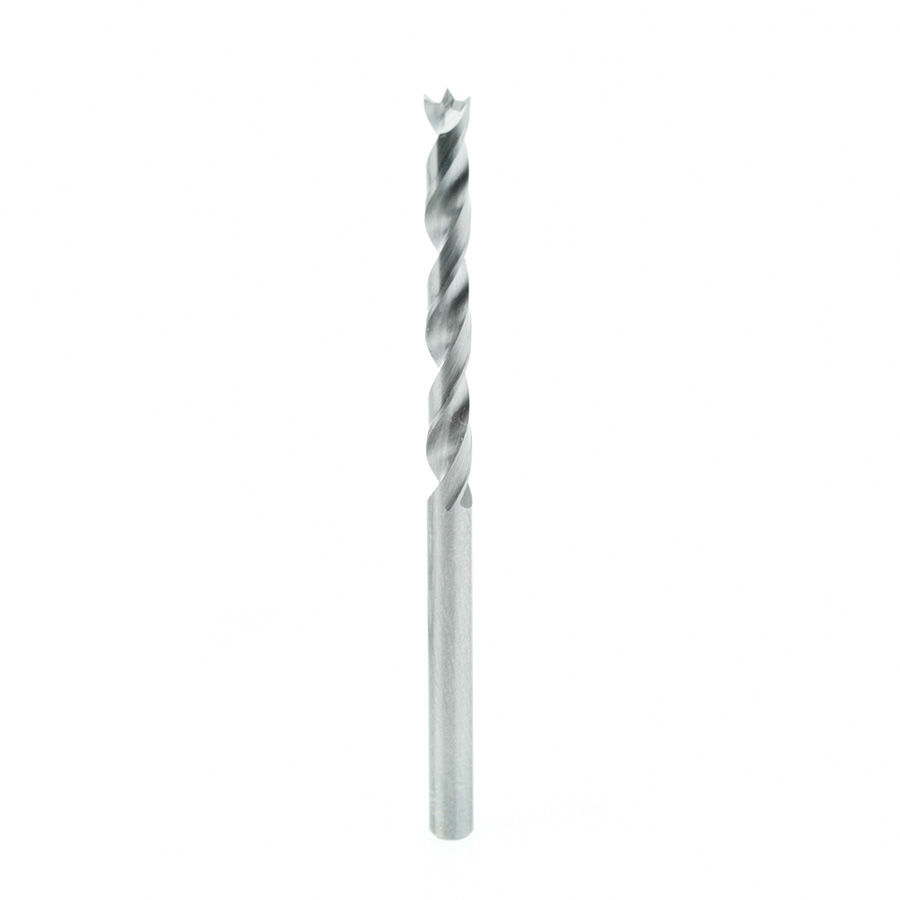

Amana 363003 Solid Carbide Drill Bit R/H 3mm Dia x 55mm Long x 3mm Shank

Name: Amana 363003 Solid Carbide Drill Bit R/H 3mm Dia x 55mm Long x 3mm Shank
SKU: Amana 363003
Availability: InStock

Original price was: $36.25.Current price is: $25.38.

3MM SOLID CARBIDE DRILL R/H

UPC: 738685363034 SKU: Amana 363003 Categories: Amana Tool, Boring & Drilling Bits, Brad Point Boring Bits, Metric Brad Point Boring Drills

Item Description

Application: Boring machines for shelving hardware, etc. Use with 10mm shank drill adapters or bushings.

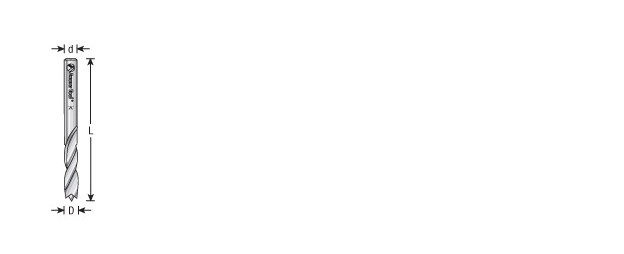

Specifications

(D) Diameter	3mm
(d) Shank	3mm
Overall Length (L)	55mm
Rotation	Right Hand
Type	Brad Point

Other Sizes Available

(D) Diameter	(d) Shank	Overall Length (L)	Rotation	Type	Tool No.
2mm	2mm	49mm	Right	V-Point	363002
2mm	2mm	49mm	Left	V-Point	463002
2.5mm	2.5mm	55mm	Right	V-Point	363025
2.5mm	2.5mm	55mm	Left	V-Point	463025
3mm	3mm	55mm	Left	Brad Point	463003
3.2mm	3.2mm	55mm	Right	Brad Point	363032
3.2mm	3.2mm	55mm	Left	Brad Point	463032
3.5mm	3.5mm	55mm	Right	Brad Point	363035
3.5mm	3.5mm	55mm	Left	Brad Point	463035
4.5mm	4.5mm	55mm	Left	Brad Point	463045
5mm	5mm	55mm	Right	Brad Point	363005
5mm	5mm	55mm	Right	V-Point	363007

Weight	0.03 lbs
