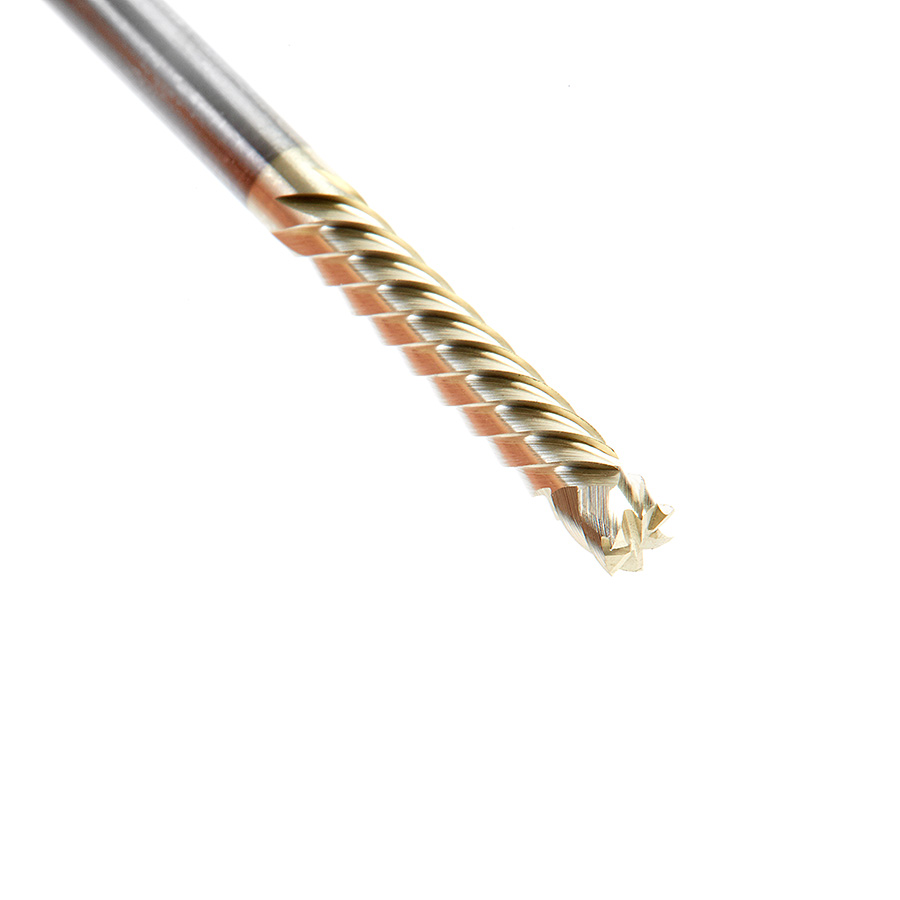

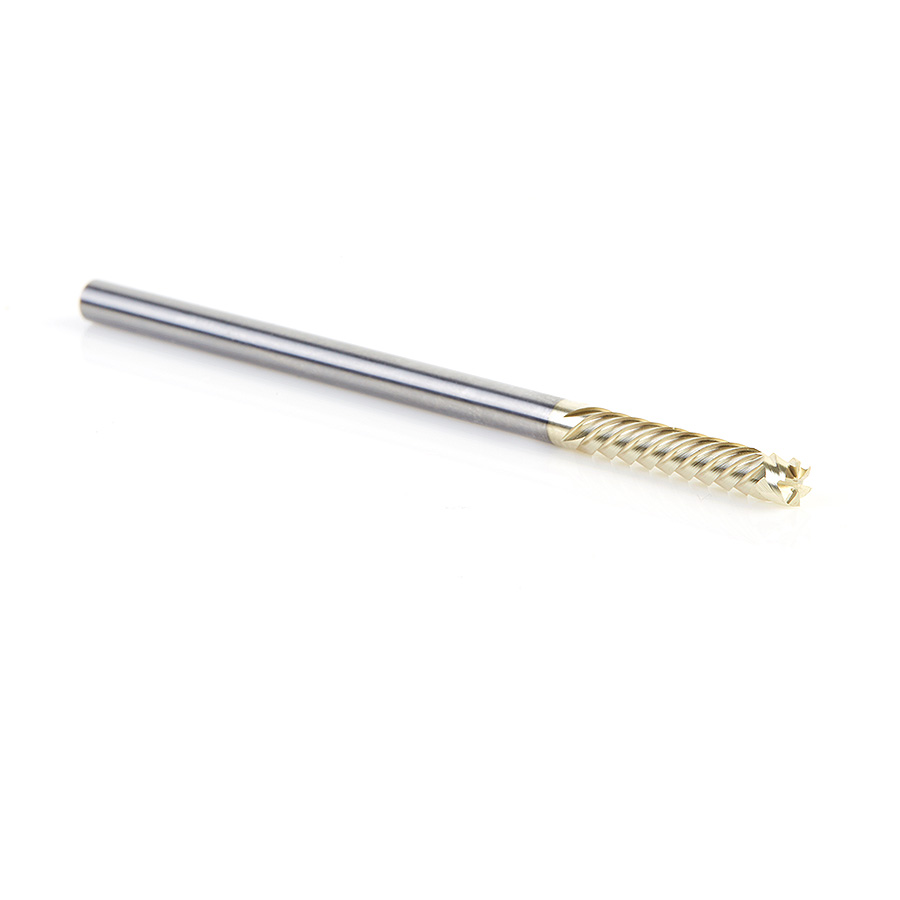

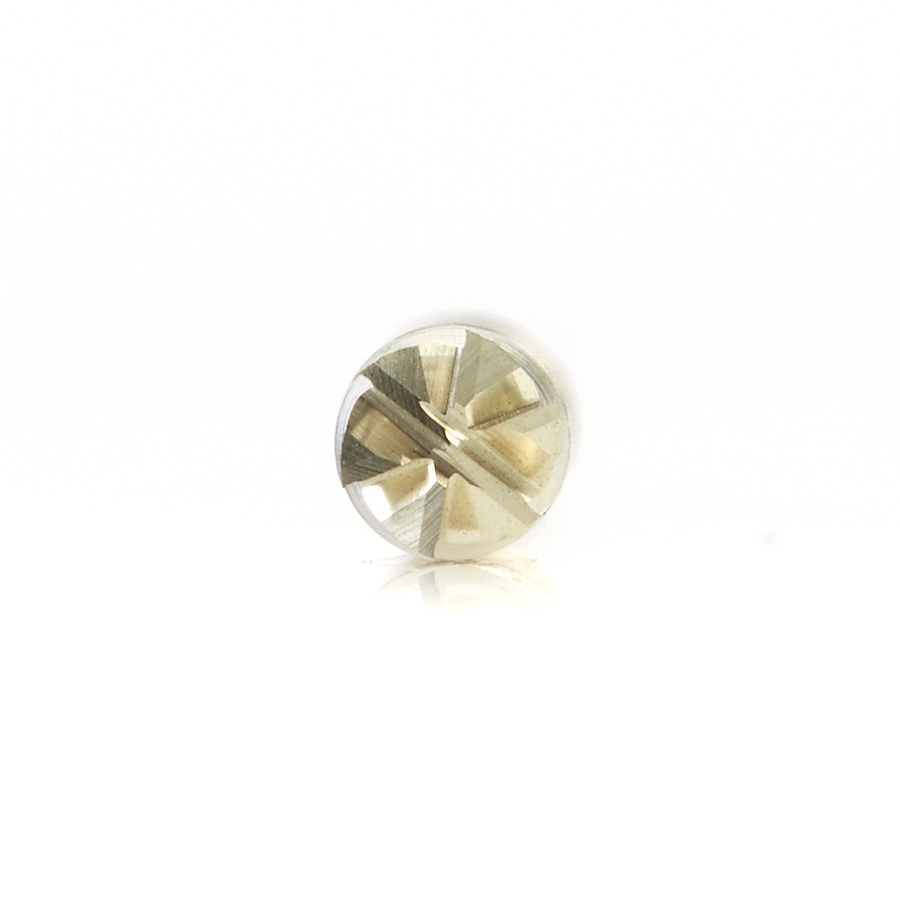

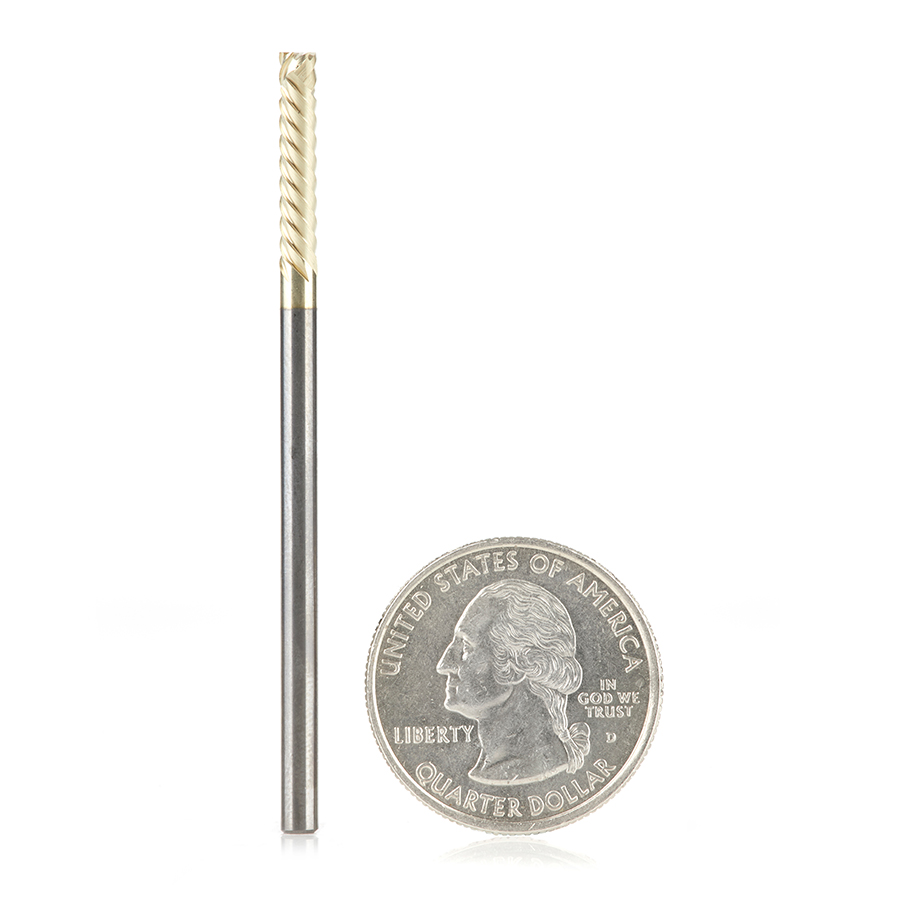

40301 CNC Compression Solid Carbide ZrN Coated Honeycomb Cutting 1/8 Dia x 5/8 x 1/8 Shank x 2-1/2 Inch Long x 6-Flute

Amana 40301 CNC Compression Solid Carbide ZrN Coated Honeycomb Cutting 1/8 Dia x 5/8 x 1/8 Shank x 2-1/2 Inch Long x 6-Flute

Name: Amana 40301 CNC Compression Solid Carbide ZrN Coated Honeycomb Cutting 1/8 Dia x 5/8 x 1/8 Shank x 2-1/2 Inch Long x 6-Flute
SKU: Amana 40301
Availability: InStock

Original price was: $87.80.Current price is: $65.85.

1/8 DIA. ZrN HONEYCOMB BIT

UPC: 738685403013 SKU: Amana 40301 Categories: Amana Tool, CNC Router Bits - Industrial CNC Tooling, Honeycomb Cutting CNC Router Bits, Solid Carbide Spiral Honeycomb Cutting Router Bits

Item Description

Solid carbide honeycomb cutting router bits provide a burr-free top and bottom finish, providing that the workpiece is thicker than 0.250”. Designed for cutting Bioboard™, Falconboard®, Aluminum Honeycomb (AHP) carbon fiber and honeycomb cardboard.

Excellent for Cutting:

Acrylonitrile-Butadiene-Styrene (ABS)
Aluminum Honeycomb Panel (AHP)
BioBoard™
Carbon
Carbon Fiber
Carbon Graphite
Composites

Falconboard®
Fiberglass Filled Plastics
Honeycomb Cardboard
Lexan™
Pressed Cardboard
Unfilled Plastics
Vegetable Material

Benefits of ZrN Coating

Creates a harder and tougher cutting edge allows for a prolonged cutting edge life and helps to prevent the build-up of material in the flutes while cutting
High resistance to wear
Extended tool life
Less friction & heat buildup
High resistance to wear

Please note:**For optimal results and to extend tool life please use mist lubricant system or air cooling.Please inspect cut and adjust accordingly.

Router collet reducer[RB-102](http://www.amanatool.com/rb-102-router-shank-reduction-bushing-1-4-overall-dia-x-1-8-inner-dia-x-1-length.html)(1/4 to 1/8) available for 1/8 shank bits.

Vectric compatible tool file for 40301 available for download,click here.

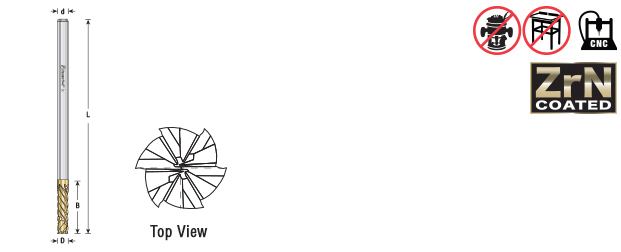

Specifications

(D) Diameter	1/8
(B) Cutting Height	5/8
B1	1/8
(d) Shank	1/8
Overall Length (L)	2-1/2
Max RPM	28,000
Flutes	6

Other Sizes Available

(D) Diameter	(B) Cutting Height	B1	(d) Shank	Overall Length (L)	Tool No.
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	1/4 (6.35mm)	2-1/2	46302
3/8 (9.53mm)	1-1/4	1/4 (6.35mm)	3/8 (9.53mm)	3 (76.20mm)	46308

Weight	0.04 lbs
