46308 CNC Compression Solid Carbide ZrN Coated Honeycomb Cutting 3/8 Dia x 1-1/4 x 3/8 Shank x 6-Flute

Amana 46308 CNC Compression Solid Carbide ZrN Coated Honeycomb Cutting 3/8 Dia x 1-1/4 x 3/8 Shank x 6-Flute

Name: Amana 46308 CNC Compression Solid Carbide ZrN Coated Honeycomb Cutting 3/8 Dia x 1-1/4 x 3/8 Shank x 6-Flute
SKU: Amana 46308
Availability: InStock

Original price was: $148.35.Current price is: $111.27.

3/8″ DIAM. ZrN HONEYCOMB BIT

UPC: 738685463086 SKU: Amana 46308 Categories: Amana Tool, CNC Router Bits, Honeycomb Cutting CNC Router Bits, Solid Carbide Spiral Honeycomb Cutting Router Bits

Item Description

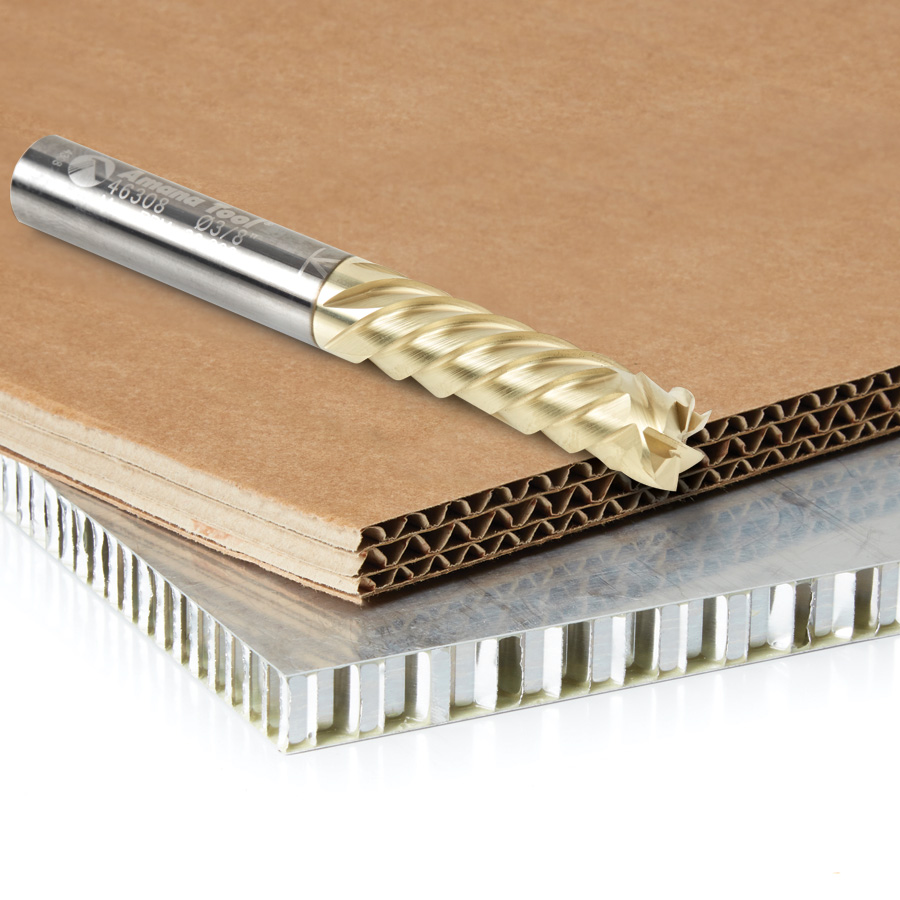

Solid carbide honeycomb cutting router bits provide a burr-free top and bottom finish, providing that the workpiece is thicker than 0.250”. Designed for cutting Bioboard™, Falconboard®, Aluminum Honeycomb (AHP) carbon fiber and honeycomb cardboard.

Excellent for Cutting:

Acrylonitrile-Butadiene-Styrene (ABS)
Aluminum Honeycomb Panel (AHP)
BioBoard™
Carbon
Carbon Fiber
Carbon Graphite
Composites

Falconboard®
Fiberglass Filled Plastics
Honeycomb Cardboard
Lexan™
Pressed Cardboard
Unfilled Plastics
Vegetable Material

Benefits of ZrN Coating

Creates a harder and tougher cutting edge allows for a prolonged cutting edge life and helps to prevent the build-up of material in the flutes while cutting
High resistance to wear
Extended tool life
Less friction & heat buildup
High resistance to wear

Please note:**For optimal results and to extend tool life please use mist lubricant system or air cooling.Please inspect cut and adjust accordingly.

Vectric compatible tool file for 46308 available for download,click here.

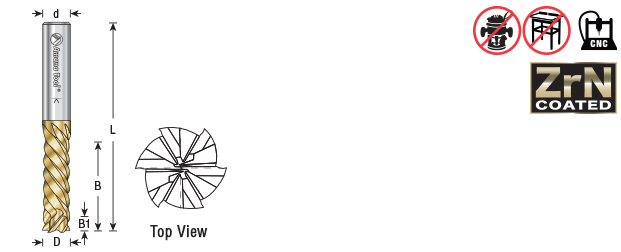

Specifications

(D) Diameter	3/8
(B) Cutting Height	1-1/4
B1	1/4
(d) Shank	3/8
Overall Length (L)	3
Max RPM	28,000
Flutes	6

Other Sizes Available

(D) Diameter	(B) Cutting Height	B1	(d) Shank	Overall Length (L)	Tool No.
1/8 (3.18mm)	5/8 (15.88mm)	1/8 (3.18mm)	1/8 (3.18mm)	2-1/2	40301
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	1/4 (6.35mm)	2-1/2	46302

Weight	0.18 lbs
