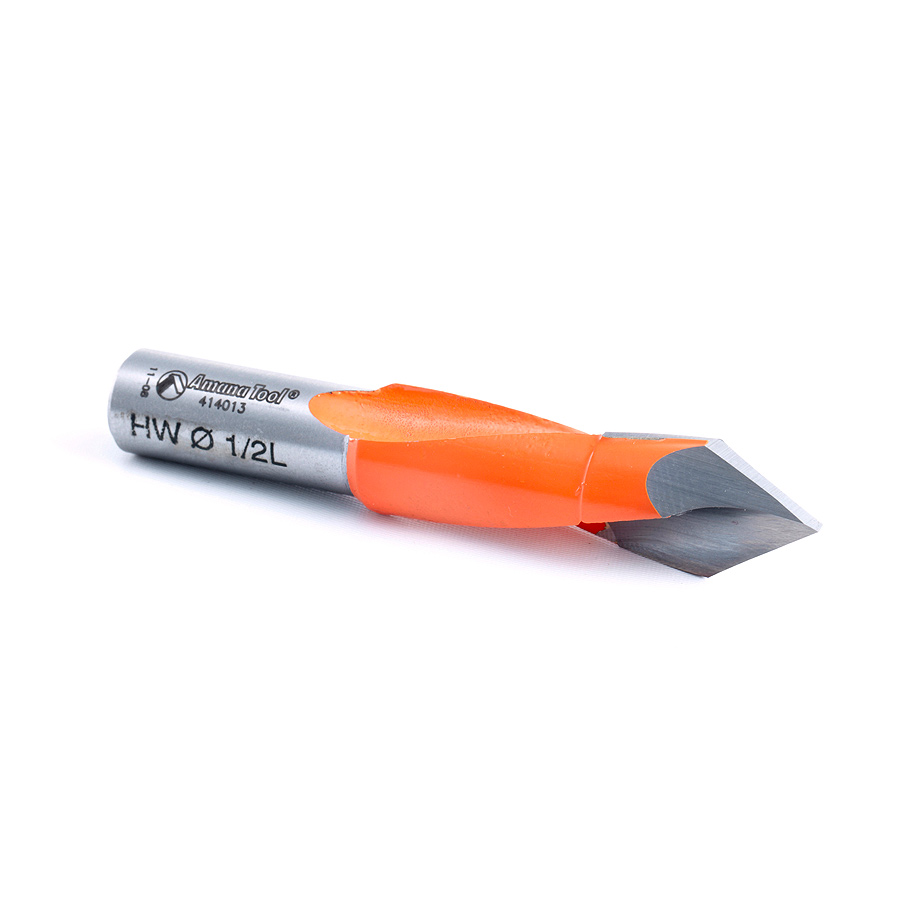

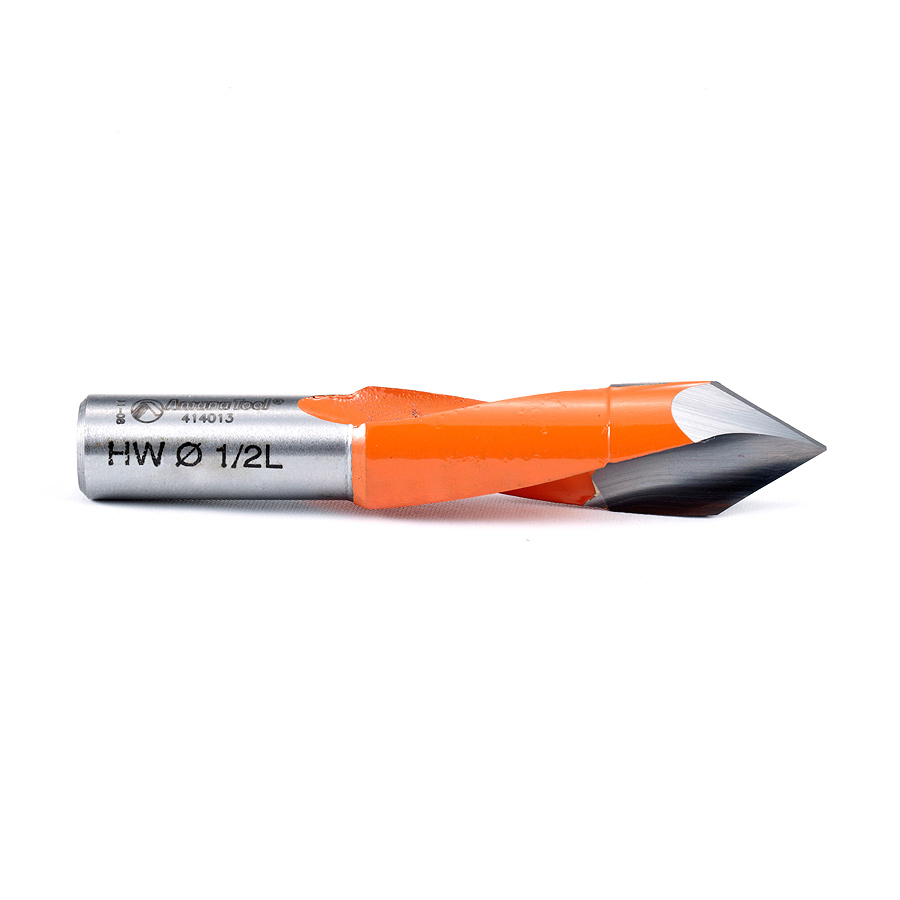

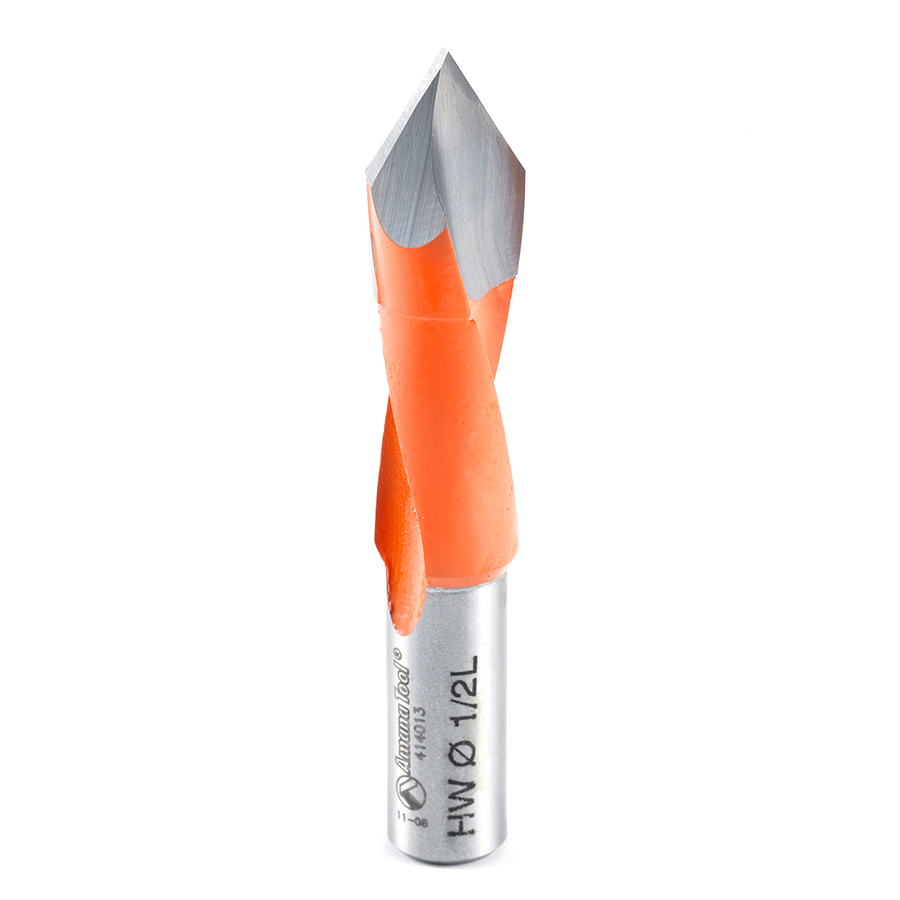

414013 Carbide Tipped Through-Hole Boring Bit L/H 1/2 Dia x 70mm Long x 10mm Shank

Amana 414013 Carbide Tipped Through-Hole Boring Bit L/H 1/2 Dia x 70mm Long x 10mm Shank

Name: Amana 414013 Carbide Tipped Through-Hole Boring Bit L/H 1/2 Dia x 70mm Long x 10mm Shank
SKU: Amana 414013
Availability: InStock

Original price was: $65.30.Current price is: $45.71.

1/2″ THROUGH-HOLE L/H 70MM LNG

UPC: 738685414132 SKU: Amana 414013 Categories: 70mm Long Through-Hole Boring Bits, Amana Tool, Boring & Drilling Bits, Through-Hole Boring Bits

Item Description

Industrial Through-Hole with V-Point Boring Bits are coated with a non-stick coating for longer lasting cutting edge and tool life.

Amana Tool® dowel drills are coated with a special Polytetrafluoroethylene (PTFE), a non-stick color coating. In cases where the carbide tip cutting edges are coated, there is no need to sand the coating off before use. Once the tool starts drilling, the coating is cleared off the needed cutting edge right away.

Amana’s coating is applied onto the bit at a temperature of 570° F. The coating reduces the friction between the chip and the body inside the flute and it helps to clear the chips out of the hole during the drilling creating a cooler drilling area, no burning and longer lasting cutting edge.

Specifications

(D) Diameter	1/2
(B) Cutting Height	40mm
(d) Shank	10mm
Overall Length (L)	70mm
Rotation	Left Hand

Other Sizes Available

(D) Diameter	(B) Cutting Height	(d) Shank	Overall Length (L)	Rotation	Tool No.
4mm	40mm	10mm	70mm	Right	314004
4mm	40mm	10mm	70mm	Left	414004
3/16 (4.76mm)	40mm	10mm	70mm	Right	314047
3/16 (4.76mm)	40mm	10mm	70mm	Left	414047
5mm	40mm	10mm	70mm	Right	314005
5mm	40mm	10mm	70mm	Left	414005
5.5mm	40mm	10mm	70mm	Right	314055
5.5mm	40mm	10mm	70mm	Left	414055
6mm	40mm	10mm	70mm	Right	314006
6mm	40mm	10mm	70mm	Left	414006
1/4 (6.35mm)	40mm	10mm	70mm	Right	314007
1/4 (6.35mm)	40mm	10mm	70mm	Left	414007
7mm	40mm	10mm	70mm	Right	314070
9/32 (7.14mm)	40mm	10mm	70mm	Right	314281
7mm	40mm	10mm	70mm	Left	414070
9/32 (7.14mm)	40mm	10mm	70mm	Left	414281
8mm	40mm	10mm	70mm	Right	314008
8mm	40mm	10mm	70mm	Left	414008
0.328 (8.38mm)	40mm	10mm	70mm	Right	314833
11/32 (8.73mm)	40mm	10mm	70mm	Left	414343
9mm	40mm	10mm	70mm	Right	314090
9mm	40mm	10mm	70mm	Left	414090
3/8 (9.53mm)	40mm	10mm	70mm	Right	314009
3/8 (9.53mm)	40mm	10mm	70mm	Left	414009
10mm	40mm	10mm	70mm	Right	314010
10mm	40mm	10mm	70mm	Left	414010
12mm	40mm	10mm	70mm	Right	314012
12mm	40mm	10mm	70mm	Left	414012
1/2 (12.70mm)	40mm	10mm	70mm	Right	314013
5/8 (15.88mm)	40mm	10mm	70mm	Right	314113

Weight	0.1 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
