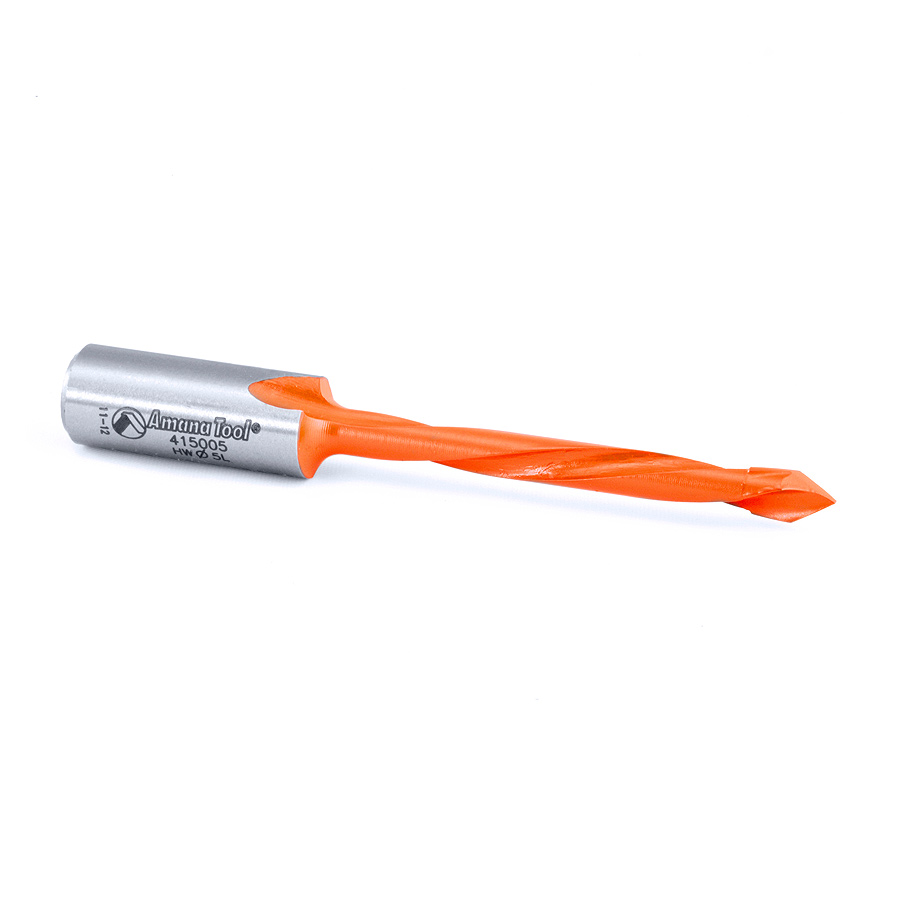

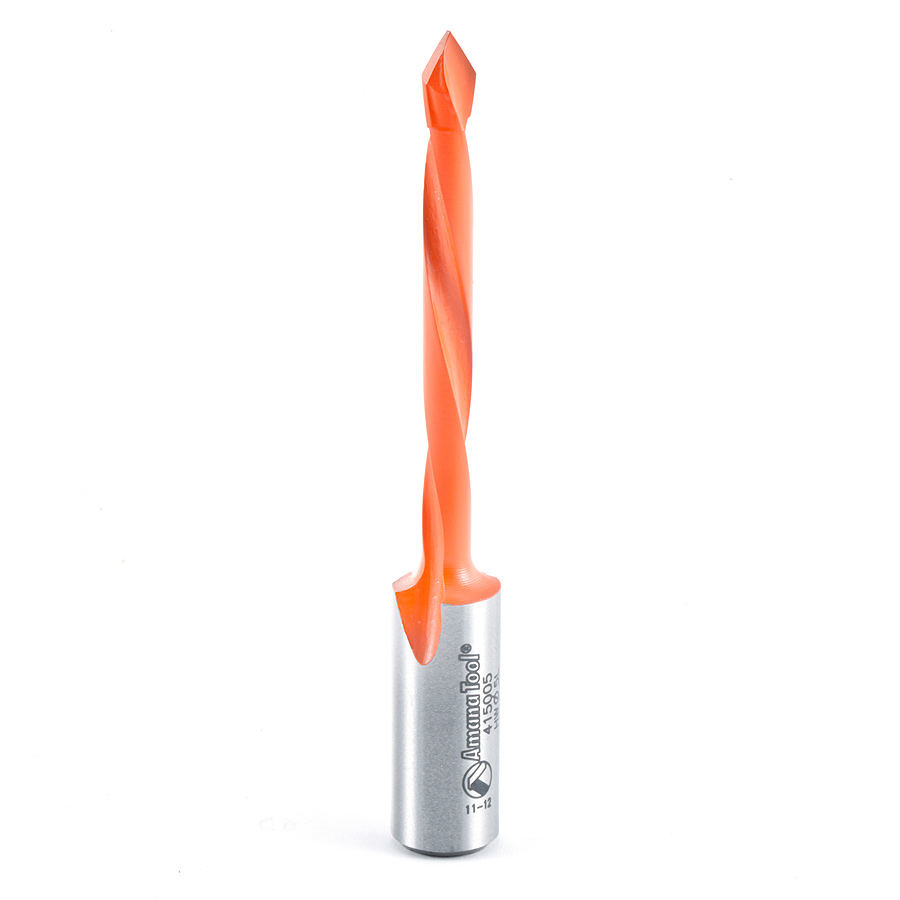

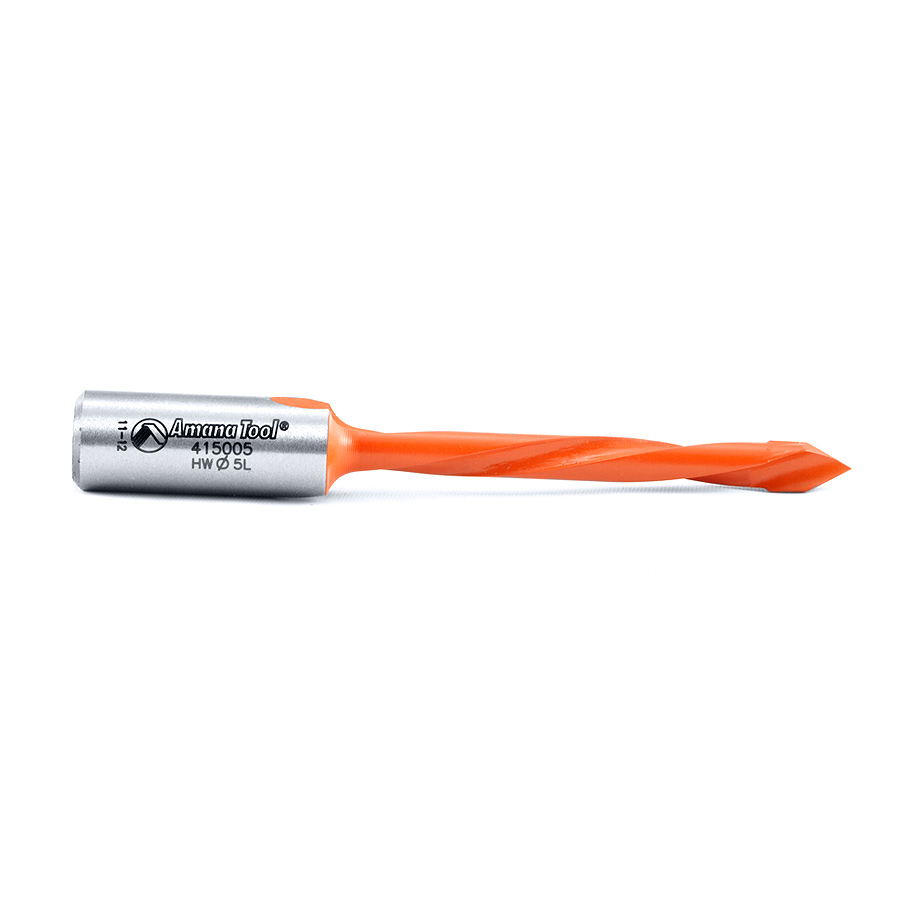

415005 Carbide Tipped Through-Hole Boring Bit L/H 5mm Dia x 77mm Long x 10mm Shank

Amana 415005 Carbide Tipped Through-Hole Boring Bit L/H 5mm Dia x 77mm Long x 10mm Shank

Name: Amana 415005 Carbide Tipped Through-Hole Boring Bit L/H 5mm Dia x 77mm Long x 10mm Shank
SKU: Amana 415005
Availability: InStock

Original price was: $50.40.Current price is: $35.28.

5MM THROUGH-HOLE L/H 77MM LONG

UPC: 738685415054 SKU: Amana 415005 Categories: 77mm Long Through-Hole Boring Bits, Amana Tool, Boring & Drilling Bits, Through-Hole Boring Bits

Item Description

Industrial Through-Hole with V-Point Boring Bits are coated with a non-stick coating for longer lasting cutting edge and tool life.

Amana Tool® dowel drills are coated with a special Polytetrafluoroethylene (PTFE), a non-stick color coating. In cases where the carbide tip cutting edges are coated, there is no need to sand the coating off before use. Once the tool starts drilling, the coating is cleared off the needed cutting edge right away.

Amana’s coating is applied onto the bit at a temperature of 570° F. The coating reduces the friction between the chip and the body inside the flute and it helps to clear the chips out of the hole during the drilling creating a cooler drilling area, no burning and longer lasting cutting edge.

Specifications

(D) Diameter	5mm
(B) Cutting Height	45mm
(d) Shank	10mm
Overall Length (L)	77mm
Rotation	Left Hand

Other Sizes Available

(D) Diameter	(B) Cutting Height	(d) Shank	Overall Length (L)	Rotation	Tool No.
5mm	45mm	10mm	77mm	Right	315005
7mm	45mm	10mm	77mm	Right	315070
8mm	45mm	10mm	77mm	Right	315008
8mm	45mm	10mm	77mm	Left	415008
9mm	45mm	10mm	77mm	Left	415090

Weight	0.05 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
