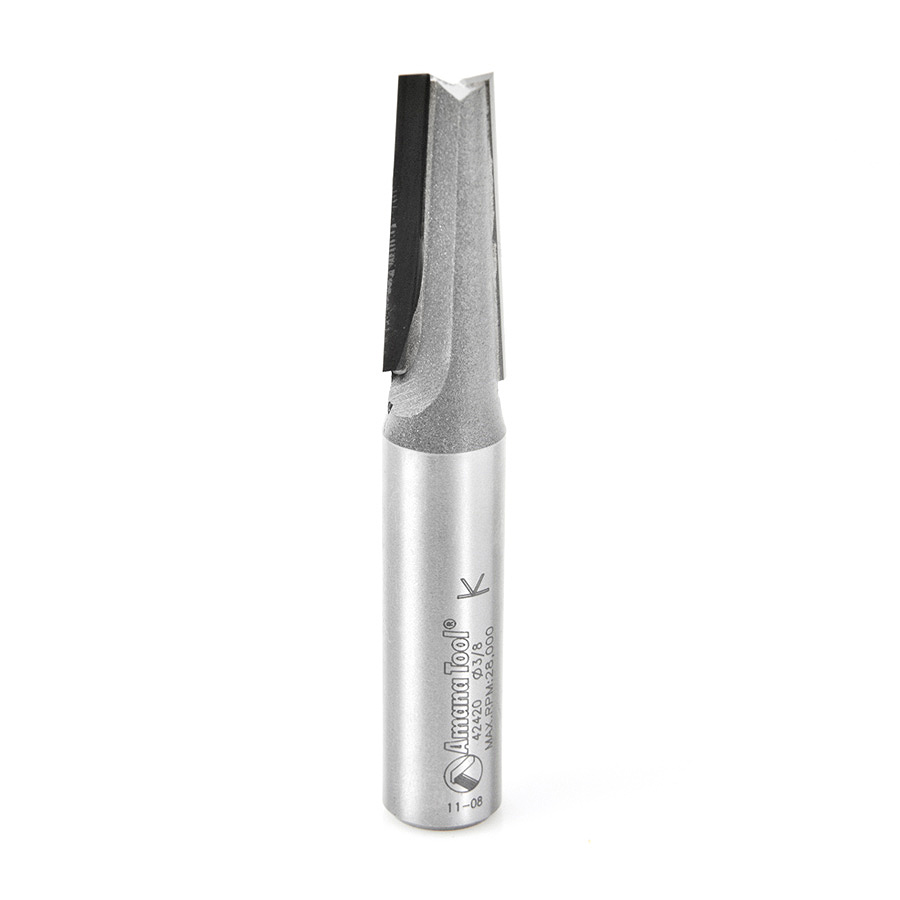

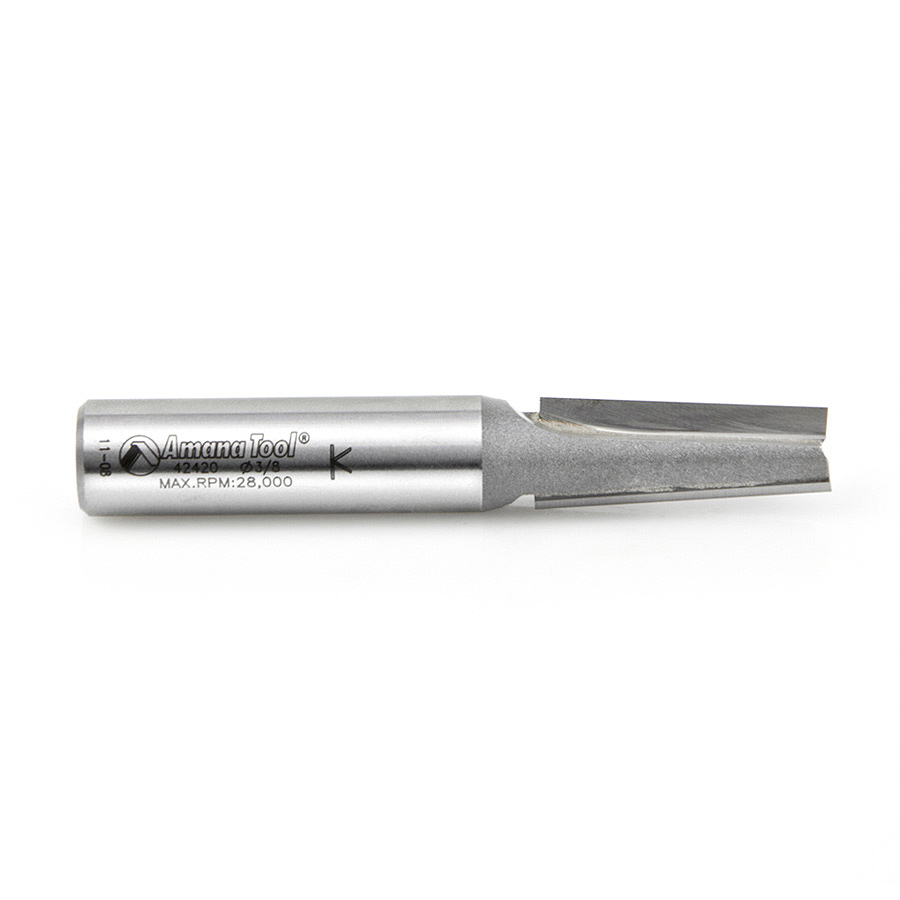

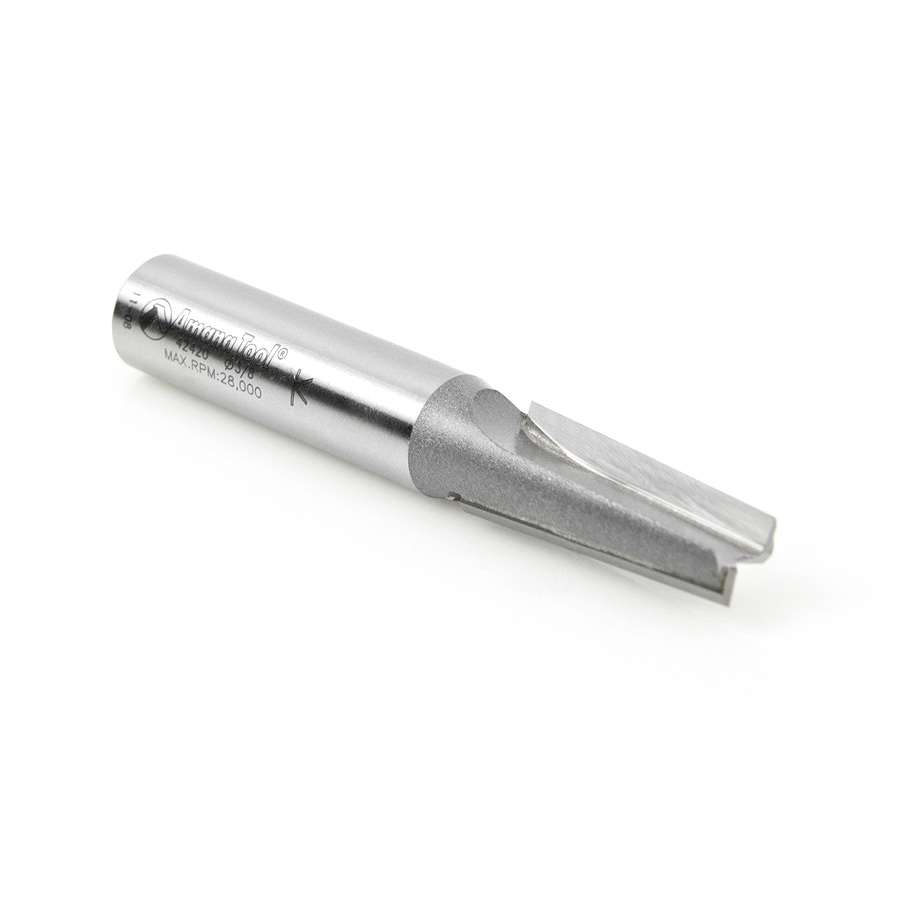

42420 Carbide Tipped Patternmakers 3 Deg x 1/2 Dia x 1-1/4 x 1/2 Inch Shank

Amana 42420 Carbide Tipped Patternmakers 3 Deg x 1/2 Dia x 1-1/4 x 1/2 Inch Shank

Name: Amana 42420 Carbide Tipped Patternmakers 3 Deg x 1/2 Dia x 1-1/4 x 1/2 Inch Shank
SKU: Amana 42420
Availability: InStock

Original price was: $64.00.Current price is: $48.00.

PLUNGE 3 DEG PATTERNMKAKER

UPC: 738685424209 SKU: Amana 42420 Categories: 3, 5 & 7 Degree Patternmakers Plunge Router Bits, Amana Tool, Router Bits, Straight Plunge Router Bits

Item Description

This slightly tapered bit is specifically designed for wood patternmaking, especially wood vacuum-forming molds where draft (3°, 5° and 7° taper) is required for releasing the styrene or other plastic from the mold. It can be used to bevel the leading edge on a door.

Excellent for cutting:

Expanded PVC

Specifications

Angle (a°)	3°
Diameter (D)	1/2
D1	3/8
Cutting Height (B)	1-1/4
Shank (d)	1/2
Overall Length (L)	3-5/32
Flutes	2

Other Sizes Available

Diameter (D)	D1	Angle (a°)	Cutting Height (B)	Shank (d)	Overall Length (L)	Tool No.
19/32 (15.08mm)	3/8 (9.53mm)	5°	1-1/4	1/2 (12.70mm)	3-5/32	42422
3/4 (19.05mm)	1/2 (12.70mm)	3°	2-1/8	1/2 (12.70mm)	4-5/8	47144
13/16 (20.64mm)	3/8 (9.53mm)	7°	1-1/4	1/2 (12.70mm)	3-5/32	42424

Weight	0.14 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
