Sale!

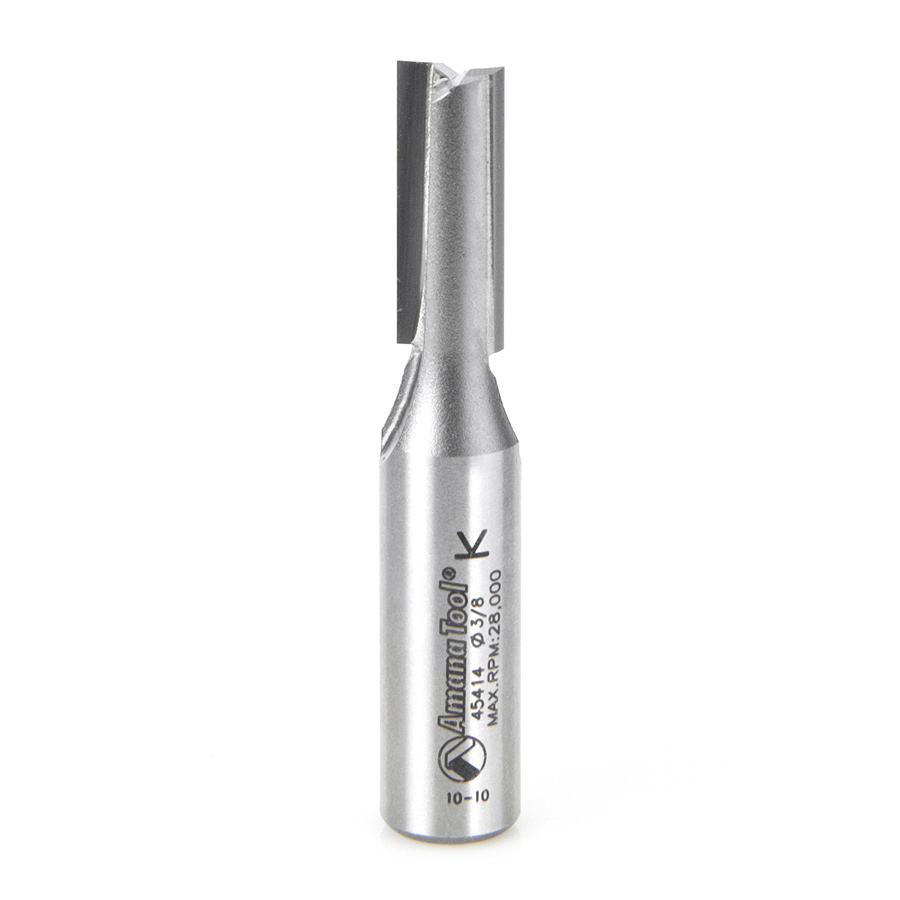

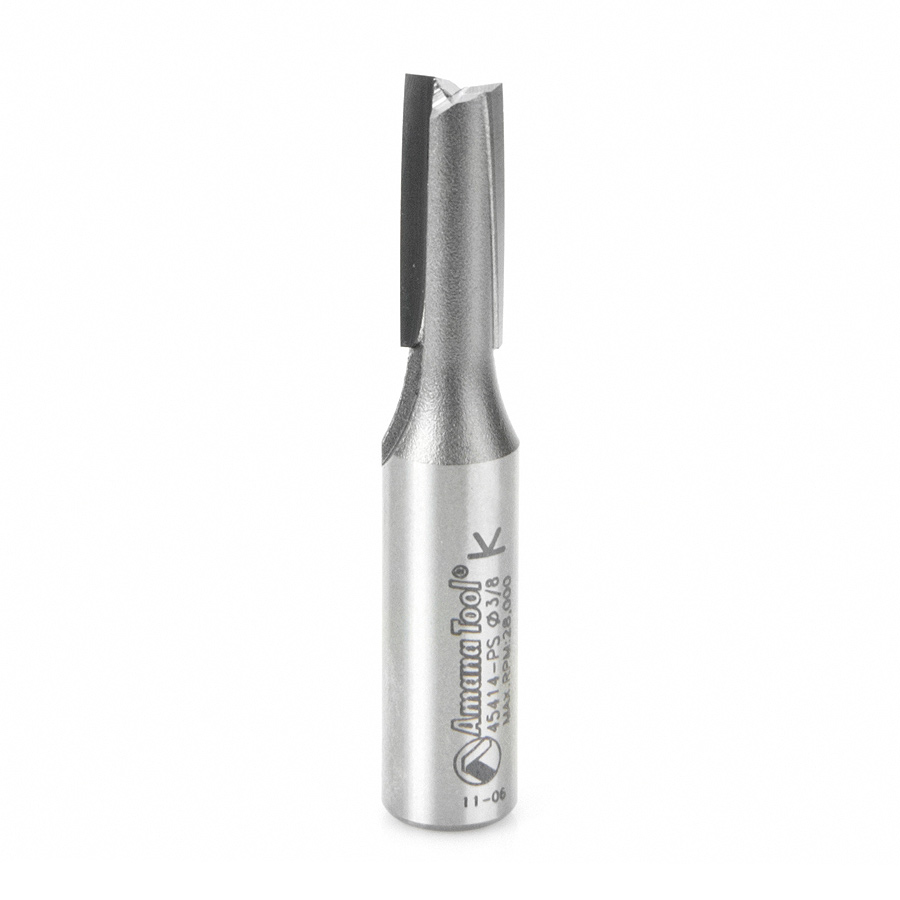

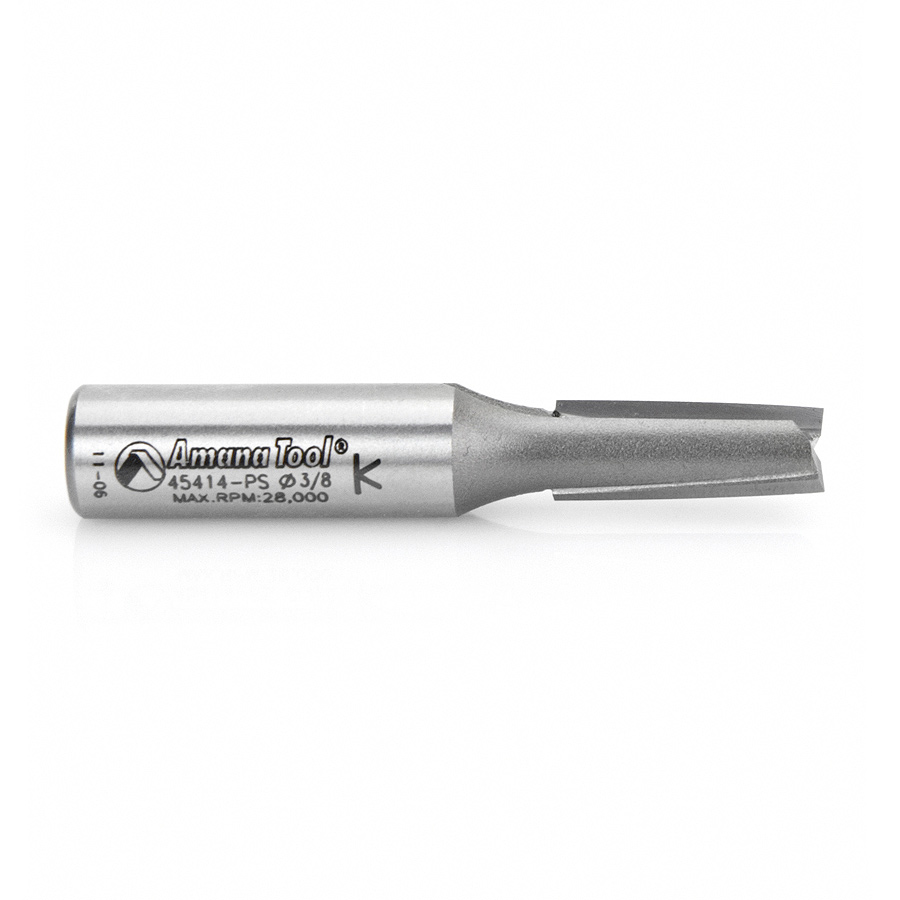

45414-PS Carbide Tipped 3 Deg Production Shear Straight Plunge 3/8 Dia x 1 Inch x 1/2 Shank

Amana 45414 Carbide Tipped 3 Deg Production Shear Straight Plunge 3/8 Dia x 1 Inch x 1/2 Shank

Name: Amana 45414 Carbide Tipped 3 Deg Production Shear Straight Plunge 3/8 Dia x 1 Inch x 1/2 Shank
SKU: Amana 45414
Availability: InStock

Original price was: $35.70.Current price is: $26.78.

2 FLUTE 3/8 DIA 1/2 SHANK

UPC: 738685854143 SKU: Amana 45414 Categories: Amana Tool, Production Shear Straight Plunge Router Bits, Router Bits, Straight Plunge Router Bits Tags: 1/2" Shank, amana tool, carbide tipped, router bit, Straight Flute, straight plunge

Item Description

Excellent for working composition board and melamine, this bit cuts with a shearing action, slicing very slightly downward to prevent chipping & tearing of the surface veneer or coating. It augers chips away from the router. Designed primarily for production applications where the router is above the work.

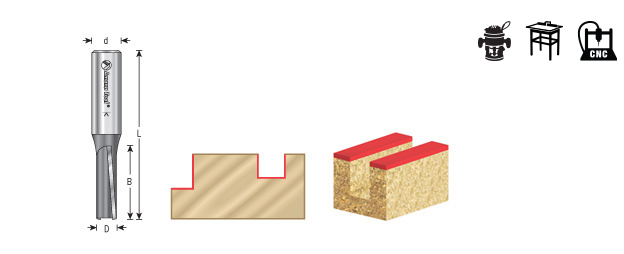

Specifications

Diameter (D)	3/8
Cutting Height (B)	1
Shank (d)	1/2
Overall Length (L)	2-3/4
Flutes	2

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Flutes	Tool No.
5/16 (7.94mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	2	45412
5/16 (7.94mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	2	45412-5
3/8 (9.53mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	2	45414
3/8 (9.53mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	2	45414-5
3/8 (9.53mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	2	45415
3/8 (9.53mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	2	45415-5
1/2 (12.70mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	45420-PS
1/2 (12.70mm)	1-1/2	1/2 (12.70mm)	3-1/8	2	45422-PS
1/2 (12.70mm)	2 (50.80mm)	1/2 (12.70mm)	4-1/4	2	45426-PS
5/8 (15.88mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	45432
5/8 (15.88mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	45432-5
25/32 (19.84mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	45443
25/32 (19.84mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	45443-5
7/8 (22.23mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	45446
7/8 (22.23mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	45446-5

Weight	0.12 lbs
brands	Amana Tools

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
