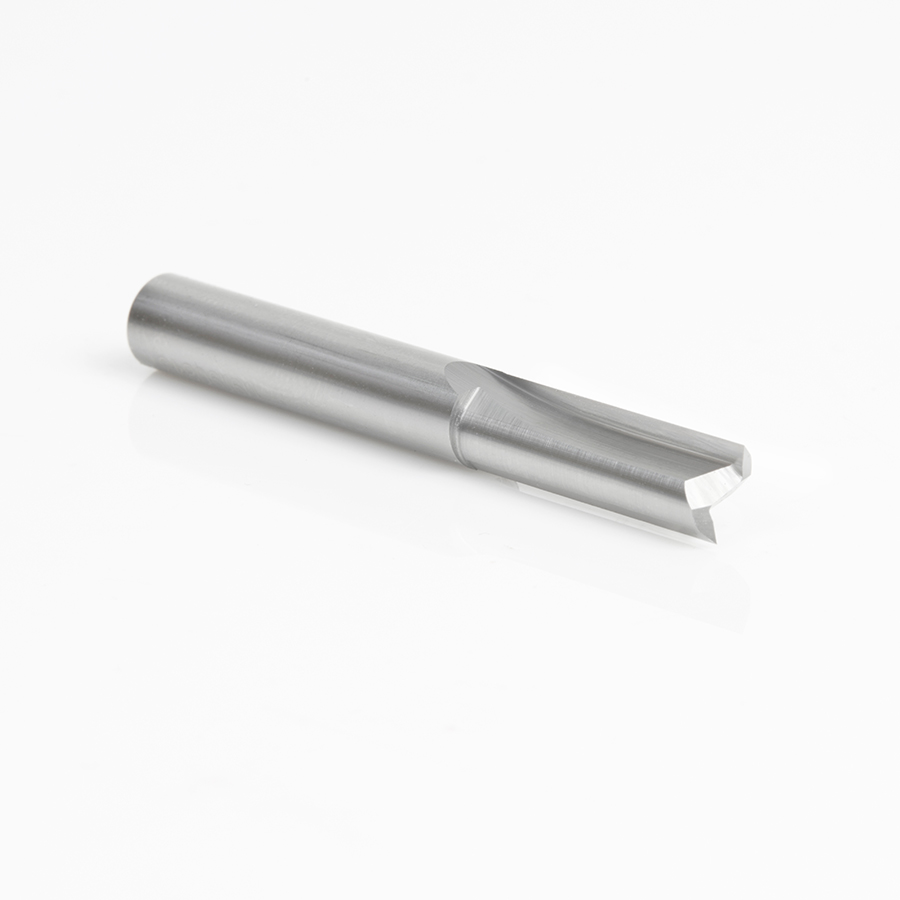

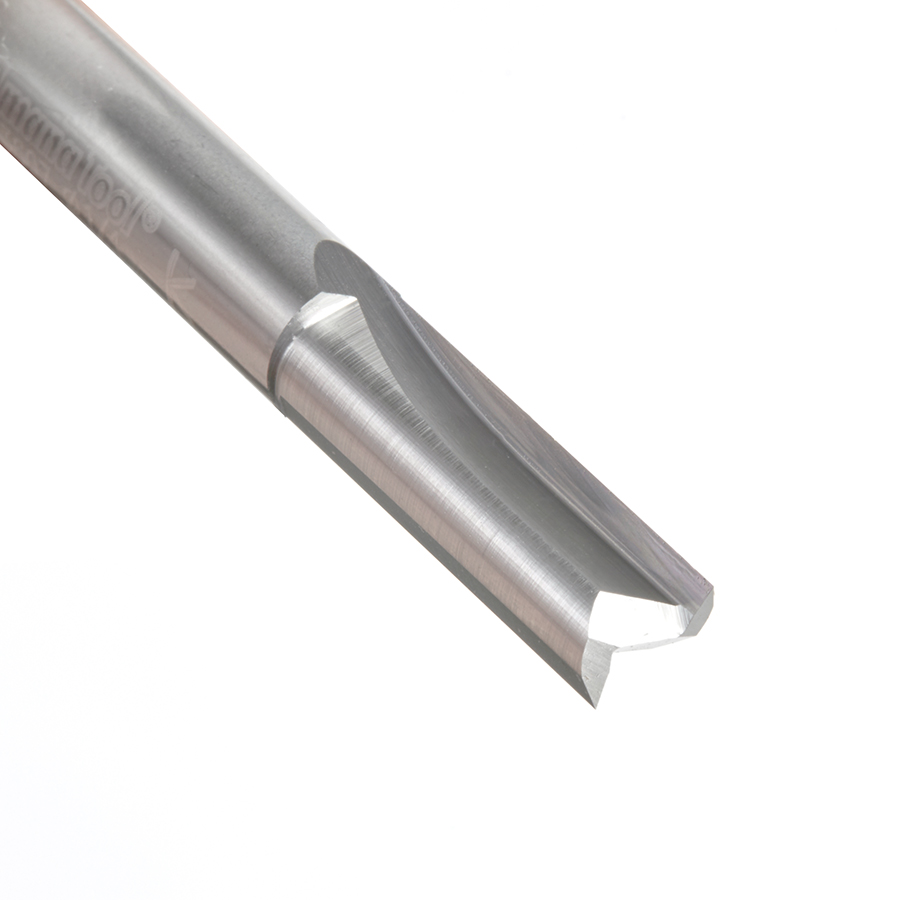

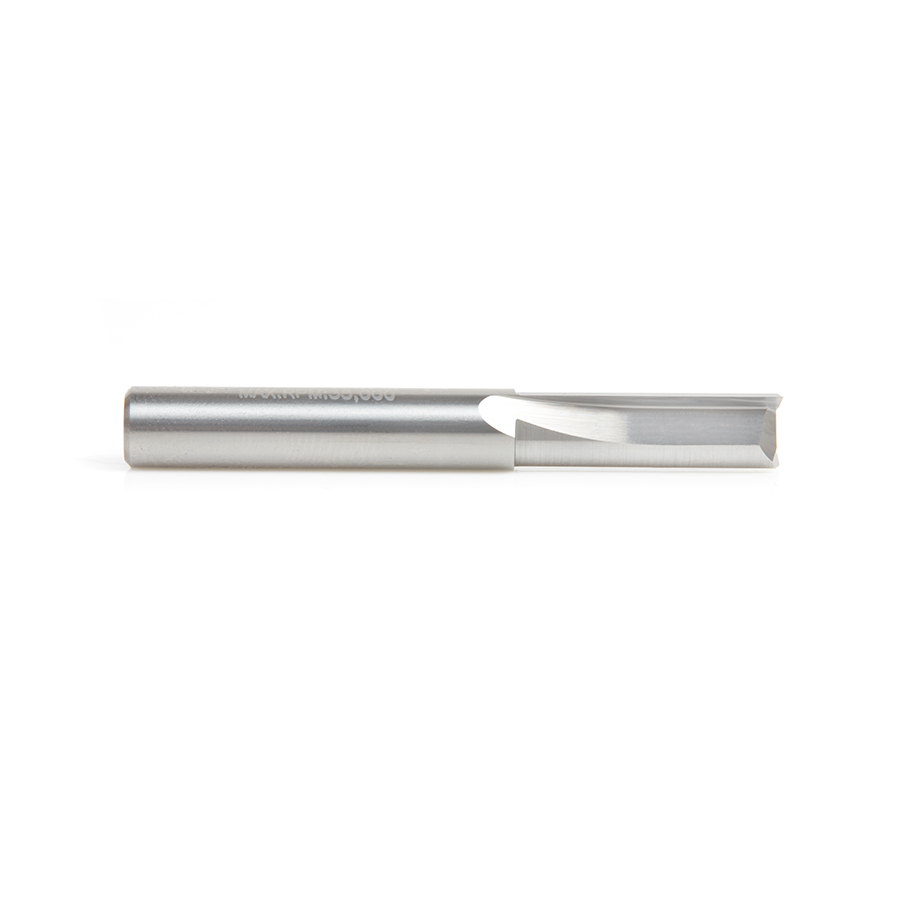

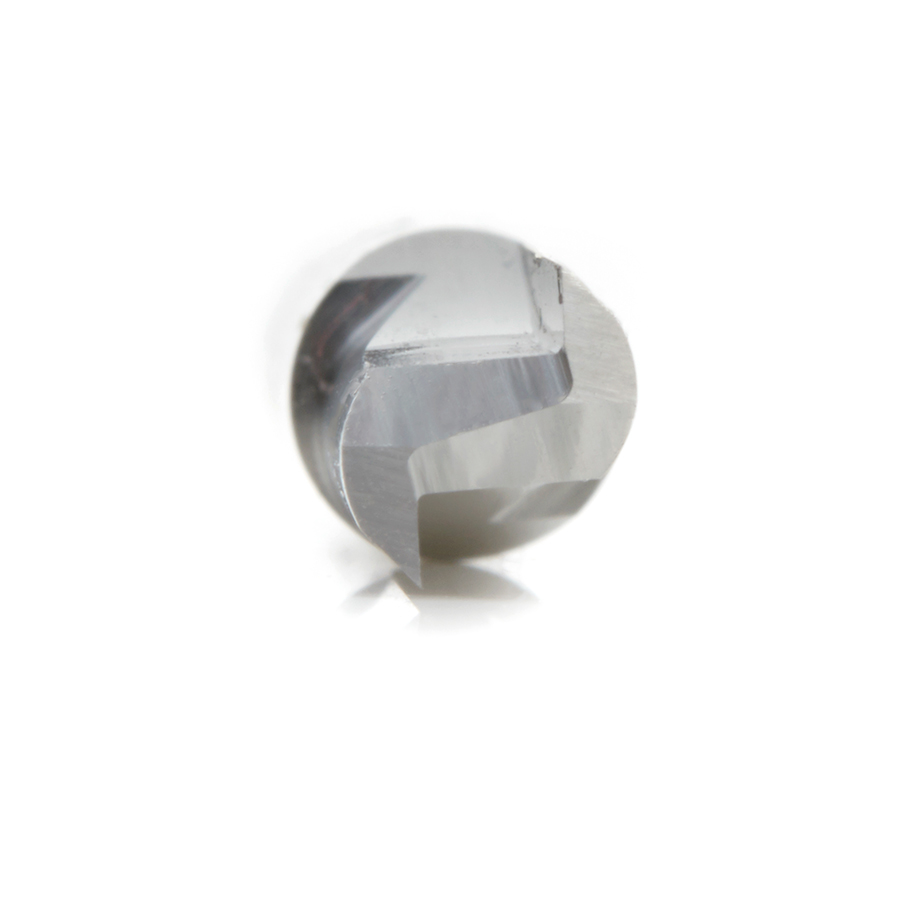

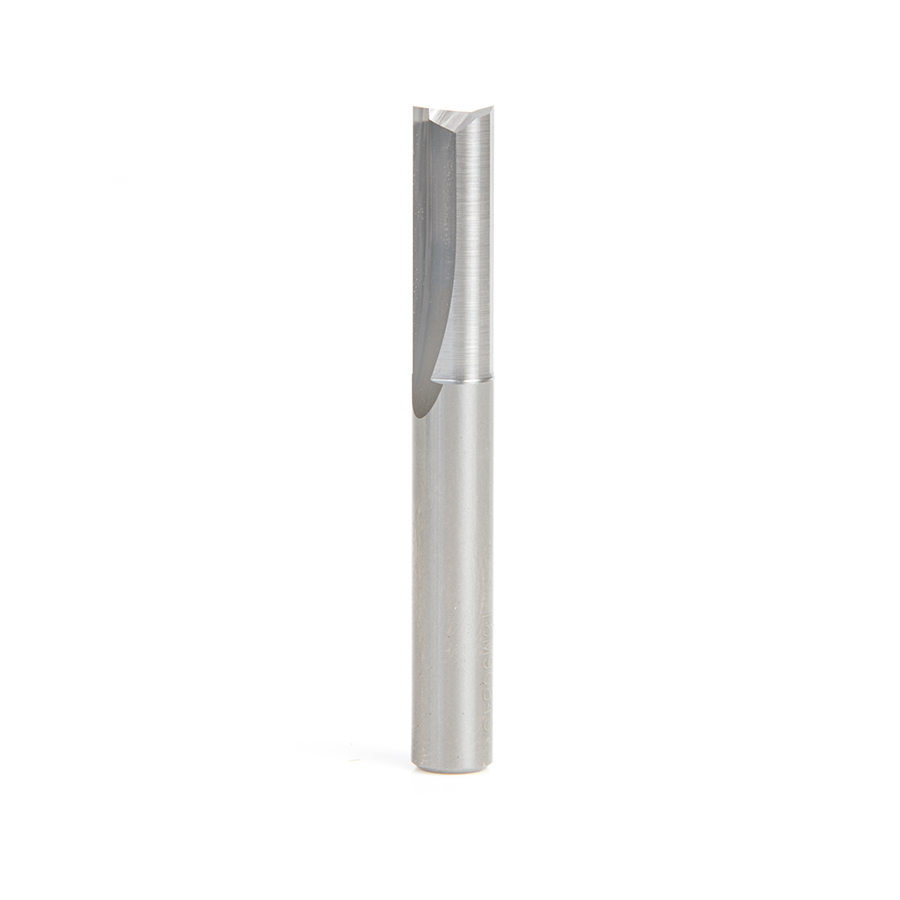

Amana 43607 Solid Carbide Double Straight ‘V’ Flute Plastic Cutting 1/4 Dia x 3/4 x 1/4 Inch Shank

Name: Amana 43607 Solid Carbide Double Straight 'V' Flute Plastic Cutting 1/4 Dia x 3/4 x 1/4 Inch Shank
SKU: Amana 43607
Availability: InStock

Original price was: $51.25.Current price is: $38.44.

2 FLUTE PLUNGE 1/4″ DIA. S.C

UPC: 738685436073 SKU: Amana 43607 Categories: Amana Tool, Plastic Cutting Router Bits, Router Bits, Solid Carbide Double 'O' Flute Plastic Cutting Router Bits

Item Description

Used for routing harder and more rigid plastics in the following materials: Acrylic, Acetal, Nylon, PVC, ABS, Corian, Poly (methyl methacrylate) (PMMA), Acrylic Stone, Coroplast®, etc.

Excellent for Cutting:

Plastic
Acetal
Acrylic
Acrylic Stone
Acrylonitrile Butadiene Styrene (ABS)
Alupanel®
Copolymer
Corian
Coroplast®*
Corrugated Polypropolyne
Delrin
Epoxy
Ethylene-Vinyl Acetate
Expanded PVC
Foam Board
Fomex®
Gator Board
High Density Polyethylene (HDPE)
High Impact Polystyrene (HIPS)
High Pressure Laminates (HPL)
Hydroxy-Terminated Polyether (HTPE)
Low Density Polyethylene (LDPE)
LubX®
Lucite
Mechanical/Engineered Plastics

Nitrite Rubber
Nylon
Perspex® Cast Acrylic Sheet
Plexiglas®
Polyethylene (PE)
Polyethylene Terephthalate (PET)
Polyethylene Terephthalate Glycol-Modified (PETG / PET-G)
Poly (methyl methacrylate) (PMMA)
Polycarbonate
Polypropylene (PP)
Polyoxymethylene (POM), also known as Acetal, Polyacetal and Polyformaldehyde.
PVC
Sign Foam
StarBoard® (King StarBoard ‘R’) High Density Polyethylene Sheet (HDPE)
Styrene-Acrylonitrile
Styrene-Butadiene Rubber (SBR)
Styrene-Isoprene-Styrene (SIS)
Teflon®
Thermoplastic Polyolefin (TPO)
Ultra High Molecular Weight Polyethylene (UHMW)
Urethane

A soft plastic cardboard made with super soft, super flexible PVC.

Fusion 360 compatible tool file for 43607 available for download, click here.

Specifications

Diameter (D)	1/4
Cutting Height (B)	3/4
Shank (d)	1/4
Overall Length (L)	2
Flutes	2

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Flutes	Tool No.
1/8 (3.18mm)	1/4 (6.35mm)	1/4 (6.35mm)	2 (50.80mm)	2	43507
1/8 (3.18mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	43600
3/16 (4.76mm)	5/8 (15.88mm)	1/4 (6.35mm)	2 (50.80mm)	2	43604
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	2	43608
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/2	3	59432-K
1/2 (12.70mm)	1 (25.40mm)	1/2 (12.70mm)	3 (76.20mm)	2	43616

Weight	0.06 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
