Sale!

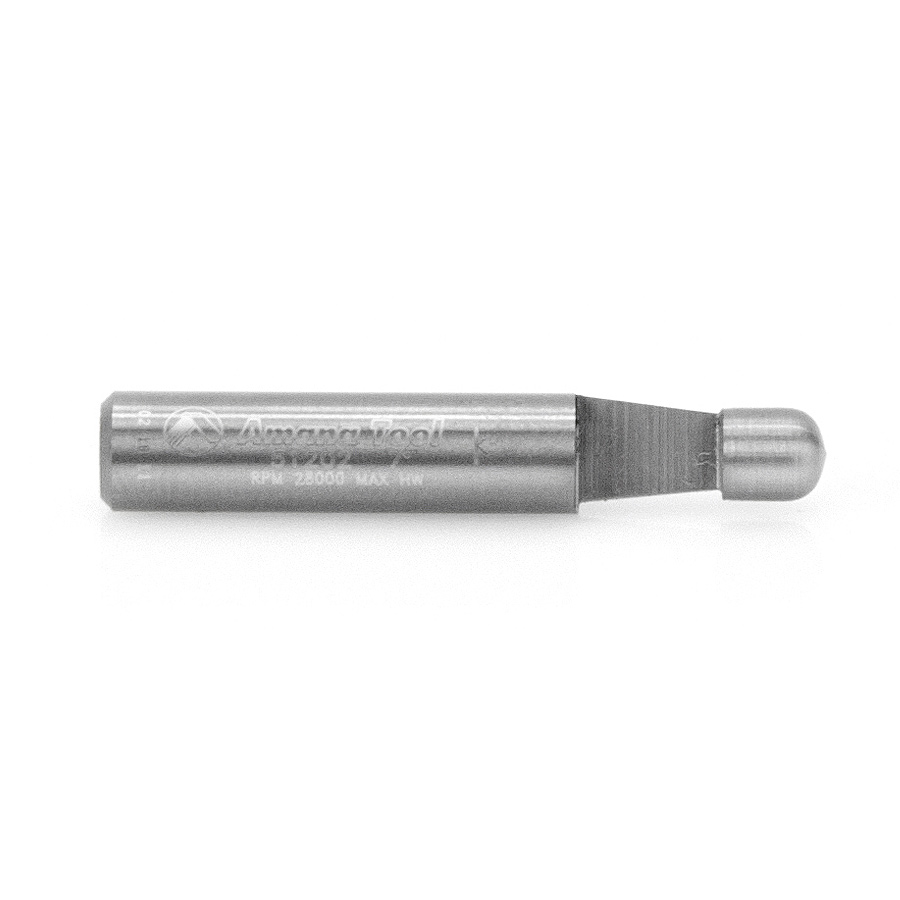

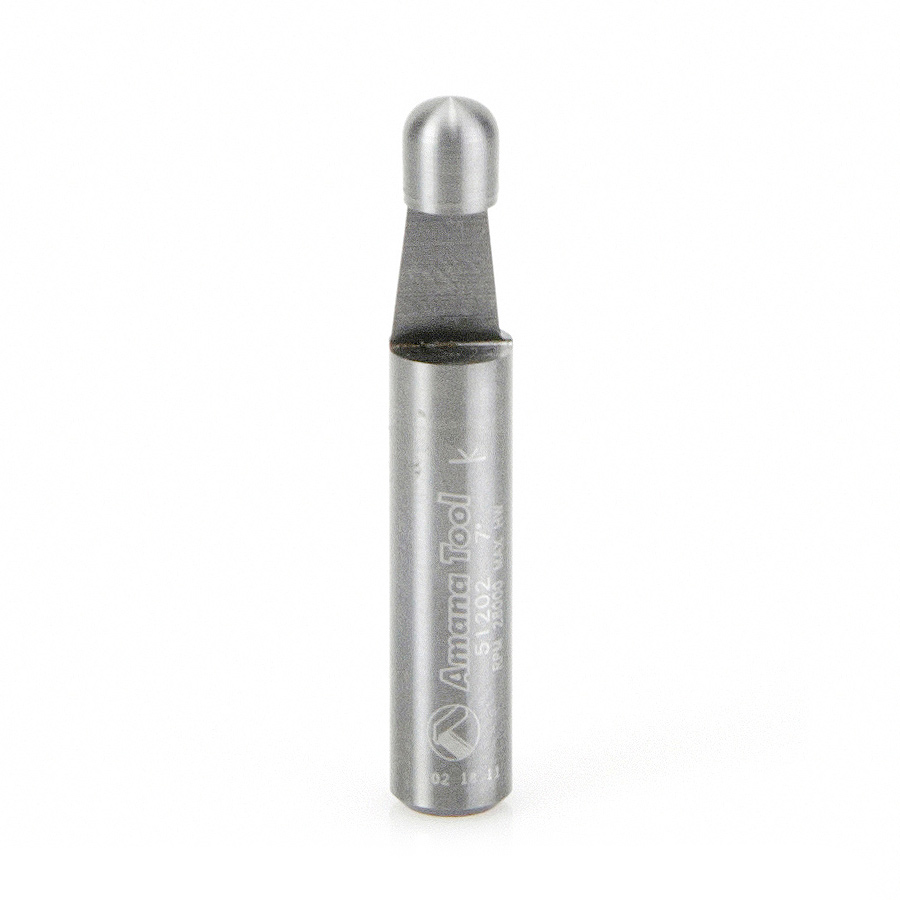

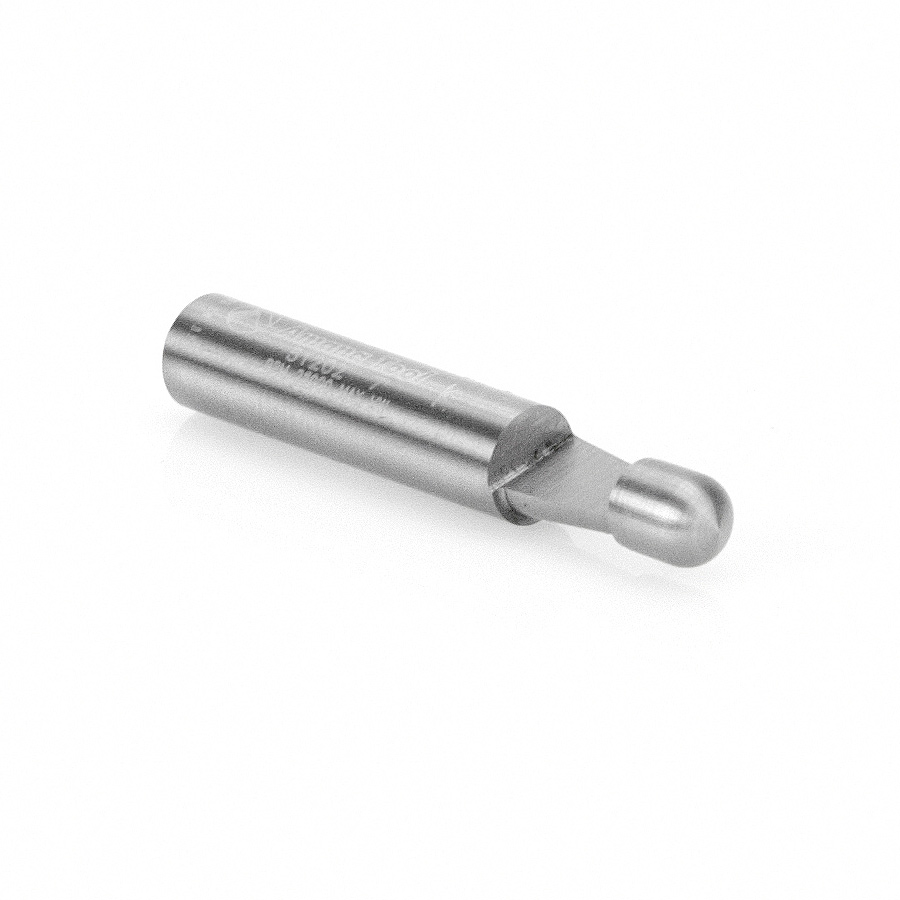

51202 Solid Carbide Panel Pilot Bevel Trim 7 Degree x 1/4 Dia x 1/4 x 1/4 Inch Shank 1-Flute

Amana 51202 Solid Carbide Panel Pilot Bevel Trim 7 Degree x 1/4 Dia x 1/4 x 1/4 Inch Shank 1-Flute

Name: Amana 51202 Solid Carbide Panel Pilot Bevel Trim 7 Degree x 1/4 Dia x 1/4 x 1/4 Inch Shank 1-Flute
SKU: Amana 51202
Availability: InStock

Original price was: $24.10.Current price is: $18.08.

PANEL PILOT 7 DEGREE SOLID CD

UPC: 738685152027 SKU: Amana 51202 Categories: Amana Tool, Router Bits, Solid Carbide Panel Pilot Flush & Bevel Router Bits, Trimming Router Bits Tags: 51202, amana, amana tool, carbide, Flush Trim, panel pilot, pilot, trim

Item Description

The ideal laminate trimming bit for high-volume production. Solid carbide and integral pilot (no bearing to maintain) extend life of bit, slim configuration reduces vibration. Suitable for routers and trimmers.

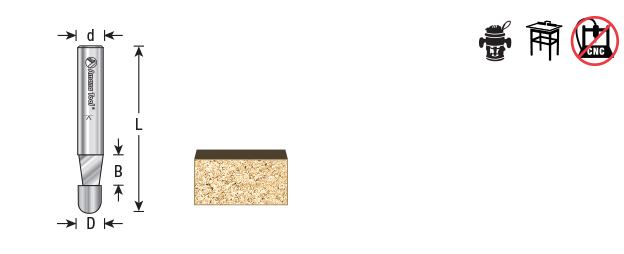

Specifications

Diameter (D)	1/4
Cutting Height (B)	1/4
Shank (d)	1/4
Overall Length (L)	1-1/2
Type	7° Bevel
Flutes	1

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Type	Tool No.
1/4 (6.35mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-1/2	Flush	51200
1/4 (6.35mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-1/2	Flush	51200-5
1/4 (6.35mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-1/2	Flush	51200XL
1/4 (6.35mm)	1/4 (6.35mm)	1/4 (6.35mm)	2 (50.80mm)	Flush	51201
1/4 (6.35mm)	1/4 (6.35mm)	1/4 (6.35mm)	2 (50.80mm)	Flush	51201-5
1/4 (6.35mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-1/2	7° Bevel	51202-5
1/4 (6.35mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-1/2	7° Bevel	51202XL
1/4 (6.35mm)	1/4 (6.35mm)	1/4 (6.35mm)	2 (50.80mm)	7° bevel	51203
1/4 (6.35mm)	1/4 (6.35mm)	1/4 (6.35mm)	2 (50.80mm)	7° bevel	51203-5
1/4 (6.35mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-1/2	Flush	51204
1/4 (6.35mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-1/2	Flush	51204-5
1/4 (6.35mm)	3/8 (9.53mm)	1/4 (6.35mm)	1-1/2	Flush	51206

Weight	0.04 lbs
