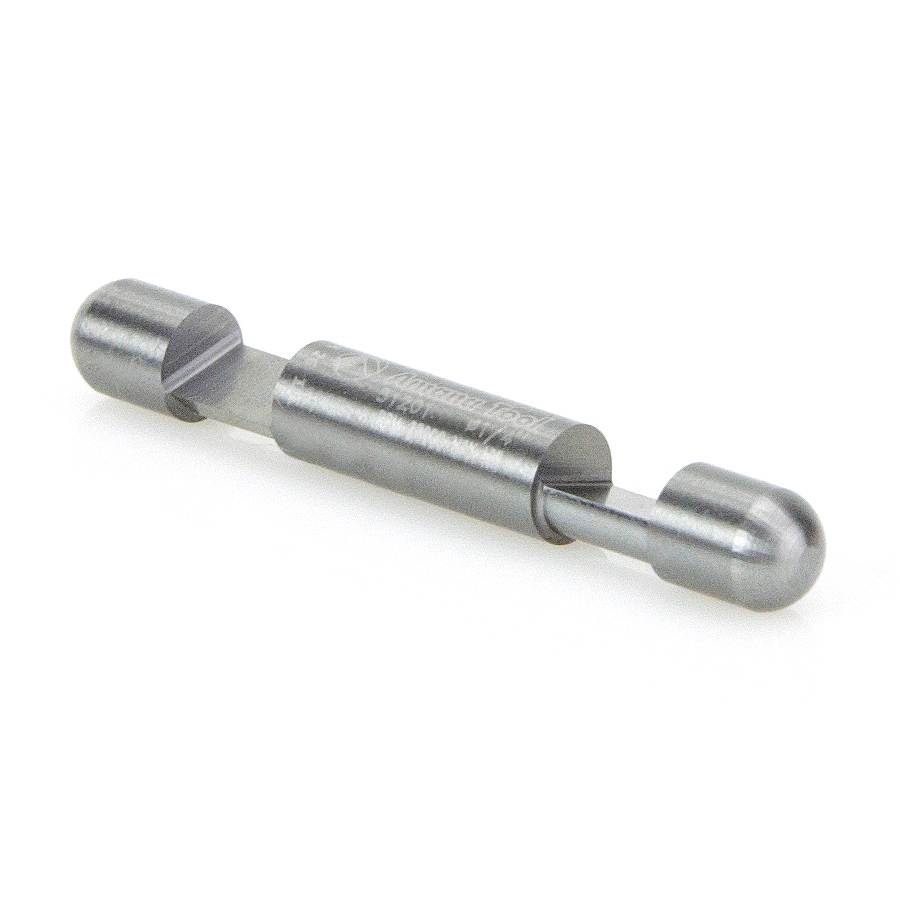

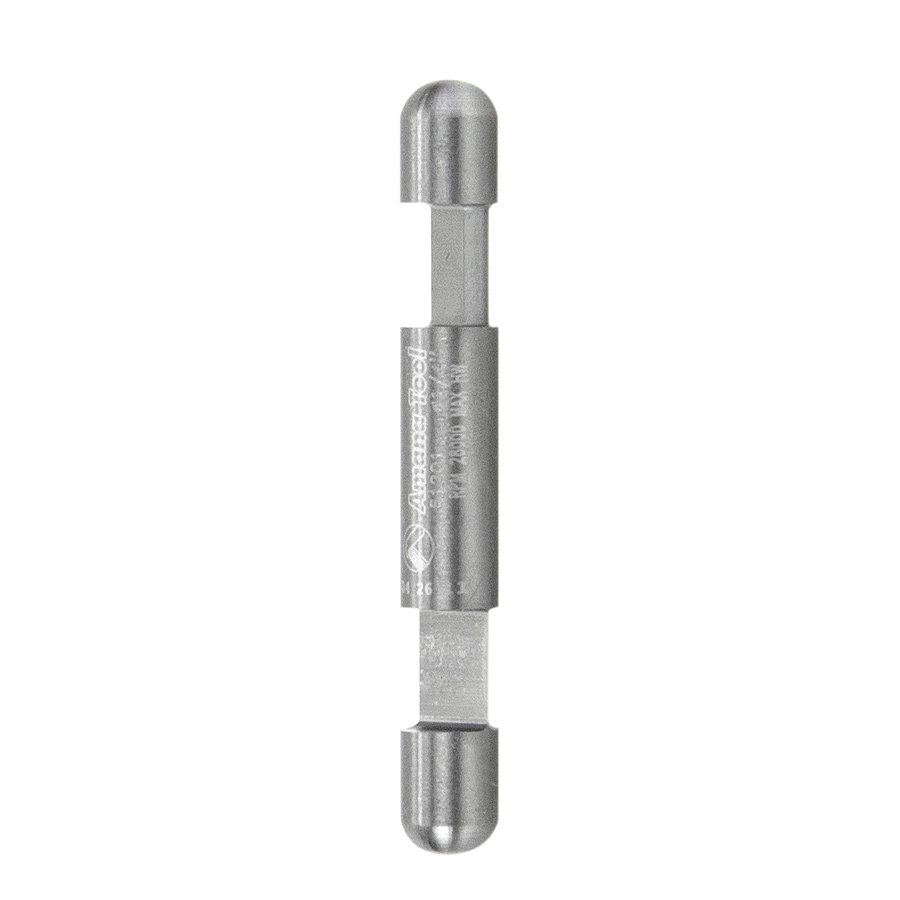

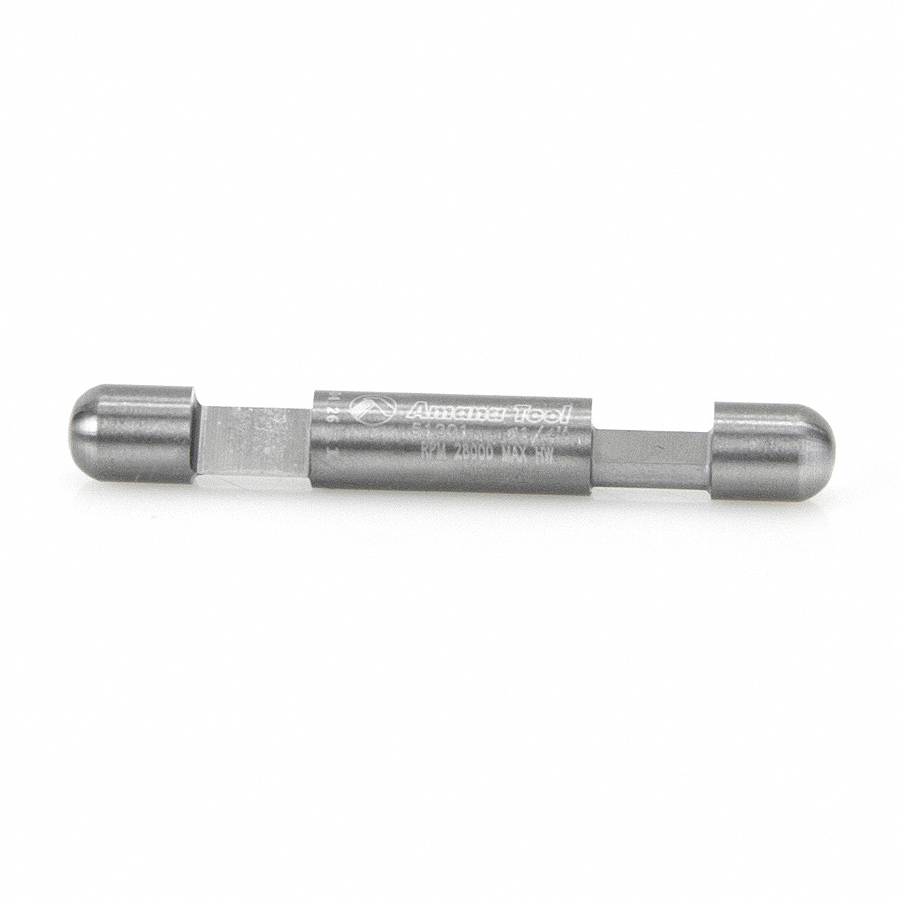

51201 Solid Carbide Panel Pilot Flush Trim 1/4 Dia x 1/4 x 1/4 Inch Shank 1-Flute

Amana 51201 Solid Carbide Panel Pilot Flush Trim 1/4 Dia x 1/4 x 1/4 Inch Shank 1-Flute

Name: Amana 51201 Solid Carbide Panel Pilot Flush Trim 1/4 Dia x 1/4 x 1/4 Inch Shank 1-Flute
SKU: Amana 51201
Availability: InStock

Original price was: $34.00.Current price is: $25.50.

DOUBLE PANEL PILOT FLUSH TRIM

UPC: 738685512012 SKU: Amana 51201 Categories: Amana Tool, Router Bits, Solid Carbide Panel Pilot Flush & Bevel Router Bits, Trimming Router Bits

Item Description

The ideal laminate trimming bit for high-volume production. Solid carbide and integral pilot (no bearing to maintain) extend life of bit, slim configuration reduces vibration. Suitable for routers and trimmers.

Unique double ended panel pilot bits provide 2 cutting sides in one tool. When the bit dulls, just flip it over!

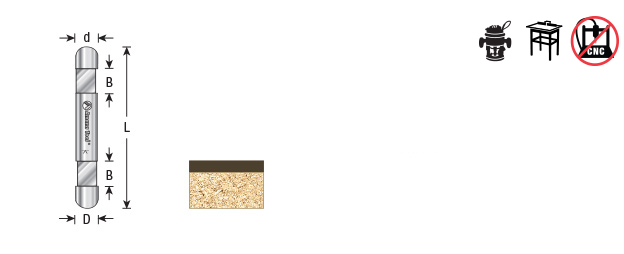

Specifications

Diameter (D)	1/4
Cutting Height (B)	1/4
Shank (d)	1/4
Overall Length (L)	2
Type	Flush
Flutes	1

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Type	Tool No.
1/4 (6.35mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-1/2	Flush	51200
1/4 (6.35mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-1/2	Flush	51200-5
1/4 (6.35mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-1/2	Flush	51200XL
1/4 (6.35mm)	1/4 (6.35mm)	1/4 (6.35mm)	2 (50.80mm)	Flush	51201-5
1/4 (6.35mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-1/2	7° Bevel	51202
1/4 (6.35mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-1/2	7° Bevel	51202-5
1/4 (6.35mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-1/2	7° Bevel	51202XL
1/4 (6.35mm)	1/4 (6.35mm)	1/4 (6.35mm)	2 (50.80mm)	7° bevel	51203
1/4 (6.35mm)	1/4 (6.35mm)	1/4 (6.35mm)	2 (50.80mm)	7° bevel	51203-5
1/4 (6.35mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-1/2	Flush	51204
1/4 (6.35mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-1/2	Flush	51204-5
1/4 (6.35mm)	3/8 (9.53mm)	1/4 (6.35mm)	1-1/2	Flush	51206

Weight	0.06 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.

Need This Tool Customized?

Every machining application is different. If this tool is close to what you need but not an exact fit, General Cutting Tools can help modify it for your specific job, machine, material, or production requirement.

We work with CNC shops, industrial manufacturers, tool rooms, and production facilities to provide tool modifications that improve fit, function, performance, and efficiency. Whether you need a small adjustment or a more specialized cutting tool solution, our team can review your requirements and recommend the best option.

Custom tool modifications can help reduce setup time, improve accuracy, extend tool life, solve clearance issues, and support more consistent production results.

Common Tool Customization Options

Diameter and OD Modifications

We can modify tool diameters to better match your application requirements, including cutting diameter changes, OD modifications, pilot diameter adjustments, step diameters, and shank diameter modifications.

Bore Modifications for Saw Blades

Custom saw blade bore modifications are available for hole diameter changes, pinholes, mounting holes, and keyway cutouts to help match your machine setup and cutting requirements.

Length Adjustments

Tools can be modified for specific reach, clearance, or setup needs. This may include overall length changes, flute length adjustments, reduced neck sections, extended reach designs, or shortened tools for improved rigidity.

Shank Modifications

Shank modifications can help ensure the tool fits properly in your holder, spindle, or machine setup. Common options include shank diameter changes, flats, Weldon flats, reduced shanks, and custom holding requirements.

Radius, Chamfer, and Corner Changes

We can customize corner radius, chamfer angles, edge breaks, and other profile details to meet part print requirements or improve cutting performance.

Step Tool Modifications

For applications that require multiple diameters or operations in a single tool, we can create or modify step tools to help reduce tool changes and improve production efficiency.

Flute and Cutting Edge Adjustments

Depending on the tool and application, flute length, cutting edge geometry, end cutting features, relief angles, and cutting edge shape may be modified to improve chip evacuation, cutting action, and tool performance.

Regrinding and Resharpening

Many cutting tools can be reground or resharpened to restore performance, extend tool life, and reduce replacement costs.

Custom Profiles and Special Forms

For unique part features, we can help provide special forms, custom profiles, custom radii, counterbores, countersinks, keyseat cutters, form tools, and other application-specific tooling solutions.

Material-Specific Tool Adjustments

We can help modify or recommend tooling based on the material being machined, including aluminum, brass, bronze, plastics, stainless steel, hardened steel, cast iron, composites, and other industrial materials.

Have a Drawing, Sample, or Part Print?

Send us your print, sketch, CAD file, photo, tool number, sample, or application details. For the fastest quote, include the material being cut, quantity needed, required dimensions, tolerances, and any machine or holder requirements.

Coating Options

Tool coatings can be selected or added to improve wear resistance, heat resistance, lubricity, and performance in specific materials such as steel, stainless steel, aluminum, cast iron, and high-temperature alloys.

Request a Custom Tool Modification

Need this tool changed for your application? Contact General Cutting Tools today to discuss your custom tooling needs. We can help you find the right solution for your machine, material, and production goals.
