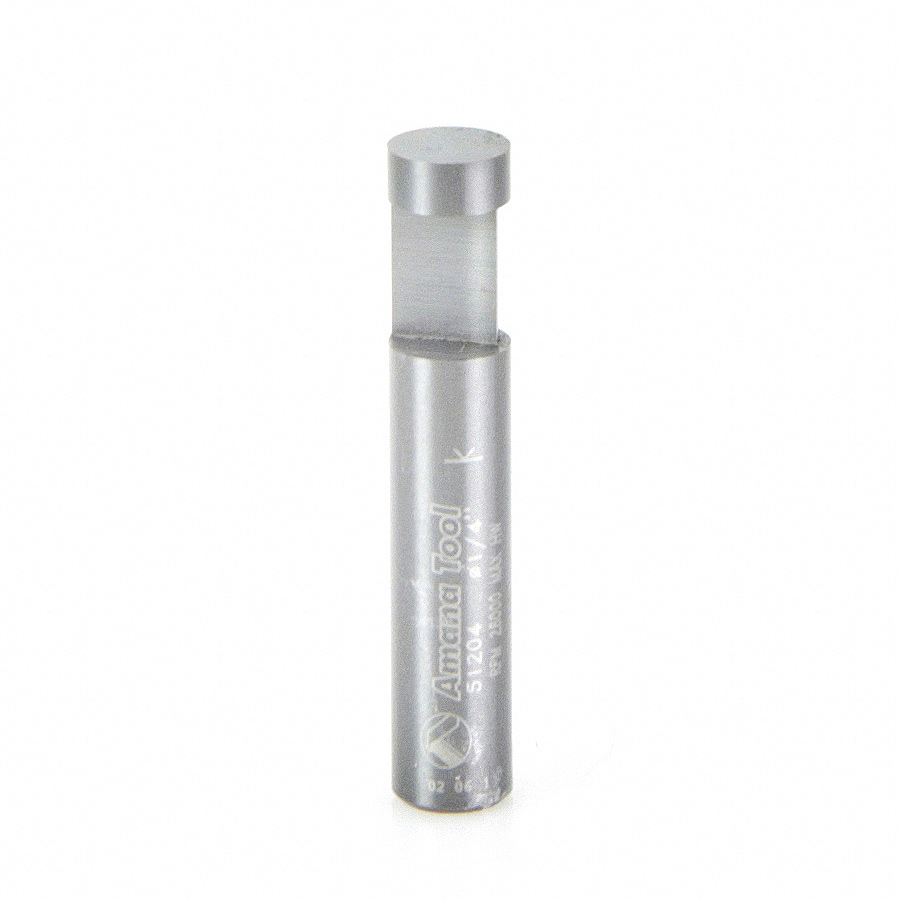

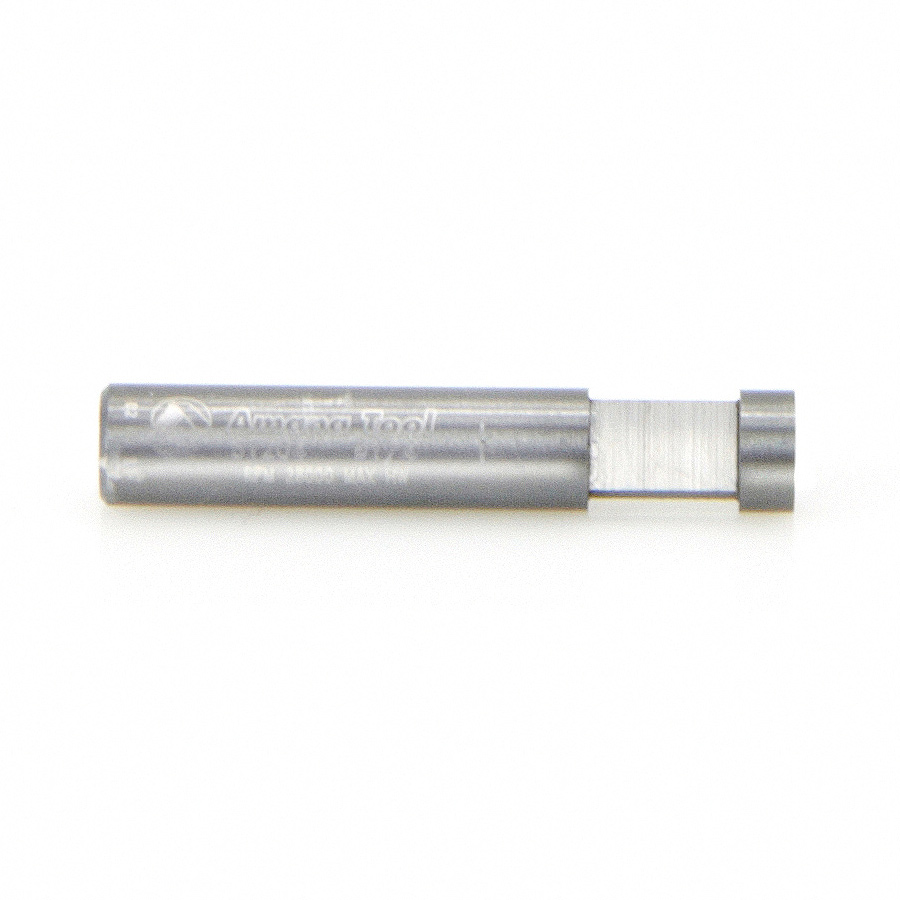

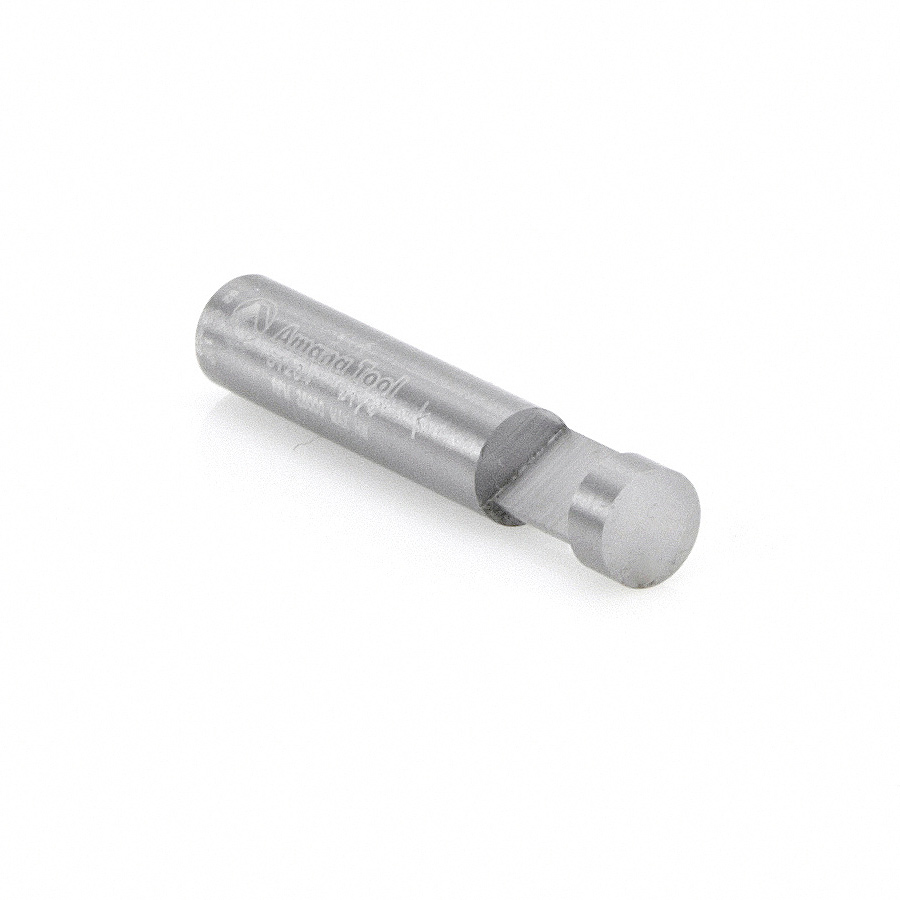

51204 Solid Carbide Short/Flat Pilot for Dado Clean Out & Dado Cleaning Flush Trim 1/4 Dia x 1/4 x 1/4 Inch Shank x 1-Flute

Amana 51204 Solid Carbide Short/Flat Pilot for Dado Clean Out & Dado Cleaning Flush Trim 1/4 Dia x 1/4 x 1/4 Inch Shank x 1-Flute

Name: Amana 51204 Solid Carbide Short/Flat Pilot for Dado Clean Out &amp; Dado Cleaning Flush Trim 1/4 Dia x 1/4 x 1/4 Inch Shank x 1-Flute
SKU: Amana 51204
Availability: InStock

Original price was: $24.10.Current price is: $18.08.

FLUSH TRIM DADO CLEANOUT SOLID

UPC: 738685152041 SKU: Amana 51204 Categories: Amana Tool, Router Bits, Solid Carbide Panel Pilot Flush & Bevel Router Bits, Trimming Router Bits Tags: 51204, amana, amana tool, carbide, Flush Trim, panel pilot, pilot, trim

Item Description

The ideal laminate trimming bit for high-volume production. Solid carbide and integral pilot (no bearing to maintain) extend life of bit, slim configuration reduces vibration. Suitable for routers and trimmers. Has a short/flat pilot for dado clean out/ dado cleaning.

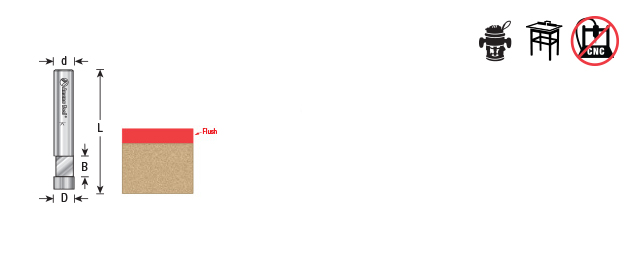

Specifications

Diameter (D)	1/4
Cutting Height (B)	1/4
Shank (d)	1/4
Overall Length (L)	1-1/2
Type	Flush
Flutes	1

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Type	Tool No.
1/4 (6.35mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-1/2	Flush	51200
1/4 (6.35mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-1/2	Flush	51200-5
1/4 (6.35mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-1/2	Flush	51200XL
1/4 (6.35mm)	1/4 (6.35mm)	1/4 (6.35mm)	2 (50.80mm)	Flush	51201
1/4 (6.35mm)	1/4 (6.35mm)	1/4 (6.35mm)	2 (50.80mm)	Flush	51201-5
1/4 (6.35mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-1/2	7° Bevel	51202
1/4 (6.35mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-1/2	7° Bevel	51202-5
1/4 (6.35mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-1/2	7° Bevel	51202XL
1/4 (6.35mm)	1/4 (6.35mm)	1/4 (6.35mm)	2 (50.80mm)	7° bevel	51203
1/4 (6.35mm)	1/4 (6.35mm)	1/4 (6.35mm)	2 (50.80mm)	7° bevel	51203-5
1/4 (6.35mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-1/2	Flush	51204-5
1/4 (6.35mm)	3/8 (9.53mm)	1/4 (6.35mm)	1-1/2	Flush	51206

Weight	0.04 lbs
brands	Amana Tools

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
