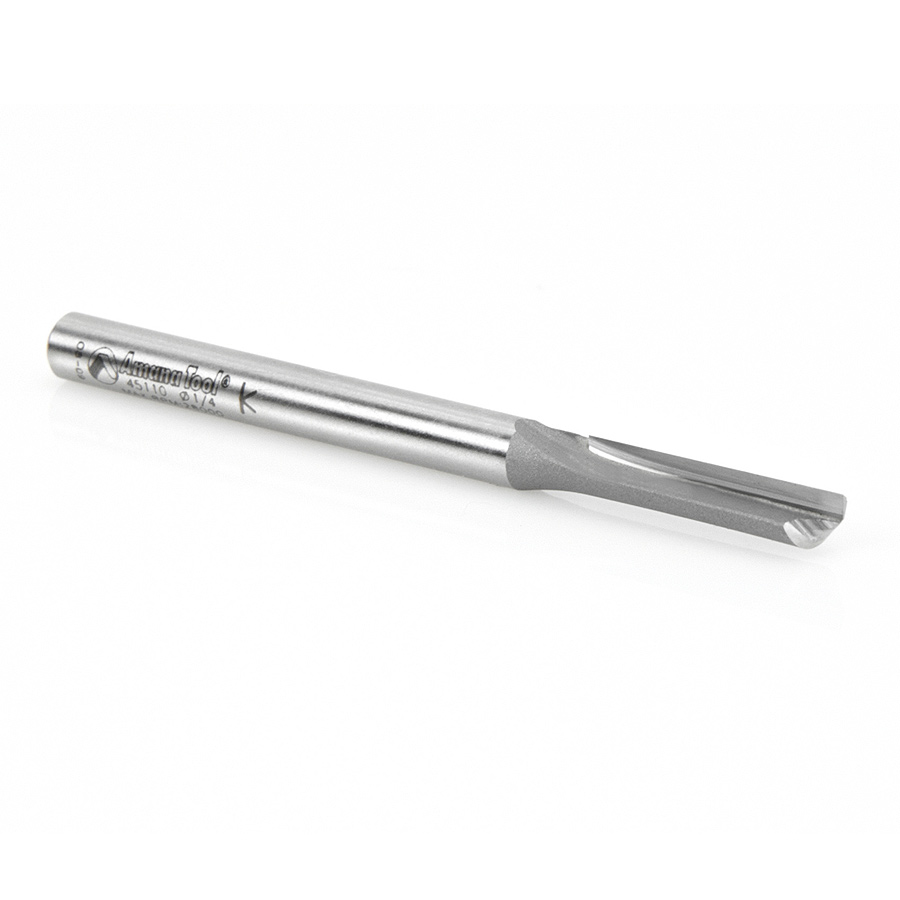

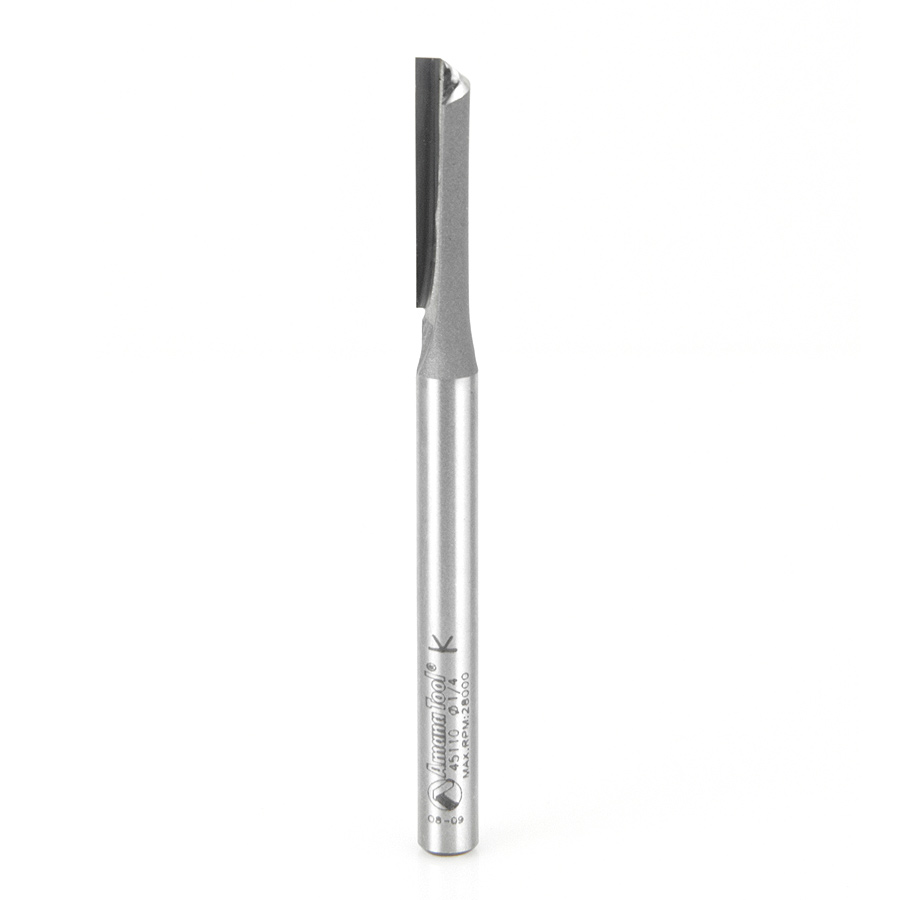

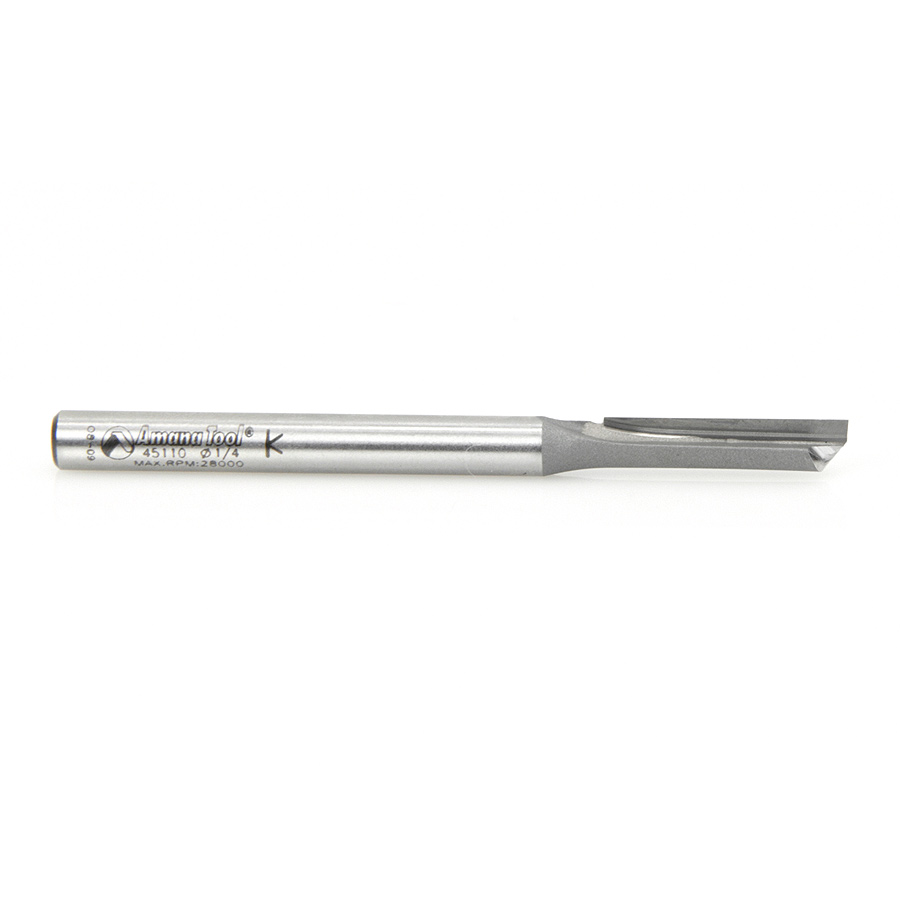

45110 Carbide Tipped Straight Plunge Single Flute High Production 1/4 Dia x 1 Inch x 1/4 Shank

Amana 45110 Carbide Tipped Straight Plunge Single Flute High Production 1/4 Dia x 1 Inch x 1/4 Shank

Name: Amana 45110 Carbide Tipped Straight Plunge Single Flute High Production 1/4 Dia x 1 Inch x 1/4 Shank
SKU: Amana 45110
Availability: InStock

Original price was: $47.25.Current price is: $35.44.

SINGLE FLUTE 1/4 DIA. 1/4 SHK

UPC: 738685451106 SKU: Amana 45110 Categories: Amana Tool, High Production Straight Plunge Router Bits, Router Bits, Straight Plunge Router Bits

Item Description

In choosing a straight bit for any application, always select one with the shortest cutting edges and the shortest overall length that will reach the required cut depth. Excessive length intensifies deflection and vibration, which degrade cut quality and lead to tool breakage.

A single-flute bit should be used where cut speed is more important than cut finish. Making one cut per revolution is faster than making two or three. Improved chip clearance is possible with a single flute configuration. The result: fast cuts.

Specifically designed for air powered routers as used in the boat manufacturing industry.

AMAX Extended Life Features:

200% longer life time even when working with abrasive materials
Superior geometric design
Advanced grinding technology that improves the carbides’ resistance to wear
Super clean cuts

Specifications

Diameter (D)	1/4
Cutting Height (B)	1
Shank (d)	1/4
Overall Length (L)	3-1/4
Flutes	1

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Flutes	Tool No.
1/8 (3.18mm)	7/16 (11.11mm)	1/4 (6.35mm)	2 (50.80mm)	1	45100
3/16 (4.76mm)	7/16 (11.11mm)	1/4 (6.35mm)	2 (50.80mm)	1	45102
1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	1	45104
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	1	45106
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/4	1	45108
3/8 (9.53mm)	1 (25.40mm)	3/8 (9.53mm)	2-1/2	1	45300

Weight	0.05 lbs
