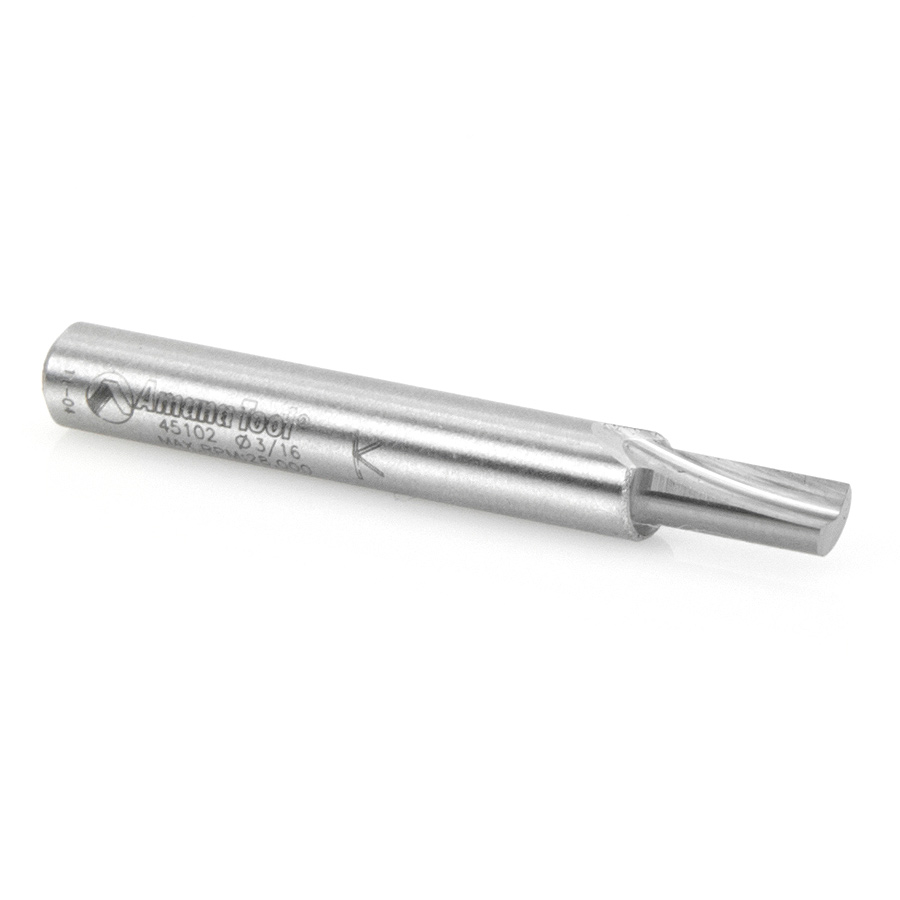

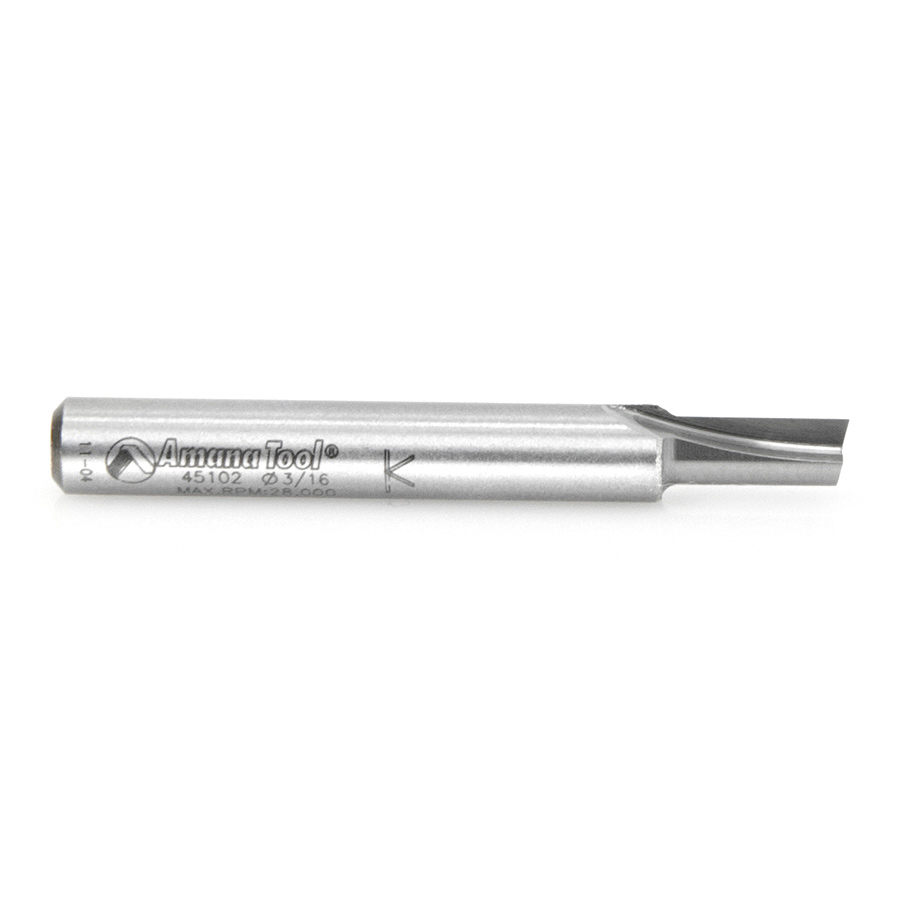

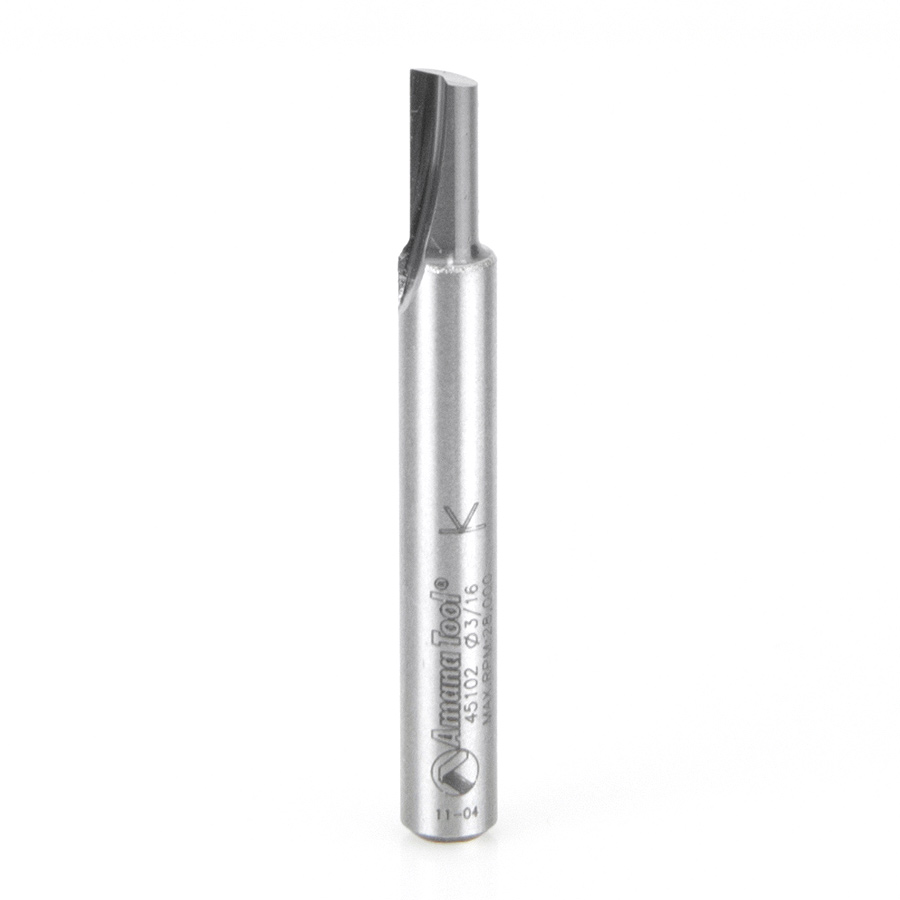

45102 Carbide Tipped Straight Plunge Single Flute High Production 3/16 Dia x 7/16 x 1/4 Inch Shank

Amana 45102 Carbide Tipped Straight Plunge Single Flute High Production 3/16 Dia x 7/16 x 1/4 Inch Shank

Name: Amana 45102 Carbide Tipped Straight Plunge Single Flute High Production 3/16 Dia x 7/16 x 1/4 Inch Shank
SKU: Amana 45102
Availability: InStock

Original price was: $27.65.Current price is: $20.74.

SINGLE FLUTE 3/16 DIA. 1/4 SHK

UPC: 738685851029 SKU: Amana 45102 Categories: Amana Tool, High Production Straight Plunge Router Bits, Router Bits, Straight Plunge Router Bits

Item Description

In choosing a straight bit for any application, always select one with the shortest cutting edges and the shortest overall length that will reach the required cut depth. Excessive length intensifies deflection and vibration, which degrade cut quality and lead to tool breakage.

A single-flute bit should be used where cut speed is more important than cut finish. Making one cut per revolution is faster than making two or three. Improved chip clearance is possible with a single flute configuration. The result: fast cuts.

AMAX Extended Life Features:

200% longer life time even when working with abrasive materials
Superior geometric design
Advanced grinding technology that improves the carbides’ resistance to wear
Super clean cuts

Specifications

Diameter (D)	3/16
Cutting Height (B)	7/16
Shank (d)	1/4
Overall Length (L)	2
Flutes	1

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Tool No.
1/8 (3.18mm)	7/16 (11.11mm)	1/4 (6.35mm)	2 (50.80mm)	45100
1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	45104
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	45106
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/4	45108
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	3-1/4	45110
3/8 (9.53mm)	1 (25.40mm)	3/8 (9.53mm)	2-1/2	45300

Weight	0.04 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
