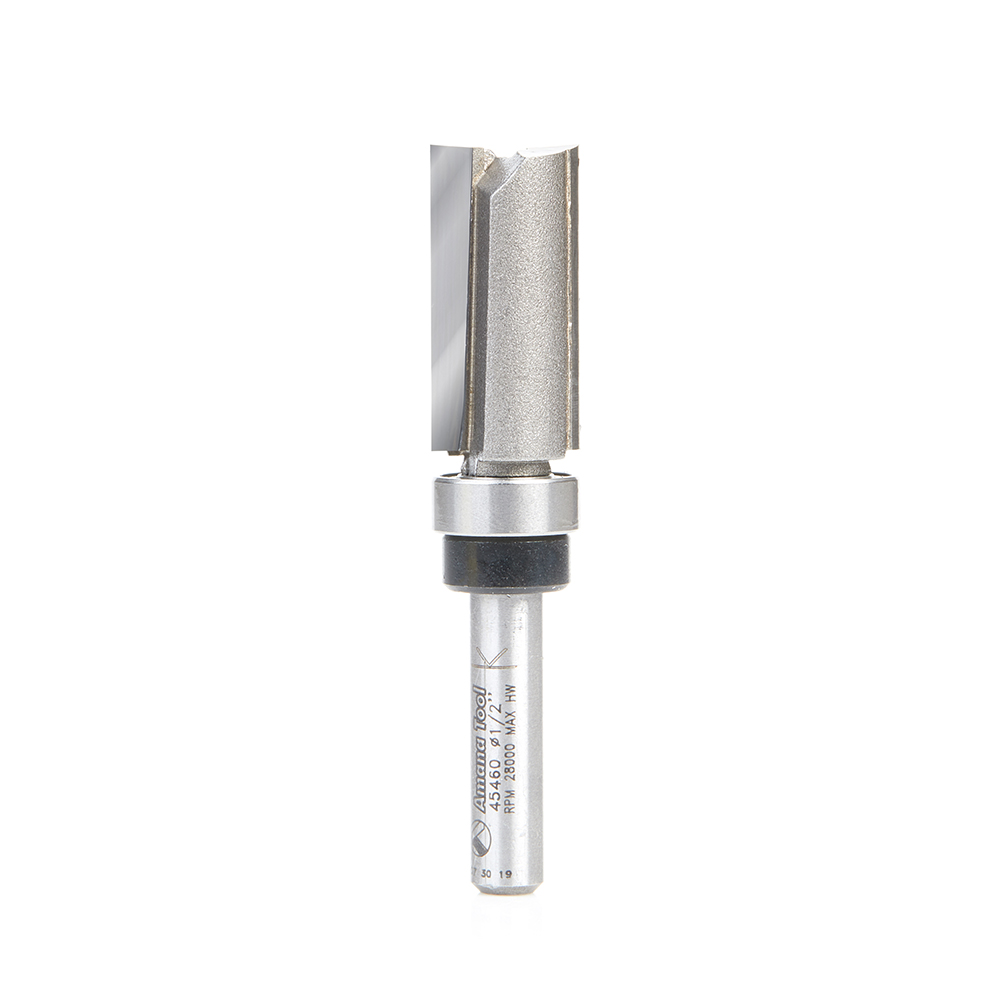

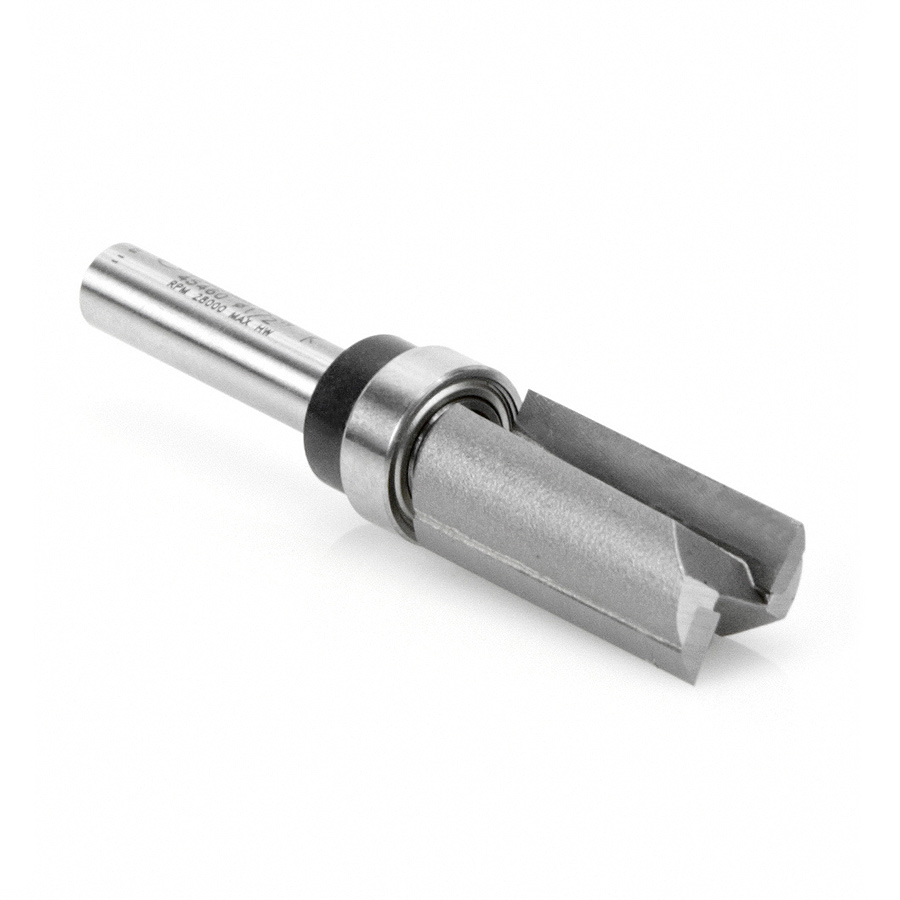

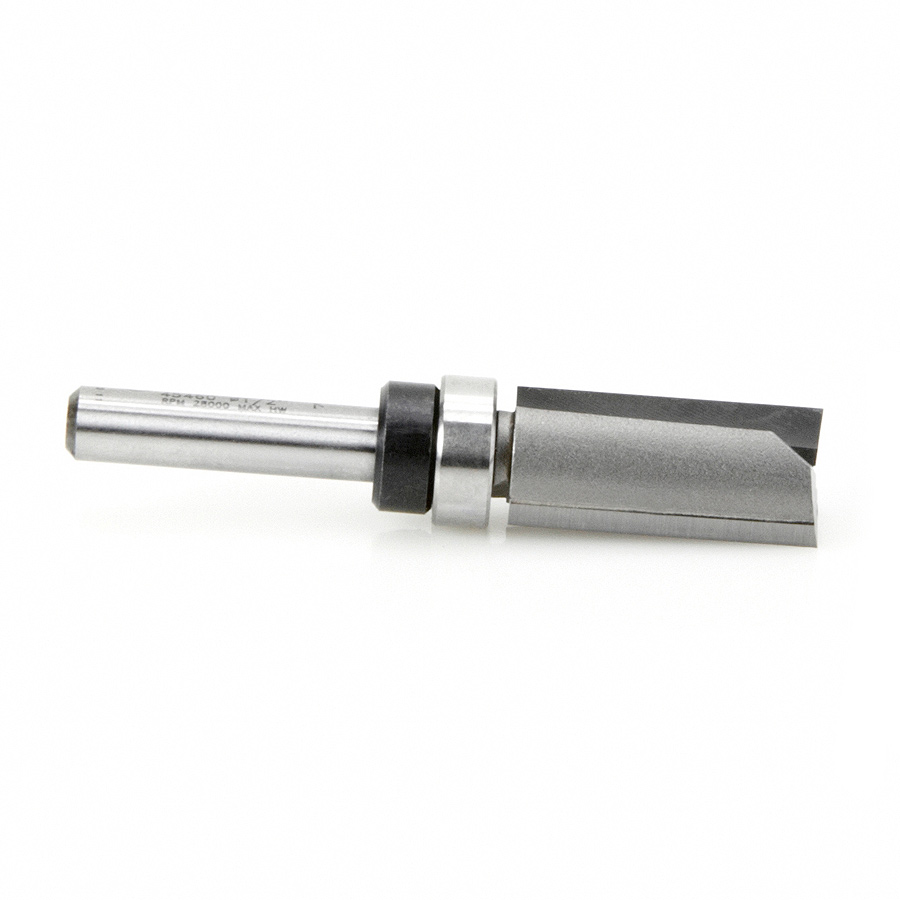

Amana 45460 Carbide Tipped Flush Trim Plunge Template 1/2 Dia x 1 Inch x 1/4 Shank with Upper BB
Original price was: $55.55.$41.67Current price is: $41.67.
PLUNGE 1/2 DIA UPPER BB 1/4SHK
Item Description
This bit is essentially a plunge-cutting straight with a shank-mounted ball-bearing pilot. Versatile, useful for template/pattern routing of parts, joints, internal cuts and can be used in handheld and table-mounted routers. The template is attached to the workpiece, and the pilot bearing rides along its edge as the cutting edges rout the workpiece, forming an exact duplicate of the template. With a handheld router, the pattern is on top of the work; with a table-mounted router, the pattern is underneath the work.
Fusion 360 compatible tool file for 45460 available for download, click here.
Replacement Parts
| Tool No. | Bearing(s) | Collar w/Set Screw | Collar Set Screw Only |
|---|---|---|---|
| 45460 | 47701 | 47724 | 67091 |
Specifications
| Diameter (D) | 1/2 |
|---|---|
| Cutting Height (B) | 1 |
| Shank (d) | 1/4 |
| Overall Length (L) | 2-1/2 |
| Replacement Collar | 47724 |
| Replacement Bearing | 47701 |
| Flutes | 2 |
Other Sizes Available
| Diameter (D) | Cutting Height (B) | Shank (d) | Overall Length (L) | Type | Replacement Bearing | Keller Number | Flutes | Replacement Collar | Usage | Tool No. |
|---|---|---|---|---|---|---|---|---|---|---|
| 3/16 (4.76mm) | 1/2 (12.70mm) | 1/8 (3.18mm) | 2 (50.80mm) | – | 47775 | – | 2 | – | – | 47220 |
| 3/16 (4.76mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2 (50.80mm) | – | 47775 | – | 2 | – | – | 47222 |
| 3/16 (4.76mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2 (50.80mm) | – | 47775 | – | 2 | – | – | 47222-5 |
| 3/16 (4.76mm) | 1/4 (6.35mm) | 1/4 (6.35mm) | 1-3/4 | – | 47775 | – | 2 | – | – | 47222-S |
| 3/16 (4.76mm) | 1/4 (6.35mm) | 1/4 (6.35mm) | 1-3/4 | – | 47775 | – | 2 | – | – | 47222-S-5 |
| 1/4 (6.35mm) | 1/8 (3.18mm) | 1/4 (6.35mm) | 2 (50.80mm) | – | 47723 | – | 2 | – | – | 47221-S |
| 1/4 (6.35mm) | 1/4 (6.35mm) | 1/8 (3.18mm) | 1-15/16 | – | 47723 | – | 2 | – | – | 47223-S |
| 1/4 (6.35mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2-7/16 | – | 47723 | – | 2 | – | – | 47224 |
| 1/4 (6.35mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2-7/16 | – | 47723 | – | 2 | – | – | 47224-5 |
| 1/4 (6.35mm) | 1/4 (6.35mm) | 1/4 (6.35mm) | 2-1/2 | – | 47723 | – | 2 | – | – | 47224-S |
| 1/4 (6.35mm) | 1/4 (6.35mm) | 1/4 (6.35mm) | 2-1/2 | – | 47723 | – | 2 | – | – | 47224-S-5 |
| 5/16 (7.94mm) | 1 (25.40mm) | 1/2 (12.70mm) | 2-3/4 | – | – | – | 2 | – | – | 45412 |
| 5/16 (7.94mm) | 1 (25.40mm) | 1/2 (12.70mm) | 2-3/4 | – | – | – | 2 | – | – | 45412-5 |
| 3/8 (9.53mm) | 1-1/4 | 1/2 (12.70mm) | 3 (76.20mm) | – | – | – | 2 | – | – | 45415 |
| 3/8 (9.53mm) | 1-1/4 | 1/2 (12.70mm) | 3 (76.20mm) | – | – | – | 2 | – | – | 45415-5 |
| 3/8 (9.53mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2 (50.80mm) | – | 47751 | – | 2 | 47764 | – | 45475 |
| 3/8 (9.53mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2 (50.80mm) | – | 47751 | – | 3 | 47764 | – | 45475-3DS |
| 3/8 (9.53mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2 (50.80mm) | – | 47751 | – | 3 | 47764 | – | 45475-3TS |
| 3/8 (9.53mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2 (50.80mm) | – | 47751 | – | 3 | 47764 | – | 45475-3US |
| 3/8 (9.53mm) | 1 (25.40mm) | 1/2 (12.70mm) | 3-1/4 | – | 47751 | – | 2 | – | – | 47226 |
| 3/8 (9.53mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-1/2 | – | 47751 | – | 2 | 47764 | – | 47227 |
| 1/2 (12.70mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-1/2 | – | 47701 | – | 3 | 47724 | – | 45460-3DS |
| 1/2 (12.70mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-1/2 | – | 47701 | – | 3 | 47724 | – | 45460-3TS |
| 1/2 (12.70mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-1/2 | – | 47701 | – | 3 | 47724 | – | 45460-3TS-5 |
| 1/2 (12.70mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-1/2 | – | 47701 | – | 3 | 47764 | – | 45460-3US |
| 1/2 (12.70mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-1/2 | – | 47701 | – | 2 | 47724 | – | 45460-5 |
| 1/2 (12.70mm) | 1-1/4 | 1/4 (6.35mm) | 2-3/4 | – | 47701 | – | 2 | 47724 | – | 45461 |
| 1/2 (12.70mm) | 3/8 (9.53mm) | 1/4 (6.35mm) | 2-1/4 | – | 47701 | – | 2 | 47724 | hardwood | 45481 |
| 1/2 (12.70mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2 (50.80mm) | – | 47701 | – | 2 | 47724 | – | 45487 |
| 1/2 (12.70mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2-1/2 | – | 47701 | – | 3 | 47724 | – | 45487-3TS |
| 1/2 (12.70mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2-1/4 | – | 47701 | – | 2 | 47724 | – | 45491 |
| 1/2 (12.70mm) | 3/4 (19.05mm) | 8mm | 2-3/4 | – | 47701 | – | 2 | – | – | 45493-M |
| 1/2 (12.70mm) | 1-1/4 | 1/2 (12.70mm) | 3-1/2 | – | 47701 | – | 2 | – | – | 47228 |
| 1/2 (12.70mm) | 1-1/4 | 1/2 (12.70mm) | 3-1/2 | – | 47701 | – | 2 | – | – | 47228-5 |
| 1/2 (12.70mm) | 1/2 (12.70mm) | 1/2 (12.70mm) | 2-3/4 | – | 47701 | – | 2 | – | – | 47228-S |
| 1/2 (12.70mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-5/8 | – | 47701 | – | 2 | – | – | 57172 |
| 1/2 (12.70mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-13/16 | – | 47701 | – | 3 | – | – | 57177 |
| 9/16 (14.29mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2-5/16 | – | 47753 | – | 2 | 47724 | – | 45361 |
| 9/16 (14.29mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2-1/4 | – | 47712 | – | 2 | 47752 | – | 45479 |
| 0.615 (15.75mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2-1/4 | Straight | 47712 | 1641/1541 (27.05mm) | 2 | – | – | 45469 |
| 0.615 (15.75mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2-1/4 | – | 47712 | – | 2 | – | – | 45476 |
| 0.615 (15.75mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2-1/2 | – | 47712 | – | 2 | 47752 | – | 45478 |
| 5/8 (15.88mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-3/4 | – | 47712 | – | 2 | 47724 | – | 45462 |
| 5/8 (15.88mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2-5/8 | Straight | 47712 | 1643/1543 (27.05mm) | 2 | – | – | 45470 |
| 5/8 (15.88mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2-1/4 | – | 47712 | – | 2 | 47724 | – | 45482 |
| 5/8 (15.88mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2-1/2 | – | 47712 | – | 2 | 47724 | – | 45483 |
| 5/8 (15.88mm) | 1-1/4 | 1/2 (12.70mm) | 3-1/2 | – | 47713 | – | 2 | – | – | 47229 |
| 3/4 (19.05mm) | 1-1/4 | 1/2 (12.70mm) | 3-1/4 | – | 47721 | – | 2 | 47739 | – | 45360 |
| 3/4 (19.05mm) | 1-1/2 | 1/2 (12.70mm) | 3-1/2 | – | 47721 | – | 2 | 47739 | – | 45362 |
| 3/4 (19.05mm) | 2 (50.80mm) | 1/2 (12.70mm) | 4 (101.60mm) | – | 47721 | – | 2 | 47739 | – | 45364 |
| 3/4 (19.05mm) | 2 (50.80mm) | 1/2 (12.70mm) | 4 (101.60mm) | – | 47721 | – | 2 | 47739 | – | 45364-5 |
| 3/4 (19.05mm) | 2 (50.80mm) | 1/2 (12.70mm) | 4 (101.60mm) | – | 47721 | – | 2 | 47739 | – | 45366 |
| 3/4 (19.05mm) | 1-1/4 | 1/2 (12.70mm) | 3-11/32 | – | 47721 | – | 3 | 47739 | – | 45366-3TS |
| 3/4 (19.05mm) | 3/8 (9.53mm) | 1/2 (12.70mm) | 3-1/4 | – | 47721 | – | 3 | 47739 | – | 45366-3US |
| 3/4 (19.05mm) | 2 (50.80mm) | 1/2 (12.70mm) | 4 (101.60mm) | – | 47721 | – | 2 | 47739 | – | 45366-5 |
| 3/4 (19.05mm) | 1 (25.40mm) | 1/2 (12.70mm) | 3 (76.20mm) | – | 47721 | – | 2 | 47739 | – | 45463 |
| 3/4 (19.05mm) | 1 (25.40mm) | 1/2 (12.70mm) | 3 (76.20mm) | – | 47721 | – | 3 | 47739 | – | 45463-3DS |
| 3/4 (19.05mm) | 1 (25.40mm) | 1/2 (12.70mm) | 3 (76.20mm) | – | 47721 | – | 3 | 47739 | – | 45463-3TS |
| 3/4 (19.05mm) | 1 (25.40mm) | 1/2 (12.70mm) | 3 (76.20mm) | – | 47721 | – | 3 | 47739 | – | 45463-3US |
| 3/4 (19.05mm) | 3/4 (19.05mm) | 1/2 (12.70mm) | 2-3/4 | – | 47721 | – | 2 | 47739 | – | 45463-S |
| 3/4 (19.05mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-1/2 | – | 47714 | – | 2 | 47724 | – | 45464 |
| 3/4 (19.05mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-1/2 | – | 47714 | – | 2 | 47724 | – | 45464-5 |
| 3/4 (19.05mm) | 1-3/4 | 1/2 (12.70mm) | 3-3/4 | – | 47721 | – | 2 | 47739 | – | 45465 |
| 3/4 (19.05mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2-3/8 | – | 47714 | – | 2 | 47724 | – | 45485 |
| 3/4 (19.05mm) | 1-9/64 | 1/2 (12.70mm) | 3-1/2 | – | 47721 | – | 3 | – | – | 57179 |
| 3/4 (19.05mm) | 3/8 (9.53mm) | 1/4 (6.35mm) | 2-1/8 | – | 47714 | – | 3 | 47724 | – | 57280-3DS |
| 7/8 (22.23mm) | 1-9/64 | 1/2 (12.70mm) | 3-15/16 | – | 47793 | – | 2 | 47739 | – | 57176 |
| 1 (25.40mm) | 1 (25.40mm) | 1/2 (12.70mm) | 2-3/4 | – | 47745 | – | 2 | 47740 | – | 45365 |
| 1 (25.40mm) | 1 (25.40mm) | 3/8 (9.53mm) | 2-7/8 | – | 47722 | – | 2 | 47730 | – | 45466 |
| 1 (25.40mm) | 1-3/4 | 1/2 (12.70mm) | 3-3/4 | – | 47745 | – | 2 | 47739 | – | 45467 |
| 1-1/8 | 1-1/2 | 1/2 (12.70mm) | 3-1/2 | – | 47738 | – | 2 | 47740 | – | 45468 |
| 1-1/8 | 1 (25.40mm) | 1/2 (12.70mm) | 3 (76.20mm) | – | 47738 | – | 2 | 47740 | – | 45550 |
| 1-1/8 | 2 (50.80mm) | 1/2 (12.70mm) | 4 (101.60mm) | – | 47738 | – | 2 | 47740 | – | 45551 |
| 1-1/4 | 1-1/2 | 1/2 (12.70mm) | 3-3/8 | – | 47747 | – | 2 | 47740 | – | 45367 |
| 1-1/2 | 1-3/4 | 1/2 (12.70mm) | 3-3/4 | – | 47749 | – | 2 | 47740 | – | 45368 |
| Weight | 0.08 lbs |
|---|
