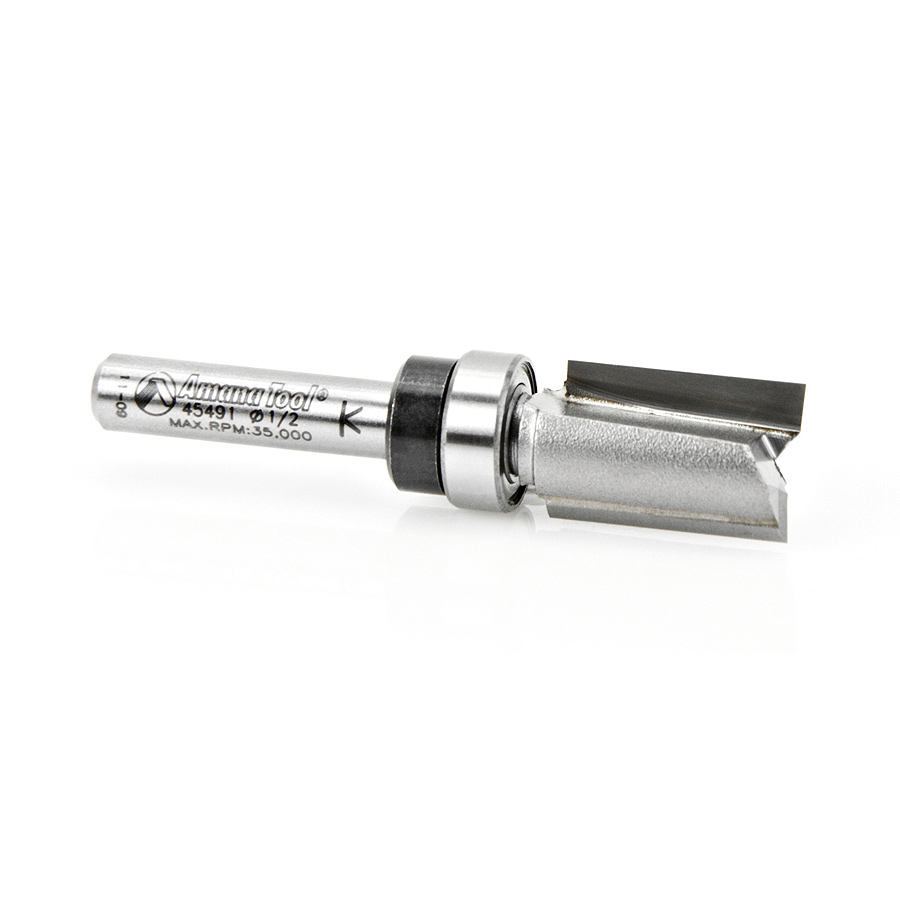

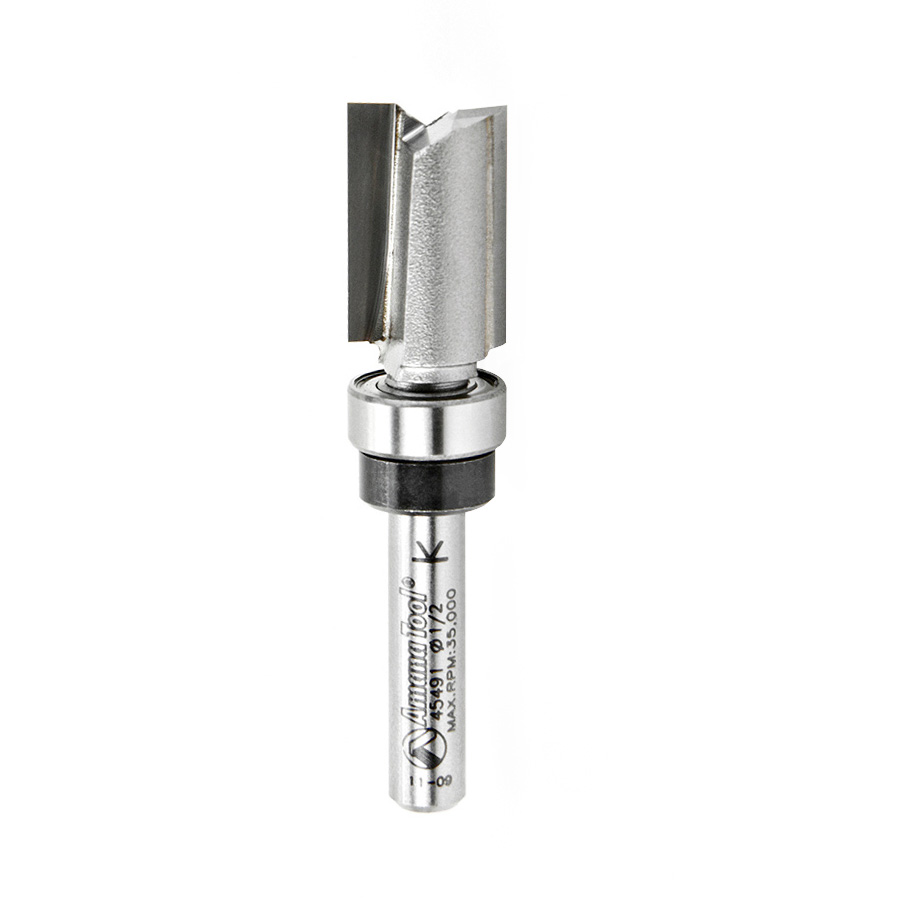

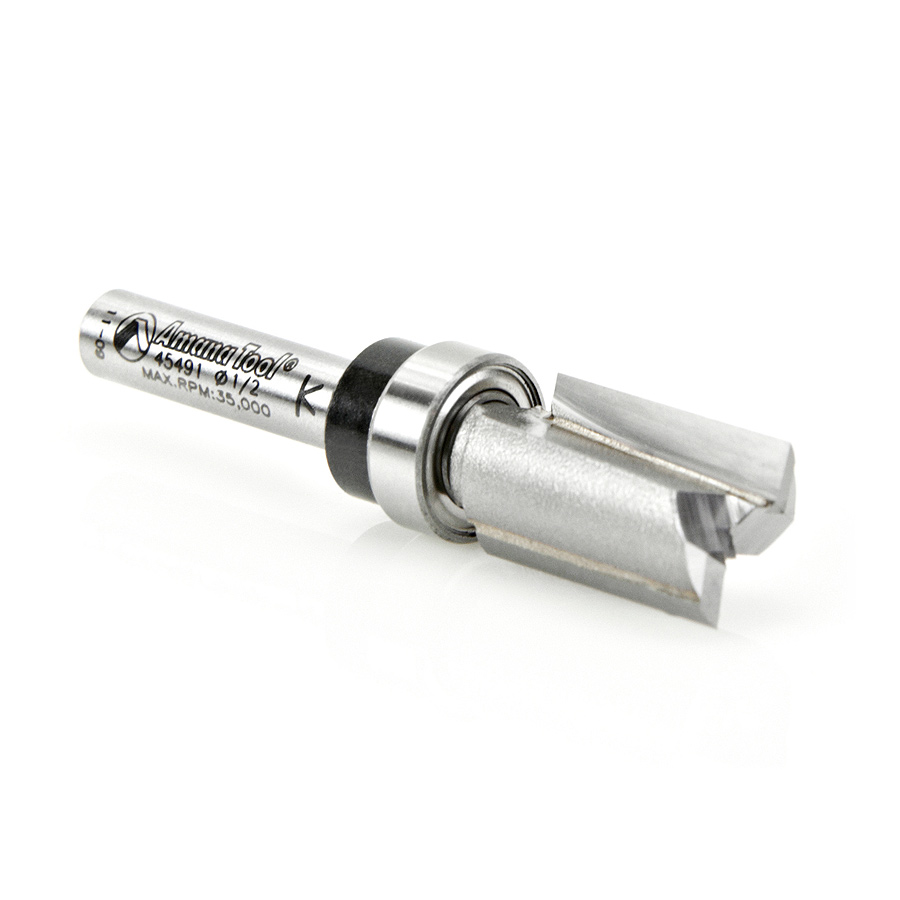

Amana 45491 Carbide Tipped Flush Trim Plunge Template 1/2 Dia x 3/4 x 1/4 Inch Shank with Upper BB
Original price was: $49.15.$36.87Current price is: $36.87.
PLUNGE 1/2 DIA UPPER BB 1/4SHK
Item Description
This bit is essentially a plunge-cutting straight with a shank-mounted ball-bearing pilot. Versatile, useful for template/pattern routing of parts, joints, internal cuts and can be used in handheld and table-mounted routers. The template is attached to the workpiece, and the pilot bearing rides along its edge as the cutting edges rout the workpiece, forming an exact duplicate of the template. With a handheld router, the pattern is on top of the work; with a table-mounted router, the pattern is underneath the work.
Replacement Parts
| Tool No. | Bearing(s) | Collar w/Set Screw |
|---|---|---|
| 45491 | 47701 | 47724 |

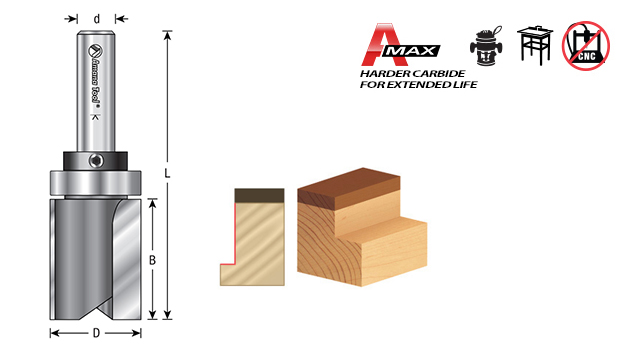

Specifications
| Diameter (D) | 1/2 |
|---|---|
| Cutting Height (B) | 3/4 |
| Shank (d) | 1/4 |
| Overall Length (L) | 2-1/4 |
| Replacement Collar | 47724 |
| Replacement Bearing | 47701 |
| Flutes | 2 |
Other Sizes Available
| Diameter (D) | Cutting Height (B) | Shank (d) | Overall Length (L) | Replacement Collar | Replacement Bearing | Flutes | Tool No. |
|---|---|---|---|---|---|---|---|
| 3/16 (4.76mm) | 1/2 (12.70mm) | 1/8 (3.18mm) | 2 (50.80mm) | – | 47775 | 2 | 47220 |
| 3/16 (4.76mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2 (50.80mm) | – | 47775 | 2 | 47222 |
| 3/16 (4.76mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2 (50.80mm) | – | 47775 | 2 | 47222-5 |
| 3/16 (4.76mm) | 1/4 (6.35mm) | 1/4 (6.35mm) | 1-3/4 | – | 47775 | 2 | 47222-S |
| 3/16 (4.76mm) | 1/4 (6.35mm) | 1/4 (6.35mm) | 1-3/4 | – | 47775 | 2 | 47222-S-5 |
| 1/4 (6.35mm) | 1/8 (3.18mm) | 1/4 (6.35mm) | 2 (50.80mm) | – | 47723 | 2 | 47221-S |
| 1/4 (6.35mm) | 1/4 (6.35mm) | 1/8 (3.18mm) | 1-15/16 | – | 47723 | 2 | 47223-S |
| 1/4 (6.35mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2-7/16 | – | 47723 | 2 | 47224 |
| 1/4 (6.35mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2-7/16 | – | 47723 | 2 | 47224-5 |
| 1/4 (6.35mm) | 1/4 (6.35mm) | 1/4 (6.35mm) | 2-1/2 | – | 47723 | 2 | 47224-S |
| 1/4 (6.35mm) | 1/4 (6.35mm) | 1/4 (6.35mm) | 2-1/2 | – | 47723 | 2 | 47224-S-5 |
| 5/16 (7.94mm) | 1 (25.40mm) | 1/2 (12.70mm) | 2-3/4 | – | – | 2 | 45412 |
| 5/16 (7.94mm) | 1 (25.40mm) | 1/2 (12.70mm) | 2-3/4 | – | – | 2 | 45412-5 |
| 3/8 (9.53mm) | 1-1/4 | 1/2 (12.70mm) | 3 (76.20mm) | – | – | 2 | 45415 |
| 3/8 (9.53mm) | 1-1/4 | 1/2 (12.70mm) | 3 (76.20mm) | – | – | 2 | 45415-5 |
| 3/8 (9.53mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2 (50.80mm) | 47764 | 47751 | 2 | 45475 |
| 3/8 (9.53mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2 (50.80mm) | 47764 | 47751 | 3 | 45475-3DS |
| 3/8 (9.53mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2 (50.80mm) | 47764 | 47751 | 3 | 45475-3TS |
| 3/8 (9.53mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2 (50.80mm) | 47764 | 47751 | 3 | 45475-3US |
| 3/8 (9.53mm) | 1 (25.40mm) | 1/2 (12.70mm) | 3-1/4 | – | 47751 | 2 | 47226 |
| 3/8 (9.53mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-1/2 | 47764 | 47751 | 2 | 47227 |
| 1/2 (12.70mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-1/2 | 47724 | 47701 | 2 | 45460 |
| 1/2 (12.70mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-1/2 | 47724 | 47701 | 3 | 45460-3DS |
| 1/2 (12.70mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-1/2 | 47724 | 47701 | 3 | 45460-3TS |
| 1/2 (12.70mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-1/2 | 47724 | 47701 | 3 | 45460-3TS-5 |
| 1/2 (12.70mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-1/2 | 47764 | 47701 | 3 | 45460-3US |
| 1/2 (12.70mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-1/2 | 47724 | 47701 | 2 | 45460-5 |
| 1/2 (12.70mm) | 1-1/4 | 1/4 (6.35mm) | 2-3/4 | 47724 | 47701 | 2 | 45461 |
| 1/2 (12.70mm) | 3/8 (9.53mm) | 1/4 (6.35mm) | 2-1/4 | 47724 | 47701 | 2 | 45481 |
| 1/2 (12.70mm) | 3/8 (9.53mm) | 1/4 (6.35mm) | 2-1/4 | 47724 | 47701 | 2 | 45481-5 |
| 1/2 (12.70mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2 (50.80mm) | 47724 | 47701 | 2 | 45487 |
| 1/2 (12.70mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2-1/2 | 47724 | 47701 | 3 | 45487-3TS |
| 1/2 (12.70mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2-1/4 | 47724 | 47701 | 2 | 45491-5 |
| 1/2 (12.70mm) | 3/4 (19.05mm) | 8mm | 2-3/4 | – | 47701 | 2 | 45493-M |
| 1/2 (12.70mm) | 1-1/4 | 1/2 (12.70mm) | 3-1/2 | – | 47701 | 2 | 47228 |
| 1/2 (12.70mm) | 1-1/4 | 1/2 (12.70mm) | 3-1/2 | – | 47701 | 2 | 47228-5 |
| 1/2 (12.70mm) | 1/2 (12.70mm) | 1/2 (12.70mm) | 2-3/4 | – | 47701 | 2 | 47228-S |
| 1/2 (12.70mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-5/8 | – | 47701 | 2 | 57172 |
| 1/2 (12.70mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-13/16 | – | 47701 | 3 | 57177 |
| 9/16 (14.29mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2-5/16 | 47724 | 47753 | 2 | 45361 |
| 9/16 (14.29mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2-1/4 | 47752 | 47712 | 2 | 45479 |
| 0.615 (15.75mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2-1/4 | – | 47712 | 2 | 45469 |
| 0.615 (15.75mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2-1/4 | – | 47712 | 2 | 45476 |
| 0.615 (15.75mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2-1/2 | 47752 | 47712 | 2 | 45478 |
| 5/8 (15.88mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-3/4 | 47724 | 47712 | 2 | 45462 |
| 5/8 (15.88mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2-5/8 | – | 47712 | 2 | 45470 |
| 5/8 (15.88mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2-1/4 | 47724 | 47712 | 2 | 45482 |
| 5/8 (15.88mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2-1/2 | 47724 | 47712 | 2 | 45483 |
| 5/8 (15.88mm) | 1-1/4 | 1/2 (12.70mm) | 3-1/2 | – | 47713 | 2 | 47229 |
| 3/4 (19.05mm) | 1-1/4 | 1/2 (12.70mm) | 3-1/4 | 47739 | 47721 | 2 | 45360 |
| 3/4 (19.05mm) | 1-1/2 | 1/2 (12.70mm) | 3-1/2 | 47739 | 47721 | 2 | 45362 |
| 3/4 (19.05mm) | 2 (50.80mm) | 1/2 (12.70mm) | 4 (101.60mm) | 47739 | 47721 | 2 | 45364 |
| 3/4 (19.05mm) | 2 (50.80mm) | 1/2 (12.70mm) | 4 (101.60mm) | 47739 | 47721 | 2 | 45364-5 |
| 3/4 (19.05mm) | 2 (50.80mm) | 1/2 (12.70mm) | 4 (101.60mm) | 47739 | 47721 | 2 | 45366 |
| 3/4 (19.05mm) | 1-1/4 | 1/2 (12.70mm) | 3-11/32 | 47739 | 47721 | 3 | 45366-3TS |
| 3/4 (19.05mm) | 3/8 (9.53mm) | 1/2 (12.70mm) | 3-1/4 | 47739 | 47721 | 3 | 45366-3US |
| 3/4 (19.05mm) | 2 (50.80mm) | 1/2 (12.70mm) | 4 (101.60mm) | 47739 | 47721 | 2 | 45366-5 |
| 3/4 (19.05mm) | 1 (25.40mm) | 1/2 (12.70mm) | 3 (76.20mm) | 47739 | 47721 | 2 | 45463 |
| 3/4 (19.05mm) | 1 (25.40mm) | 1/2 (12.70mm) | 3 (76.20mm) | 47739 | 47721 | 3 | 45463-3DS |
| 3/4 (19.05mm) | 1 (25.40mm) | 1/2 (12.70mm) | 3 (76.20mm) | 47739 | 47721 | 3 | 45463-3TS |
| 3/4 (19.05mm) | 1 (25.40mm) | 1/2 (12.70mm) | 3 (76.20mm) | 47739 | 47721 | 3 | 45463-3US |
| 3/4 (19.05mm) | 3/4 (19.05mm) | 1/2 (12.70mm) | 2-3/4 | 47739 | 47721 | 2 | 45463-S |
| 3/4 (19.05mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-1/2 | 47724 | 47714 | 2 | 45464 |
| 3/4 (19.05mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-1/2 | 47724 | 47714 | 2 | 45464-5 |
| 3/4 (19.05mm) | 1-3/4 | 1/2 (12.70mm) | 3-3/4 | 47739 | 47721 | 2 | 45465 |
| 3/4 (19.05mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2-3/8 | 47724 | 47714 | 2 | 45485 |
| 3/4 (19.05mm) | 1-9/64 | 1/2 (12.70mm) | 3-1/2 | – | 47721 | 3 | 57179 |
| 3/4 (19.05mm) | 3/8 (9.53mm) | 1/4 (6.35mm) | 2-1/8 | 47724 | 47714 | 3 | 57280-3DS |
| 7/8 (22.23mm) | 1-9/64 | 1/2 (12.70mm) | 3-15/16 | 47739 | 47793 | 2 | 57176 |
| 1 (25.40mm) | 1 (25.40mm) | 1/2 (12.70mm) | 2-3/4 | 47740 | 47745 | 2 | 45365 |
| 1 (25.40mm) | 1 (25.40mm) | 3/8 (9.53mm) | 2-7/8 | 47730 | 47722 | 2 | 45466 |
| 1 (25.40mm) | 1-3/4 | 1/2 (12.70mm) | 3-3/4 | 47739 | 47745 | 2 | 45467 |
| 1-1/8 | 1-1/2 | 1/2 (12.70mm) | 3-1/2 | 47740 | 47738 | 2 | 45468 |
| 1-1/8 | 1 (25.40mm) | 1/2 (12.70mm) | 3 (76.20mm) | 47740 | 47738 | 2 | 45550 |
| 1-1/8 | 2 (50.80mm) | 1/2 (12.70mm) | 4 (101.60mm) | 47740 | 47738 | 2 | 45551 |
| 1-1/4 | 1-1/2 | 1/2 (12.70mm) | 3-3/8 | 47740 | 47747 | 2 | 45367 |
| 1-1/2 | 1-3/4 | 1/2 (12.70mm) | 3-3/4 | 47740 | 47749 | 2 | 45368 |
