Sale!

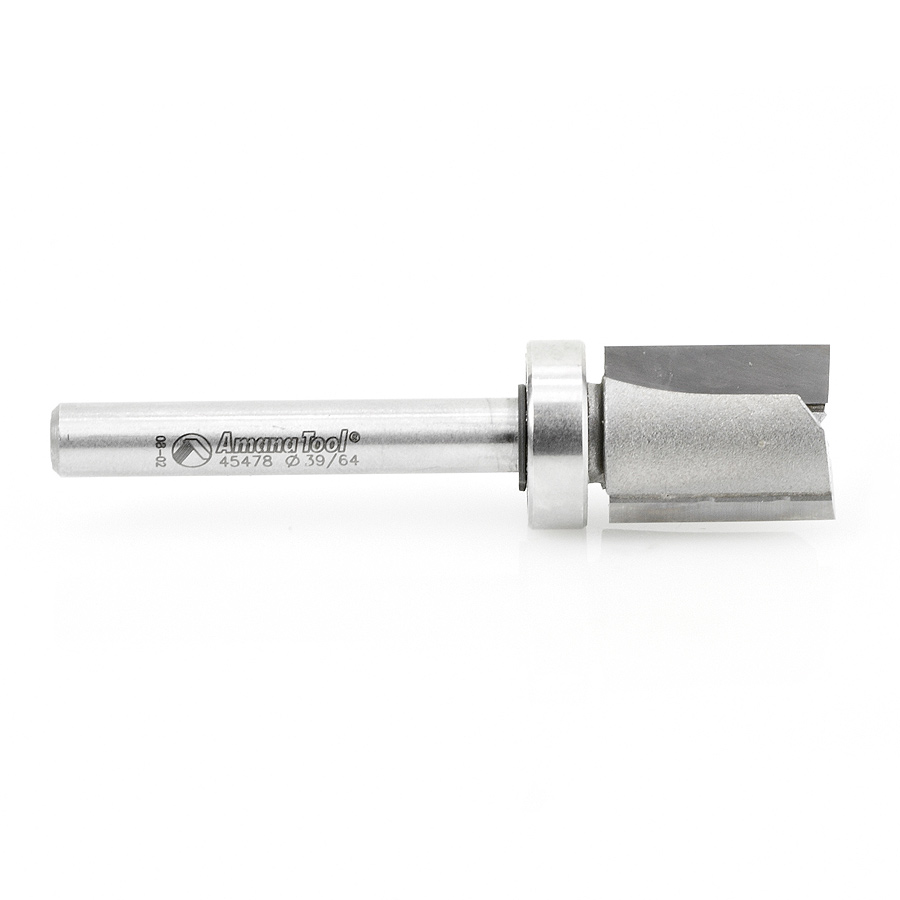

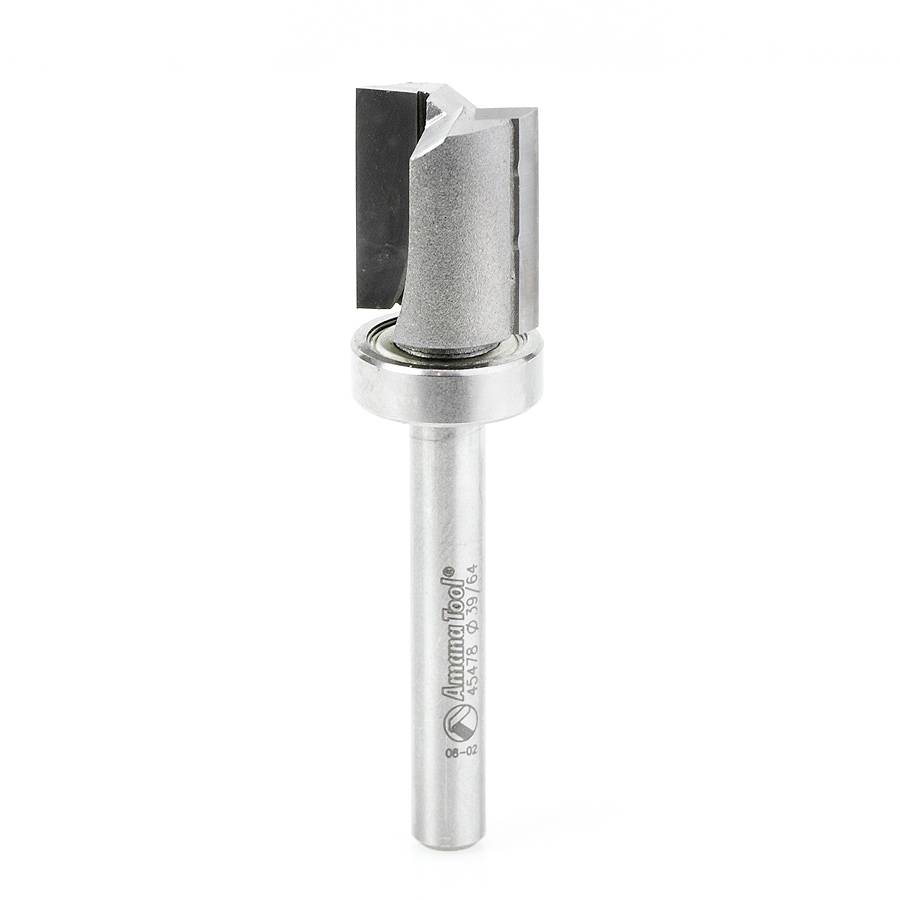

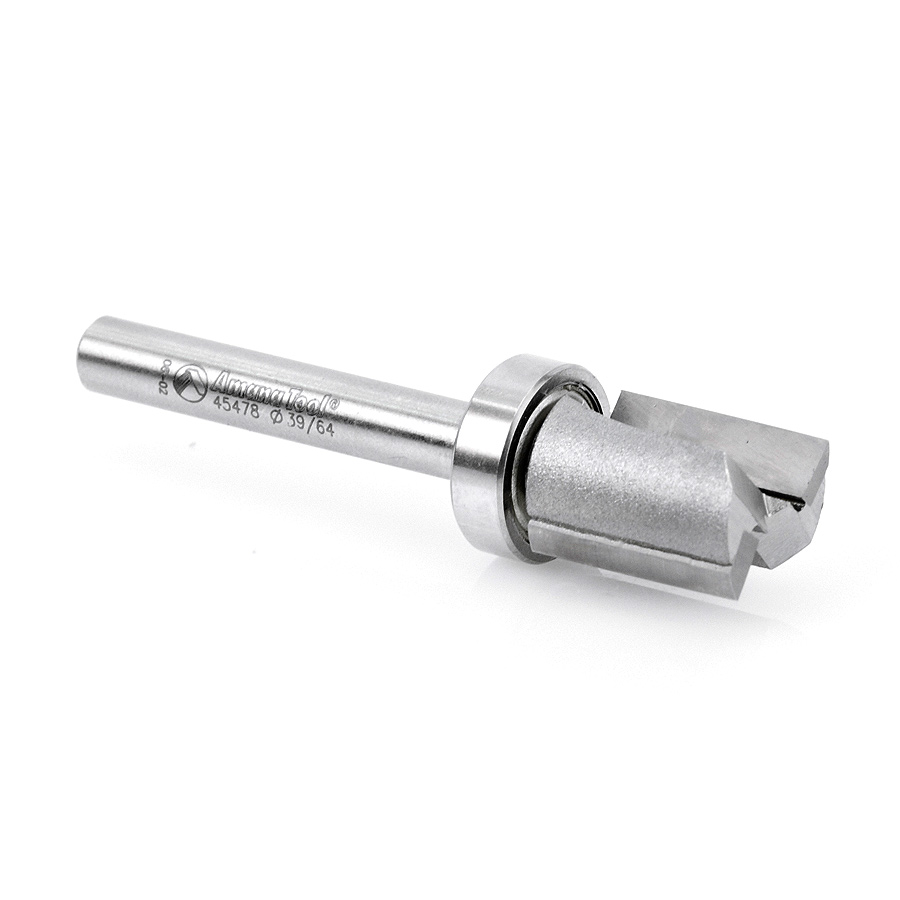

45478 Carbide Tipped Straight Plunge .615 Dia x 3/4 x 1/4 Inch Shank with Upper BB

Amana 45478 Carbide Tipped Straight Plunge .615 Dia x 3/4 x 1/4 Inch Shank with Upper BB

Name: Amana 45478 Carbide Tipped Straight Plunge .615 Dia x 3/4 x 1/4 Inch Shank with Upper BB
SKU: Amana 45478
Availability: InStock

Original price was: $50.65.Current price is: $37.99.

.615″X 3/4″PLUNGE 1/4″SHK W/BB

UPC: 738685454787 SKU: Amana 45478 Categories: Amana Tool, Dovetail Router Bits, Jointing Router Bits, Router Bits

Item Description

The popular Keller™ Templates require the use of bits with shank-mounted pilot bearings.

This bit is specifically designed for use in the Keller™ system.

Specifications

Diameter (D)	0.615
Cutting Height (B)	3/4
Shank (d)	1/4
Overall Length (L)	2-1/2
Replacement Collar	47752
Replacement Bearing	47712
Flutes	2

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Replacement Collar	Replacement Bearing	Flutes	Tool No.
3/16 (4.76mm)	1/2 (12.70mm)	1/8 (3.18mm)	2 (50.80mm)	–	47775	2	47220
3/16 (4.76mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	–	47775	2	47222
3/16 (4.76mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	–	47775	2	47222-5
3/16 (4.76mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-3/4	–	47775	2	47222-S
3/16 (4.76mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-3/4	–	47775	2	47222-S-5
1/4 (6.35mm)	1/8 (3.18mm)	1/4 (6.35mm)	2 (50.80mm)	–	47723	2	47221-S
1/4 (6.35mm)	1/4 (6.35mm)	1/8 (3.18mm)	1-15/16	–	47723	2	47223-S
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-7/16	–	47723	2	47224
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-7/16	–	47723	2	47224-5
1/4 (6.35mm)	1/4 (6.35mm)	1/4 (6.35mm)	2-1/2	–	47723	2	47224-S
1/4 (6.35mm)	1/4 (6.35mm)	1/4 (6.35mm)	2-1/2	–	47723	2	47224-S-5
5/16 (7.94mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	–	–	2	45412
5/16 (7.94mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	–	–	2	45412-5
3/8 (9.53mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	–	–	2	45415
3/8 (9.53mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	–	–	2	45415-5
3/8 (9.53mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	47764	47751	2	45475
3/8 (9.53mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	47764	47751	3	45475-3DS
3/8 (9.53mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	47764	47751	3	45475-3TS
3/8 (9.53mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	47764	47751	3	45475-3US
3/8 (9.53mm)	1 (25.40mm)	1/2 (12.70mm)	3-1/4	–	47751	2	47226
3/8 (9.53mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	47764	47751	2	47227
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	47724	47701	2	45460
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	47724	47701	3	45460-3DS
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	47724	47701	3	45460-3TS
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	47724	47701	3	45460-3TS-5
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	47764	47701	3	45460-3US
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	47724	47701	2	45460-5
1/2 (12.70mm)	1-1/4	1/4 (6.35mm)	2-3/4	47724	47701	2	45461
1/2 (12.70mm)	3/8 (9.53mm)	1/4 (6.35mm)	2-1/4	47724	47701	2	45481
1/2 (12.70mm)	3/8 (9.53mm)	1/4 (6.35mm)	2-1/4	47724	47701	2	45481-5
1/2 (12.70mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	47724	47701	2	45487
1/2 (12.70mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/2	47724	47701	3	45487-3TS
1/2 (12.70mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/4	47724	47701	2	45491
1/2 (12.70mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/4	47724	47701	2	45491-5
1/2 (12.70mm)	3/4 (19.05mm)	8mm	2-3/4	–	47701	2	45493-M
1/2 (12.70mm)	1-1/4	1/2 (12.70mm)	3-1/2	–	47701	2	47228
1/2 (12.70mm)	1-1/4	1/2 (12.70mm)	3-1/2	–	47701	2	47228-5
1/2 (12.70mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-3/4	–	47701	2	47228-S
9/16 (14.29mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-5/16	47724	47753	2	45361
9/16 (14.29mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/4	47752	47712	2	45479
0.615 (15.75mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/4	–	47712	2	45469
0.615 (15.75mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/4	–	47712	2	45476
5/8 (15.88mm)	1 (25.40mm)	1/4 (6.35mm)	2-3/4	47724	47712	2	45462
5/8 (15.88mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-5/8	–	47712	2	45470
5/8 (15.88mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/4	47724	47712	2	45482
5/8 (15.88mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/2	47724	47712	2	45483
5/8 (15.88mm)	1-1/4	1/2 (12.70mm)	3-1/2	–	47713	2	47229
3/4 (19.05mm)	1-1/4	1/2 (12.70mm)	3-1/4	47739	47721	2	45360
3/4 (19.05mm)	1-1/2	1/2 (12.70mm)	3-1/2	47739	47721	2	45362
3/4 (19.05mm)	2 (50.80mm)	1/2 (12.70mm)	4 (101.60mm)	47739	47721	2	45364
3/4 (19.05mm)	2 (50.80mm)	1/2 (12.70mm)	4 (101.60mm)	47739	47721	2	45364-5
3/4 (19.05mm)	2 (50.80mm)	1/2 (12.70mm)	4 (101.60mm)	47739	47721	2	45366
3/4 (19.05mm)	1-1/4	1/2 (12.70mm)	3-11/32	47739	47721	3	45366-3TS
3/4 (19.05mm)	3/8 (9.53mm)	1/2 (12.70mm)	3-1/4	47739	47721	3	45366-3US
3/4 (19.05mm)	2 (50.80mm)	1/2 (12.70mm)	4 (101.60mm)	47739	47721	2	45366-5
3/4 (19.05mm)	1 (25.40mm)	1/2 (12.70mm)	3 (76.20mm)	47739	47721	2	45463
3/4 (19.05mm)	1 (25.40mm)	1/2 (12.70mm)	3 (76.20mm)	47739	47721	3	45463-3DS
3/4 (19.05mm)	1 (25.40mm)	1/2 (12.70mm)	3 (76.20mm)	47739	47721	3	45463-3TS
3/4 (19.05mm)	1 (25.40mm)	1/2 (12.70mm)	3 (76.20mm)	47739	47721	3	45463-3US
3/4 (19.05mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-3/4	47739	47721	2	45463-S
3/4 (19.05mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	47724	47714	2	45464
3/4 (19.05mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	47724	47714	2	45464-5
3/4 (19.05mm)	1-3/4	1/2 (12.70mm)	3-3/4	47739	47721	2	45465
3/4 (19.05mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-3/8	47724	47714	2	45485
3/4 (19.05mm)	3/8 (9.53mm)	1/4 (6.35mm)	2-1/8	47724	47714	3	57280-3DS
1 (25.40mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	47740	47745	2	45365
1 (25.40mm)	1 (25.40mm)	3/8 (9.53mm)	2-7/8	47730	47722	2	45466
1 (25.40mm)	1-3/4	1/2 (12.70mm)	3-3/4	47739	47745	2	45467
1-1/8	1-1/2	1/2 (12.70mm)	3-1/2	47740	47738	2	45468
1-1/8	1 (25.40mm)	1/2 (12.70mm)	3 (76.20mm)	47740	47738	2	45550
1-1/8	2 (50.80mm)	1/2 (12.70mm)	4 (101.60mm)	47740	47738	2	45551
1-1/4	1-1/2	1/2 (12.70mm)	3-3/8	47740	47747	2	45367
1-1/2	1-3/4	1/2 (12.70mm)	3-3/4	47740	47749	2	45368

Weight	0.08 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
