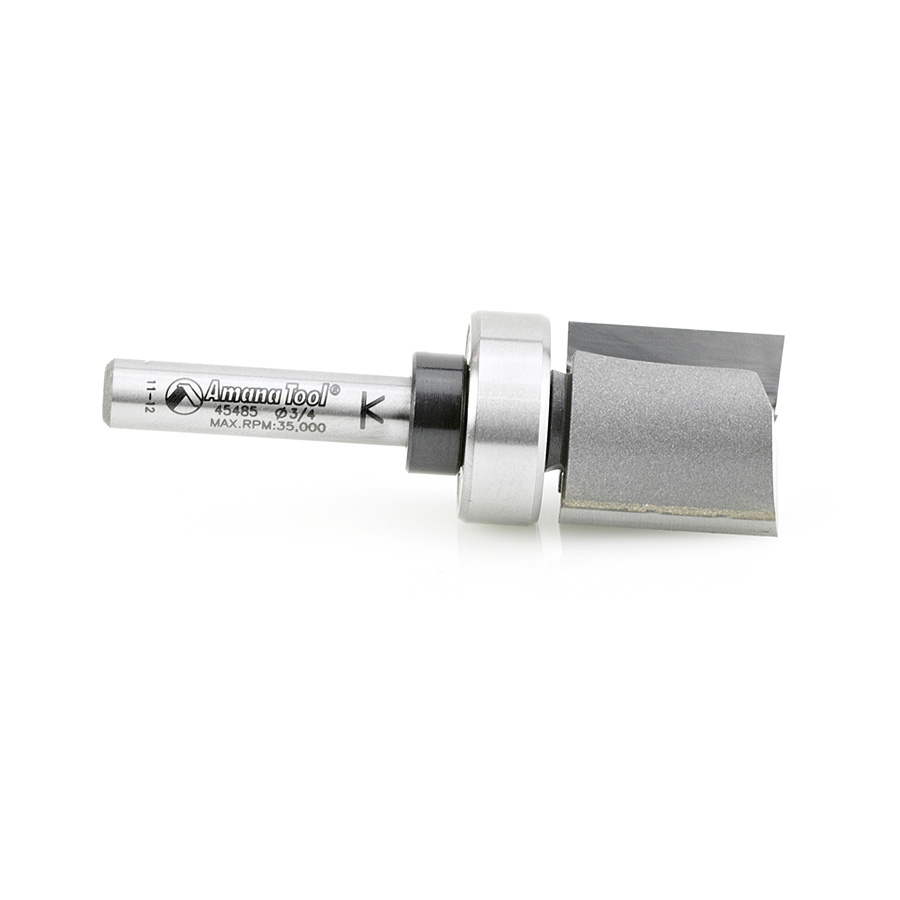

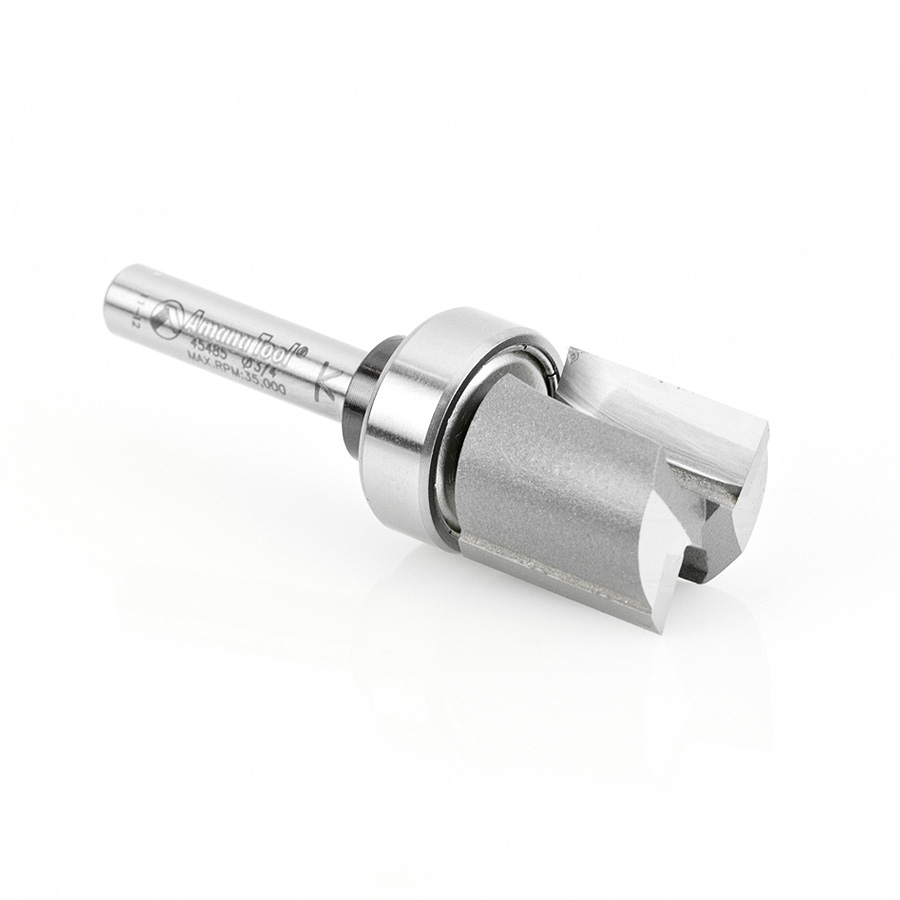

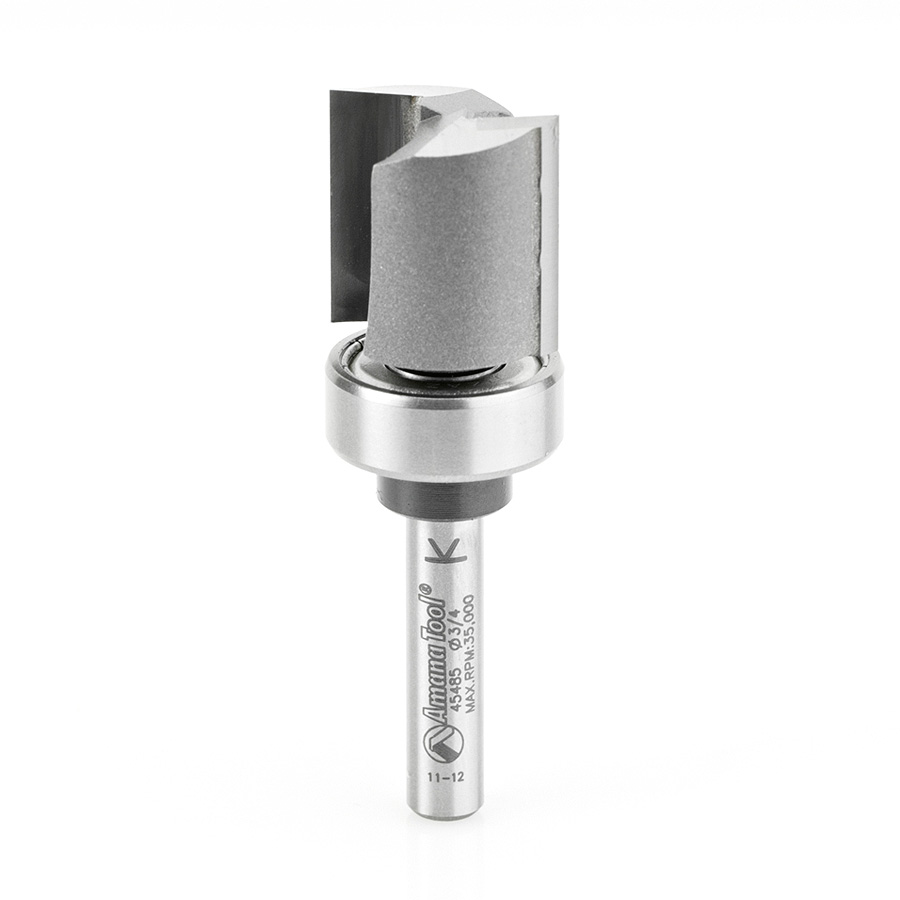

45485 Carbide Tipped Flush Trim Plunge Template 3/4 Dia x 3/4 x 1/4 Inch Shank with Upper BB

Amana 45485 Carbide Tipped Flush Trim Plunge Template 3/4 Dia x 3/4 x 1/4 Inch Shank with Upper BB

Name: Amana 45485 Carbide Tipped Flush Trim Plunge Template 3/4 Dia x 3/4 x 1/4 Inch Shank with Upper BB
SKU: Amana 45485
Availability: InStock

Original price was: $70.90.Current price is: $53.18.

PLUNGE 3/4 DIA UPPER BB 1/4SHK

UPC: 738685454855 SKU: Amana 45485 Categories: Amana Tool, Flush Trim Plunge Template Router Bits, Router Bits, Trimming Router Bits

Item Description

This bit is essentially a plunge-cutting straight with a shank-mounted ball-bearing pilot. Versatile, useful for template/pattern routing of parts, joints, internal cuts and can be used in handheld and table-mounted routers. The template is attached to the workpiece, and the pilot bearing rides along its edge as the cutting edges rout the workpiece, forming an exact duplicate of the template. With a handheld router, the pattern is on top of the work; with a table-mounted router, the pattern is underneath the work.

Replacement Parts

Tool No.	Bearing(s)	Collar w/Set Screw	Collar Set Screw Only
45485	47712	47724	67091

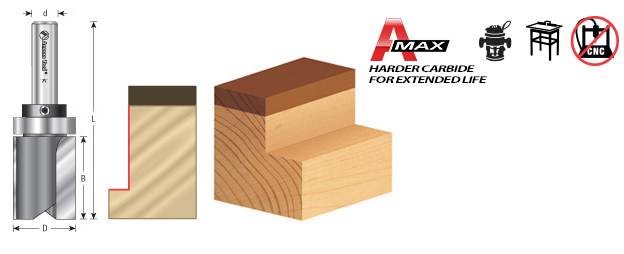

Specifications

Diameter (D)	3/4
Cutting Height (B)	3/4
Shank (d)	1/4
Overall Length (L)	2-3/8
Replacement Collar	47724
Replacement Bearing	47714
Flutes	2

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Replacement Collar	Replacement Bearing	Flutes	Tool No.
3/16 (4.76mm)	1/2 (12.70mm)	1/8 (3.18mm)	2 (50.80mm)	–	47775	2	47220
3/16 (4.76mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	–	47775	2	47222
3/16 (4.76mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	–	47775	2	47222-5
3/16 (4.76mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-3/4	–	47775	2	47222-S
3/16 (4.76mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-3/4	–	47775	2	47222-S-5
1/4 (6.35mm)	1/8 (3.18mm)	1/4 (6.35mm)	2 (50.80mm)	–	47723	2	47221-S
1/4 (6.35mm)	1/4 (6.35mm)	1/8 (3.18mm)	1-15/16	–	47723	2	47223-S
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-7/16	–	47723	2	47224
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-7/16	–	47723	2	47224-5
1/4 (6.35mm)	1/4 (6.35mm)	1/4 (6.35mm)	2-1/2	–	47723	2	47224-S
1/4 (6.35mm)	1/4 (6.35mm)	1/4 (6.35mm)	2-1/2	–	47723	2	47224-S-5
5/16 (7.94mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	–	–	2	45412
5/16 (7.94mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	–	–	2	45412-5
3/8 (9.53mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	–	–	2	45415
3/8 (9.53mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	–	–	2	45415-5
3/8 (9.53mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	47764	47751	2	45475
3/8 (9.53mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	47764	47751	3	45475-3DS
3/8 (9.53mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	47764	47751	3	45475-3TS
3/8 (9.53mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	47764	47751	3	45475-3US
3/8 (9.53mm)	1 (25.40mm)	1/2 (12.70mm)	3-1/4	–	47751	2	47226
3/8 (9.53mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	47764	47751	2	47227
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	47724	47701	2	45460
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	47724	47701	3	45460-3DS
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	47724	47701	3	45460-3TS
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	47724	47701	3	45460-3TS-5
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	47764	47701	3	45460-3US
1/2 (12.70mm)	1-1/4	1/4 (6.35mm)	2-3/4	47724	47701	2	45461
1/2 (12.70mm)	3/8 (9.53mm)	1/4 (6.35mm)	2-1/4	47724	47701	2	45481
1/2 (12.70mm)	3/8 (9.53mm)	1/4 (6.35mm)	2-1/4	47724	47701	2	45481-5
1/2 (12.70mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	47724	47701	2	45487
1/2 (12.70mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/2	47724	47701	3	45487-3TS
1/2 (12.70mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/4	47724	47701	2	45491
1/2 (12.70mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/4	47724	47701	2	45491-5
1/2 (12.70mm)	1-1/4	1/2 (12.70mm)	3-1/2	–	47701	2	47228
1/2 (12.70mm)	1-1/4	1/2 (12.70mm)	3-1/2	–	47701	2	47228-5
1/2 (12.70mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-3/4	–	47701	2	47228-S
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	–	47701	2	57172
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-13/16	–	47701	3	57177
9/16 (14.29mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-5/16	47724	47753	2	45361
9/16 (14.29mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/4	47752	47712	2	45479
0.615 (15.75mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/4	–	47712	2	45469
0.615 (15.75mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/4	–	47712	2	45476
0.615 (15.75mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/2	47752	47712	2	45478
5/8 (15.88mm)	1 (25.40mm)	1/4 (6.35mm)	2-3/4	47724	47712	2	45462
5/8 (15.88mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-5/8	–	47712	2	45470
5/8 (15.88mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/4	47724	47712	2	45482
5/8 (15.88mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/2	47724	47712	2	45483
5/8 (15.88mm)	1-1/4	1/2 (12.70mm)	3-1/2	–	47713	2	47229
3/4 (19.05mm)	2 (50.80mm)	1/2 (12.70mm)	4 (101.60mm)	47739	47721	2	45364
3/4 (19.05mm)	2 (50.80mm)	1/2 (12.70mm)	4 (101.60mm)	47739	47721	2	45364-5
3/4 (19.05mm)	2 (50.80mm)	1/2 (12.70mm)	4 (101.60mm)	47739	47721	2	45366
3/4 (19.05mm)	1-1/4	1/2 (12.70mm)	3-11/32	47739	47721	3	45366-3TS
3/4 (19.05mm)	3/8 (9.53mm)	1/2 (12.70mm)	3-1/4	47739	47721	3	45366-3US
3/4 (19.05mm)	2 (50.80mm)	1/2 (12.70mm)	4 (101.60mm)	47739	47721	2	45366-5
3/4 (19.05mm)	1 (25.40mm)	1/2 (12.70mm)	3 (76.20mm)	47739	47721	2	45463
3/4 (19.05mm)	1 (25.40mm)	1/2 (12.70mm)	3 (76.20mm)	47739	47721	3	45463-3DS
3/4 (19.05mm)	1 (25.40mm)	1/2 (12.70mm)	3 (76.20mm)	47739	47721	3	45463-3TS
3/4 (19.05mm)	1 (25.40mm)	1/2 (12.70mm)	3 (76.20mm)	47739	47721	3	45463-3US
3/4 (19.05mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-3/4	47739	47721	2	45463-S
3/4 (19.05mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	47724	47714	2	45464
3/4 (19.05mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	47724	47714	2	45464-5
3/4 (19.05mm)	1-3/4	1/2 (12.70mm)	3-3/4	47739	47721	2	45465
3/4 (19.05mm)	1-9/64	1/2 (12.70mm)	3-1/2	–	47721	3	57179
3/4 (19.05mm)	3/8 (9.53mm)	1/4 (6.35mm)	2-1/8	47724	47714	3	57280-3DS
7/8 (22.23mm)	1-9/64	1/2 (12.70mm)	3-15/16	47739	47793	2	57176
1 (25.40mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	47740	47745	2	45365
1 (25.40mm)	1 (25.40mm)	3/8 (9.53mm)	2-7/8	47730	47722	2	45466
1 (25.40mm)	1-3/4	1/2 (12.70mm)	3-3/4	47739	47745	2	45467
1 (25.40mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	–	47738	2	45890
1-1/8	1-1/2	1/2 (12.70mm)	3-1/2	47740	47738	2	45468
1-1/8	1 (25.40mm)	1/2 (12.70mm)	3 (76.20mm)	47740	47738	2	45550
1-1/8	2 (50.80mm)	1/2 (12.70mm)	4 (101.60mm)	47740	47738	2	45551
1-1/4	1-1/2	1/2 (12.70mm)	3-3/8	47740	47747	2	45367
1-1/2	1-3/4	1/2 (12.70mm)	3-3/4	47740	47749	2	45368

Weight	0.12 lbs
