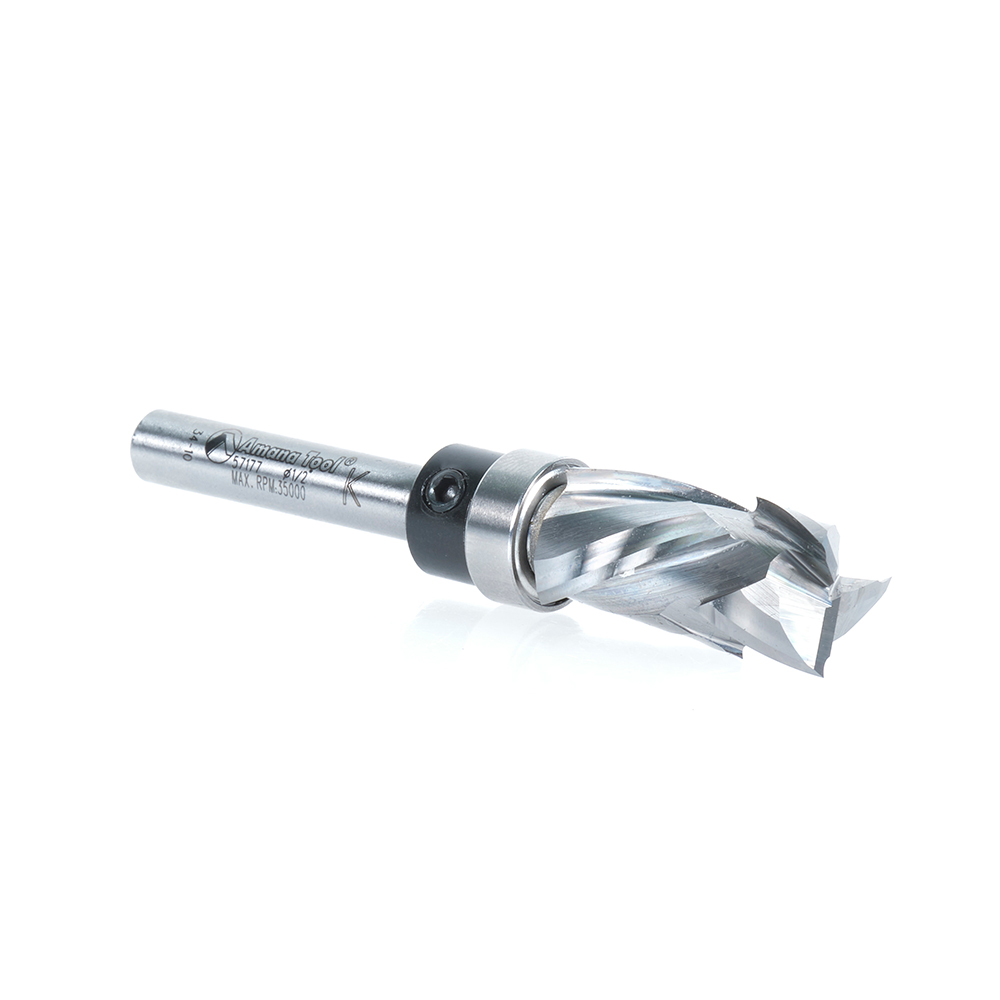

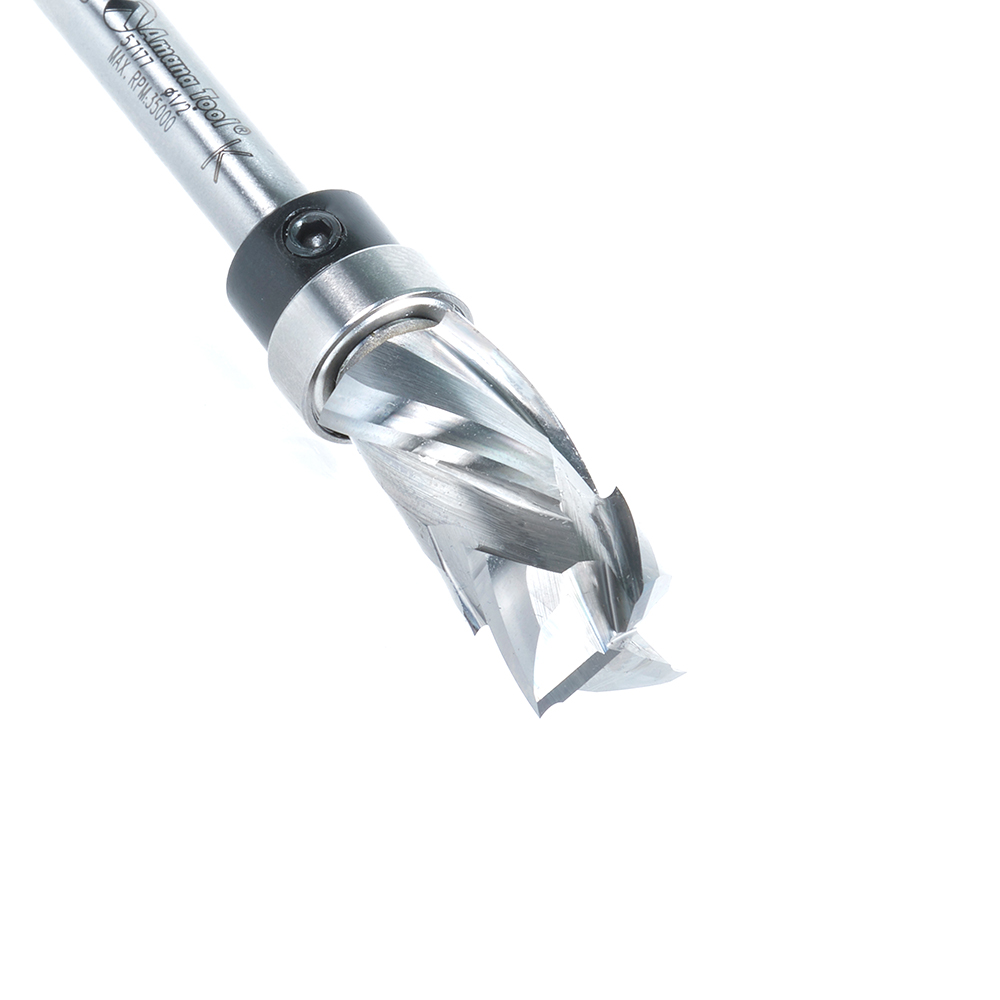

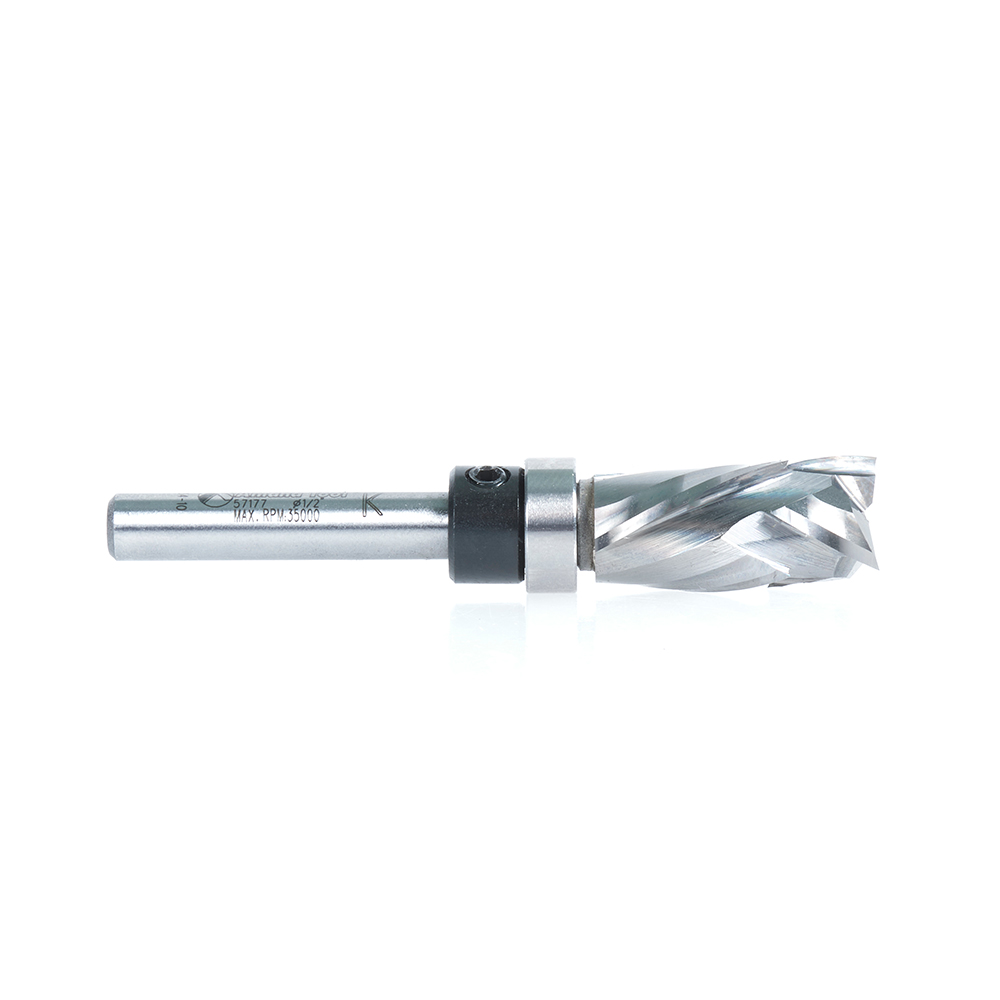

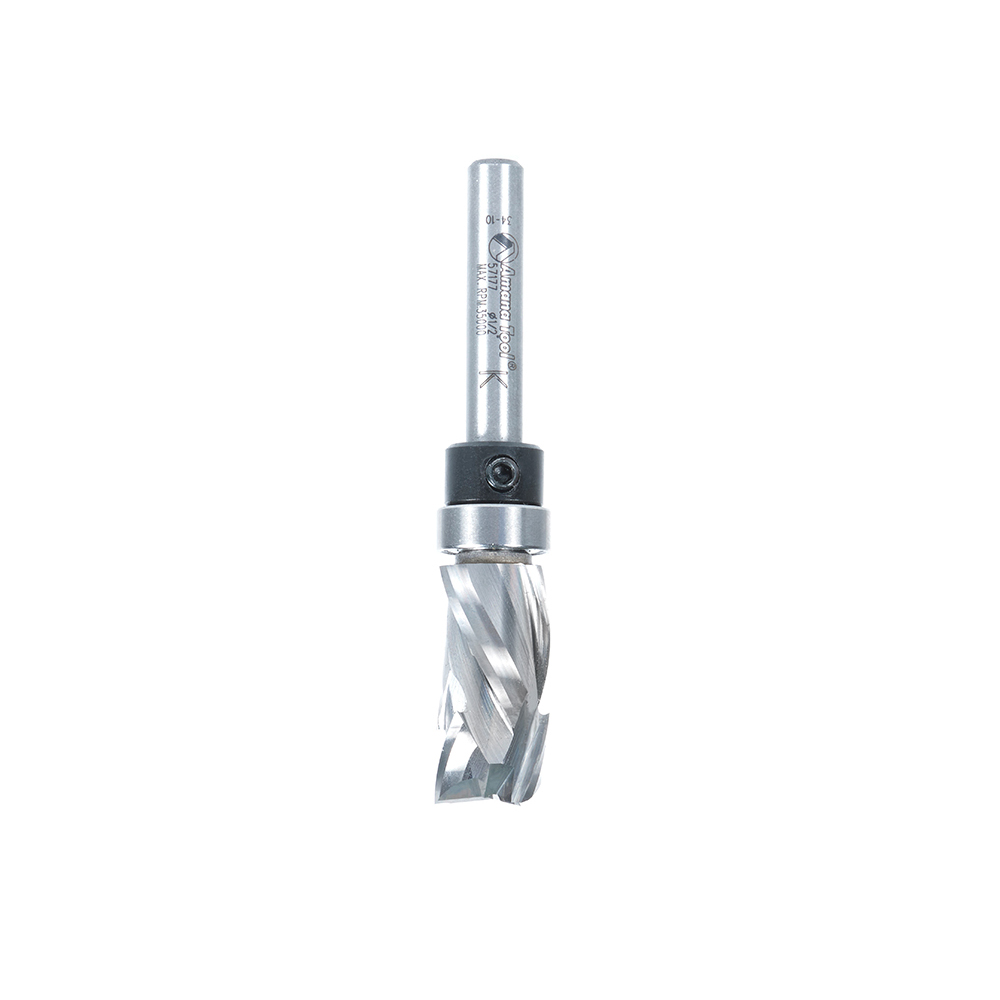

Amana 57177 Solid Carbide (Brazed To Steel Shank) Spiral Pattern/Plunge Compression 1/2 Dia x 1 x 1/4 Inch Shank With Upper Ball Bearing
Original price was: $192.15.$144.12Current price is: $144.12.
1/2″PATTERN/PLUNGE COMPRESSION
Item Description
Plunge-cutting straight with a shank-mounted ball-bearing pilot. Useful for template/pattern routing or parts, joints, internal cuts and can be used in handheld and table-mounted routers. The template is attached to the workpiece and the pilot bearing rides along its edge as the cutting edges rout the workpiece, forming an exact duplicate of the template.
Replacement Parts
| Replacement Bearing |
|---|
| 47701 |

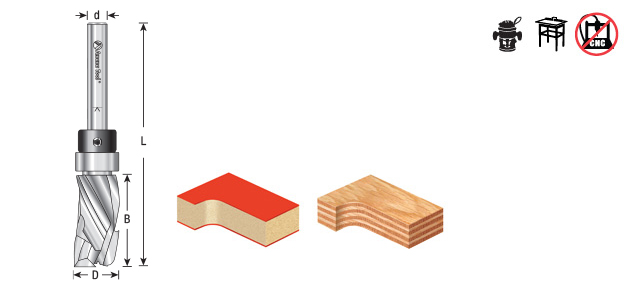

Specifications
| Diameter (D) | 1/2 |
|---|---|
| Cutting Height (B) | 1 |
| Shank (d) | 1/4 |
| Overall Length (L) | 2-13/16 |
| Replacement Bearing | 47701 |
| Flutes | 3 |
Other Sizes Available
| Diameter (D) | Cutting Height (B) | Shank (d) | Overall Length (L) | Replacement Bearing | Flutes | Tool No. |
|---|---|---|---|---|---|---|
| 3/16 (4.76mm) | 1/2 (12.70mm) | 1/8 (3.18mm) | 2 (50.80mm) | 47775 | 2 | 47220 |
| 3/16 (4.76mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2 (50.80mm) | 47775 | 2 | 47222 |
| 1/4 (6.35mm) | 1/4 (6.35mm) | 1/8 (3.18mm) | 1-15/16 | 47723 | 2 | 47223-S |
| 1/4 (6.35mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2-7/16 | 47723 | 2 | 47224 |
| 1/4 (6.35mm) | 1/4 (6.35mm) | 1/4 (6.35mm) | 2-1/2 | 47723 | 2 | 47224-S |
| 3/8 (9.53mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2 (50.80mm) | 47751 | 2 | 45475 |
| 3/8 (9.53mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2 (50.80mm) | 47751 | 3 | 45475-3TS |
| 3/8 (9.53mm) | 1 (25.40mm) | 1/2 (12.70mm) | 3-1/4 | 47751 | 2 | 47226 |
| 3/8 (9.53mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-1/2 | 47751 | 2 | 47227 |
| 1/2 (12.70mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-1/2 | 47701 | 2 | 45460 |
| 1/2 (12.70mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-1/2 | 47701 | 3 | 45460-3TS |
| 1/2 (12.70mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-1/2 | 47701 | 3 | 45460-3TS-5 |
| 1/2 (12.70mm) | 1-1/4 | 1/4 (6.35mm) | 2-3/4 | 47701 | 2 | 45461 |
| 1/2 (12.70mm) | 3/8 (9.53mm) | 1/4 (6.35mm) | 2-1/4 | 47701 | 2 | 45481 |
| 1/2 (12.70mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2 (50.80mm) | 47701 | 2 | 45487 |
| 1/2 (12.70mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2-1/4 | 47701 | 2 | 45491 |
| 1/2 (12.70mm) | 3/4 (19.05mm) | 8mm | 2-3/4 | 47701 | 2 | 45493-M |
| 1/2 (12.70mm) | 1-1/4 | 1/2 (12.70mm) | 3-1/2 | 47701 | 2 | 47228 |
| 1/2 (12.70mm) | 1-1/4 | 1/2 (12.70mm) | 3-1/2 | 47701 | 2 | 47228-5 |
| 1/2 (12.70mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-5/8 | 47701 | 2 | 57172 |
| 1/2 (12.70mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-5/8 | 47706 | 2 | 57173 |
| 1/2 (12.70mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-13/16 | 47706 | 3 | 58173 |
| 5/8 (15.88mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-3/4 | 47712 | 2 | 45462 |
| 5/8 (15.88mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2-5/8 | 47712 | 2 | 45470 |
| 5/8 (15.88mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2-1/4 | 47712 | 2 | 45482 |
| 5/8 (15.88mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2-1/2 | 47712 | 2 | 45483 |
| 3/4 (19.05mm) | 1 (25.40mm) | 1/2 (12.70mm) | 3 (76.20mm) | 47721 | 2 | 45463 |
| 3/4 (19.05mm) | 1 (25.40mm) | 1/2 (12.70mm) | 3 (76.20mm) | 47721 | 3 | 45463-3TS |
| 3/4 (19.05mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-1/2 | 47714 | 2 | 45464 |
| 3/4 (19.05mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-1/2 | 47714 | 2 | 45464-5 |
| 3/4 (19.05mm) | 1-3/4 | 1/2 (12.70mm) | 3-3/4 | 47721 | 2 | 45465 |
| 3/4 (19.05mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2-3/8 | 47714 | 2 | 45485 |
| 3/4 (19.05mm) | 1-9/64 | 1/2 (12.70mm) | 3-1/2 | 47721 | 3 | 57179 |
| 3/4 (19.05mm) | 1-9/64 | 1/2 (12.70mm) | 3-1/2 | 47714 | 3 | 58174 |
| 22mm | 1-9/64 | 1/2 (12.70mm) | 3-15/16 | 47798 | 2 | 57174 |
| 7/8 (22.23mm) | 1-9/64 | 1/2 (12.70mm) | 3-15/16 | 47793 | 2 | 57176 |
| 7/8 (22.23mm) | 1-3/8 | 1/2 (12.70mm) | 4 (101.60mm) | 47708 | 2 | 58171 |
| 1 (25.40mm) | 1 (25.40mm) | 3/8 (9.53mm) | 2-7/8 | 47722 | 2 | 45466 |
| 1 (25.40mm) | 1-3/4 | 1/2 (12.70mm) | 3-3/4 | 47745 | 2 | 45467 |
| 1-1/8 | 1-1/2 | 1/2 (12.70mm) | 3-1/2 | 47738 | 2 | 45468 |
| 1-1/8 | 1 (25.40mm) | 1/2 (12.70mm) | 3 (76.20mm) | 47738 | 2 | 45550 |
| 1-1/8 | 2 (50.80mm) | 1/2 (12.70mm) | 4 (101.60mm) | 47738 | 2 | 45551 |
| Weight | 0.1 lbs |
|---|
Brand
Amana Tool
Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
