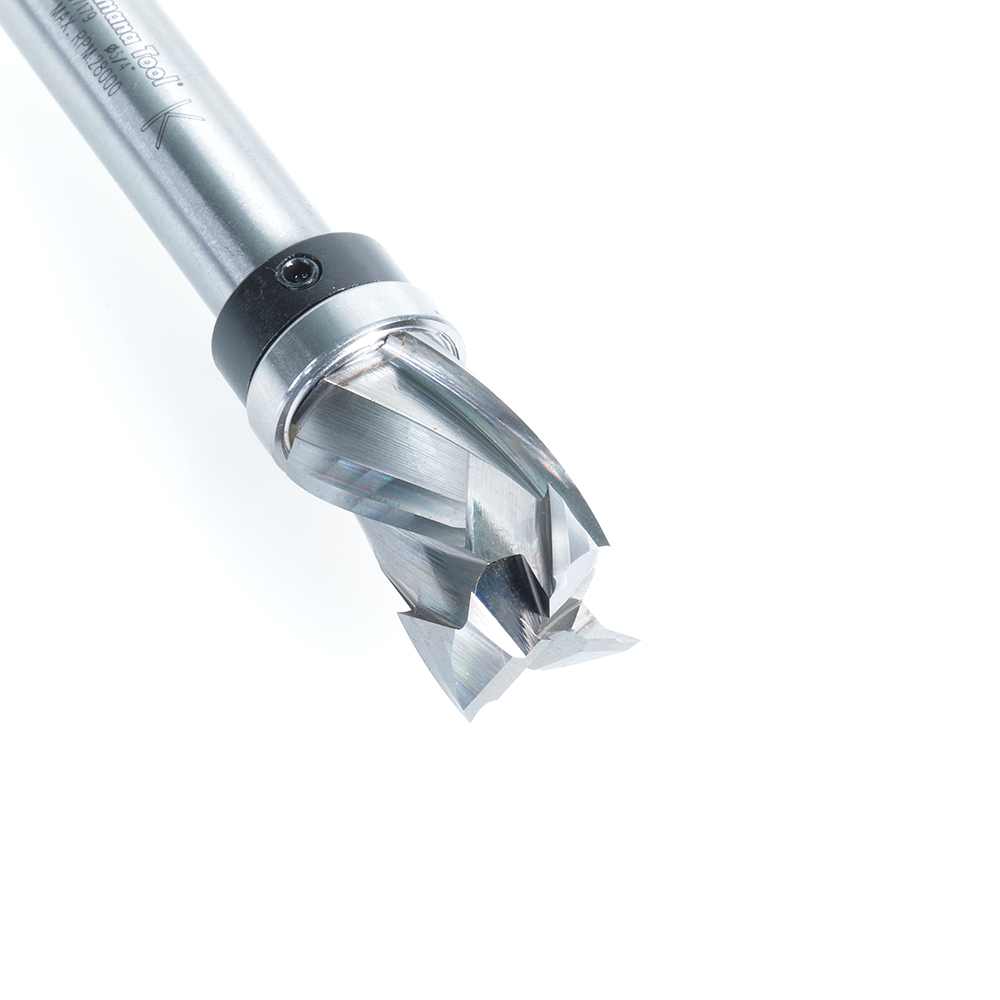

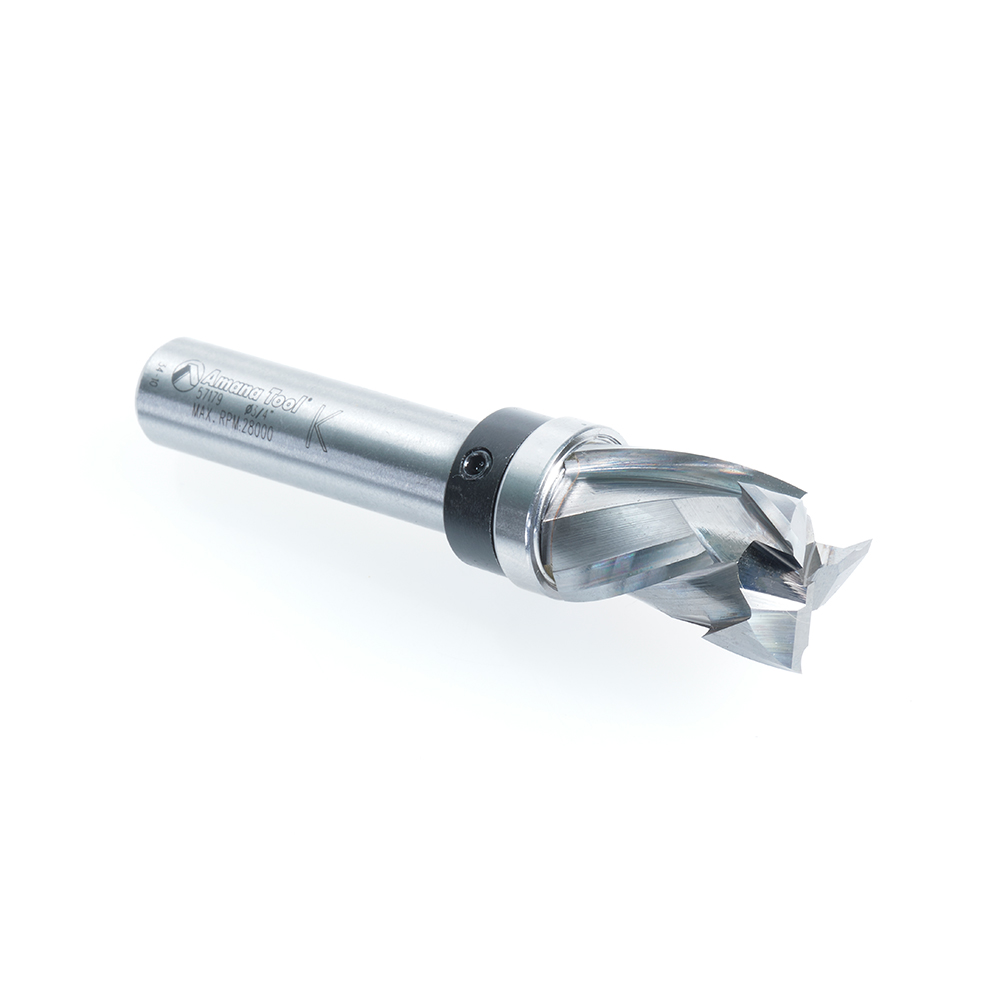

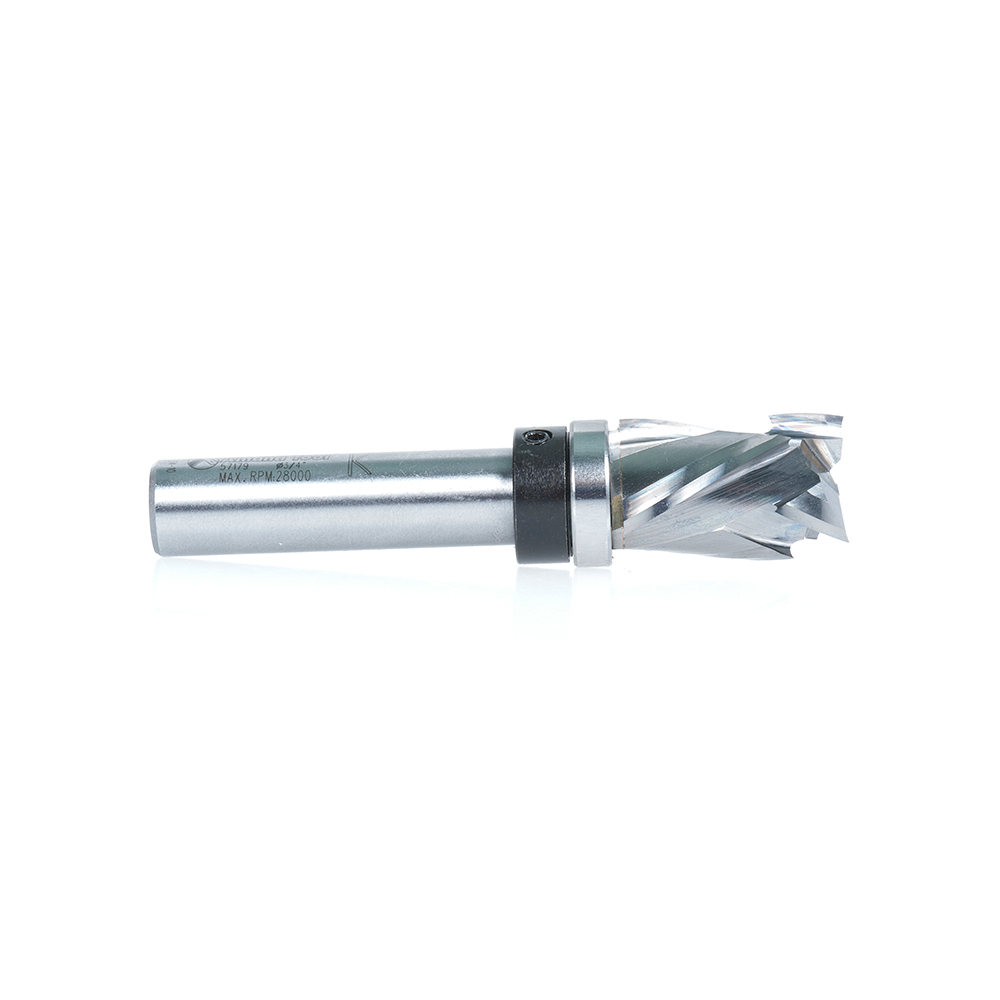

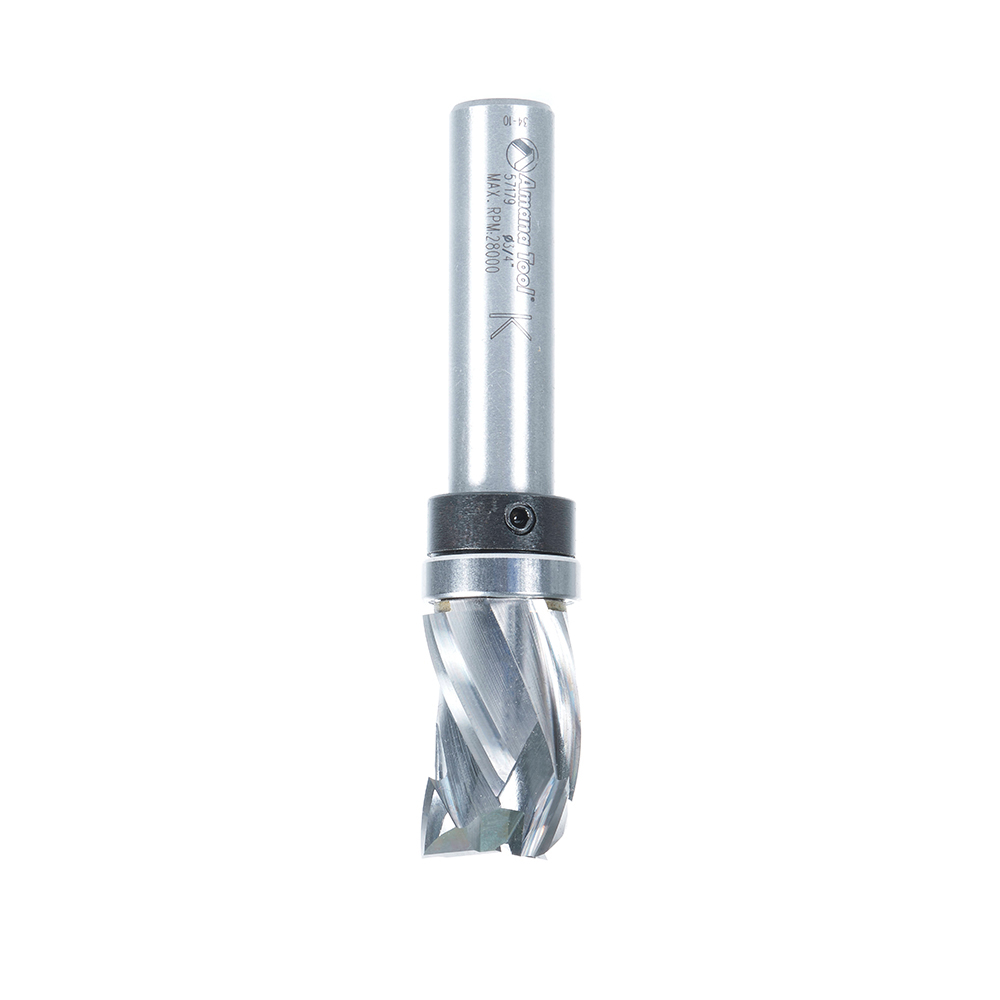

57179 Solid Carbide (Brazed To Steel Shank) Spiral Pattern/Plunge Compression 3/4 Dia x 1-9/64 x 1/2 Inch Shank With Upper Ball Bearing

Amana 57179 Solid Carbide (Brazed To Steel Shank) Spiral Pattern/Plunge Compression 3/4 Dia x 1-9/64 x 1/2 Inch Shank With Upper Ball Bearing

Name: Amana 57179 Solid Carbide (Brazed To Steel Shank) Spiral Pattern/Plunge Compression 3/4 Dia x 1-9/64 x 1/2 Inch Shank With Upper Ball Bearing
SKU: Amana 57179
Availability: InStock

Original price was: $285.75.Current price is: $214.32.

3/4″PATTERN/PLUNGE COMPRESSION

UPC: N/A SKU: Amana 57179 Categories: Amana Tool, Router Bits, Spiral Compression Router Bits, Spiral Pattern/Plunge Compression Router Bits

Item Description

Plunge-cutting straight with a shank-mounted ball-bearing pilot. Useful for template/pattern routing or parts, joints, internal cuts and can be used in handheld and table-mounted routers. The template is attached to the workpiece and the pilot bearing rides along its edge as the cutting edges rout the workpiece, forming an exact duplicate of the template.

Replacement Parts

Replacement Bearing
47721

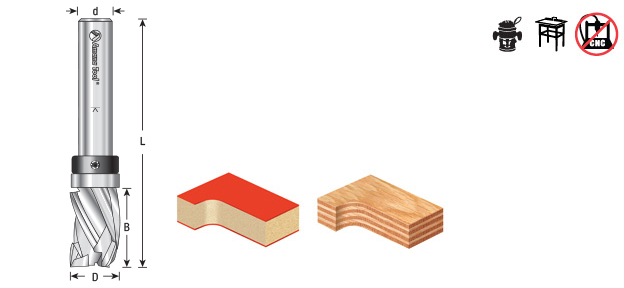

Specifications

Diameter (D)	3/4
Cutting Height (B)	1-9/64
Shank (d)	1/2
Overall Length (L)	3-1/2
Replacement Bearing	47721
Flutes	3

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Replacement Bearing	Flutes	Tool No.
3/16 (4.76mm)	1/2 (12.70mm)	1/8 (3.18mm)	2 (50.80mm)	47775	2	47220
3/16 (4.76mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	47775	2	47222
1/4 (6.35mm)	1/4 (6.35mm)	1/8 (3.18mm)	1-15/16	47723	2	47223-S
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-7/16	47723	2	47224
1/4 (6.35mm)	1/4 (6.35mm)	1/4 (6.35mm)	2-1/2	47723	2	47224-S
3/8 (9.53mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	47751	2	45475
3/8 (9.53mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	47751	3	45475-3TS
3/8 (9.53mm)	1 (25.40mm)	1/2 (12.70mm)	3-1/4	47751	2	47226
3/8 (9.53mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	47751	2	47227
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	47701	2	45460
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	47701	3	45460-3TS
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	47701	3	45460-3TS-5
1/2 (12.70mm)	1-1/4	1/4 (6.35mm)	2-3/4	47701	2	45461
1/2 (12.70mm)	3/8 (9.53mm)	1/4 (6.35mm)	2-1/4	47701	2	45481
1/2 (12.70mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	47701	2	45487
1/2 (12.70mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/4	47701	2	45491
1/2 (12.70mm)	3/4 (19.05mm)	8mm	2-3/4	47701	2	45493-M
1/2 (12.70mm)	1-1/4	1/2 (12.70mm)	3-1/2	47701	2	47228
1/2 (12.70mm)	1-1/4	1/2 (12.70mm)	3-1/2	47701	2	47228-5
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	47701	2	57172
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	47706	2	57173
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-13/16	47701	3	57177
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-13/16	47706	3	58173
5/8 (15.88mm)	1 (25.40mm)	1/4 (6.35mm)	2-3/4	47712	2	45462
5/8 (15.88mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-5/8	47712	2	45470
5/8 (15.88mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/4	47712	2	45482
5/8 (15.88mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/2	47712	2	45483
3/4 (19.05mm)	1 (25.40mm)	1/2 (12.70mm)	3 (76.20mm)	47721	2	45463
3/4 (19.05mm)	1 (25.40mm)	1/2 (12.70mm)	3 (76.20mm)	47721	3	45463-3TS
3/4 (19.05mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	47714	2	45464
3/4 (19.05mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	47714	2	45464-5
3/4 (19.05mm)	1-3/4	1/2 (12.70mm)	3-3/4	47721	2	45465
3/4 (19.05mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-3/8	47714	2	45485
3/4 (19.05mm)	1-9/64	1/2 (12.70mm)	3-1/2	47714	3	58174
22mm	1-9/64	1/2 (12.70mm)	3-15/16	47798	2	57174
7/8 (22.23mm)	1-9/64	1/2 (12.70mm)	3-15/16	47793	2	57176
7/8 (22.23mm)	1-3/8	1/2 (12.70mm)	4 (101.60mm)	47708	2	58171
1 (25.40mm)	1 (25.40mm)	3/8 (9.53mm)	2-7/8	47722	2	45466
1 (25.40mm)	1-3/4	1/2 (12.70mm)	3-3/4	47745	2	45467
1-1/8	1-1/2	1/2 (12.70mm)	3-1/2	47738	2	45468
1-1/8	1 (25.40mm)	1/2 (12.70mm)	3 (76.20mm)	47738	2	45550
1-1/8	2 (50.80mm)	1/2 (12.70mm)	4 (101.60mm)	47738	2	45551

Weight	0.3 lbs
