Sale!

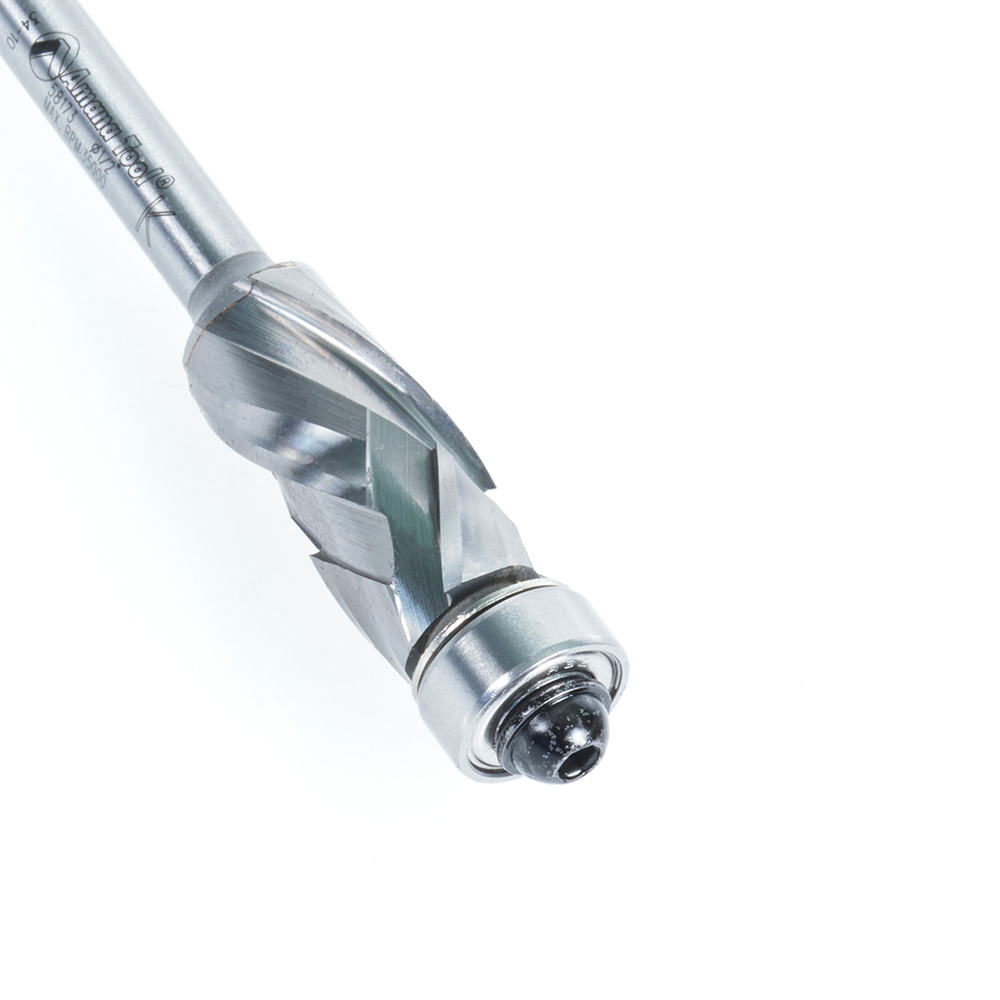

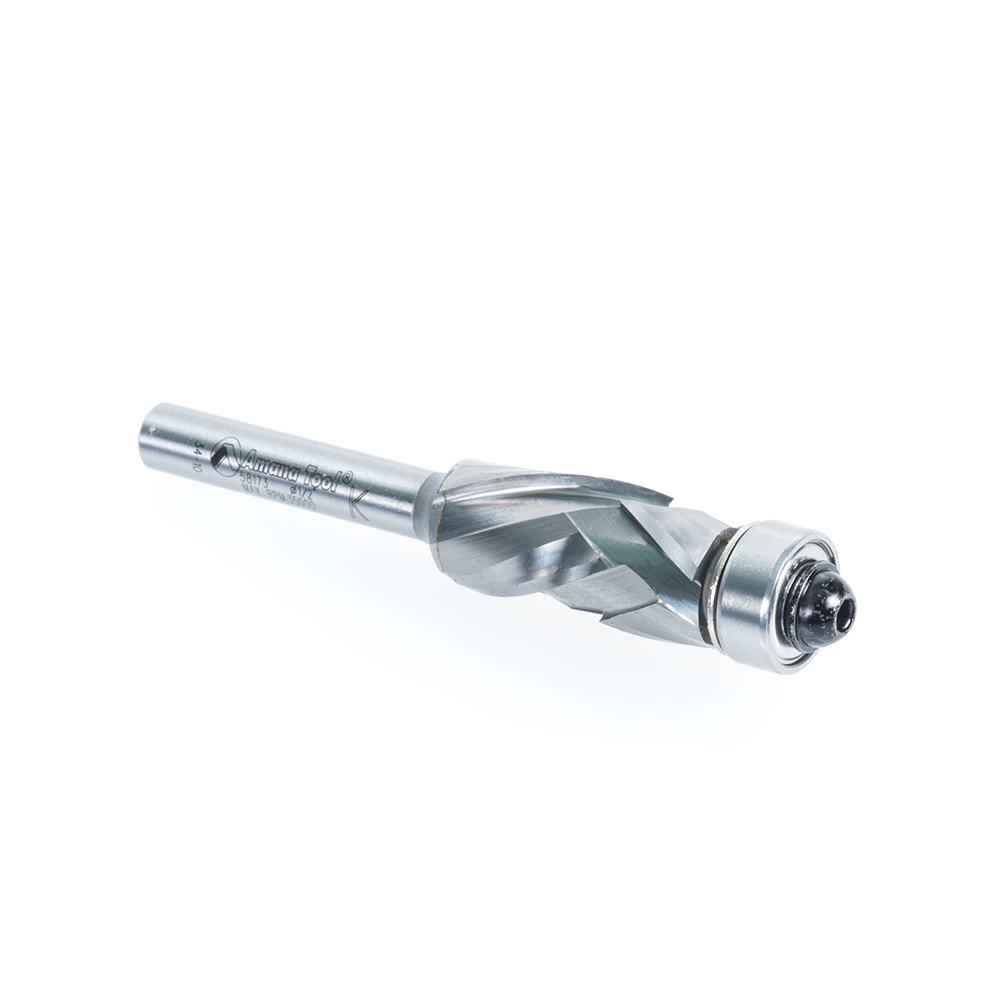

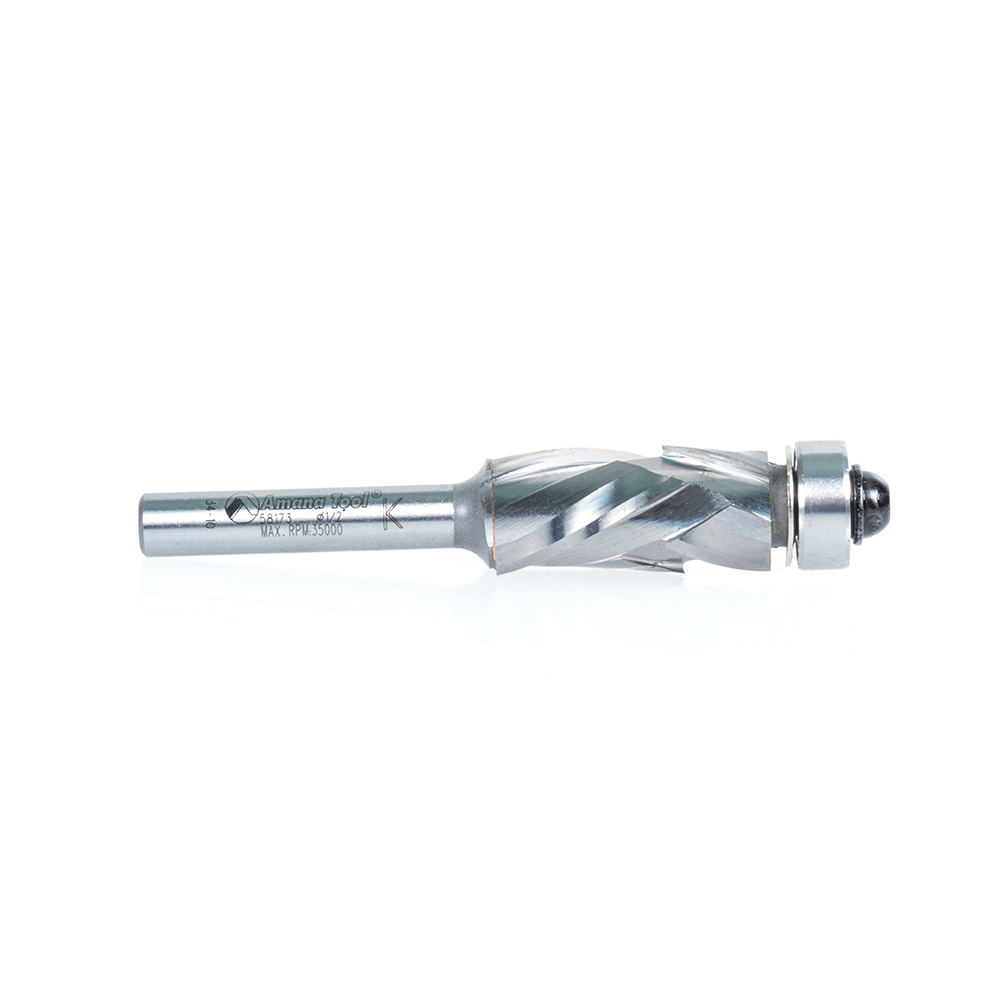

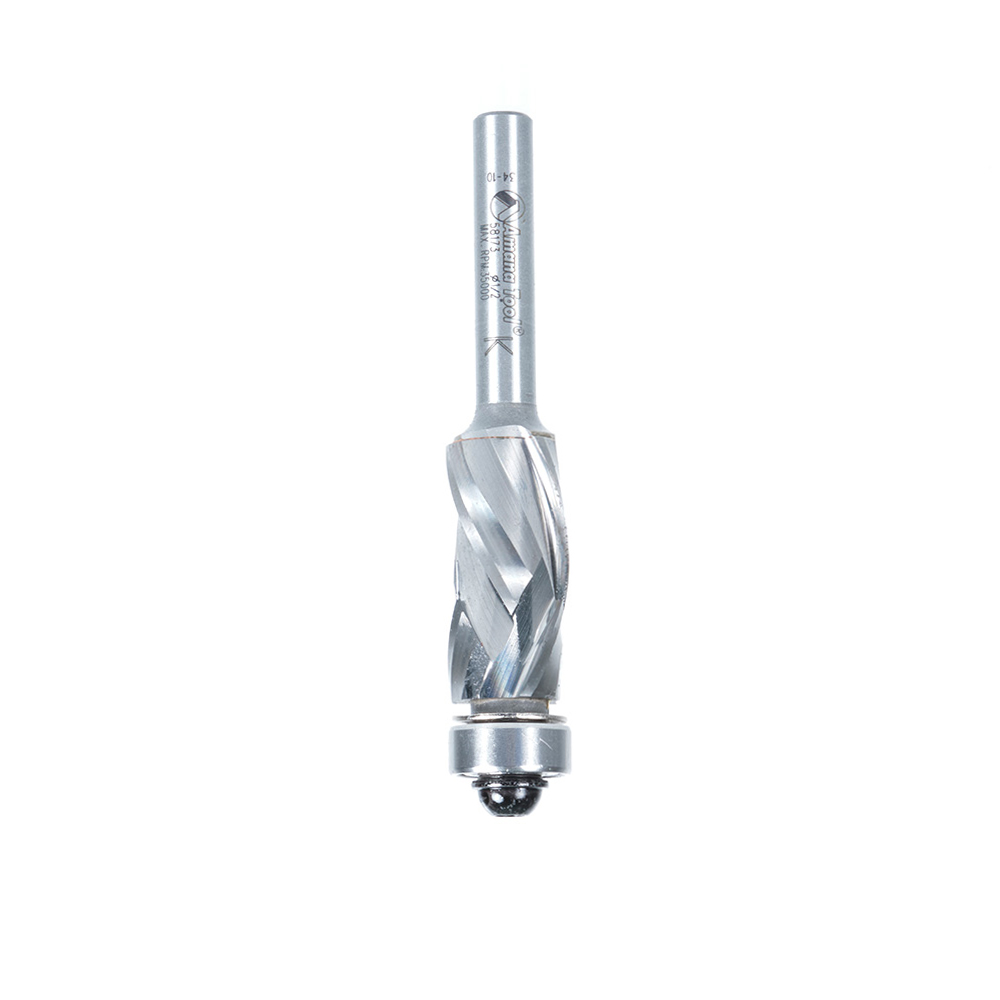

58173 Solid Carbide (Brazed To Steel Shank) Spiral Flush Trim Compression 1/2 Dia x 1 x 1/4 Inch Shank With Lower Ball Bearing

Amana 58173 Solid Carbide (Brazed To Steel Shank) Spiral Flush Trim Compression 1/2 Dia x 1 x 1/4 Inch Shank With Lower Ball Bearing

Name: Amana 58173 Solid Carbide (Brazed To Steel Shank) Spiral Flush Trim Compression 1/2 Dia x 1 x 1/4 Inch Shank With Lower Ball Bearing
SKU: Amana 58173
Availability: InStock

Original price was: $192.15.Current price is: $144.12.

1/2″ FLUSH TRIM COMPRESSION

UPC: N/A SKU: Amana 58173 Categories: Amana Tool, Router Bits, Spiral Compression Router Bits, Spiral Flush Trim Compression Router Bits

Item Description

Used for trimming laminate work or for template and pattern work. For template application, the bearing follows the template, while the cutting edge trims the workpiece. With the router handheld, the template is on the bottom of the work. With table-mounted router, the template is on top.

Replacement Parts

Replacement Bearing
47706

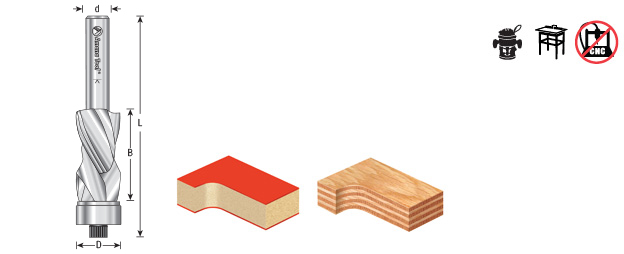

Specifications

Diameter (D)	1/2
Cutting Height (B)	1
Shank (d)	1/4
Overall Length (L)	2-13/16
Replacement Bearing	47706
Flutes	3

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Replacement Bearing	Flutes	Tool No.
3/16 (4.76mm)	7/16 (11.11mm)	1/4 (6.35mm)	2 (50.80mm)	47775	2	MR0102
3/16 (4.76mm)	7/16 (11.11mm)	1/4 (6.35mm)	2 (50.80mm)	47775	2	MR0102-5
3/16 (4.76mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-7/16	47775	2	MR0103
3/16 (4.76mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-7/16	47775	2	MR0103-5
3/16 (4.76mm)	7/16 (11.11mm)	1/8 (3.18mm)	1-23/32	47775	2	MR0105
1-5/64	3/8 (9.53mm)	1/4 (6.35mm)	2-3/8	47706	2	RC-49492
1-5/64	43/64 (17.07mm)	1/4 (6.35mm)	2-13/32	47706	2	RC-49495
1-5/64	3/8 (9.53mm)	1/4 (6.35mm)	2-3/8	47706	2	RC-49497
1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/4	47723	2	47090
1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/4	47723	2	47090-5
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	47723	2	47092
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	47723	2	47092-5
1-1/32	5/8 (15.88mm)	1/4 (6.35mm)	2-3/8	47706	—-	RC-54111
3/8 (9.53mm)	1-1/4	1/4 (6.35mm)	2-3/4	47702	2	47093
3/8 (9.53mm)	1-1/4	1/4 (6.35mm)	2-3/4	47702	2	47093-5
3/8 (9.53mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	47702	2	47100
3/8 (9.53mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	47702	2	47100-2
3/8 (9.53mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	47702	2	47100-5
3/8 (9.53mm)	1 (25.40mm)	1/2 (12.70mm)	3-1/8	47702	2	47101
3/8 (9.53mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/8	47702	2	47102-2
3/8 (9.53mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/8	47702	2	47102-5
3/8 (9.53mm)	1 (25.40mm)	3/8 (9.53mm)	2-7/8	47702	1	47103
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	47706	2	47104
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	47706	2	47104-2
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	47706	2	47104-5
1/2 (12.70mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/4	47706	2	47106
1/2 (12.70mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/4	47706	2	47106-10
1/2 (12.70mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/4	47706	2	47106-5
1/2 (12.70mm)	1 (25.40mm)	1/2 (12.70mm)	3-1/4	47706	2	47108
1/2 (12.70mm)	1 (25.40mm)	1/2 (12.70mm)	3-1/4	47706	2	47108-5
1/2 (12.70mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-3/4	47706	2	47110
1/2 (12.70mm)	1 (25.40mm)	3/8 (9.53mm)	2-7/8	47706	2	47112
1/2 (12.70mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	47706	3	47116
1/2 (12.70mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	47706	3	47116-5
1/2 (12.70mm)	1-1/4	1/4 (6.35mm)	2-3/4	47706	2	47117
1/2 (12.70mm)	1-1/4	1/4 (6.35mm)	2-3/4	47706	2	47117-5
1/2 (12.70mm)	1 (25.40mm)	1/2 (12.70mm)	3-1/4	47706	3	47118
1/2 (12.70mm)	1 (25.40mm)	1/2 (12.70mm)	3-5/8	47706	3	47118-2
1/2 (12.70mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-5/8	47706	3	47120
1/2 (12.70mm)	1-1/2	1/2 (12.70mm)	3-7/8	47706	2	47124
1/2 (12.70mm)	1-1/2	1/2 (12.70mm)	4-1/16	47706	2	47124-2
1/2 (12.70mm)	1-1/2	1/2 (12.70mm)	3-7/8	47706	2	47124-5
1/2 (12.70mm)	2 (50.80mm)	1/2 (12.70mm)	4-1/4	47706	2	47126
1/2 (12.70mm)	2 (50.80mm)	1/2 (12.70mm)	4-3/8	47706	2	47126-2
1/2 (12.70mm)	2 (50.80mm)	1/2 (12.70mm)	4-1/4	47706	2	47126-5
1/2 (12.70mm)	1-1/2	1/2 (12.70mm)	3-7/8	47706	3	47128
1/2 (12.70mm)	1-1/2	1/2 (12.70mm)	4-1/16	47706	3	47128-2
1/2 (12.70mm)	2 (50.80mm)	1/2 (12.70mm)	4-5/8	47706	3	47131
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	47701	2	57172
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	47706	2	57173
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-13/16	47701	3	57177
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-29/32	47701, 47706	3	57180
1/2 (12.70mm)	7/16 (11.11mm)	1/4 (6.35mm)	2-19/64	47706	2	DRB-400
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-53/64	47706	2	DRB-404
1/2 (12.70mm)	8mm	1/4 (6.35mm)	2-1/4	47706	—-	RC-2000
1/2 (12.70mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/8	47701	1	RC-45910
1/2 (12.70mm)	20mm	1/4 (6.35mm)	2-5/16	47706	2	RC-47104
11/16 (17.46mm)	21/64 (8.33mm)	1/4 (6.35mm)	1-61/64	–	1	RC-45711
17.6mm	8.5mm	6mm	52mm	–	1	RC-45711-M
11/16 (17.46mm)	21/64 (8.33mm)	1/2 (12.70mm)	2-3/16	–	1	RC-45712
3/4 (19.05mm)	1 (25.40mm)	1/2 (12.70mm)	3-1/4	47714	2	47140
3/4 (19.05mm)	1-1/4	1/2 (12.70mm)	3-1/2	47714	2	47141
3/4 (19.05mm)	1-9/64	1/2 (12.70mm)	3-1/2	47721	3	57179
3/4 (19.05mm)	1 (25.40mm)	1/2 (12.70mm)	3 (76.20mm)	47714	4	57184
3/4 (19.05mm)	1-1/2	1/2 (12.70mm)	4 (101.60mm)	47714	4	57185
3/4 (19.05mm)	2 (50.80mm)	1/2 (12.70mm)	4-1/2	47714	4	57186
3/4 (19.05mm)	2 (50.80mm)	1/2 (12.70mm)	4-3/4	47721, 47714	4	57187
3/4 (19.05mm)	1-9/64	1/2 (12.70mm)	3-1/2	47714	3	58174
22mm	1-9/64	1/2 (12.70mm)	3-15/16	47798	2	57174
7/8 (22.23mm)	1-9/64	1/2 (12.70mm)	3-15/16	47793	2	57176
7/8 (22.23mm)	1-3/8	1/2 (12.70mm)	4 (101.60mm)	47708	2	58171
1 (25.40mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/16	–	—-	RC-49104
1 (25.40mm)	3/8 (9.53mm)	1/4 (6.35mm)	2-3/16	47706	2	RC-49496
1 (25.40mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/16	47706	2	RC-49504
–	–	1/4 (6.35mm)	–	–	—-	AMS-105

Weight	0.1 lbs
