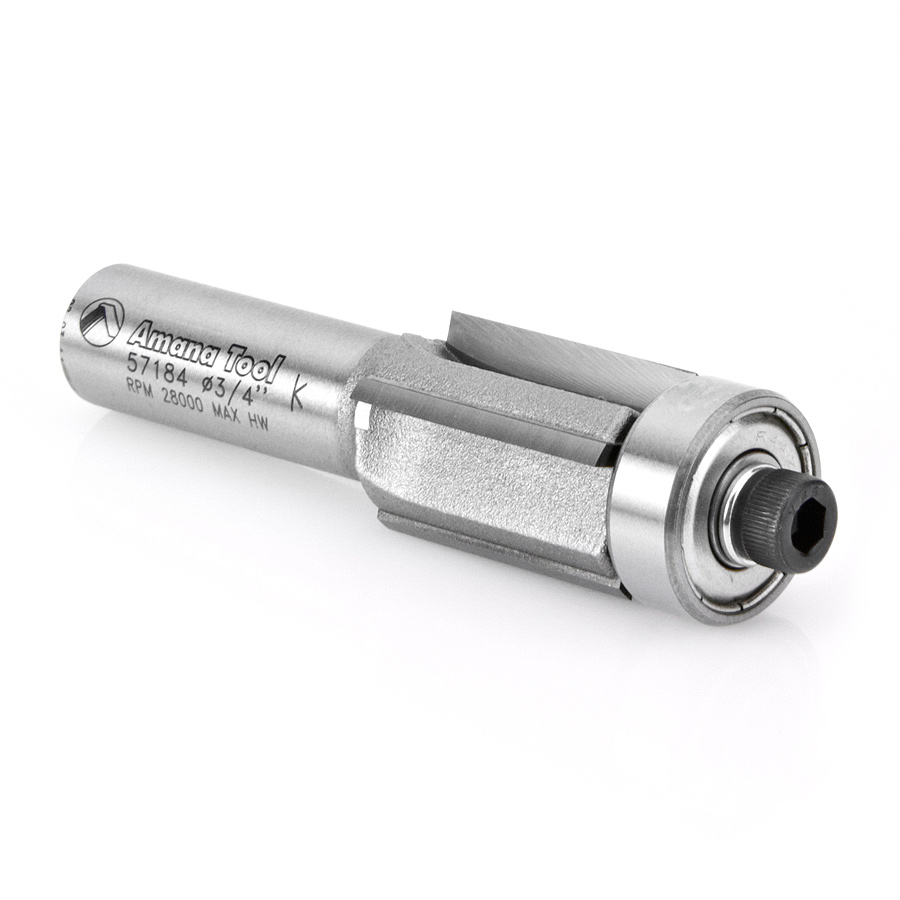

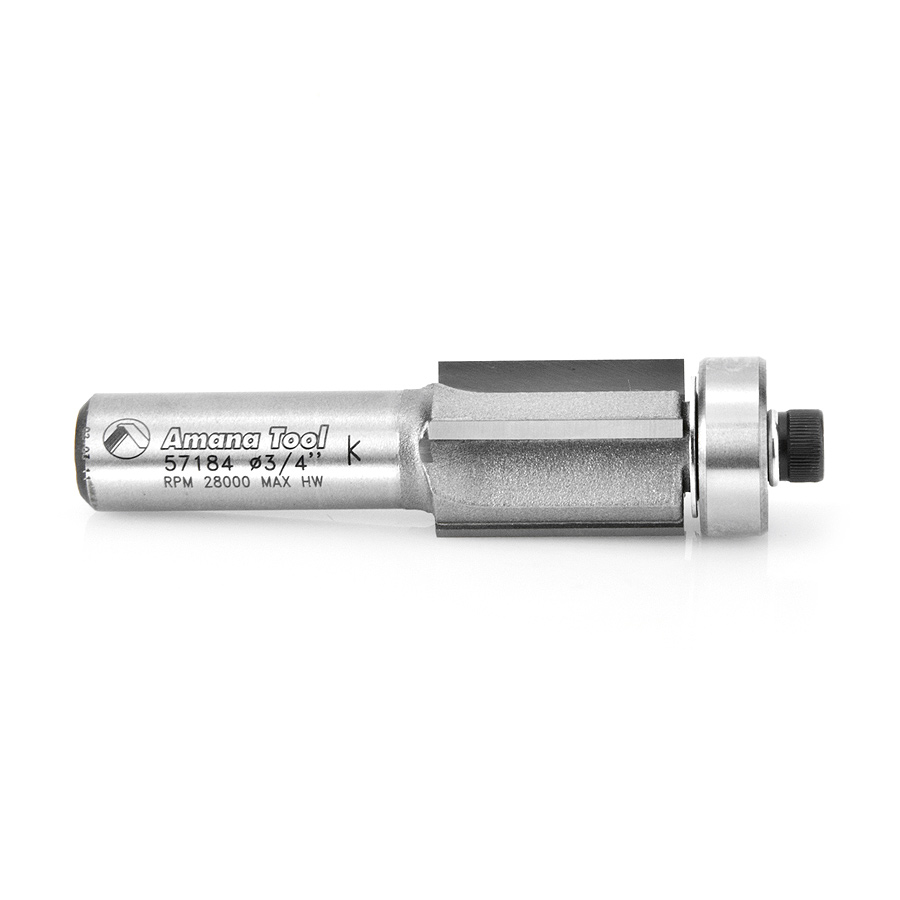

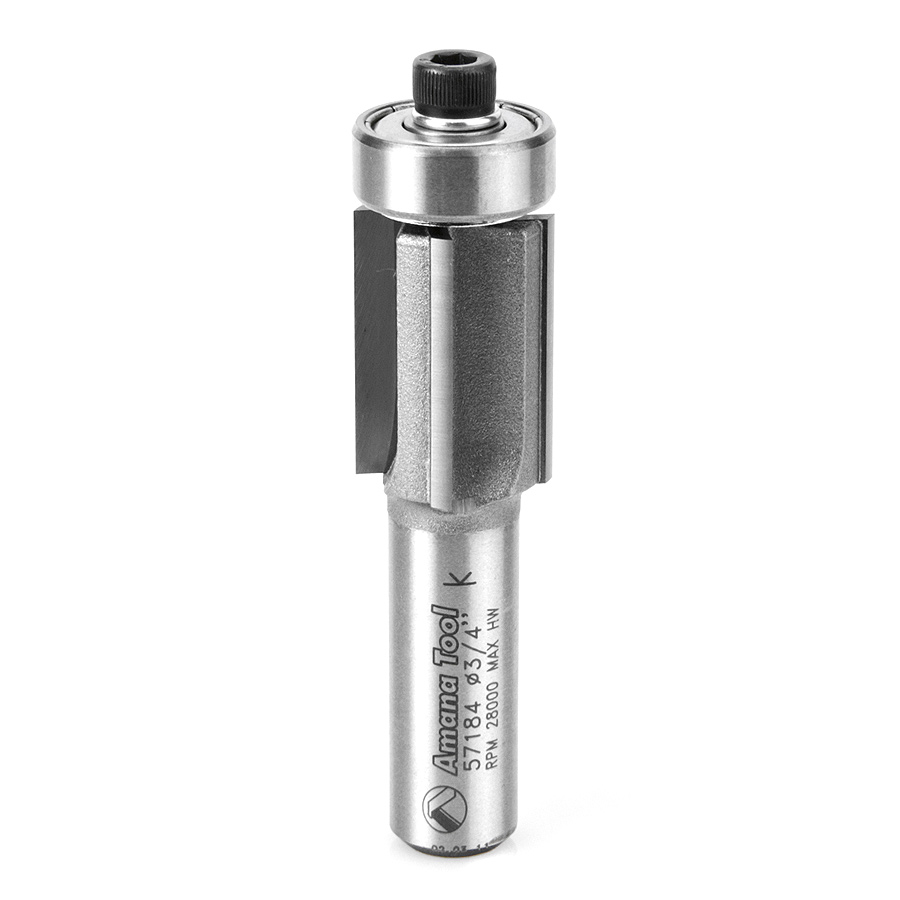

57184 Carbide Tipped Super Flush Trim 3/4 Dia x 1 Inch x 1/2 Shank x 4-Flute

Amana 57184 Carbide Tipped Super Flush Trim 3/4 Dia x 1 Inch x 1/2 Shank x 4-Flute

Name: Amana 57184 Carbide Tipped Super Flush Trim 3/4 Dia x 1 Inch x 1/2 Shank x 4-Flute
SKU: Amana 57184
Availability: InStock

Original price was: $110.30.Current price is: $82.73.

4 FLUTE FLUSH TRIM 3/4 DIA.

UPC: 738685571842 SKU: Amana 57184 Categories: Amana Tool, Flush Trim 4 Flute Router Bits for Solid Surface, Router Bits, Solid Surface Router Bits

Item Description

For a super-smooth cut finish, use a four-flute bit. Feed rate is reduced, and chipping is virtually eliminated.

AMAX Extended Life Features:

200% longer life time even when working with abrasive materials
Superior geometric design
Advanced grinding technology that improves the carbides’ resistance to wear
Super clean cuts

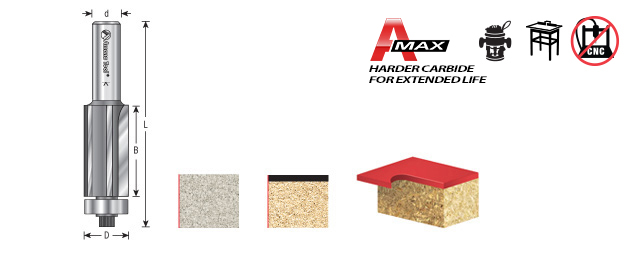

Specifications

Diameter (D)	3/4
Cutting Height (B)	1
Shank (d)	1/2
Overall Length (L)	3
Replacement Bearing	47714
Flutes	4

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Tool No.
3/16 (4.76mm)	7/16 (11.11mm)	1/4 (6.35mm)	2 (50.80mm)	MR0102
3/16 (4.76mm)	7/16 (11.11mm)	1/4 (6.35mm)	2 (50.80mm)	MR0102-5
3/16 (4.76mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-7/16	MR0103
3/16 (4.76mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-7/16	MR0103-5
3/16 (4.76mm)	7/16 (11.11mm)	1/8 (3.18mm)	1-23/32	MR0105
1-5/64	3/8 (9.53mm)	1/4 (6.35mm)	2-3/8	RC-49492
1-5/64	43/64 (17.07mm)	1/4 (6.35mm)	2-13/32	RC-49495
1-5/64	3/8 (9.53mm)	1/4 (6.35mm)	2-3/8	RC-49497
1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/4	47090
1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/4	47090-5
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	47092
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	47092-5
1-1/32	5/8 (15.88mm)	1/4 (6.35mm)	2-3/8	RC-54111
3/8 (9.53mm)	1-1/4	1/4 (6.35mm)	2-3/4	47093
3/8 (9.53mm)	1-1/4	1/4 (6.35mm)	2-3/4	47093-5
3/8 (9.53mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	47100
3/8 (9.53mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	47100-2
3/8 (9.53mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	47100-5
3/8 (9.53mm)	1 (25.40mm)	1/2 (12.70mm)	3-1/8	47101
3/8 (9.53mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/8	47102-2
3/8 (9.53mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/8	47102-5
3/8 (9.53mm)	1 (25.40mm)	3/8 (9.53mm)	2-7/8	47103
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	47104
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	47104-2
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	47104-5
1/2 (12.70mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/4	47106
1/2 (12.70mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/4	47106-10
1/2 (12.70mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/4	47106-5
1/2 (12.70mm)	1 (25.40mm)	1/2 (12.70mm)	3-1/4	47108
1/2 (12.70mm)	1 (25.40mm)	1/2 (12.70mm)	3-1/4	47108-5
1/2 (12.70mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-3/4	47110
1/2 (12.70mm)	1 (25.40mm)	3/8 (9.53mm)	2-7/8	47112
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	47114
1/2 (12.70mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	47116
1/2 (12.70mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	47116-5
1/2 (12.70mm)	1-1/4	1/4 (6.35mm)	2-3/4	47117
1/2 (12.70mm)	1-1/4	1/4 (6.35mm)	2-3/4	47117-5
1/2 (12.70mm)	1 (25.40mm)	1/2 (12.70mm)	3-1/4	47118
1/2 (12.70mm)	1 (25.40mm)	1/2 (12.70mm)	3-5/8	47118-2
1/2 (12.70mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-5/8	47120
1/2 (12.70mm)	1-1/2	1/2 (12.70mm)	3-7/8	47124
1/2 (12.70mm)	1-1/2	1/2 (12.70mm)	4-1/16	47124-2
1/2 (12.70mm)	1-1/2	1/2 (12.70mm)	3-7/8	47124-5
1/2 (12.70mm)	2 (50.80mm)	1/2 (12.70mm)	4-1/4	47126
1/2 (12.70mm)	2 (50.80mm)	1/2 (12.70mm)	4-3/8	47126-2
1/2 (12.70mm)	2 (50.80mm)	1/2 (12.70mm)	4-1/4	47126-5
1/2 (12.70mm)	1-1/2	1/2 (12.70mm)	3-7/8	47128
1/2 (12.70mm)	2 (50.80mm)	1/2 (12.70mm)	4-5/8	47131
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	57173
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-29/32	57180
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-13/16	58173
1/2 (12.70mm)	7/16 (11.11mm)	1/4 (6.35mm)	2-19/64	DRB-400
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-53/64	DRB-404
1/2 (12.70mm)	8mm	1/4 (6.35mm)	2-1/4	RC-2000
1/2 (12.70mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/8	RC-45910
1/2 (12.70mm)	20mm	1/4 (6.35mm)	2-5/16	RC-47104
11/16 (17.46mm)	21/64 (8.33mm)	1/2 (12.70mm)	2-3/16	RC-45712
3/4 (19.05mm)	1 (25.40mm)	1/2 (12.70mm)	3-1/4	47140
3/4 (19.05mm)	1-1/4	1/2 (12.70mm)	3-1/2	47141
3/4 (19.05mm)	1-1/2	1/2 (12.70mm)	4 (101.60mm)	57185
3/4 (19.05mm)	2 (50.80mm)	1/2 (12.70mm)	4-1/2	57186
3/4 (19.05mm)	2 (50.80mm)	1/2 (12.70mm)	4-3/4	57187
3/4 (19.05mm)	1-9/64	1/2 (12.70mm)	3-1/2	58174
22mm	1-9/64	1/2 (12.70mm)	3-15/16	57174
7/8 (22.23mm)	1-3/8	1/2 (12.70mm)	4 (101.60mm)	58171
1 (25.40mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/16	RC-49104
1 (25.40mm)	3/8 (9.53mm)	1/4 (6.35mm)	2-3/16	RC-49496
1 (25.40mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/16	RC-49504
–	–	1/4 (6.35mm)	–	AMS-105

Weight	0.24 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
