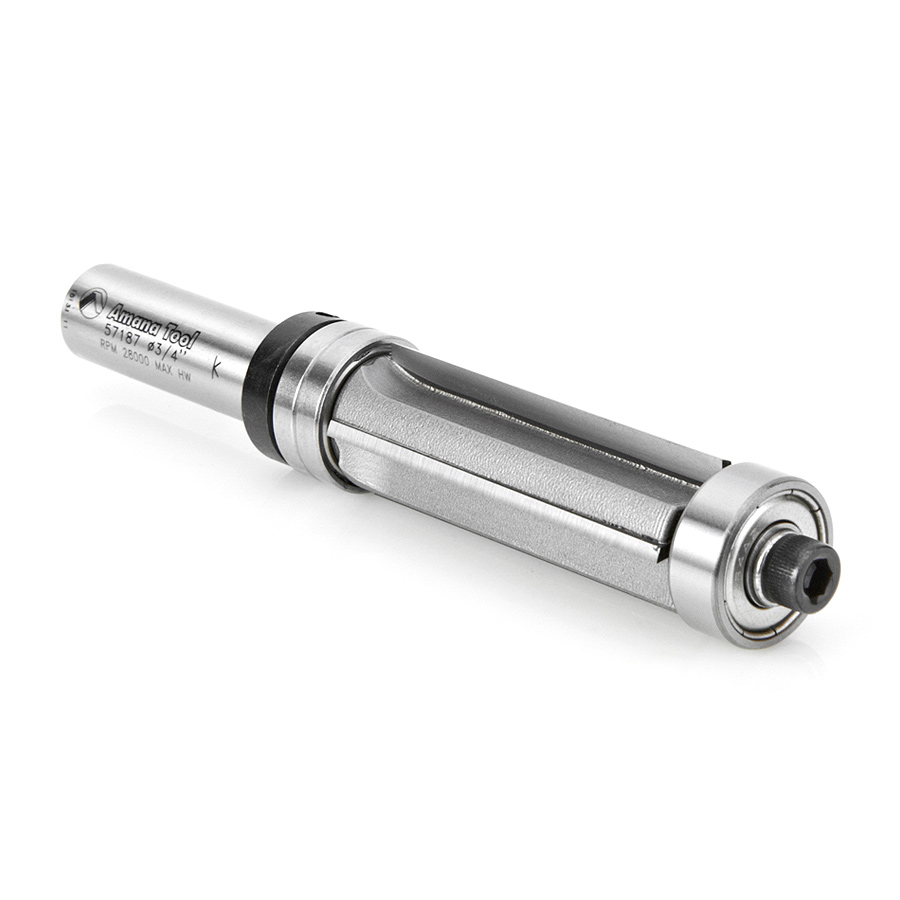

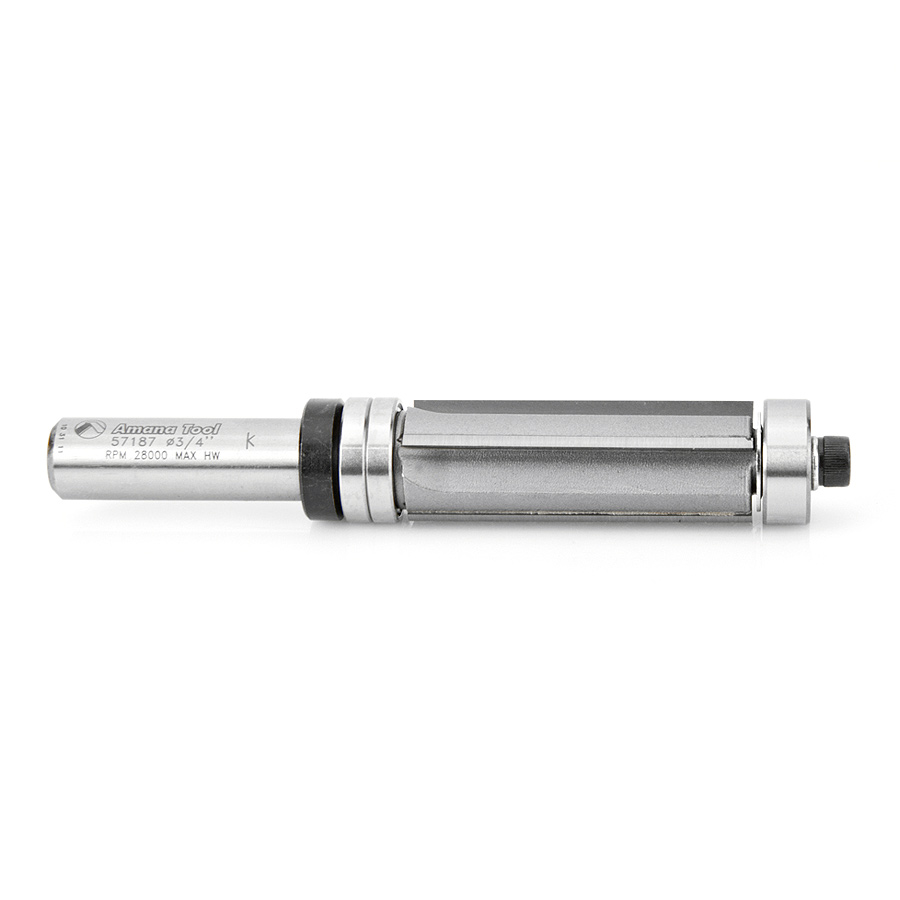

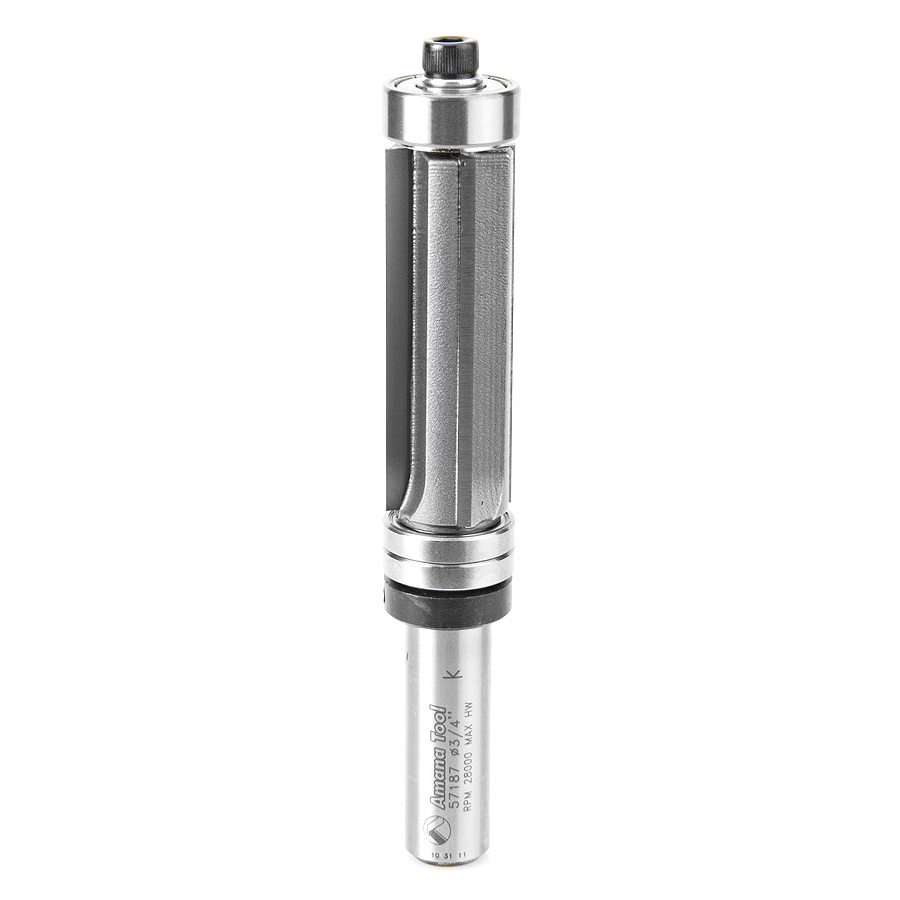

Amana 57187 Carbide Tipped Multi-Trimmer 3/4 Dia x 2 Inch x 1/2 Shank x 4-Flute
Original price was: $153.75.$115.32Current price is: $115.32.
4 FLUTE FLUSH TRIM 3/4 DIA.
Item Description
For a super-smooth cut finish, use a four-flute bit. Feed rate is reduced, and chipping is virtually eliminated.
AMAX Extended Life Features:
- 200% longer life time even when working with abrasive materials
- Superior geometric design
- Advanced grinding technology that improves the carbides’ resistance to wear
- Super clean cuts
Replacement Parts
| Replacement Upper Bearing (2 Required) | Replacement Lower Bearing | Retaining Collar |
|---|---|---|
| 47721 | 47714 | 47740 |

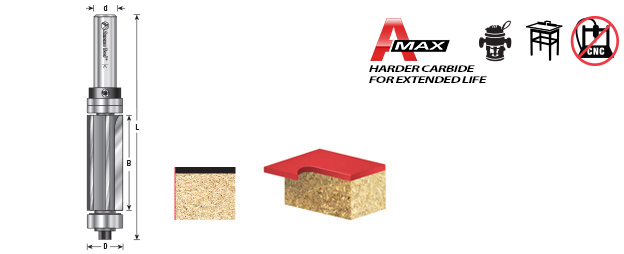

Specifications
| Diameter (D) | 3/4 |
|---|---|
| Cutting Height (B) | 2 |
| Shank (d) | 1/2 |
| Overall Length (L) | 4-3/4 |
| Replacement Collar | 47740 |
| Replacement Bearing | (Upper (2)) 47721 (Lower) 47714 |
| Flutes | 4 |
Other Sizes Available
| Diameter (D) | Cutting Height (B) | Shank (d) | Overall Length (L) | Replacement Bearing | Flutes | Replacement Collar | Tool No. |
|---|---|---|---|---|---|---|---|
| 3/16 (4.76mm) | 7/16 (11.11mm) | 1/4 (6.35mm) | 2 (50.80mm) | 47775 | 2 | – | MR0102 |
| 3/16 (4.76mm) | 7/16 (11.11mm) | 1/4 (6.35mm) | 2 (50.80mm) | 47775 | 2 | – | MR0102-5 |
| 3/16 (4.76mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2-7/16 | 47775 | 2 | – | MR0103 |
| 3/16 (4.76mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2-7/16 | 47775 | 2 | – | MR0103-5 |
| 3/16 (4.76mm) | 7/16 (11.11mm) | 1/8 (3.18mm) | 1-23/32 | 47775 | 2 | – | MR0105 |
| 1-5/64 | 3/8 (9.53mm) | 1/4 (6.35mm) | 2-3/8 | 47706 | 2 | – | RC-49492 |
| 1-5/64 | 43/64 (17.07mm) | 1/4 (6.35mm) | 2-13/32 | 47706 | 2 | – | RC-49495 |
| 1-5/64 | 3/8 (9.53mm) | 1/4 (6.35mm) | 2-3/8 | 47706 | 2 | – | RC-49497 |
| 1/4 (6.35mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2-1/4 | 47723 | 2 | – | 47090 |
| 1/4 (6.35mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2-1/4 | 47723 | 2 | – | 47090-5 |
| 1/4 (6.35mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-1/2 | 47723 | 2 | – | 47092 |
| 1/4 (6.35mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-1/2 | 47723 | 2 | – | 47092-5 |
| 1-1/32 | 5/8 (15.88mm) | 1/4 (6.35mm) | 2-3/8 | 47706 | —- | – | RC-54111 |
| 3/8 (9.53mm) | 1-1/4 | 1/4 (6.35mm) | 2-3/4 | 47702 | 2 | – | 47093 |
| 3/8 (9.53mm) | 1-1/4 | 1/4 (6.35mm) | 2-3/4 | 47702 | 2 | – | 47093-5 |
| 3/8 (9.53mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-5/8 | 47702 | 2 | – | 47100 |
| 3/8 (9.53mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-5/8 | 47702 | 2 | – | 47100-2 |
| 3/8 (9.53mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-5/8 | 47702 | 2 | – | 47100-5 |
| 3/8 (9.53mm) | 1 (25.40mm) | 1/2 (12.70mm) | 3-1/8 | 47702 | 2 | – | 47101 |
| 3/8 (9.53mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2-1/8 | 47702 | 2 | – | 47102-2 |
| 3/8 (9.53mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2-1/8 | 47702 | 2 | – | 47102-5 |
| 3/8 (9.53mm) | 1 (25.40mm) | 3/8 (9.53mm) | 2-7/8 | 47702 | 1 | – | 47103 |
| 1/2 (12.70mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-5/8 | 47706 | 2 | – | 47104 |
| 1/2 (12.70mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-5/8 | 47706 | 2 | – | 47104-2 |
| 1/2 (12.70mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-5/8 | 47706 | 2 | – | 47104-5 |
| 1/2 (12.70mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2-1/4 | 47706 | 2 | – | 47106 |
| 1/2 (12.70mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2-1/4 | 47706 | 2 | – | 47106-10 |
| 1/2 (12.70mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2-1/4 | 47706 | 2 | – | 47106-5 |
| 1/2 (12.70mm) | 1 (25.40mm) | 1/2 (12.70mm) | 3-1/4 | 47706 | 2 | – | 47108 |
| 1/2 (12.70mm) | 1 (25.40mm) | 1/2 (12.70mm) | 3-1/4 | 47706 | 2 | – | 47108-5 |
| 1/2 (12.70mm) | 1/2 (12.70mm) | 1/2 (12.70mm) | 2-3/4 | 47706 | 2 | – | 47110 |
| 1/2 (12.70mm) | 1 (25.40mm) | 3/8 (9.53mm) | 2-7/8 | 47706 | 2 | – | 47112 |
| 1/2 (12.70mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-5/8 | 47706 | 3 | – | 47114 |
| 1/2 (12.70mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2 (50.80mm) | 47706 | 3 | – | 47116 |
| 1/2 (12.70mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2 (50.80mm) | 47706 | 3 | – | 47116-5 |
| 1/2 (12.70mm) | 1-1/4 | 1/4 (6.35mm) | 2-3/4 | 47706 | 2 | – | 47117 |
| 1/2 (12.70mm) | 1-1/4 | 1/4 (6.35mm) | 2-3/4 | 47706 | 2 | – | 47117-5 |
| 1/2 (12.70mm) | 1 (25.40mm) | 1/2 (12.70mm) | 3-1/4 | 47706 | 3 | – | 47118 |
| 1/2 (12.70mm) | 1 (25.40mm) | 1/2 (12.70mm) | 3-5/8 | 47706 | 3 | – | 47118-2 |
| 1/2 (12.70mm) | 1/2 (12.70mm) | 1/2 (12.70mm) | 2-5/8 | 47706 | 3 | – | 47120 |
| 1/2 (12.70mm) | 1-1/2 | 1/2 (12.70mm) | 3-7/8 | 47706 | 2 | – | 47124 |
| 1/2 (12.70mm) | 1-1/2 | 1/2 (12.70mm) | 4-1/16 | 47706 | 2 | – | 47124-2 |
| 1/2 (12.70mm) | 1-1/2 | 1/2 (12.70mm) | 3-7/8 | 47706 | 2 | – | 47124-5 |
| 1/2 (12.70mm) | 2 (50.80mm) | 1/2 (12.70mm) | 4-1/4 | 47706 | 2 | – | 47126 |
| 1/2 (12.70mm) | 2 (50.80mm) | 1/2 (12.70mm) | 4-3/8 | 47706 | 2 | – | 47126-2 |
| 1/2 (12.70mm) | 2 (50.80mm) | 1/2 (12.70mm) | 4-1/4 | 47706 | 2 | – | 47126-5 |
| 1/2 (12.70mm) | 1-1/2 | 1/2 (12.70mm) | 3-7/8 | 47706 | 3 | – | 47128 |
| 1/2 (12.70mm) | 2 (50.80mm) | 1/2 (12.70mm) | 4-5/8 | 47706 | 3 | – | 47131 |
| 1/2 (12.70mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-5/8 | 47706 | 2 | – | 57173 |
| 1/2 (12.70mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-29/32 | 47701, 47706 | 3 | 47724 | 57180 |
| 1/2 (12.70mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-13/16 | 47706 | 3 | – | 58173 |
| 1/2 (12.70mm) | 7/16 (11.11mm) | 1/4 (6.35mm) | 2-19/64 | 47706 | 2 | – | DRB-400 |
| 1/2 (12.70mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-53/64 | 47706 | 2 | – | DRB-404 |
| 1/2 (12.70mm) | 8mm | 1/4 (6.35mm) | 2-1/4 | 47706 | —- | – | RC-2000 |
| 1/2 (12.70mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2-1/8 | 47701 | 1 | – | RC-45910 |
| 1/2 (12.70mm) | 20mm | 1/4 (6.35mm) | 2-5/16 | 47706 | 2 | – | RC-47104 |
| 11/16 (17.46mm) | 21/64 (8.33mm) | 1/2 (12.70mm) | 2-3/16 | – | 1 | – | RC-45712 |
| 3/4 (19.05mm) | 1 (25.40mm) | 1/2 (12.70mm) | 3-1/4 | 47714 | 2 | – | 47140 |
| 3/4 (19.05mm) | 1-1/4 | 1/2 (12.70mm) | 3-1/2 | 47714 | 2 | – | 47141 |
| 3/4 (19.05mm) | 1 (25.40mm) | 1/2 (12.70mm) | 3 (76.20mm) | 47714 | 4 | – | 57184 |
| 3/4 (19.05mm) | 1-1/2 | 1/2 (12.70mm) | 4 (101.60mm) | 47714 | 4 | – | 57185 |
| 3/4 (19.05mm) | 2 (50.80mm) | 1/2 (12.70mm) | 4-1/2 | 47714 | 4 | – | 57186 |
| 3/4 (19.05mm) | 1-9/64 | 1/2 (12.70mm) | 3-1/2 | 47714 | 3 | – | 58174 |
| 22mm | 1-9/64 | 1/2 (12.70mm) | 3-15/16 | 47798 | 2 | – | 57174 |
| 7/8 (22.23mm) | 1-3/8 | 1/2 (12.70mm) | 4 (101.60mm) | 47708 | 2 | – | 58171 |
| 1 (25.40mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2-1/16 | – | —- | – | RC-49104 |
| 1 (25.40mm) | 3/8 (9.53mm) | 1/4 (6.35mm) | 2-3/16 | 47706 | 2 | – | RC-49496 |
| 1 (25.40mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2-1/16 | 47706 | 2 | – | RC-49504 |
| – | – | 1/4 (6.35mm) | – | – | —- | – | AMS-105 |
| Weight | 0.38 lbs |
|---|
Brand
Amana Tool
Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
