Sale!

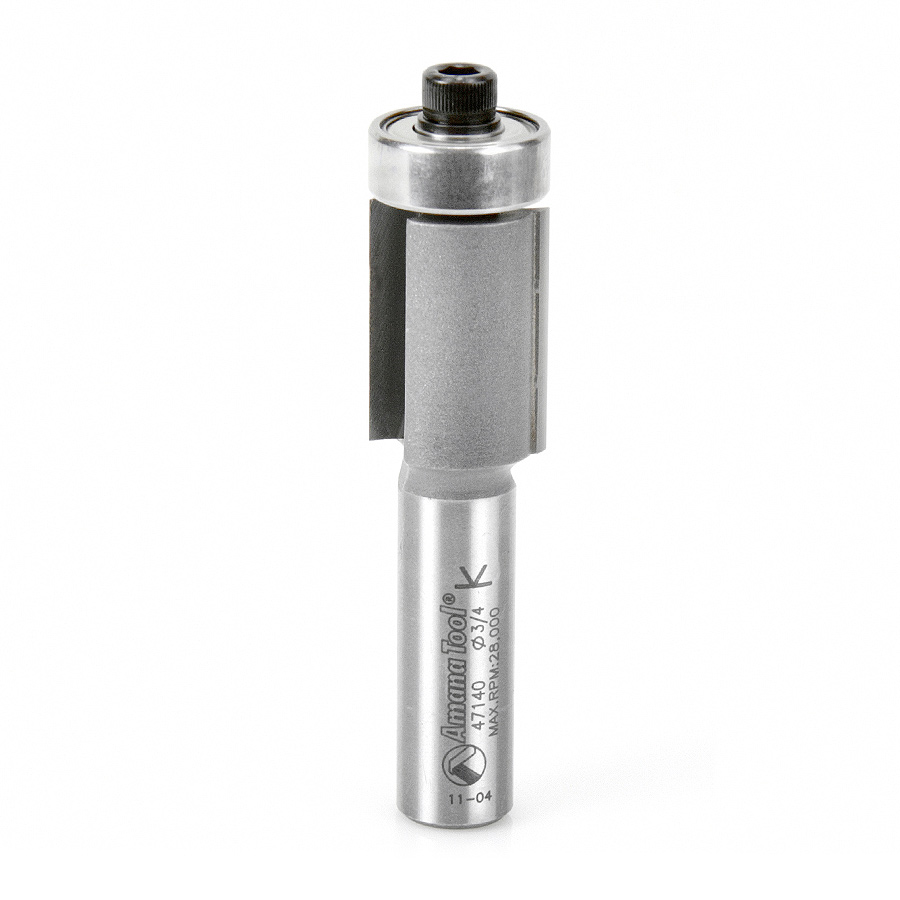

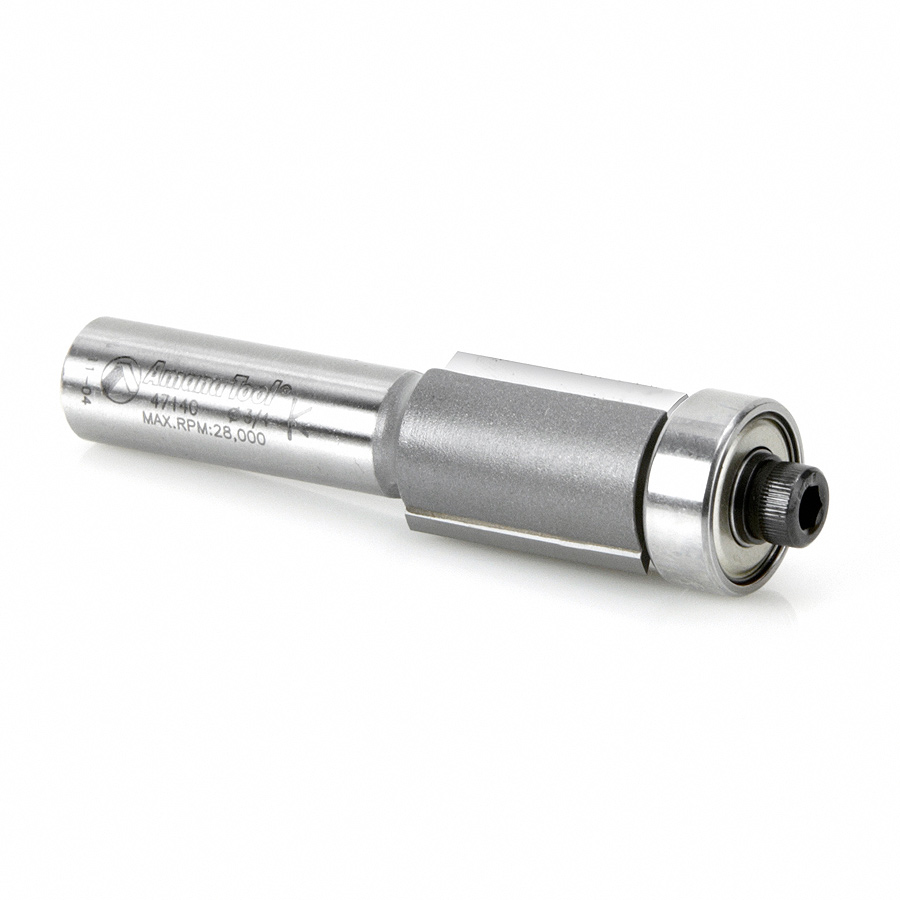

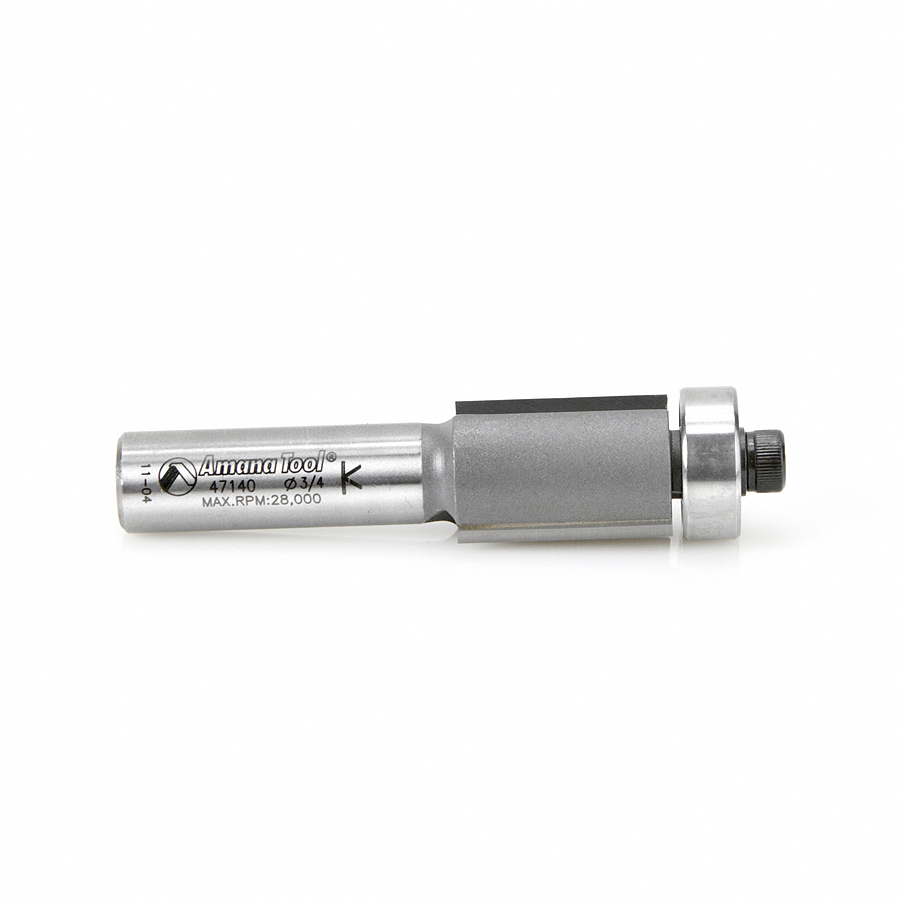

47140 Carbide Tipped Flush Trim 3/4 Dia x 1/2 x 1/2 Inch Shank

Amana 47140 Carbide Tipped Flush Trim 3/4 Dia x 1/2 x 1/2 Inch Shank

Name: Amana 47140 Carbide Tipped Flush Trim 3/4 Dia x 1/2 x 1/2 Inch Shank
SKU: Amana 47140
Availability: InStock

Original price was: $55.00.Current price is: $41.25.

FLUSH TRIM 3/4 DIA 1/2 SHANK

UPC: N/A SKU: Amana 47140 Categories: Amana Tool, Flush Trim Router Bits, Router Bits, Trimming Router Bits

Item Description

Use this flush trimming bit for laminate work or for template and pattern work. For template application, the bearing follows the template, while the cutting edges trim the workpiece. With the router handheld, the template is on the bottom of the work. With a table-mounted router, the template is on top. A two-flute bit is a good general-purpose choice, providing fast cuts and good finishes. Excellent for template work.

AMAX Extended Life Features:

200% longer life time even when working with abrasive materials
Superior geometric design
Advanced grinding technology that improves the carbides’ resistance to wear
Super clean cuts

Replacement Parts

Tool No.	Bearing(s)	Screw	Flat Washer
47114	47706	67096	67100

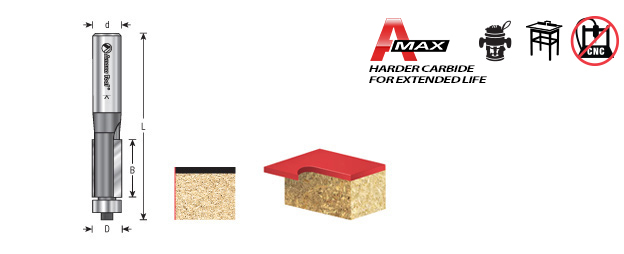

Specifications

Diameter (D)	3/4
Cutting Height (B)	1
Shank (d)	1/2
Overall Length (L)	3-1/4
Replacement Bearing	47714
Flutes	2

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Replacement Bearing	Flutes	Tool No.
3/16 (4.76mm)	7/16 (11.11mm)	1/4 (6.35mm)	2 (50.80mm)	47775	2	MR0102
3/16 (4.76mm)	7/16 (11.11mm)	1/4 (6.35mm)	2 (50.80mm)	47775	2	MR0102-5
3/16 (4.76mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-7/16	47775	2	MR0103
3/16 (4.76mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-7/16	47775	2	MR0103-5
3/16 (4.76mm)	7/16 (11.11mm)	1/8 (3.18mm)	1-23/32	47775	2	MR0105
1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/4	47723	2	47090
1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/4	47723	2	47090-5
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	47723	2	47092
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	47723	2	47092-5
3/8 (9.53mm)	1-1/4	1/4 (6.35mm)	2-3/4	47702	2	47093
3/8 (9.53mm)	1-1/4	1/4 (6.35mm)	2-3/4	47702	2	47093-5
3/8 (9.53mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	47702	2	47100
3/8 (9.53mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	47702	2	47100-2
3/8 (9.53mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	47702	2	47100-5
3/8 (9.53mm)	1 (25.40mm)	1/2 (12.70mm)	3-1/8	47702	2	47101
3/8 (9.53mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/8	47702	2	47102-2
3/8 (9.53mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/8	47702	2	47102-5
3/8 (9.53mm)	1 (25.40mm)	3/8 (9.53mm)	2-7/8	47702	1	47103
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	47706	2	47104
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	47706	2	47104-2
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	47706	2	47104-5
1/2 (12.70mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/4	47706	2	47106
1/2 (12.70mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/4	47706	2	47106-10
1/2 (12.70mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/4	47706	2	47106-5
1/2 (12.70mm)	1 (25.40mm)	1/2 (12.70mm)	3-1/4	47706	2	47108
1/2 (12.70mm)	1 (25.40mm)	1/2 (12.70mm)	3-1/4	47706	2	47108-5
1/2 (12.70mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-3/4	47706	2	47110
1/2 (12.70mm)	1 (25.40mm)	3/8 (9.53mm)	2-7/8	47706	2	47112
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	47706	3	47114
1/2 (12.70mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	47706	3	47116
1/2 (12.70mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	47706	3	47116-5
1/2 (12.70mm)	1-1/4	1/4 (6.35mm)	2-3/4	47706	2	47117
1/2 (12.70mm)	1-1/4	1/4 (6.35mm)	2-3/4	47706	2	47117-5
1/2 (12.70mm)	1 (25.40mm)	1/2 (12.70mm)	3-1/4	47706	3	47118
1/2 (12.70mm)	1 (25.40mm)	1/2 (12.70mm)	3-5/8	47706	3	47118-2
1/2 (12.70mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-5/8	47706	3	47120
1/2 (12.70mm)	1-1/2	1/2 (12.70mm)	3-7/8	47706	2	47124
1/2 (12.70mm)	1-1/2	1/2 (12.70mm)	4-1/16	47706	2	47124-2
1/2 (12.70mm)	1-1/2	1/2 (12.70mm)	3-7/8	47706	2	47124-5
1/2 (12.70mm)	2 (50.80mm)	1/2 (12.70mm)	4-1/4	47706	2	47126
1/2 (12.70mm)	2 (50.80mm)	1/2 (12.70mm)	4-3/8	47706	2	47126-2
1/2 (12.70mm)	2 (50.80mm)	1/2 (12.70mm)	4-1/4	47706	2	47126-5
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	47706	2	57173
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-29/32	47701, 47706	3	57180
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-13/16	47706	3	58173
1/2 (12.70mm)	7/16 (11.11mm)	1/4 (6.35mm)	2-19/64	47706	2	DRB-400
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-53/64	47706	2	DRB-404
1/2 (12.70mm)	8mm	1/4 (6.35mm)	2-1/4	47706	—-	RC-2000
1/2 (12.70mm)	20mm	1/4 (6.35mm)	2-5/16	47706	2	RC-47104
3/4 (19.05mm)	1-1/4	1/2 (12.70mm)	3-1/2	47714	2	47141
3/4 (19.05mm)	1 (25.40mm)	1/2 (12.70mm)	3 (76.20mm)	47714	4	57184
3/4 (19.05mm)	1-1/2	1/2 (12.70mm)	4 (101.60mm)	47714	4	57185
3/4 (19.05mm)	2 (50.80mm)	1/2 (12.70mm)	4-1/2	47714	4	57186
3/4 (19.05mm)	2 (50.80mm)	1/2 (12.70mm)	4-3/4	47721, 47714	4	57187
3/4 (19.05mm)	1-9/64	1/2 (12.70mm)	3-1/2	47714	3	58174
22mm	1-9/64	1/2 (12.70mm)	3-15/16	47798	2	57174
7/8 (22.23mm)	1-3/8	1/2 (12.70mm)	4 (101.60mm)	47708	2	58171
–	–	1/4 (6.35mm)	–	–	—-	AMS-105

Weight	0.2 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
