47124 Carbide Tipped Flush Trim 1/2 Dia x 1-1/2 x 1/2 Inch Shank

Amana 47124 Carbide Tipped Flush Trim 1/2 Dia x 1-1/2 x 1/2 Inch Shank

Name: Amana 47124 Carbide Tipped Flush Trim 1/2 Dia x 1-1/2 x 1/2 Inch Shank
SKU: Amana 47124
Price: 38.93 USD
Availability: InStock

Original price was: $51.90.Current price is: $38.93.

FLUSH TRIM 1/2 DIA. 1/2 SHANK

UPC: 738685871249 SKU: Amana 47124 Categories: Amana Tool, Flush Trim Router Bits, Router Bits, Trimming Router Bits Tags: 1/2" Shank, 47124, amana tool, bearing, carbide tipped, Flush Trim, Laminate, Laminate flush trim, router bit, Smooth Finish

Item Description

Use this bit for template or pattern work where the workpiece is unusually thick. The two-flute configuration cuts fast and produces a smooth finish.

For a superior finish, use the three-flute version. Twin bearings on selected tools provide better contact with reference edge and more stability in the cut.

AMAX Extended Life Features:

200% longer life time even when working with abrasive materials
Superior geometric design
Advanced grinding technology that improves the carbides’ resistance to wear
Super clean cuts

Replacement Parts

Tool No.	Bearing(s)	Screw	Dust Shield	Flat Washer
47124	47706	67096	67098	67102

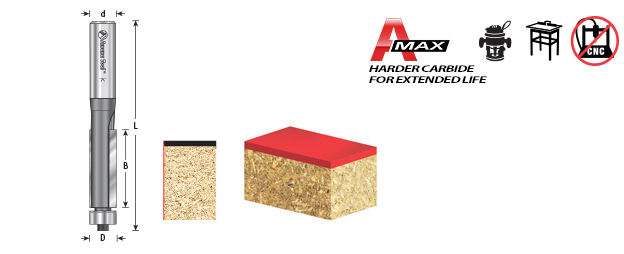

Specifications

Diameter (D)	1/2
Cutting Height (B)	1-1/2
Shank (d)	1/2
Overall Length (L)	3-7/8
Replacement Bearing	47706
Flutes	2

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Replacement Bearing	Flutes	Tool No.
3/16 (4.76mm)	7/16 (11.11mm)	1/4 (6.35mm)	2 (50.80mm)	47775	2	MR0102
3/16 (4.76mm)	7/16 (11.11mm)	1/4 (6.35mm)	2 (50.80mm)	47775	2	MR0102-5
3/16 (4.76mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-7/16	47775	2	MR0103
3/16 (4.76mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-7/16	47775	2	MR0103-5
3/16 (4.76mm)	7/16 (11.11mm)	1/8 (3.18mm)	1-23/32	47775	2	MR0105
1-5/64	3/8 (9.53mm)	1/4 (6.35mm)	2-3/8	47706	2	RC-49492
1-5/64	43/64 (17.07mm)	1/4 (6.35mm)	2-13/32	47706	2	RC-49495
1-5/64	3/8 (9.53mm)	1/4 (6.35mm)	2-3/8	47706	2	RC-49497
1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/4	47723	2	47090
1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/4	47723	2	47090-5
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	47723	2	47092
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	47723	2	47092-5
1-1/32	5/8 (15.88mm)	1/4 (6.35mm)	2-3/8	47706	—-	RC-54111
3/8 (9.53mm)	1-1/4	1/4 (6.35mm)	2-3/4	47702	2	47093
3/8 (9.53mm)	1-1/4	1/4 (6.35mm)	2-3/4	47702	2	47093-5
3/8 (9.53mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	47702	2	47100
3/8 (9.53mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	47702	2	47100-2
3/8 (9.53mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	47702	2	47100-5
3/8 (9.53mm)	1 (25.40mm)	1/2 (12.70mm)	3-1/8	47702	2	47101
3/8 (9.53mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/8	47702	2	47102-2
3/8 (9.53mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/8	47702	2	47102-5
3/8 (9.53mm)	1 (25.40mm)	3/8 (9.53mm)	2-7/8	47702	1	47103
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	47706	2	47104
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	47706	2	47104-2
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	47706	2	47104-5
1/2 (12.70mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/4	47706	2	47106
1/2 (12.70mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/4	47706	2	47106-10
1/2 (12.70mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/4	47706	2	47106-5
1/2 (12.70mm)	1 (25.40mm)	1/2 (12.70mm)	3-1/4	47706	2	47108
1/2 (12.70mm)	1 (25.40mm)	1/2 (12.70mm)	3-1/4	47706	2	47108-5
1/2 (12.70mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-3/4	47706	2	47110
1/2 (12.70mm)	1 (25.40mm)	3/8 (9.53mm)	2-7/8	47706	2	47112
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	47706	3	47114
1/2 (12.70mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	47706	3	47116
1/2 (12.70mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	47706	3	47116-5
1/2 (12.70mm)	1-1/4	1/4 (6.35mm)	2-3/4	47706	2	47117
1/2 (12.70mm)	1-1/4	1/4 (6.35mm)	2-3/4	47706	2	47117-5
1/2 (12.70mm)	1 (25.40mm)	1/2 (12.70mm)	3-1/4	47706	3	47118
1/2 (12.70mm)	1 (25.40mm)	1/2 (12.70mm)	3-5/8	47706	3	47118-2
1/2 (12.70mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-5/8	47706	3	47120
1/2 (12.70mm)	1-1/2	1/2 (12.70mm)	4-1/16	47706	2	47124-2
1/2 (12.70mm)	1-1/2	1/2 (12.70mm)	3-7/8	47706	2	47124-5
1/2 (12.70mm)	2 (50.80mm)	1/2 (12.70mm)	4-1/4	47706	2	47126
1/2 (12.70mm)	2 (50.80mm)	1/2 (12.70mm)	4-3/8	47706	2	47126-2
1/2 (12.70mm)	2 (50.80mm)	1/2 (12.70mm)	4-1/4	47706	2	47126-5
1/2 (12.70mm)	1-1/2	1/2 (12.70mm)	3-7/8	47706	3	47128
1/2 (12.70mm)	2 (50.80mm)	1/2 (12.70mm)	4-5/8	47706	3	47131
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	47706	2	57173
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-29/32	47701, 47706	3	57180
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-13/16	47706	3	58173
1/2 (12.70mm)	7/16 (11.11mm)	1/4 (6.35mm)	2-19/64	47706	2	DRB-400
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-53/64	47706	2	DRB-404
1/2 (12.70mm)	8mm	1/4 (6.35mm)	2-1/4	47706	—-	RC-2000
1/2 (12.70mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/8	47701	1	RC-45910
1/2 (12.70mm)	20mm	1/4 (6.35mm)	2-5/16	47706	2	RC-47104
11/16 (17.46mm)	21/64 (8.33mm)	1/2 (12.70mm)	2-3/16	–	1	RC-45712
3/4 (19.05mm)	1 (25.40mm)	1/2 (12.70mm)	3-1/4	47714	2	47140
3/4 (19.05mm)	1-1/4	1/2 (12.70mm)	3-1/2	47714	2	47141
3/4 (19.05mm)	1 (25.40mm)	1/2 (12.70mm)	3 (76.20mm)	47714	4	57184
3/4 (19.05mm)	1-1/2	1/2 (12.70mm)	4 (101.60mm)	47714	4	57185
3/4 (19.05mm)	2 (50.80mm)	1/2 (12.70mm)	4-1/2	47714	4	57186
3/4 (19.05mm)	2 (50.80mm)	1/2 (12.70mm)	4-3/4	47721, 47714	4	57187
3/4 (19.05mm)	1-9/64	1/2 (12.70mm)	3-1/2	47714	3	58174
22mm	1-9/64	1/2 (12.70mm)	3-15/16	47798	2	57174
7/8 (22.23mm)	1-3/8	1/2 (12.70mm)	4 (101.60mm)	47708	2	58171
1 (25.40mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/16	–	—-	RC-49104
1 (25.40mm)	3/8 (9.53mm)	1/4 (6.35mm)	2-3/16	47706	2	RC-49496
1 (25.40mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/16	47706	2	RC-49504
–	–	1/4 (6.35mm)	–	–	—-	AMS-105

Weight	0.2 lbs
