Sale!

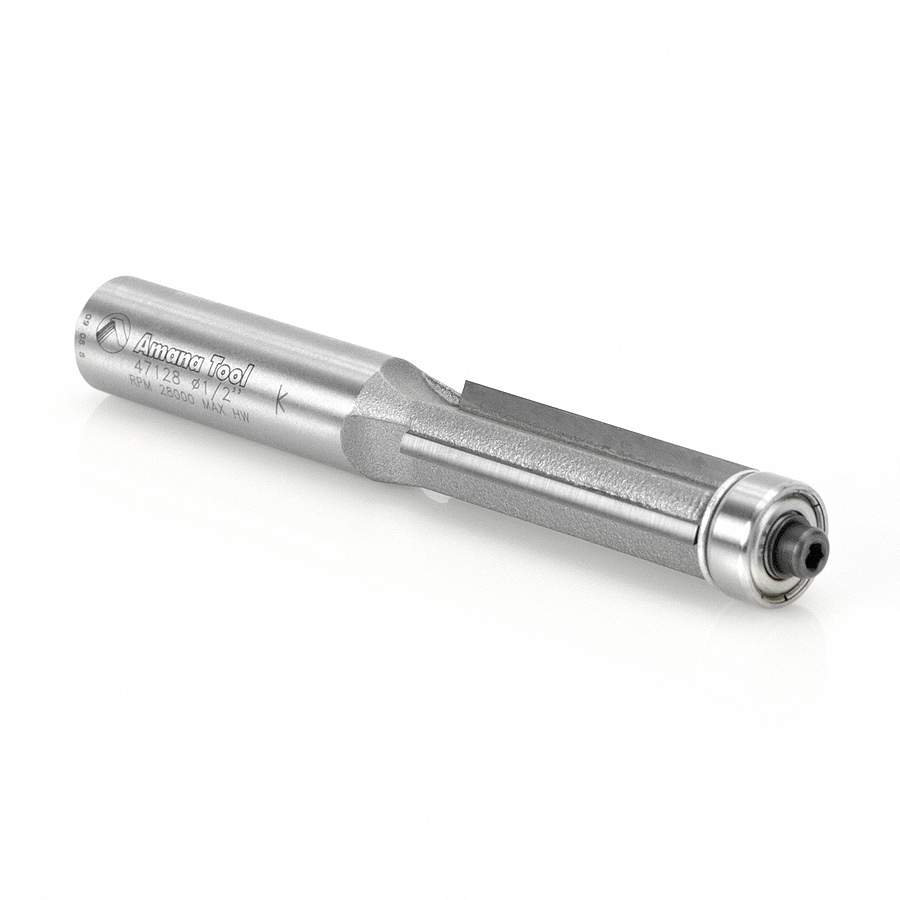

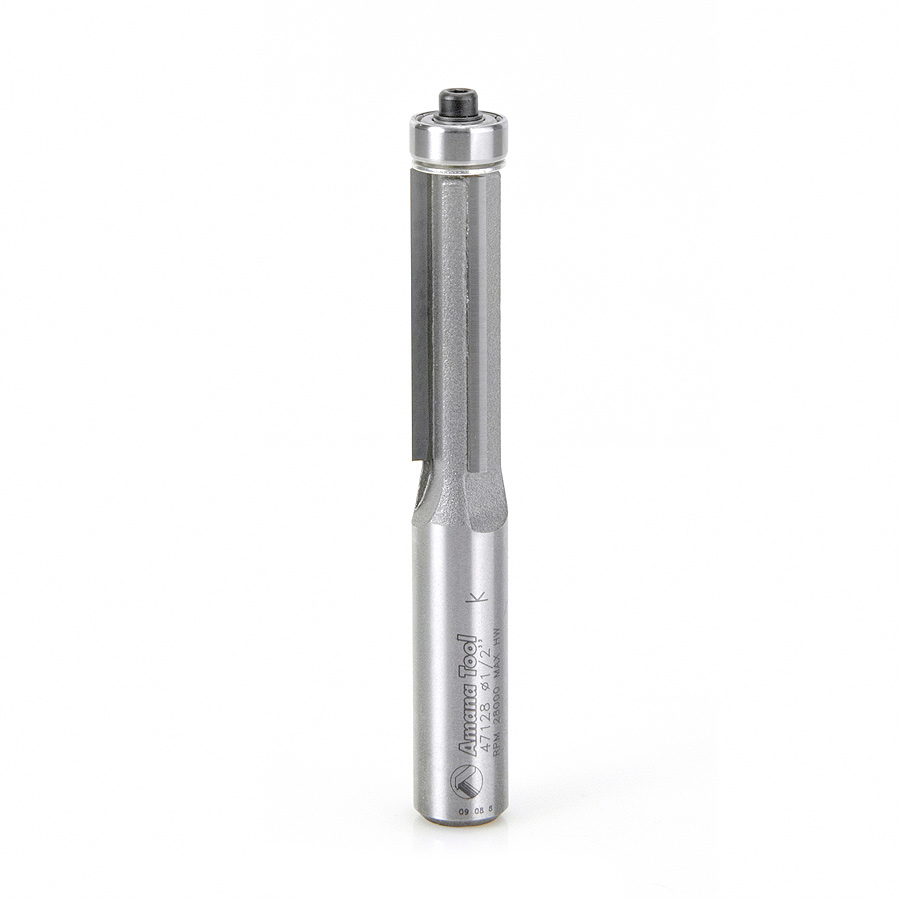

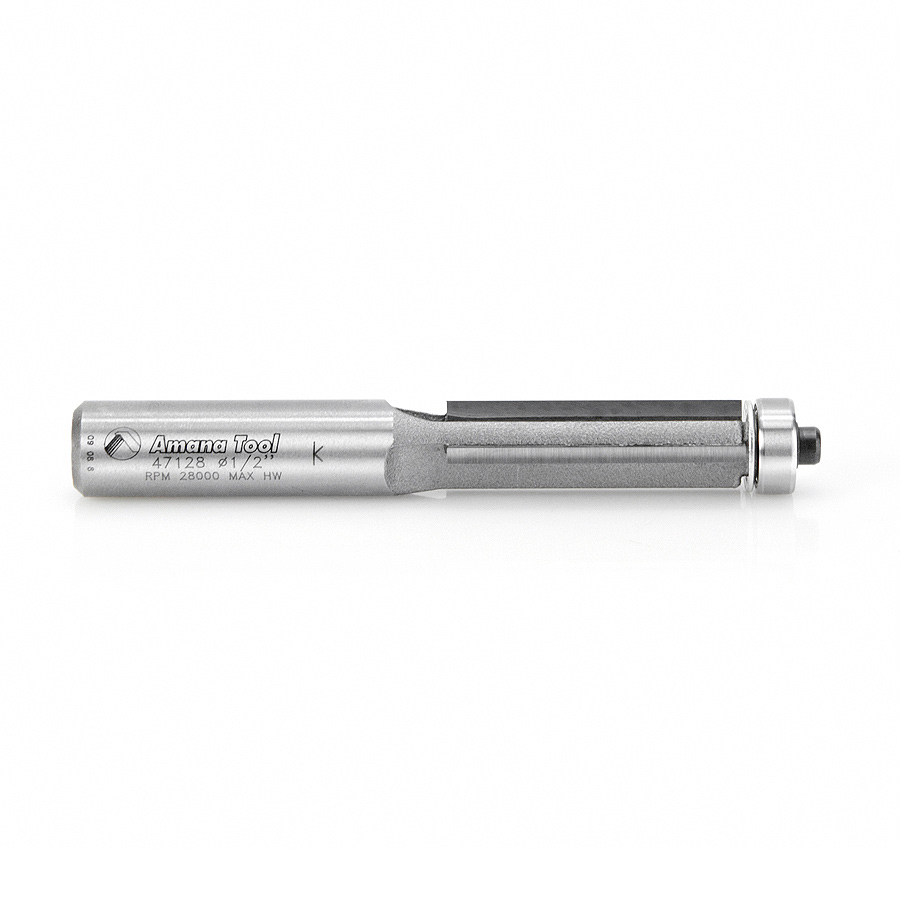

47128 Carbide Tipped Flush Trim 1/2 Dia x 1-1/2 x 1/2 Inch Shank 3-Flute Extra-Long

Amana 47128 Carbide Tipped Flush Trim 1/2 Dia x 1-1/2 x 1/2 Inch Shank 3-Flute Extra-Long

Name: Amana 47128 Carbide Tipped Flush Trim 1/2 Dia x 1-1/2 x 1/2 Inch Shank 3-Flute Extra-Long
SKU: Amana 47128
Availability: InStock

Original price was: $76.55.Current price is: $57.42.

FLUSH TRIM 3 FLUTE 1/2 SHANK

UPC: 738685871287 SKU: Amana 47128 Categories: Amana Tool, Flush Trim Router Bits, Router Bits, Trimming Router Bits

Item Description

Use this bit for template or pattern work where the workpiece is unusually thick. The two-flute configuration cuts fast and produces a smooth finish.

For a superior finish, use the three-flute version. Twin bearings on selected tools provide better contact with reference edge and more stability in the cut.

AMAX Extended Life Features:

200% longer life time even when working with abrasive materials
Superior geometric design
Advanced grinding technology that improves the carbides’ resistance to wear
Super clean cuts

Replacement Parts

Tool No.	Bearing(s)	Screw	Dust Shield	Flat Washer
47128	47126	67096	67098	67102

Specifications

Diameter (D)	1/2
Cutting Height (B)	1-1/2
Shank (d)	1/2
Overall Length (L)	3-7/8
Replacement Bearing	47706
Flutes	3

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Replacement Bearing	Flutes	Tool No.
3/16 (4.76mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-7/16	47775	2	MR0103
3/16 (4.76mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-7/16	47775	2	MR0103-5
1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/4	47723	2	47090
1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/4	47723	2	47090-5
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	47723	2	47092
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	47723	2	47092-5
3/8 (9.53mm)	1-1/4	1/4 (6.35mm)	2-3/4	47702	2	47093
3/8 (9.53mm)	1-1/4	1/4 (6.35mm)	2-3/4	47702	2	47093-5
1/2 (12.70mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/4	47706	2	47106-10
1/2 (12.70mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/4	47706	2	47106-5
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	47706	3	47114
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	47706	3	47114-5
1/2 (12.70mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	47706	3	47116
1/2 (12.70mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	47706	3	47116-5
1/2 (12.70mm)	1-1/4	1/4 (6.35mm)	2-3/4	47706	2	47117
1/2 (12.70mm)	1-1/4	1/4 (6.35mm)	2-3/4	47706	2	47117-5
1/2 (12.70mm)	1 (25.40mm)	1/2 (12.70mm)	3-1/4	47706	3	47118
1/2 (12.70mm)	1 (25.40mm)	1/2 (12.70mm)	3-5/8	47706	3	47118-2
1/2 (12.70mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-5/8	47706	3	47120
1/2 (12.70mm)	2 (50.80mm)	1/2 (12.70mm)	4-3/8	47706	2	47126-2
1/2 (12.70mm)	1-1/2	1/2 (12.70mm)	4-1/16	47706	3	47128-2
1/2 (12.70mm)	2 (50.80mm)	1/2 (12.70mm)	4-5/8	47706	3	47131
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	47706	2	57173
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-13/16	47706	3	58173
1/2 (12.70mm)	7/16 (11.11mm)	1/4 (6.35mm)	2-19/64	47706	2	DRB-400
3/4 (19.05mm)	1-9/64	1/2 (12.70mm)	3-1/2	47714	3	58174
22mm	1-9/64	1/2 (12.70mm)	3-15/16	47798	2	57174
7/8 (22.23mm)	1-3/8	1/2 (12.70mm)	4 (101.60mm)	47708	2	58171

Weight	0.2 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
