45468 Carbide Tipped Flush Trim Plunge Template 1-1/8 Dia x 1-1/2 x 1/2 Inch Shank with Upper BB
45468 Carbide Tipped Flush Trim Plunge Template 1-1/8 Dia x 1-1/2 x 1/2 Inch Shank with Upper BB
45468 Carbide Tipped Flush Trim Plunge Template 1-1/8 Dia x 1-1/2 x 1/2 Inch Shank with Upper BB
45468 Carbide Tipped Flush Trim Plunge Template 1-1/8 Dia x 1-1/2 x 1/2 Inch Shank with Upper BB
45468 Carbide Tipped Flush Trim Plunge Template 1-1/8 Dia x 1-1/2 x 1/2 Inch Shank with Upper BB
45468 Carbide Tipped Flush Trim Plunge Template 1-1/8 Dia x 1-1/2 x 1/2 Inch Shank with Upper BB

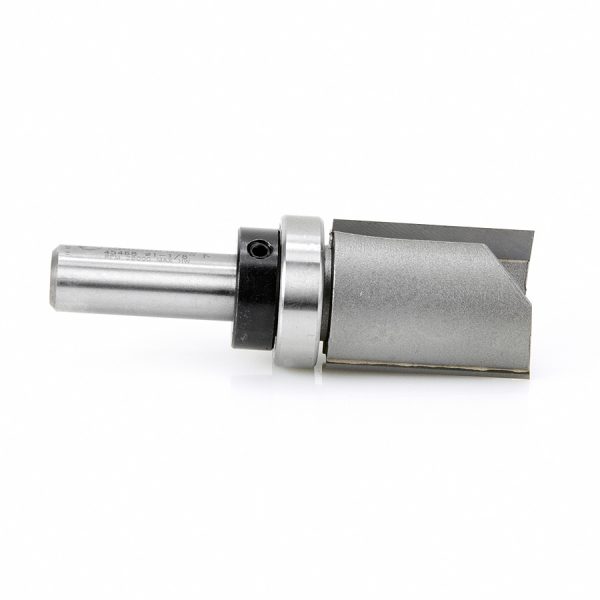

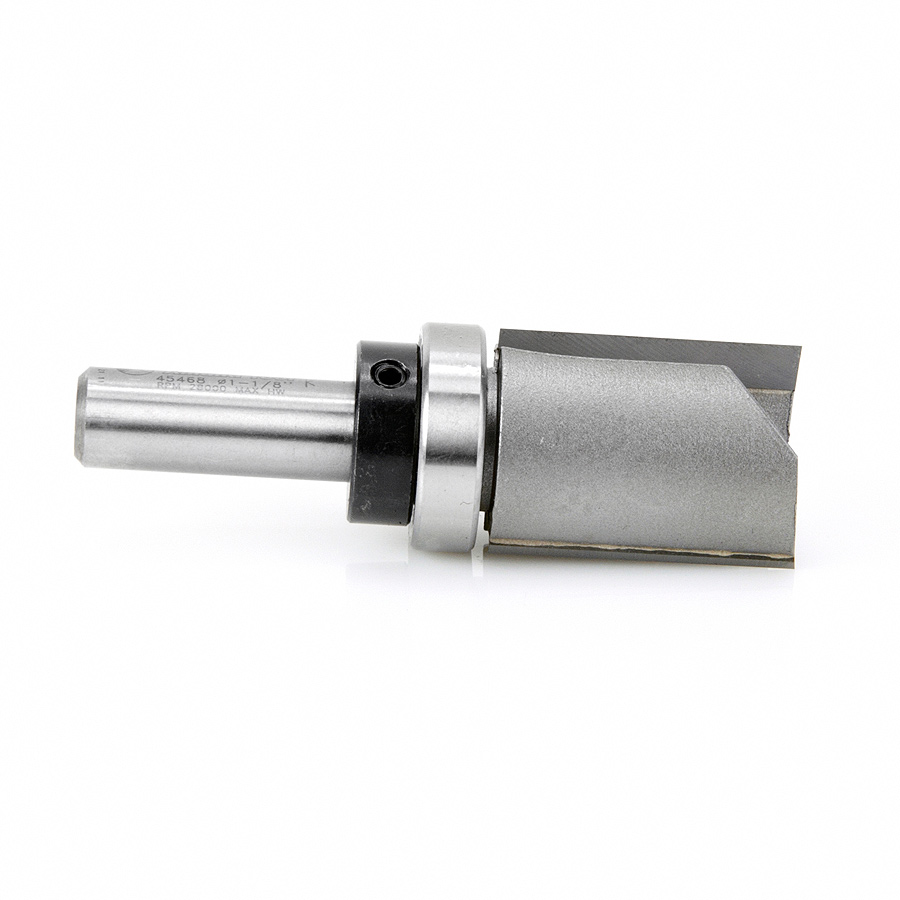

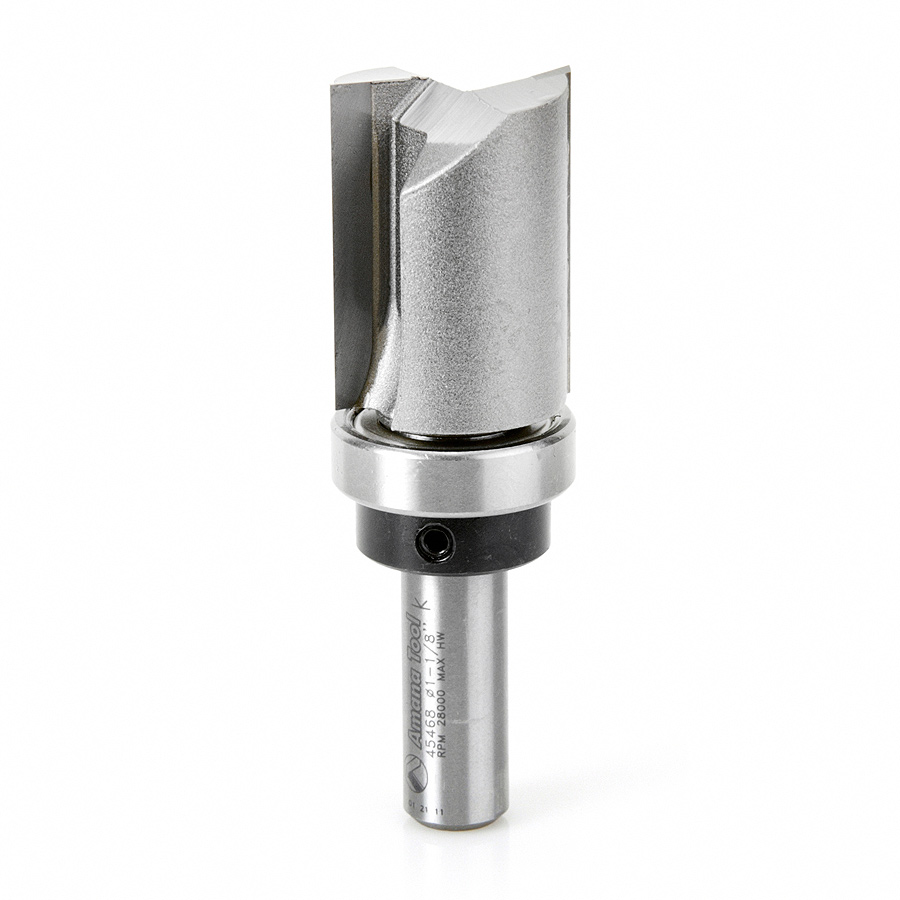

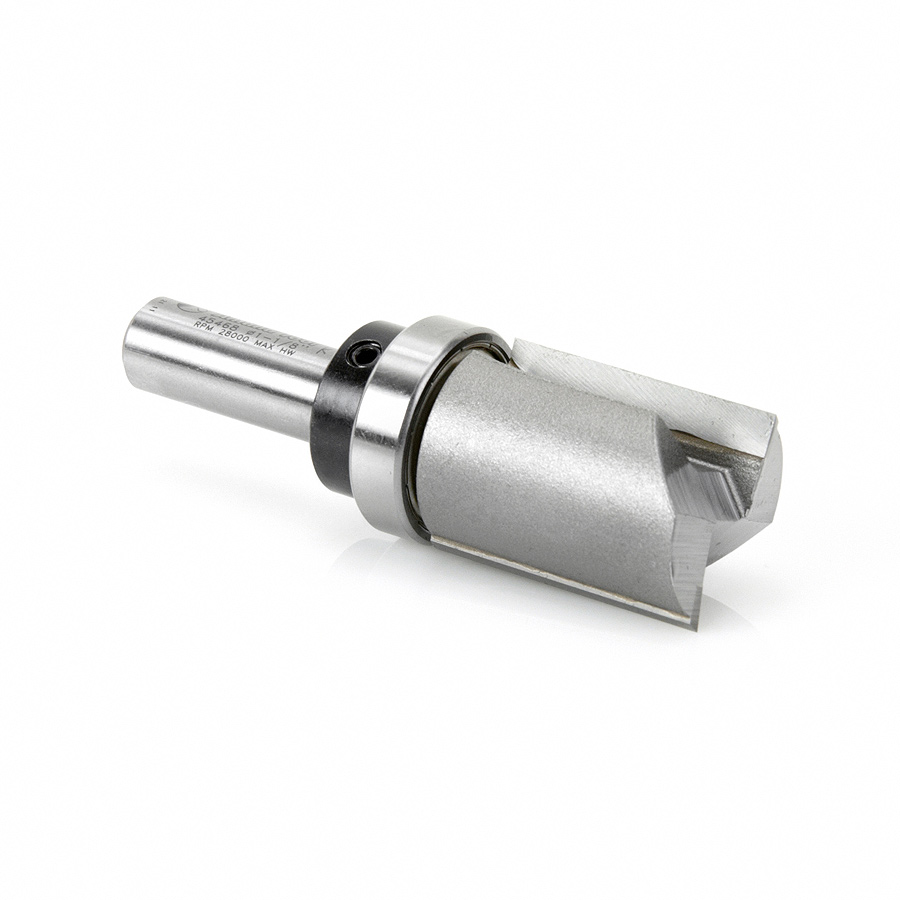

Amana 45468 Carbide Tipped Flush Trim Plunge Template 1-1/8 Dia x 1-1/2 x 1/2 Inch Shank with Upper BB

Original price was: $128.00.Current price is: $96.00.

PLUNGE BIT WITH B/B ON TOP

UPC: 738685854686 SKU: Amana 45468 Categories: , , ,
Image 11

Item Description

This bit is essentially a plunge-cutting straight with a shank-mounted ball-bearing pilot. Versatile, useful for template/pattern routing of parts, joints, internal cuts and can be used in handheld and table-mounted routers. The template is attached to the workpiece, and the pilot bearing rides along its edge as the cutting edges rout the workpiece, forming an exact duplicate of the template. With a handheld router, the pattern is on top of the work; with a table-mounted router, the pattern is underneath the work. Maximum RPM 20,000.

Replacement Parts

Tool No. Bearing(s) Collar w/Set Screw Collar Set Screw Only
45468 47738 47740 67091

Specifications

Diameter (D) 1-1/8
Cutting Height (B) 1-1/2
Shank (d) 1/2
Overall Length (L) 3-1/2
Replacement Collar 47740
Replacement Bearing 47738
Flutes 2

Other Sizes Available

Diameter (D) Cutting Height (B) Shank (d) Overall Length (L) Replacement Collar Replacement Bearing Flutes Tool No.
3/16 (4.76mm) 1/2 (12.70mm) 1/8 (3.18mm) 2 (50.80mm) – 47775 2 47220
3/16 (4.76mm) 1/2 (12.70mm) 1/4 (6.35mm) 2 (50.80mm) – 47775 2 47222
3/16 (4.76mm) 1/2 (12.70mm) 1/4 (6.35mm) 2 (50.80mm) – 47775 2 47222-5
3/16 (4.76mm) 1/4 (6.35mm) 1/4 (6.35mm) 1-3/4 – 47775 2 47222-S
3/16 (4.76mm) 1/4 (6.35mm) 1/4 (6.35mm) 1-3/4 – 47775 2 47222-S-5
1/4 (6.35mm) 1/8 (3.18mm) 1/4 (6.35mm) 2 (50.80mm) – 47723 2 47221-S
1/4 (6.35mm) 1/4 (6.35mm) 1/8 (3.18mm) 1-15/16 – 47723 2 47223-S
1/4 (6.35mm) 3/4 (19.05mm) 1/4 (6.35mm) 2-7/16 – 47723 2 47224
1/4 (6.35mm) 3/4 (19.05mm) 1/4 (6.35mm) 2-7/16 – 47723 2 47224-5
1/4 (6.35mm) 1/4 (6.35mm) 1/4 (6.35mm) 2-1/2 – 47723 2 47224-S
1/4 (6.35mm) 1/4 (6.35mm) 1/4 (6.35mm) 2-1/2 – 47723 2 47224-S-5
5/16 (7.94mm) 1 (25.40mm) 1/2 (12.70mm) 2-3/4 – – 2 45412
5/16 (7.94mm) 1 (25.40mm) 1/2 (12.70mm) 2-3/4 – – 2 45412-5
3/8 (9.53mm) 1-1/4 1/2 (12.70mm) 3 (76.20mm) – – 2 45415
3/8 (9.53mm) 1-1/4 1/2 (12.70mm) 3 (76.20mm) – – 2 45415-5
3/8 (9.53mm) 1/2 (12.70mm) 1/4 (6.35mm) 2 (50.80mm) 47764 47751 2 45475
3/8 (9.53mm) 1/2 (12.70mm) 1/4 (6.35mm) 2 (50.80mm) 47764 47751 3 45475-3DS
3/8 (9.53mm) 1/2 (12.70mm) 1/4 (6.35mm) 2 (50.80mm) 47764 47751 3 45475-3TS
3/8 (9.53mm) 1/2 (12.70mm) 1/4 (6.35mm) 2 (50.80mm) 47764 47751 3 45475-3US
3/8 (9.53mm) 1 (25.40mm) 1/2 (12.70mm) 3-1/4 – 47751 2 47226
3/8 (9.53mm) 1 (25.40mm) 1/4 (6.35mm) 2-1/2 47764 47751 2 47227
1/2 (12.70mm) 1 (25.40mm) 1/4 (6.35mm) 2-1/2 47724 47701 2 45460
1/2 (12.70mm) 1 (25.40mm) 1/4 (6.35mm) 2-1/2 47724 47701 3 45460-3DS
1/2 (12.70mm) 1 (25.40mm) 1/4 (6.35mm) 2-1/2 47724 47701 3 45460-3TS
1/2 (12.70mm) 1 (25.40mm) 1/4 (6.35mm) 2-1/2 47724 47701 3 45460-3TS-5
1/2 (12.70mm) 1 (25.40mm) 1/4 (6.35mm) 2-1/2 47764 47701 3 45460-3US
1/2 (12.70mm) 1 (25.40mm) 1/4 (6.35mm) 2-1/2 47724 47701 2 45460-5
1/2 (12.70mm) 1-1/4 1/4 (6.35mm) 2-3/4 47724 47701 2 45461
1/2 (12.70mm) 3/8 (9.53mm) 1/4 (6.35mm) 2-1/4 47724 47701 2 45481
1/2 (12.70mm) 3/8 (9.53mm) 1/4 (6.35mm) 2-1/4 47724 47701 2 45481-5
1/2 (12.70mm) 1/2 (12.70mm) 1/4 (6.35mm) 2 (50.80mm) 47724 47701 2 45487
1/2 (12.70mm) 1/2 (12.70mm) 1/4 (6.35mm) 2-1/2 47724 47701 3 45487-3TS
1/2 (12.70mm) 3/4 (19.05mm) 1/4 (6.35mm) 2-1/4 47724 47701 2 45491
1/2 (12.70mm) 3/4 (19.05mm) 1/4 (6.35mm) 2-1/4 47724 47701 2 45491-5
1/2 (12.70mm) 3/4 (19.05mm) 8mm 2-3/4 – 47701 2 45493-M
1/2 (12.70mm) 1-1/4 1/2 (12.70mm) 3-1/2 – 47701 2 47228
1/2 (12.70mm) 1-1/4 1/2 (12.70mm) 3-1/2 – 47701 2 47228-5
1/2 (12.70mm) 1/2 (12.70mm) 1/2 (12.70mm) 2-3/4 – 47701 2 47228-S
1/2 (12.70mm) 1 (25.40mm) 1/4 (6.35mm) 2-5/8 – 47701 2 57172
1/2 (12.70mm) 1 (25.40mm) 1/4 (6.35mm) 2-13/16 – 47701 3 57177
9/16 (14.29mm) 3/4 (19.05mm) 1/4 (6.35mm) 2-5/16 47724 47753 2 45361
9/16 (14.29mm) 3/4 (19.05mm) 1/4 (6.35mm) 2-1/4 47752 47712 2 45479
0.615 (15.75mm) 1/2 (12.70mm) 1/4 (6.35mm) 2-1/4 – 47712 2 45469
0.615 (15.75mm) 1/2 (12.70mm) 1/4 (6.35mm) 2-1/4 – 47712 2 45476
0.615 (15.75mm) 3/4 (19.05mm) 1/4 (6.35mm) 2-1/2 47752 47712 2 45478
5/8 (15.88mm) 1 (25.40mm) 1/4 (6.35mm) 2-3/4 47724 47712 2 45462
5/8 (15.88mm) 3/4 (19.05mm) 1/4 (6.35mm) 2-5/8 – 47712 2 45470
5/8 (15.88mm) 1/2 (12.70mm) 1/4 (6.35mm) 2-1/4 47724 47712 2 45482
5/8 (15.88mm) 3/4 (19.05mm) 1/4 (6.35mm) 2-1/2 47724 47712 2 45483
5/8 (15.88mm) 1-1/4 1/2 (12.70mm) 3-1/2 – 47713 2 47229
3/4 (19.05mm) 1-1/4 1/2 (12.70mm) 3-1/4 47739 47721 2 45360
3/4 (19.05mm) 1-1/2 1/2 (12.70mm) 3-1/2 47739 47721 2 45362
3/4 (19.05mm) 2 (50.80mm) 1/2 (12.70mm) 4 (101.60mm) 47739 47721 2 45364
3/4 (19.05mm) 2 (50.80mm) 1/2 (12.70mm) 4 (101.60mm) 47739 47721 2 45364-5
3/4 (19.05mm) 2 (50.80mm) 1/2 (12.70mm) 4 (101.60mm) 47739 47721 2 45366
3/4 (19.05mm) 1-1/4 1/2 (12.70mm) 3-11/32 47739 47721 3 45366-3TS
3/4 (19.05mm) 3/8 (9.53mm) 1/2 (12.70mm) 3-1/4 47739 47721 3 45366-3US
3/4 (19.05mm) 2 (50.80mm) 1/2 (12.70mm) 4 (101.60mm) 47739 47721 2 45366-5
3/4 (19.05mm) 1 (25.40mm) 1/2 (12.70mm) 3 (76.20mm) 47739 47721 2 45463
3/4 (19.05mm) 1 (25.40mm) 1/2 (12.70mm) 3 (76.20mm) 47739 47721 3 45463-3DS
3/4 (19.05mm) 1 (25.40mm) 1/2 (12.70mm) 3 (76.20mm) 47739 47721 3 45463-3TS
3/4 (19.05mm) 1 (25.40mm) 1/2 (12.70mm) 3 (76.20mm) 47739 47721 3 45463-3US
3/4 (19.05mm) 3/4 (19.05mm) 1/2 (12.70mm) 2-3/4 47739 47721 2 45463-S
3/4 (19.05mm) 1 (25.40mm) 1/4 (6.35mm) 2-1/2 47724 47714 2 45464
3/4 (19.05mm) 1 (25.40mm) 1/4 (6.35mm) 2-1/2 47724 47714 2 45464-5
3/4 (19.05mm) 1-3/4 1/2 (12.70mm) 3-3/4 47739 47721 2 45465
3/4 (19.05mm) 3/4 (19.05mm) 1/4 (6.35mm) 2-3/8 47724 47714 2 45485
3/4 (19.05mm) 1-9/64 1/2 (12.70mm) 3-1/2 – 47721 3 57179
3/4 (19.05mm) 3/8 (9.53mm) 1/4 (6.35mm) 2-1/8 47724 47714 3 57280-3DS
7/8 (22.23mm) 1-9/64 1/2 (12.70mm) 3-15/16 47739 47793 2 57176
1 (25.40mm) 1 (25.40mm) 1/2 (12.70mm) 2-3/4 47740 47745 2 45365
1 (25.40mm) 1 (25.40mm) 3/8 (9.53mm) 2-7/8 47730 47722 2 45466
1 (25.40mm) 1-3/4 1/2 (12.70mm) 3-3/4 47739 47745 2 45467
1-1/8 1 (25.40mm) 1/2 (12.70mm) 3 (76.20mm) 47740 47738 2 45550
1-1/8 2 (50.80mm) 1/2 (12.70mm) 4 (101.60mm) 47740 47738 2 45551
1-1/4 1-1/2 1/2 (12.70mm) 3-3/8 47740 47747 2 45367
1-1/2 1-3/4 1/2 (12.70mm) 3-3/4 47740 47749 2 45368
Weight 0.52 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.

Need This Tool Customized?

Every machining application is different. If this tool is close to what you need but not an exact fit, General Cutting Tools can help modify it for your specific job, machine, material, or production requirement.

We work with CNC shops, industrial manufacturers, tool rooms, and production facilities to provide tool modifications that improve fit, function, performance, and efficiency. Whether you need a small adjustment or a more specialized cutting tool solution, our team can review your requirements and recommend the best option.

Custom tool modifications can help reduce setup time, improve accuracy, extend tool life, solve clearance issues, and support more consistent production results.

Common Tool Customization Options

diameter modifications

Diameter and OD Modifications

We can modify tool diameters to better match your application requirements, including cutting diameter changes, OD modifications, pilot diameter adjustments, step diameters, and shank diameter modifications.

Bore Modifications for Saw Blades

Custom saw blade bore modifications are available for hole diameter changes, pinholes, mounting holes, and keyway cutouts to help match your machine setup and cutting requirements.

length adjustments

Length Adjustments

Tools can be modified for specific reach, clearance, or setup needs. This may include overall length changes, flute length adjustments, reduced neck sections, extended reach designs, or shortened tools for improved rigidity.

shank modifications

Shank Modifications

Shank modifications can help ensure the tool fits properly in your holder, spindle, or machine setup. Common options include shank diameter changes, flats, Weldon flats, reduced shanks, and custom holding requirements.

radius chamfer corner changes

Radius, Chamfer, and Corner Changes

We can customize corner radius, chamfer angles, edge breaks, and other profile details to meet part print requirements or improve cutting performance.

step tool modifications

Step Tool Modifications

For applications that require multiple diameters or operations in a single tool, we can create or modify step tools to help reduce tool changes and improve production efficiency.

flute cutting edge adjustments

Flute and Cutting Edge Adjustments

Depending on the tool and application, flute length, cutting edge geometry, end cutting features, relief angles, and cutting edge shape may be modified to improve chip evacuation, cutting action, and tool performance.

Regrinding and Resharpening

Many cutting tools can be reground or resharpened to restore performance, extend tool life, and reduce replacement costs.

custom profiles special forms

Custom Profiles and Special Forms

For unique part features, we can help provide special forms, custom profiles, custom radii, counterbores, countersinks, keyseat cutters, form tools, and other application-specific tooling solutions.

material specific tool adjustments

Material-Specific Tool Adjustments

We can help modify or recommend tooling based on the material being machined, including aluminum, brass, bronze, plastics, stainless steel, hardened steel, cast iron, composites, and other industrial materials.

custom drawings solutions

Have a Drawing, Sample, or Part Print?

Send us your print, sketch, CAD file, photo, tool number, sample, or application details. For the fastest quote, include the material being cut, quantity needed, required dimensions, tolerances, and any machine or holder requirements.

Coating Options

Tool coatings can be selected or added to improve wear resistance, heat resistance, lubricity, and performance in specific materials such as steel, stainless steel, aluminum, cast iron, and high-temperature alloys.

export support

Request a Custom Tool Modification

Need this tool changed for your application? Contact General Cutting Tools today to discuss your custom tooling needs. We can help you find the right solution for your machine, material, and production goals.
